HOOK & LINK

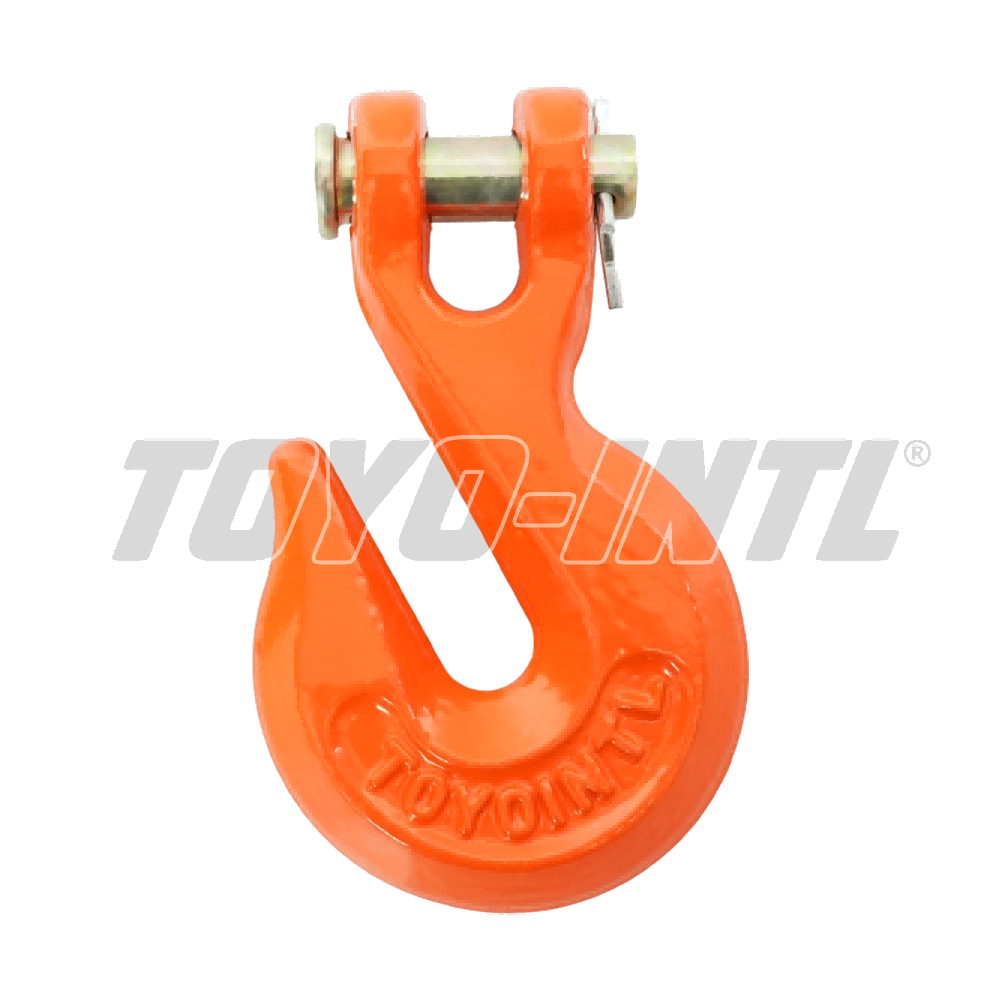

TOYO-INTL A-330 Alloy Clevis Grab Hook
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Alloy clevis swivel grab hook type A-330 is printed on the product sheet. Chain-size options run from 1/4 to 3/4 in., including a 7/16 in. row. WLL options run from 3,500 to 24,700 lb. Per-piece weight is listed from 0.36 to 6.50 lb. Seven stock-number rows are provided, from 1123249 to 1123365. The retained E, G, H, K, L, N, P, and R dimensions are printed in inches. Complete semantic specifications; pure schematic letter dimensions removed:
Product Details
- Alloy clevis swivel grab hook type A-330 is printed on the product sheet.
- Chain-size options run from 1/4 to 3/4 in., including a 7/16 in. row.
- WLL options run from 3,500 to 24,700 lb.
- Per-piece weight is listed from 0.36 to 6.50 lb.
- Seven stock-number rows are provided, from 1123249 to 1123365.
- The retained E, G, H, K, L, N, P, and R dimensions are printed in inches.
- Complete semantic specifications; pure schematic letter dimensions removed:

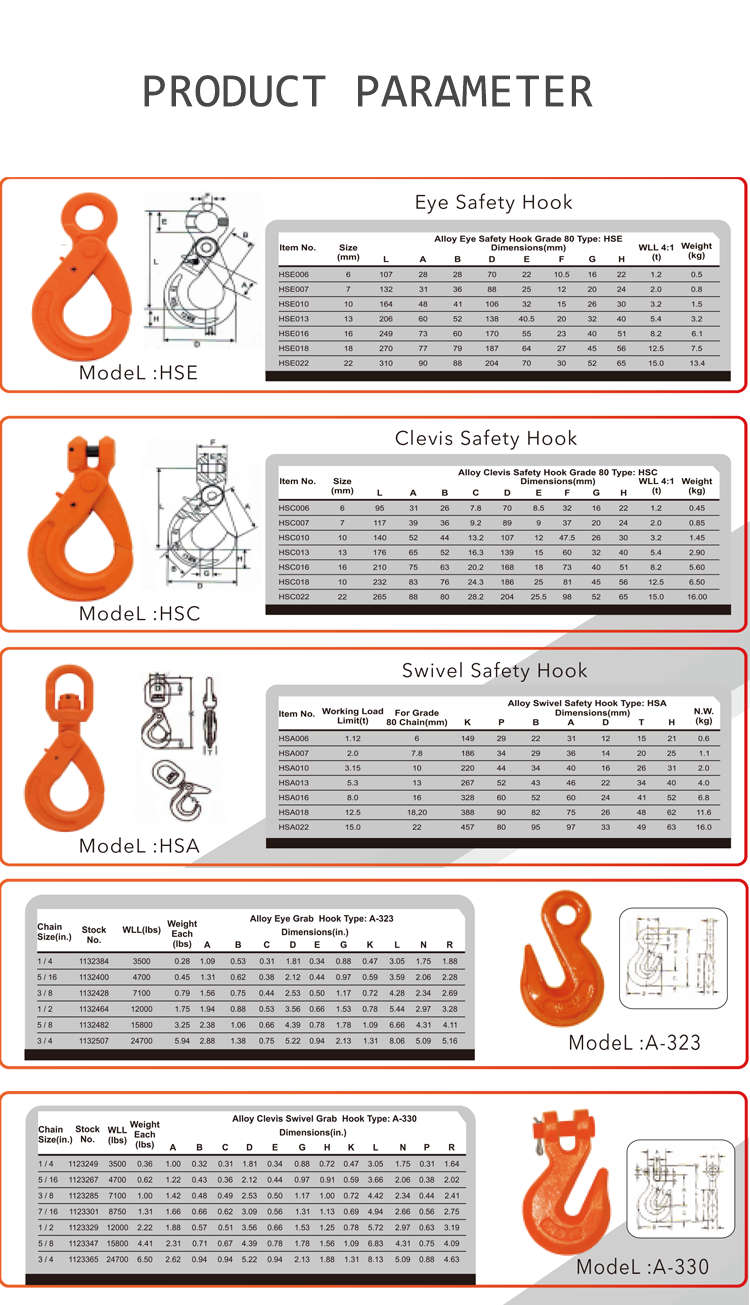

Technical Specifications
| Stock no. | Chain size (in.) | WLL (lb) | Weight each (lb) |
|---|---|---|---|
| 1123249 | 1/4 | 3,500 | 0.36 |
| 1123267 | 5/16 | 4,700 | 0.62 |
| 1123285 | 3/8 | 7,100 | 1.00 |
| 1123301 | 7/16 | 8,750 | 1.31 |
| 1123329 | 1/2 | 12,000 | 2.22 |
| 1123347 | 5/8 | 15,800 | 4.41 |
| 1123365 | 3/4 | 24,700 | 6.50 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
