Pallet Trucks

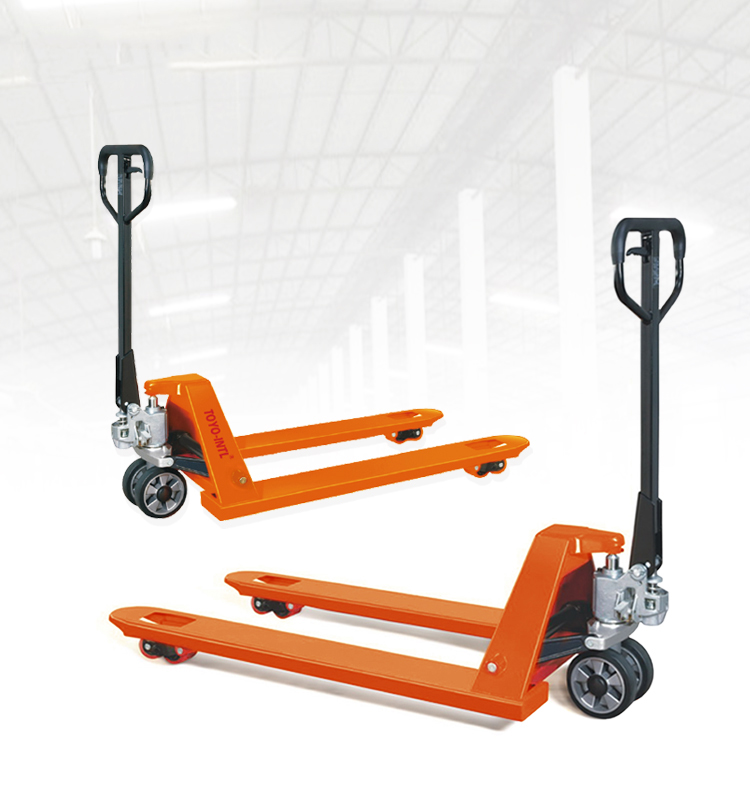

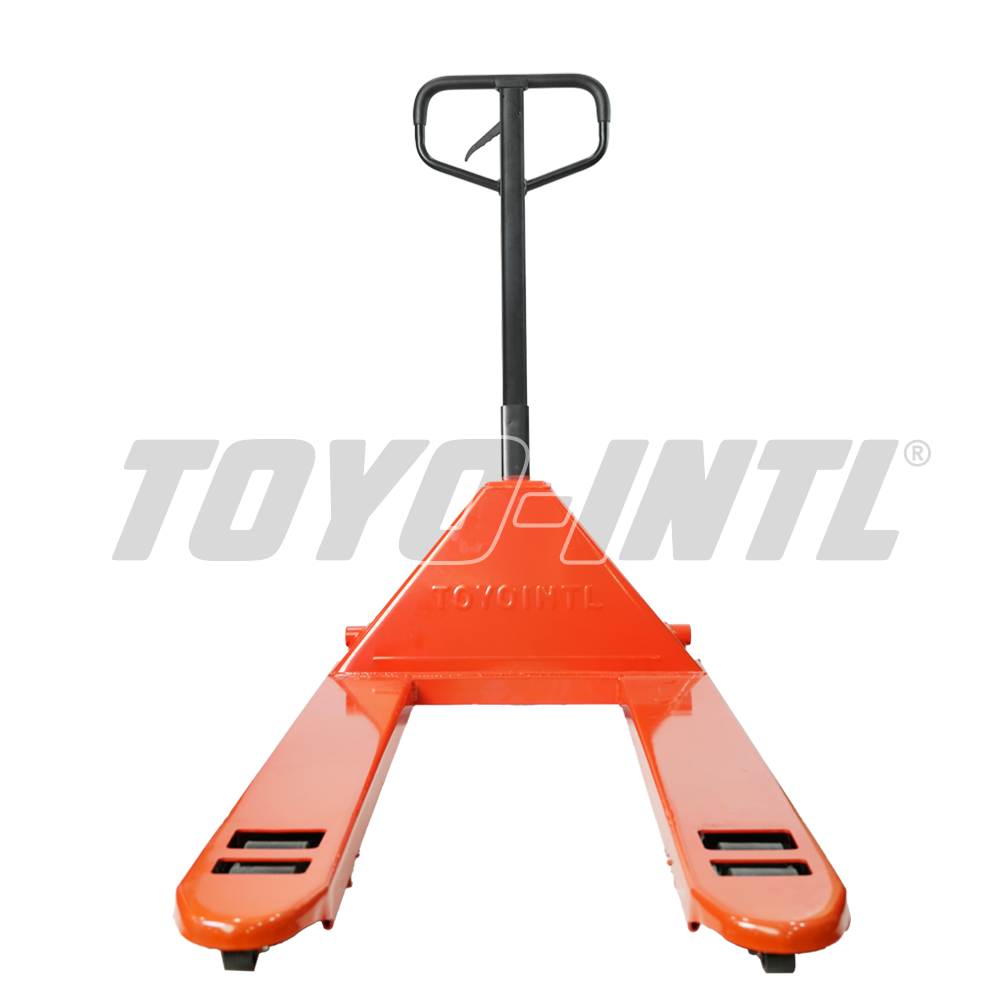

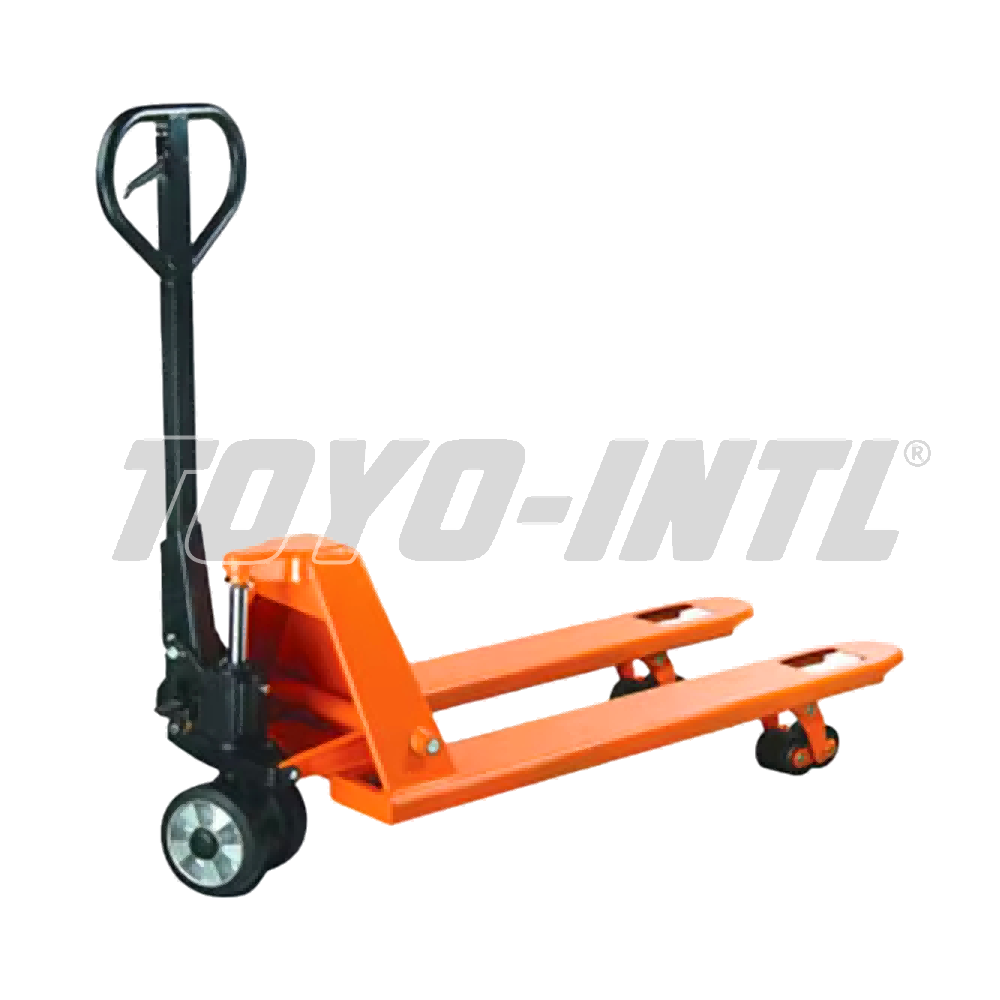

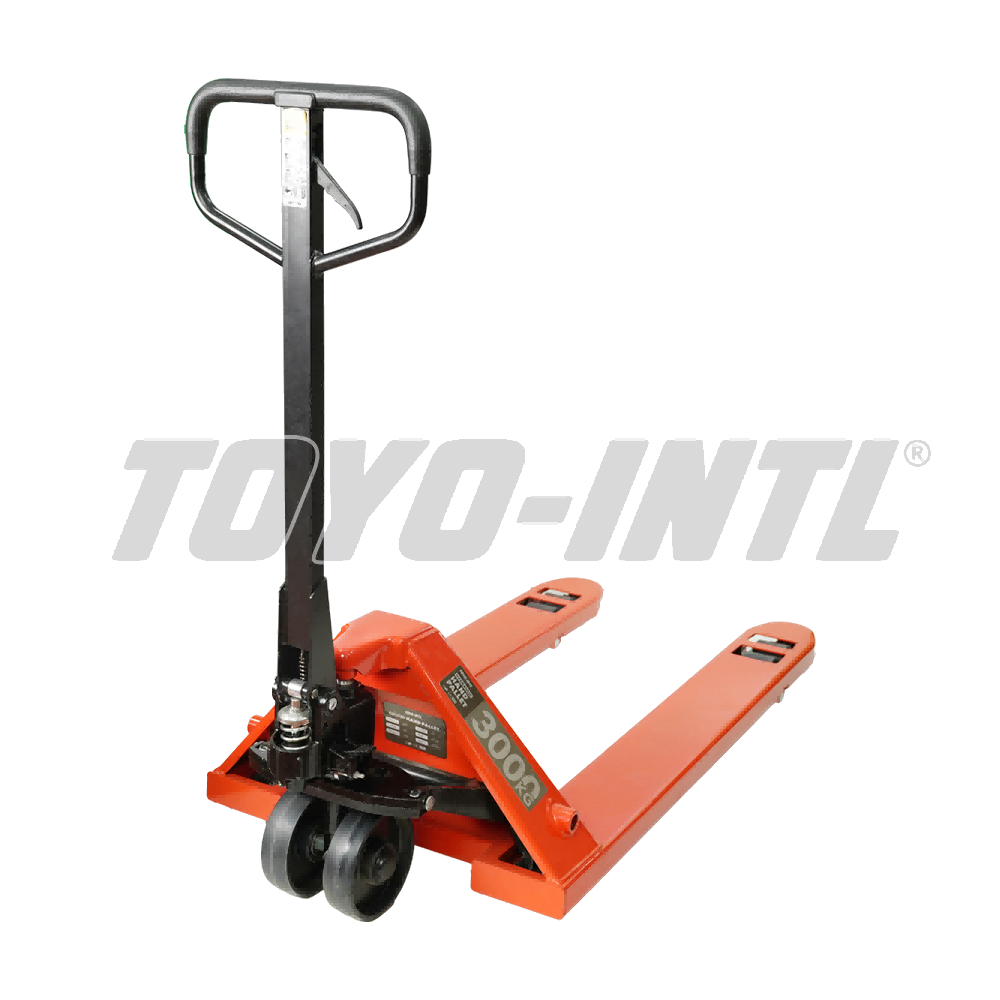

TOYO-INTL AC Hand Pallet Truck
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Hydraulic hand pallet truck for short-distance handling. The large rubber handle is ergonomic and replaceable/upgradable. The handle provides lowered, neutral, and lifting positions. An integrated oil pump provides smooth, easy lifting. The table lists 2,000–5,000 kg capacity options. Fork width is listed as 550/685 mm and fork length as 1,150/1,200 mm. Loading wheels are φ80×70 mm and steering wheels are φ180×50 mm. Wheel material is listed as Nylon/PU.
Product Details
- Hydraulic hand pallet truck for short-distance handling.

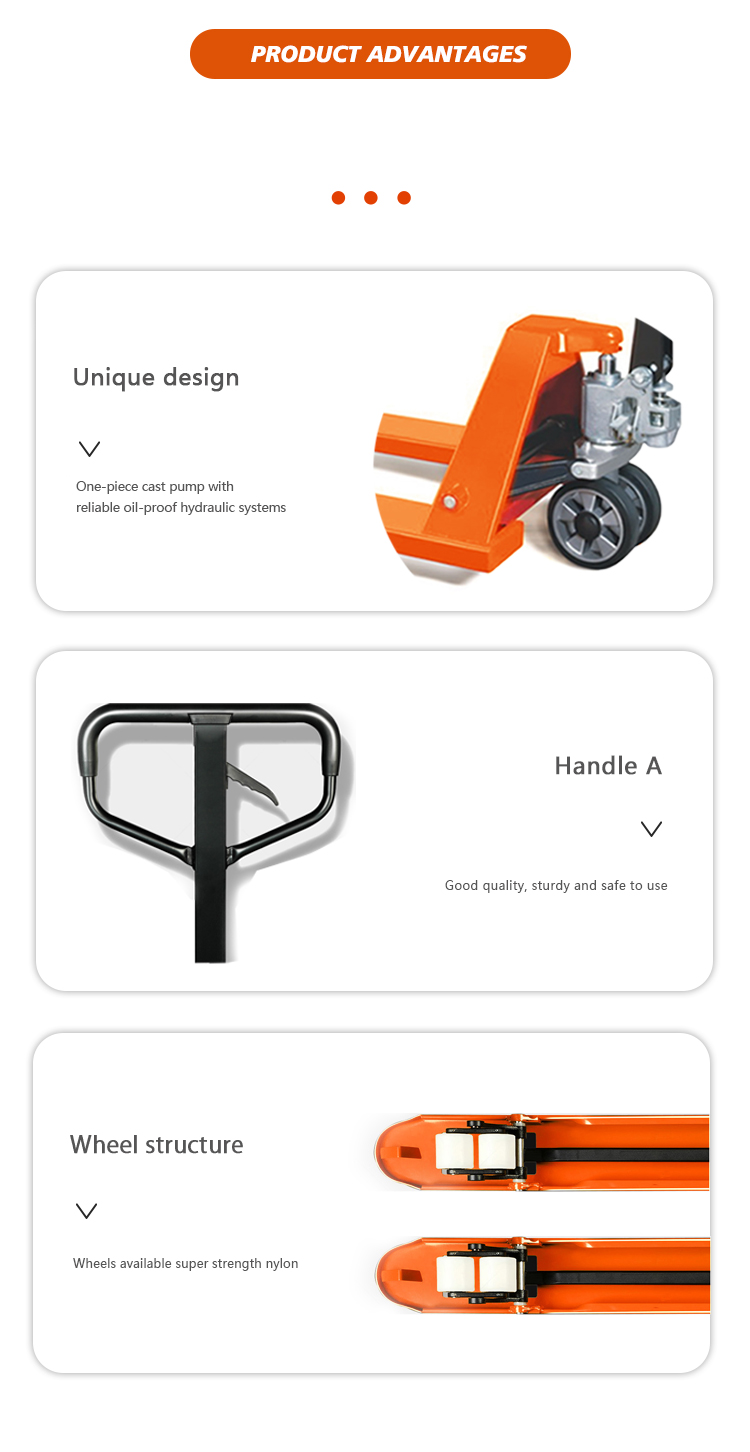

- The large rubber handle is ergonomic and replaceable/upgradable.

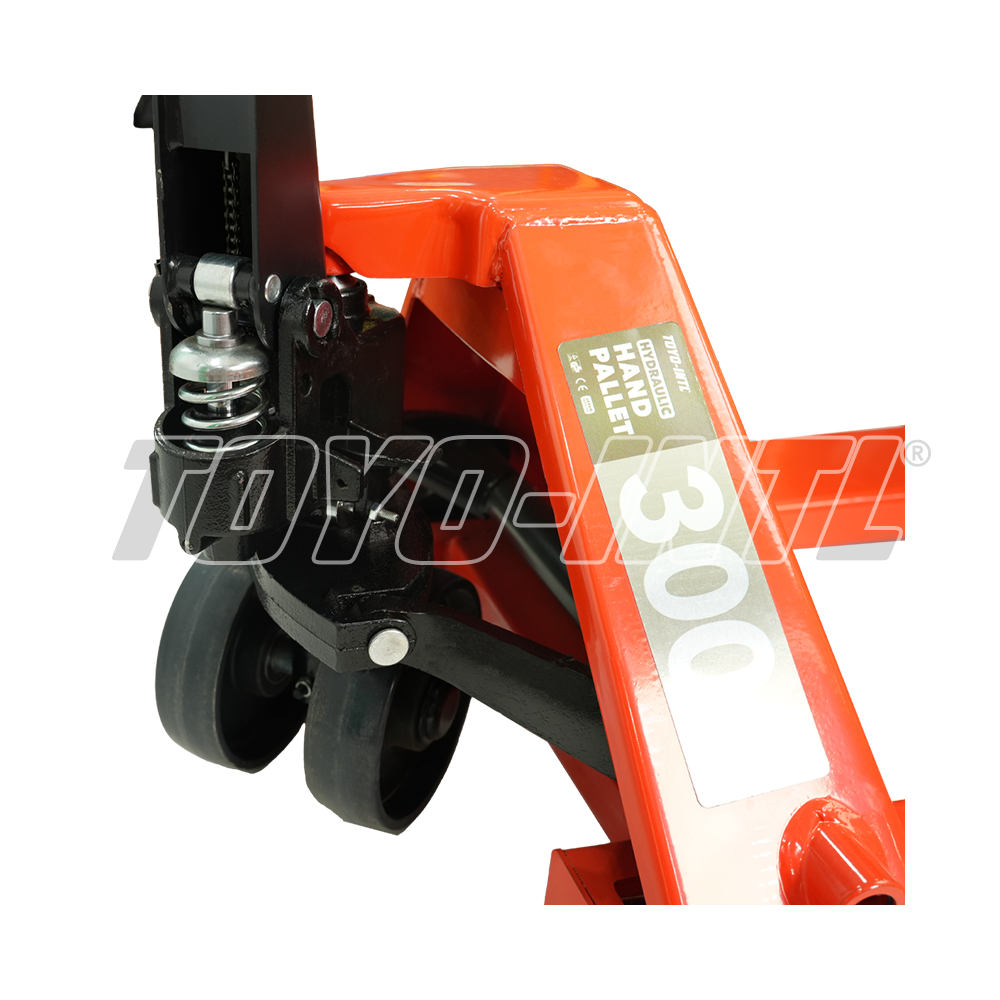

- The handle provides lowered, neutral, and lifting positions.
- An integrated oil pump provides smooth, easy lifting.
- The table lists 2,000–5,000 kg capacity options.
- Fork width is listed as 550/685 mm and fork length as 1,150/1,200 mm.
- Loading wheels are φ80×70 mm and steering wheels are φ180×50 mm.
- Wheel material is listed as Nylon/PU.

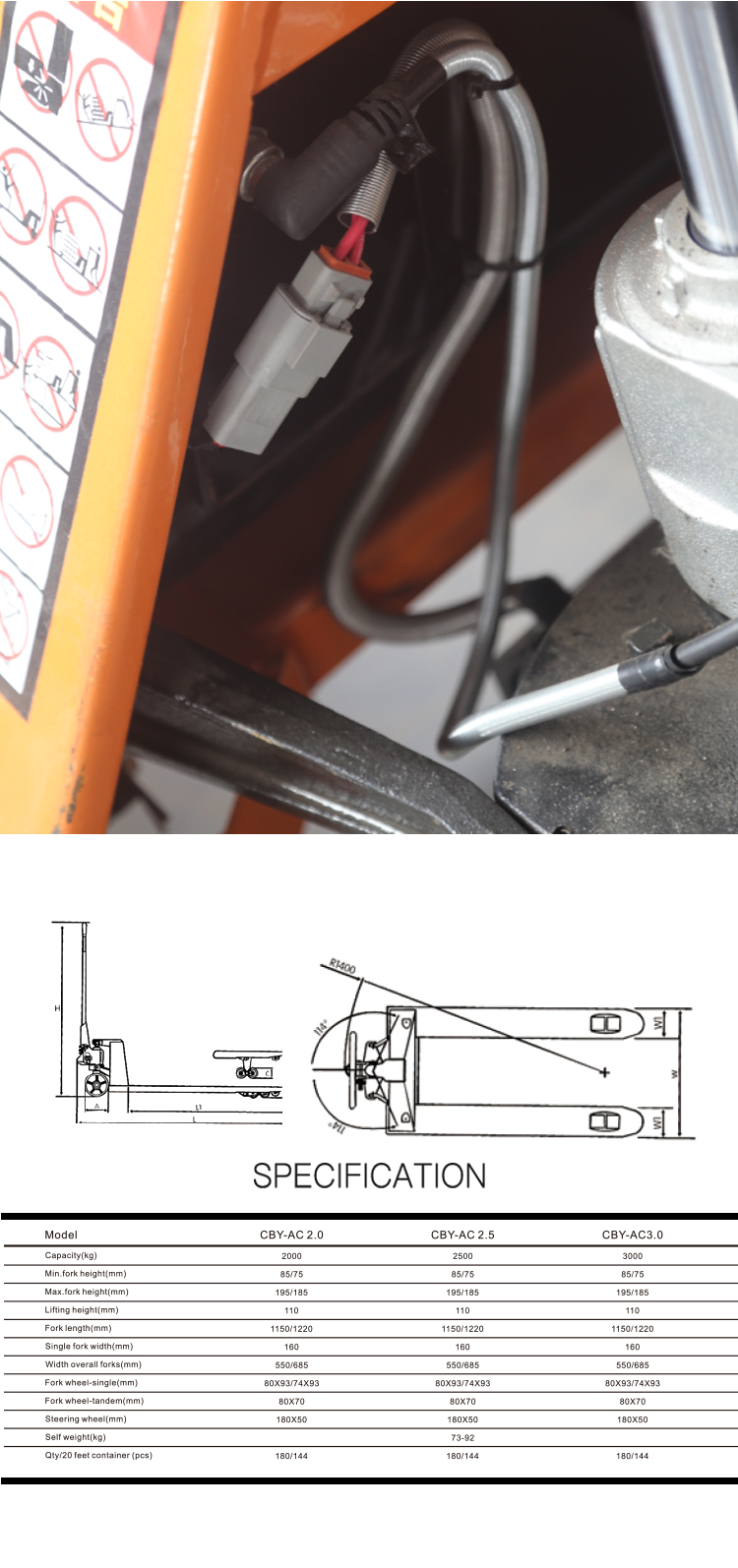

Technical Specifications
| Model | Capacity (kg) | Min. fork height (mm) | Max. fork height (mm) | Max. lifting height (mm) | Fork width (mm) | Fork length (mm) | Loading wheel (mm) | Steering wheel (mm) | Wheel material | Self weight (kg) | Qty/20-ft container (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AC2.0 | 2,000 | 80/75 | 200/190 | 110 | 550/685 | 1,150/1,200 | φ80×70 | φ180×50 | Nylon/PU | 64–68 | 180/144 |
| AC2.5 | 2,500 | 80/75 | 200/190 | 110 | 550/685 | 1,150/1,200 | φ80×70 | φ180×50 | Nylon/PU | 72–78 | 180/144 |
| AC3.0 | 3,000 | 80/75 | 200/190 | 110 | 550/685 | 1,150/1,200 | φ80×70 | φ180×50 | Nylon/PU | 74–80 | 180/144 |
| AC5.0 | 5,000 | 80/75 | 200/190 | 110 | 550/685 | 1,150/1,200 | φ80×70 | φ180×50 | Nylon/PU | 116–120 | 180/144 |
