PULLER & WINCH

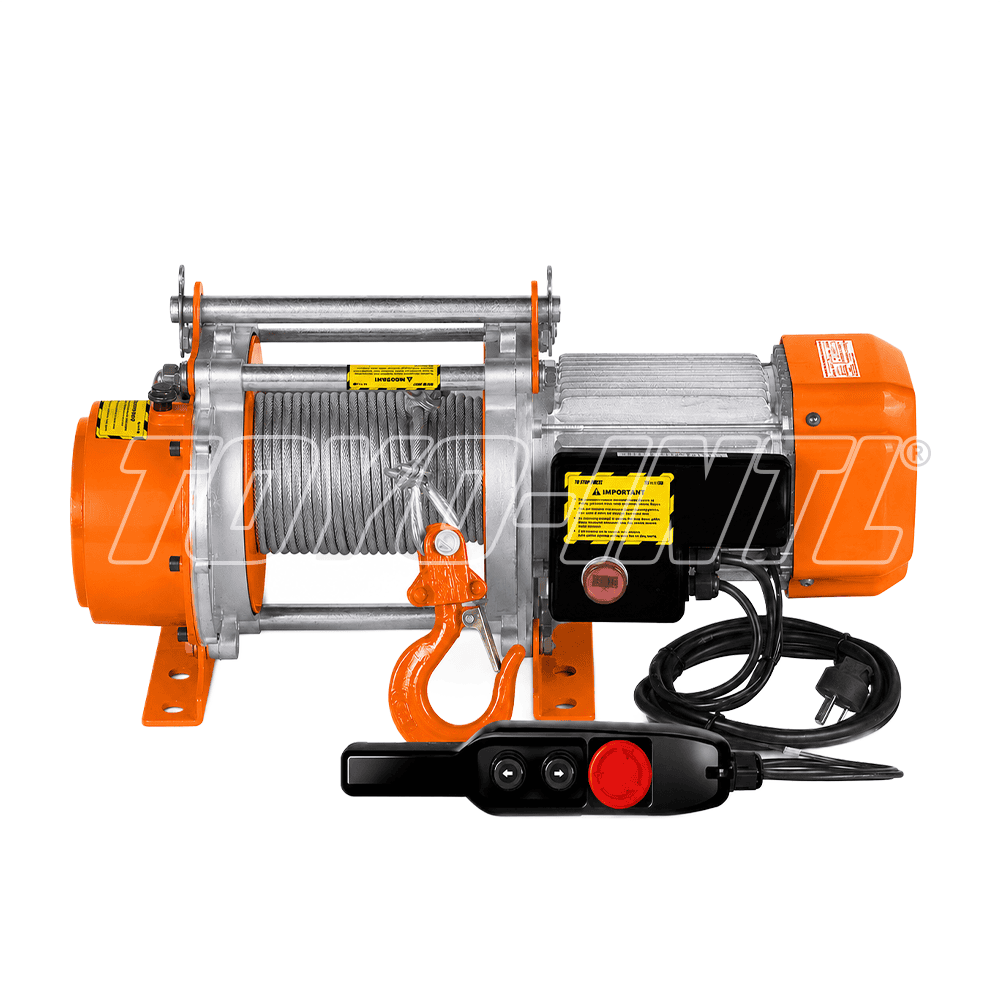

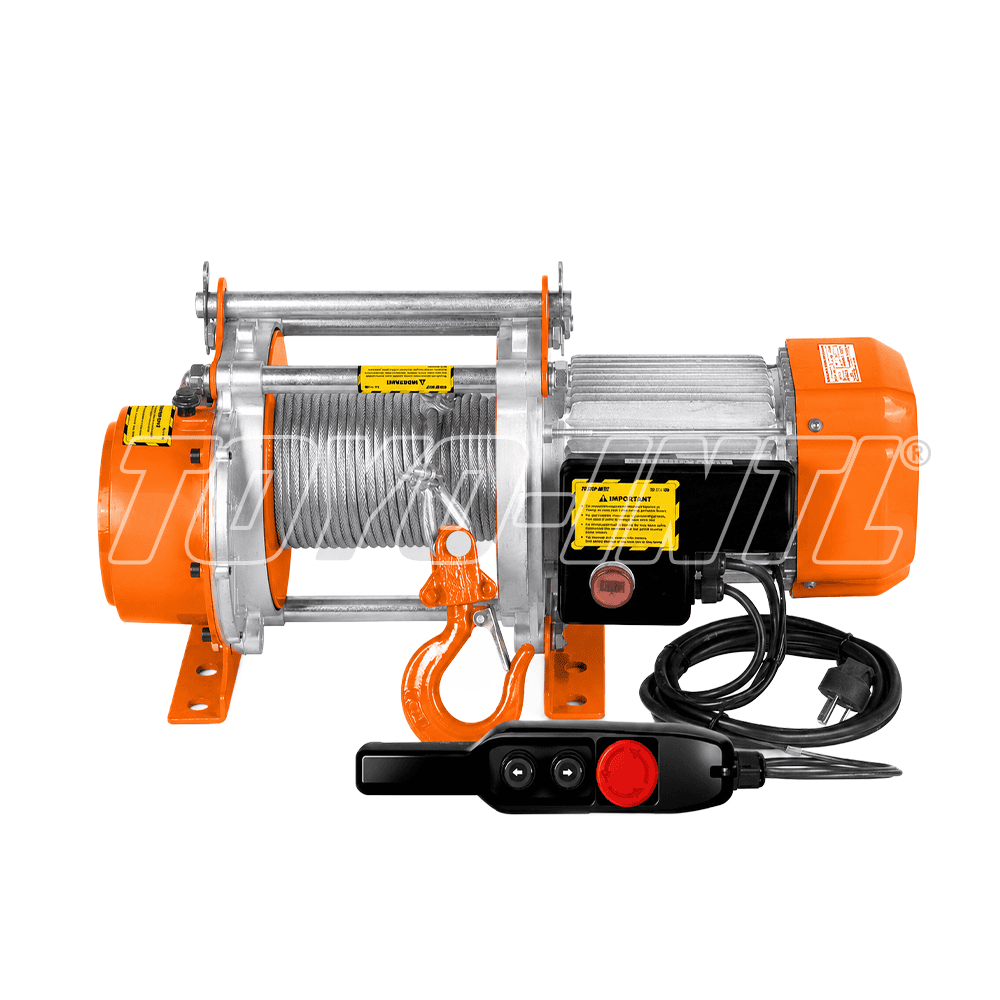

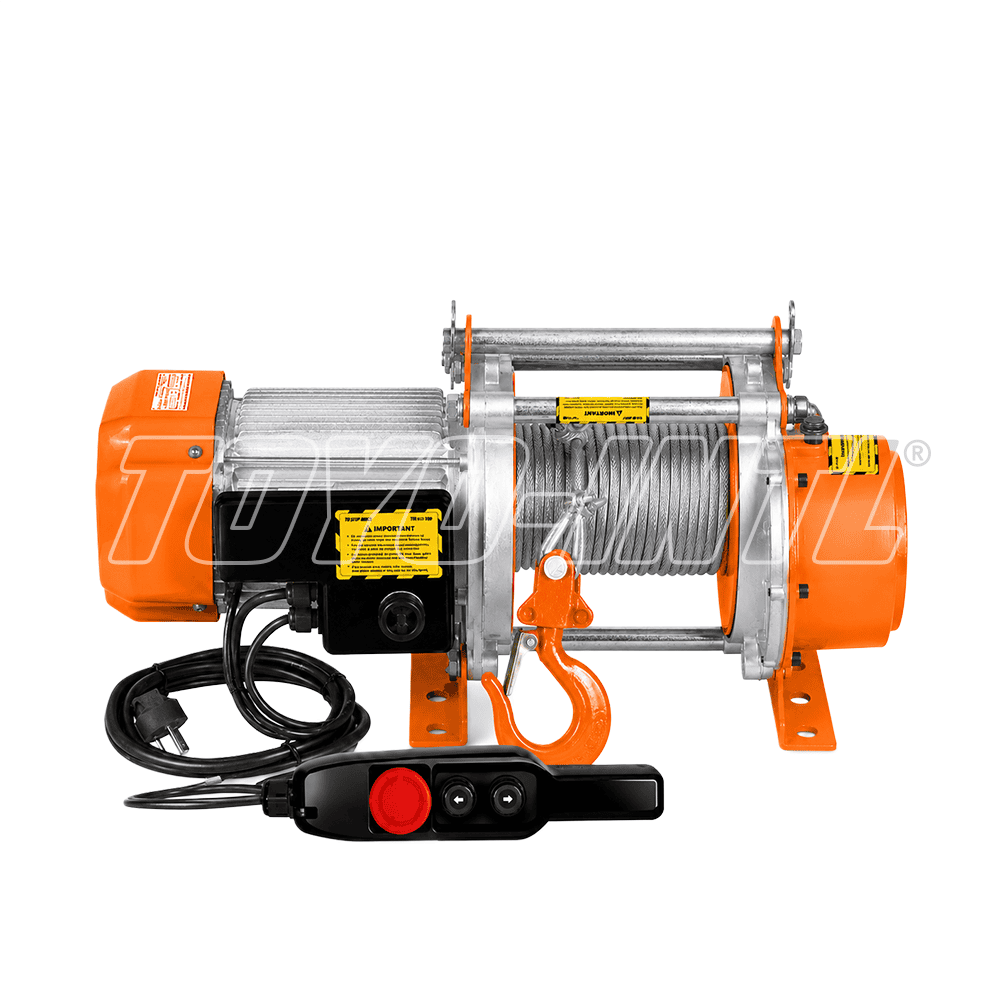

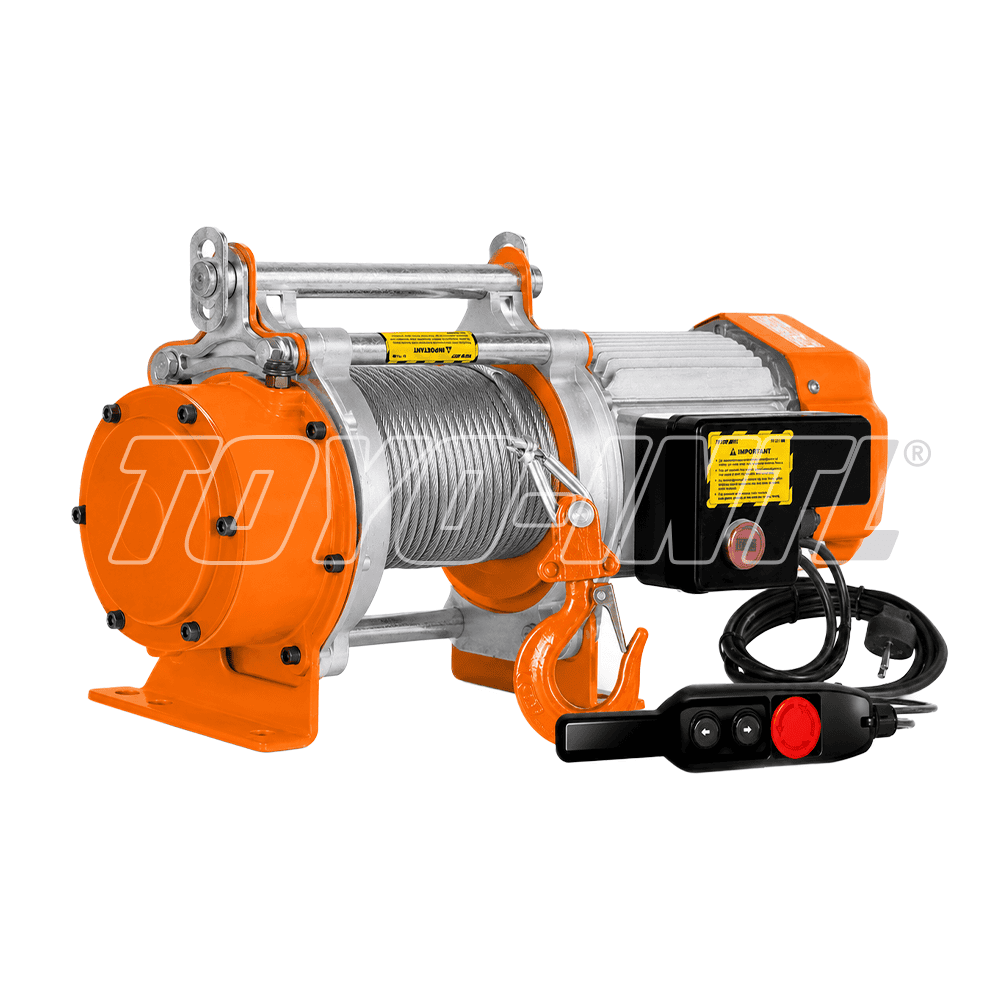

TOYO-INTL Aluminum Electric Wire Rope Winch Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Aluminum electric winch with dual-voltage configurations. Multi-purpose load and lift-height combinations are shown. Two-speed control is listed as 14/7 m/min for precise positioning. Optimized rope-groove design is described as extending service life. Smooth start/stop is described as reducing load swing. High duty cycle is stated for frequent lifting operations. Compact structure is described as suitable for easy installation and maintenance.
Product Details
- Aluminum electric winch with dual-voltage configurations.
- Multi-purpose load and lift-height combinations are shown.
- Two-speed control is listed as 14/7 m/min for precise positioning.
- Optimized rope-groove design is described as extending service life.
- Smooth start/stop is described as reducing load swing.
- High duty cycle is stated for frequent lifting operations.
- Compact structure is described as suitable for easy installation and maintenance.
Technical Specifications
| Voltage (V) | Load-capacity configuration | Wire-rope diameter (mm) | Operating speed (m/min) |
|---|---|---|---|
| 220 | 300KG*20M / 6000KG*10M | 6 | 14/7 |
| 220 | 500KG*30M / 1000KG*15M | 6 | 14/7 |
| 220 | 500KG*60M / 1000KG*30M | 6 | 14/7 |
| 220 | 750KG*30M / 1500KG*15M | 7 | 14/7 |
| 220 | 750KG*60M / 1500KG*30M | 7 | 14/7 |
| 380 | 300KG*20M / 6000KG*10M | 6 | 14/7 |
| 380 | 500KG*30M / 1000KG*15M | 6 | 14/7 |
| 380 | 500KG*60M / 1000KG*30M | 6 | 14/7 |
| 380 | 750KG*30M / 1500KG*15M | 7 | 14/7 |
| 380 | 750KG*60M / 1500KG*30M | 7 | 14/7 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
