LIFTING CLAMP & MAGNET LIFTER

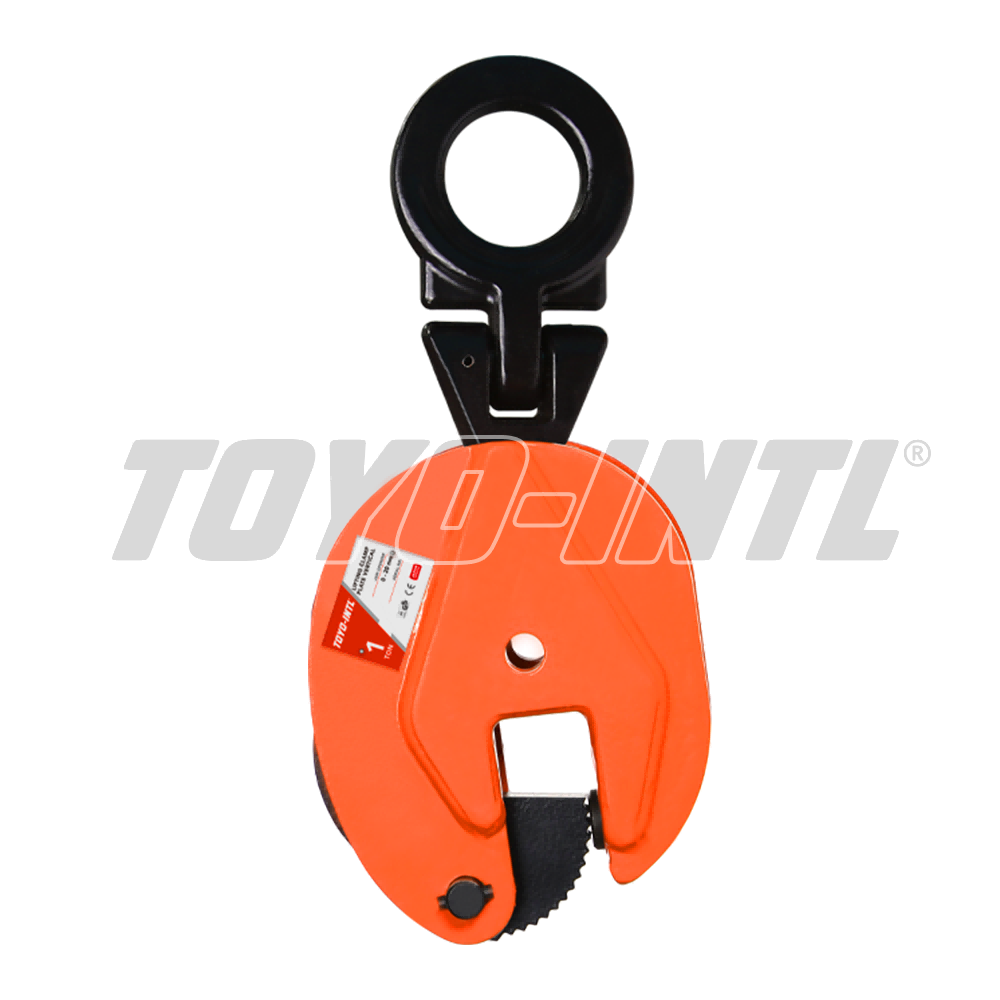

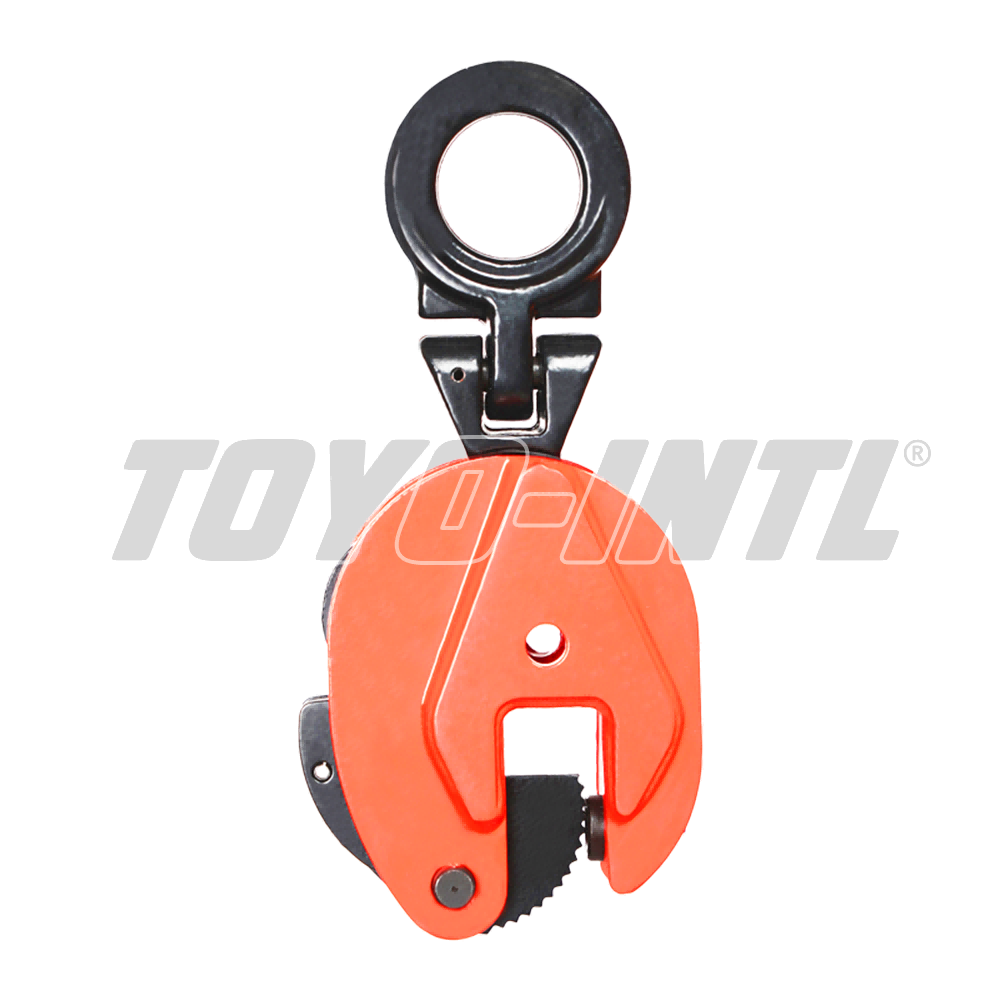

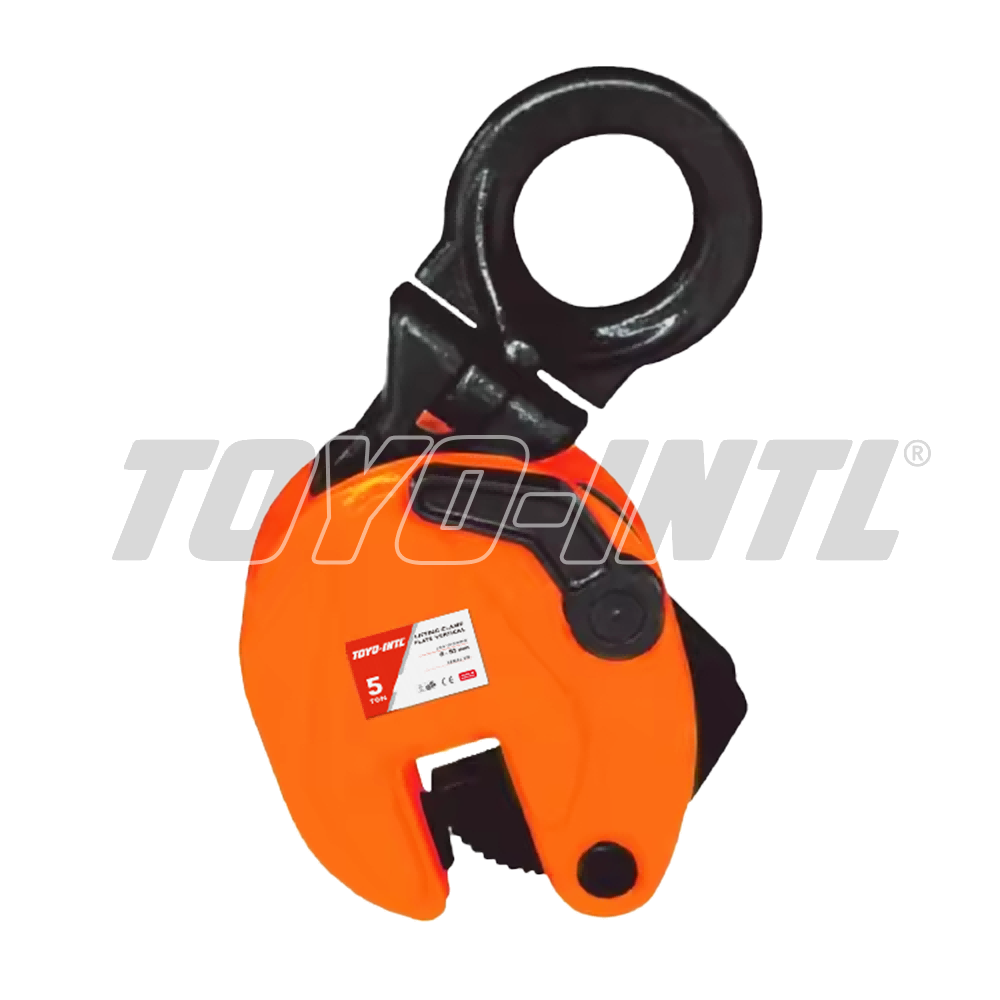

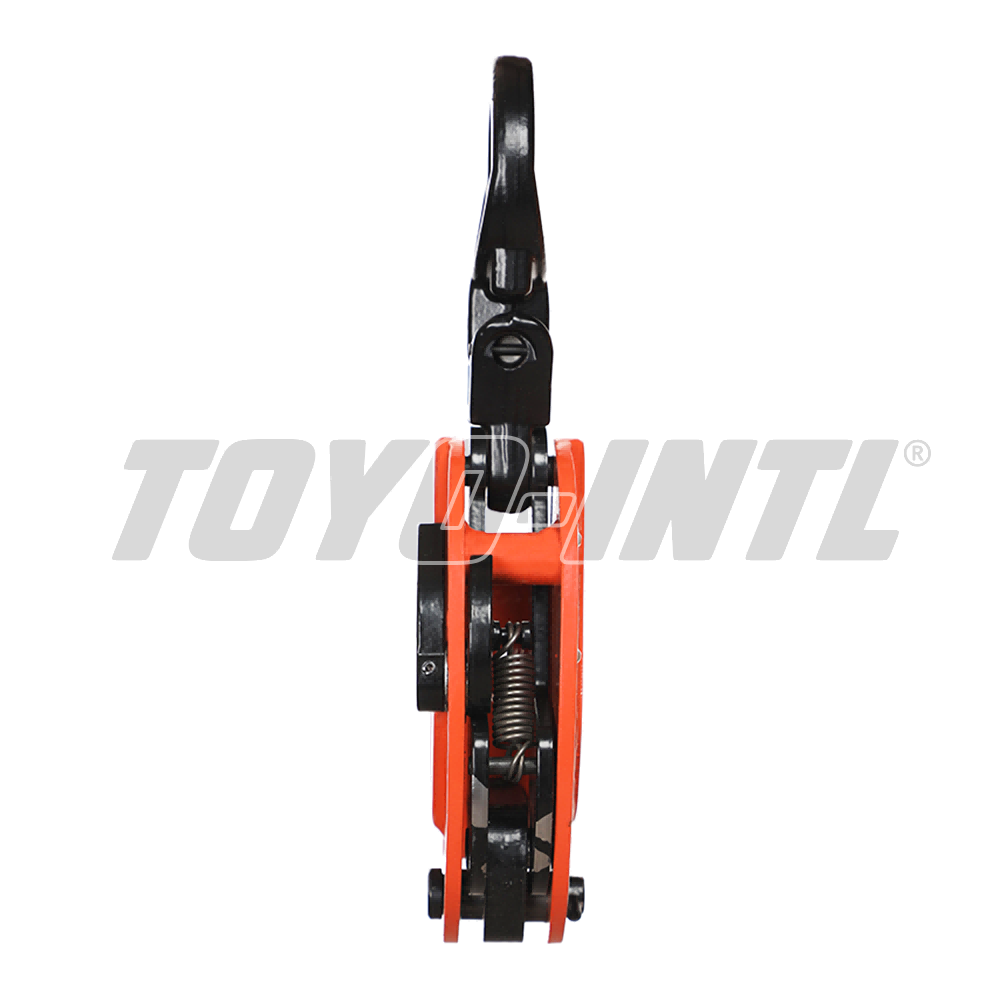

TOYO-INTL CD Lifting Clamp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The universal vertical CD clamp lifts and turns a load through 180°. The load is positively retained during lifting and turning. The clamp is suited to steel plates, ship sections, and pile-sheet extraction. A safety latch uses a double-locking device in both open and closed positions. The design guarantees a pre-load on the material being lifted. The table provides WLL options from 0.8 to 30.0 tonnes. The listed jaw openings run from 0–15 mm to 60–220 mm by model.
Product Details
- The universal vertical CD clamp lifts and turns a load through 180°.
- The load is positively retained during lifting and turning.
- The clamp is suited to steel plates, ship sections, and pile-sheet extraction.
- A safety latch uses a double-locking device in both open and closed positions.
- The design guarantees a pre-load on the material being lifted.
- The table provides WLL options from 0.8 to 30.0 tonnes.
- The listed jaw openings run from 0–15 mm to 60–220 mm by model.
Technical Specifications
| Model | WLL (tonnes) | Jaw opening (mm) | Weight (kg) |
|---|---|---|---|
| CD0.8 | 0.8 | 0–15 | 2.1 |
| CD1 | 1.0 | 0–20 | 4.5 |
| CD1(B) | 1.0 | 0–20 | 5 |
| CD1.6 | 1.6 | 0–25 | 7.8 |
| CD2 | 2.0 | 0–25 | 8.1 |
| CD3.2 | 3.2 | 0–35 | 13.8 |
| CD3.2(B) | 3.2 | 0–30 | 15 |
| CD5 | 5.0 | 0–50 | 19.5 |
| CD5(B) | 5.0 | 0–50 | 23 |
| CD8 | 8.0 | 0–50 | 33.25 |
| CD12 | 12.0 | 0–70 | 50 |
| CD16 | 16.0 | 60–100 | 65 |
| CD30 | 30.0 | 60–220 | 120 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
