ELECTRIC HOIST

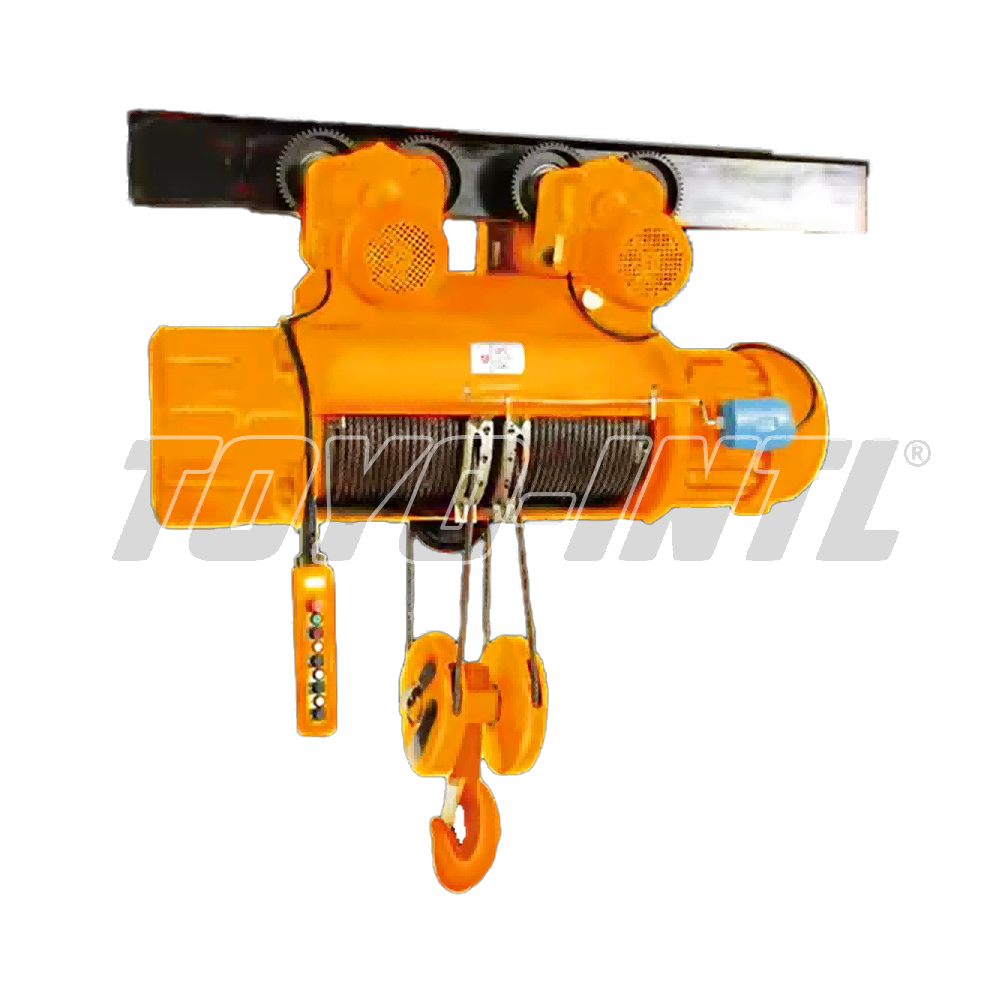

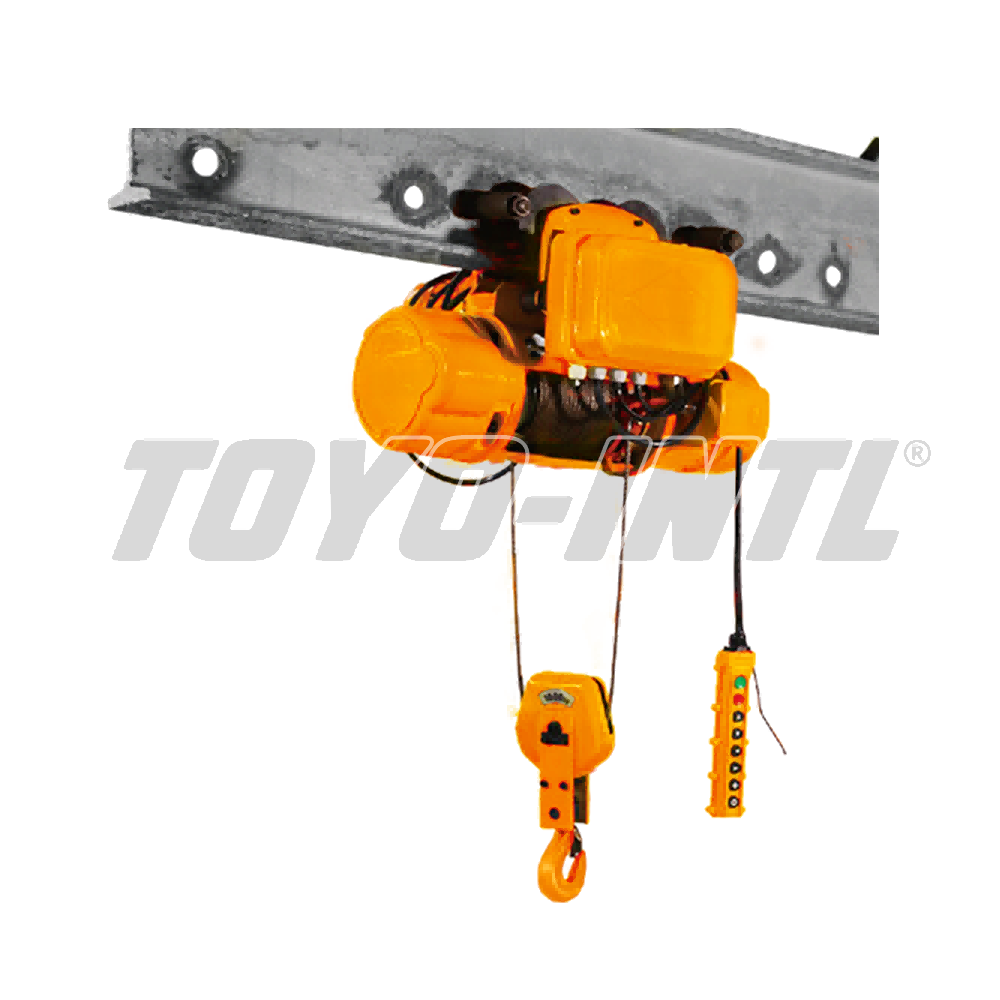

TOYO-INTL CD1 Electric Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

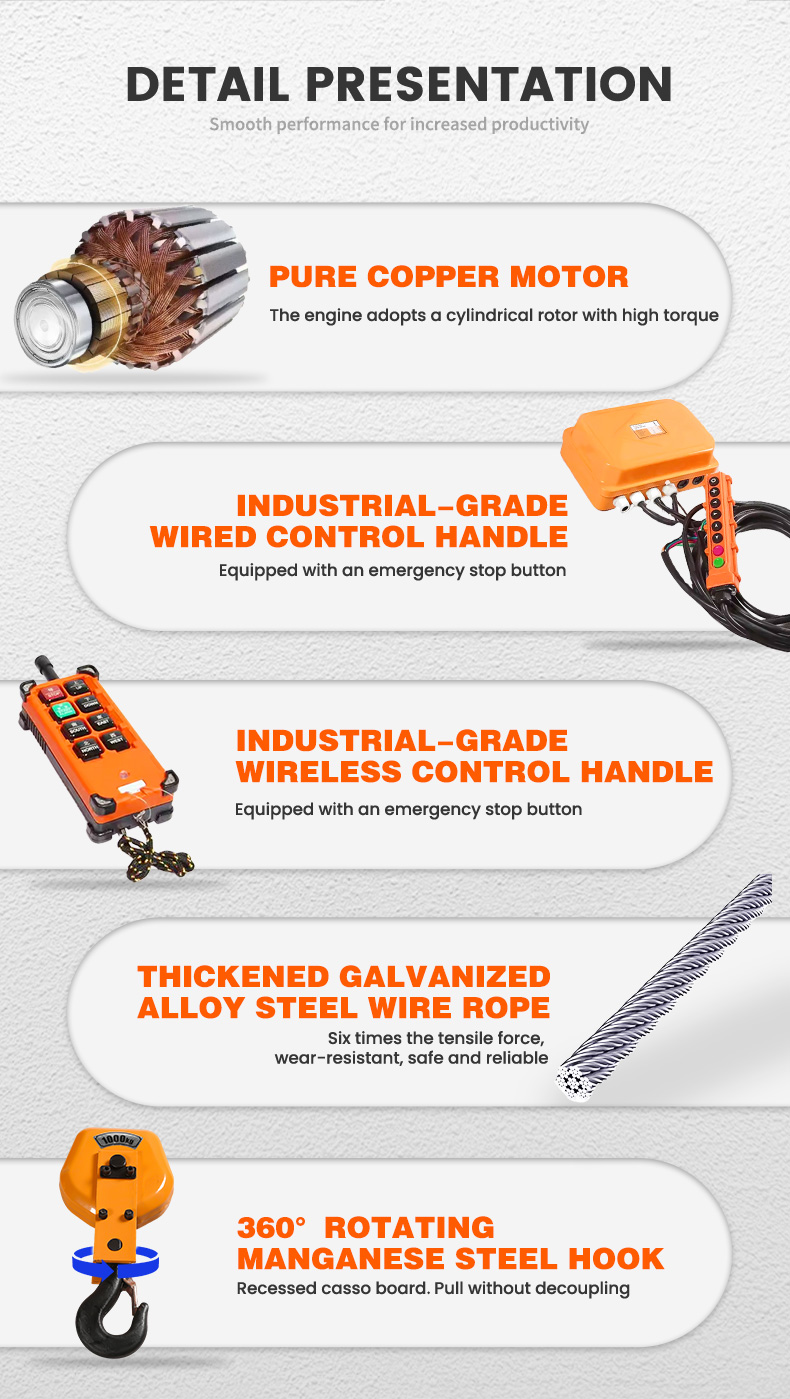

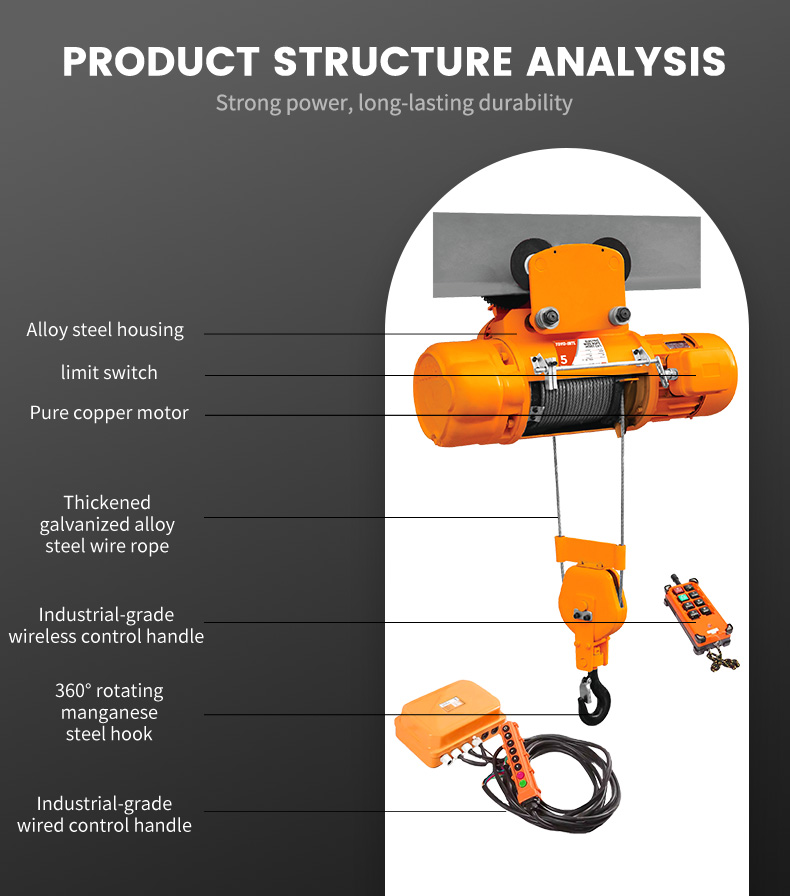

The reducer uses third-class dead-axle helical-gear transmission. Heat-treated alloy-steel gears and gear axles are installed in a cast-iron case and cover with precise assembly and good sealing. The reducer is independent for easier loading and unloading. The control box provides upper- and lower-stroke protection through a break-off limiter. The control box can cut off the main circuit in an emergency for operational safety. The steel wire rope is specified as GB1102-74 (6×37+1) and is described as durable in use. The conical motor is described as providing stronger starting torque, F-grade insulation, and IP44/IP54 protection. The hand-operated button switch supports cord operation and cordless remote control.
Product Details
- The reducer uses third-class dead-axle helical-gear transmission.
- Heat-treated alloy-steel gears and gear axles are installed in a cast-iron case and cover with precise assembly and good sealing.
- The reducer is independent for easier loading and unloading.
- The control box provides upper- and lower-stroke protection through a break-off limiter.
- The control box can cut off the main circuit in an emergency for operational safety.
- The steel wire rope is specified as GB1102-74 (6×37+1) and is described as durable in use.
- The conical motor is described as providing stronger starting torque, F-grade insulation, and IP44/IP54 protection.

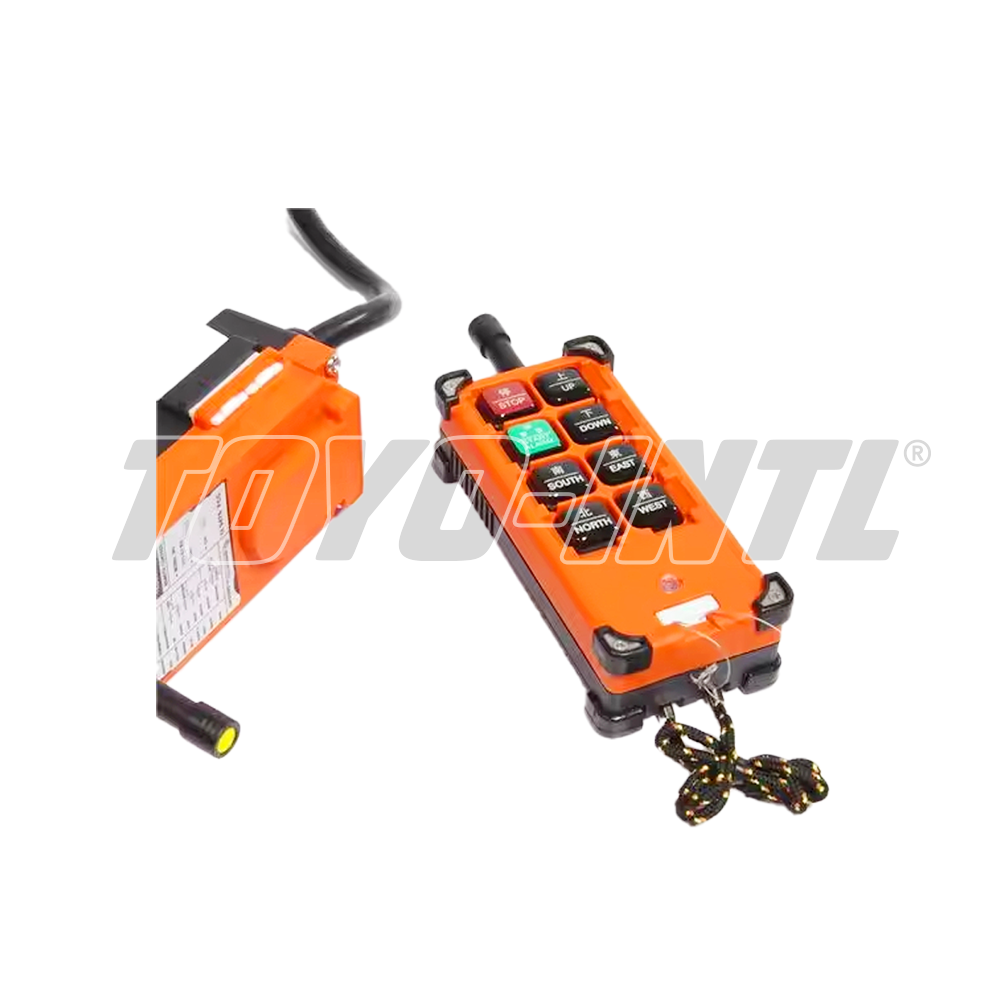

- The hand-operated button switch supports cord operation and cordless remote control.
Technical Specifications
| Capacity (t) | Work level (source: Jnorm Working Level) | Hoisting height (m) | Hoisting speed (m/min) | Operating speed, suspended type (m/min) | Chain-wheel multiplying power | Hoisting motor type/power (kW) | Suspended motor type/power (kW) | Second suspended-motor row (type/power) | Protection | I-steel track | Minimum turning radius (m), in height order | Net weight (kg), in height order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | M3 | 6/9/12/18/24/30 | 8 (8/0.8) | 20 (20/6.7), 30 (30/10) | 2/1 | ZDY11-4 (0.8) | ZDSI-0.2/0.8 (0.2/0.8) | ZDY11-4 (0.2) | IP44/IP54 | 116a–128b | 1, 1, 1, 1.8, 2.5, 3.2 | 90, 115, 119, 134, 149, 164 |
| 1 | M3 | 6/9/12/18/24/30 | 8 (8/0.8) | 20 (20/6.7), 30 (30/10) | 2/1 | ZDY22-4 (1.5) | ZDS-0.2/1.5 (0.2/1.5) | ZDY11-4 (0.2) | IP44/IP54 | 116a–128b | 1, 1, 1.2, 1.8, 2.5, 3.2 | 110, 130, 140, 165, 182, 197 |
| 2 | M3 | 6/9/12/18/24/30 | 8 (8/0.8) | 20 (20/6.7), 30 (30/10) | 2/1 | ZD31-4 (3) | ZDSI-0.4/3 (0.4/3) | ZDY12-4 (0.4) | IP44/IP54 | 120a–145c | 1.2, 1.2, 1.5, 2.0, 2.8, 3.5 | 193, 198, 228, 260, 300, 330 |
| 3 | M3 | 6/9/12/18/24/30 | 8 (8/0.8) | 20 (20/6.7), 30 (30/10) | 2/1 | ZDY32-4 (4.5) | ZDSI-0.4/4.5 (0.4/4.5) | ZDY12-4 (0.4) | IP44/IP54 | 120a–145b | 1.2, 1.2, 1.5, 2.0, 2.8, 3.5 | 242, 246, 285, 320, 370, 381 |
| 5 | M3 | 6/9/12/18/24/30 | 8 (8/0.8) | 20 (20/6.7), 30 (30/10) | 2/1 | ZD41-4 (7.5) | ZDSI-0.8/7.5 (0.8/7.5) | ZDY21-4 (0.8) | IP44/IP54 | 125a–163c | 1.5, 1.5, 1.5, 2.5, 3.0, 4.0 | 355, 365, 420, 480, 540, 600 |
| 10 | M3 | 6/9/12/18/24 | 7 (7/0.7) | 20 (20/6.7) | 4/2 | ZD51-4 (13) | — | 2×ZDY21-4 (0.8) | IP44/IP54 | 140a–163c | 1.5, 1.5, 1.5, 2.5, 3.0 | 760, 840, 920, 1000, 1080 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
