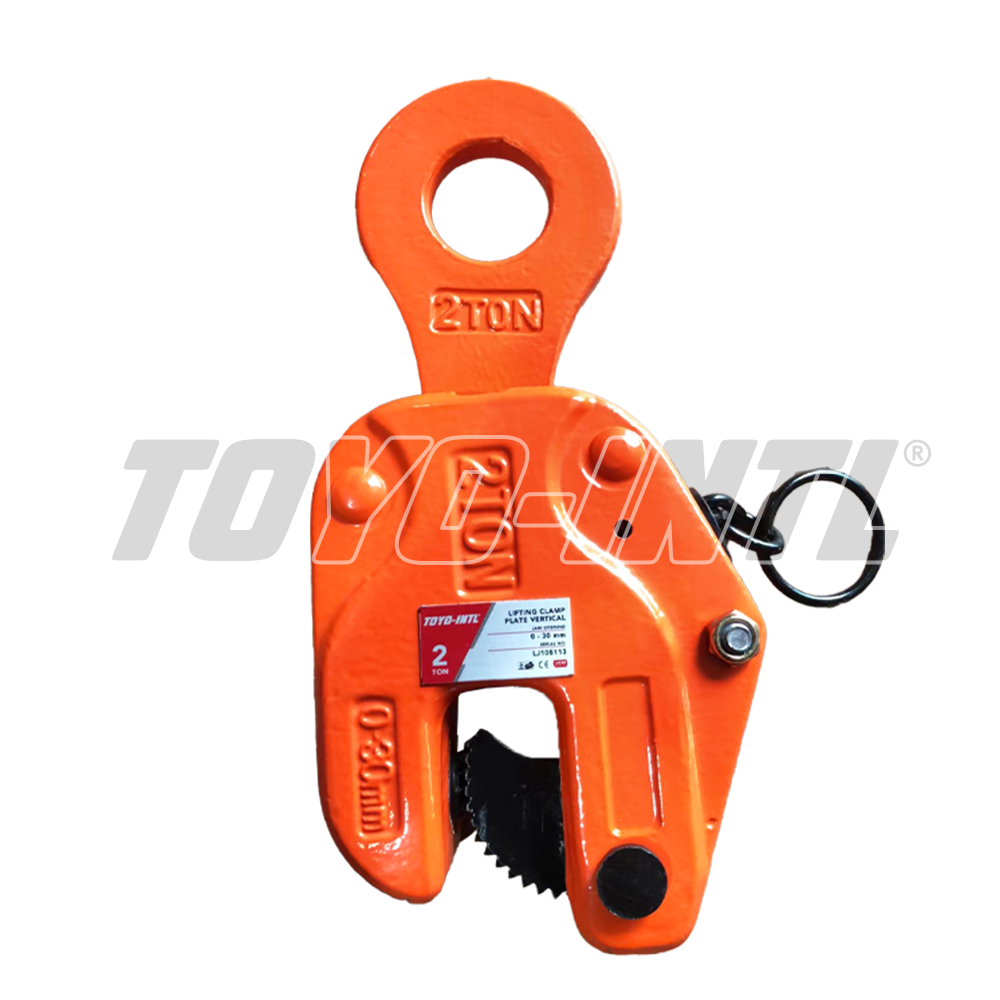

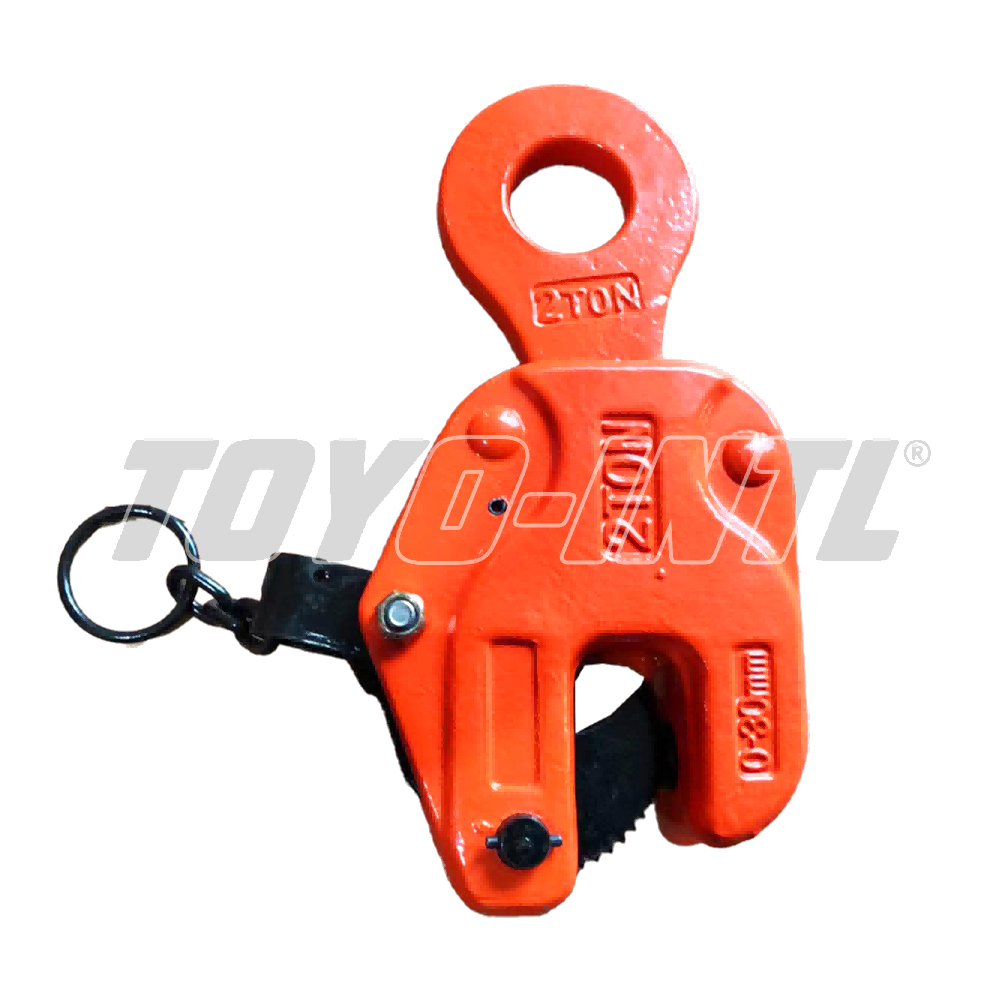

TOYO-INTL CDH Lifting Clamp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

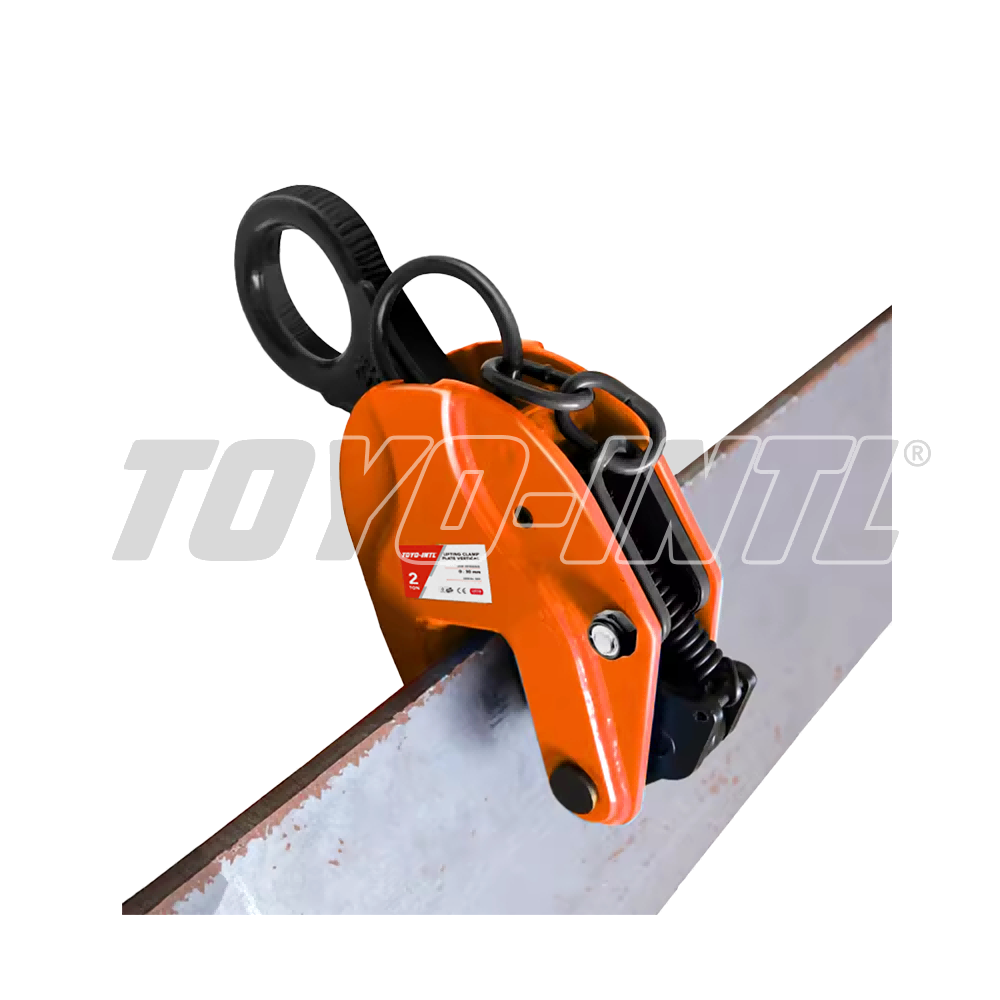

The standard-design clamp is for vertical lifting of steel plates and steel structures. The lifting ring is forged. A spring-loaded tightening lock provides positive initial clamping force. The safety mechanism is stated to prevent slipping when lifting force is applied and when the load is lowered. High-frequency quenching of die-forged special alloy steel is stated to improve cam durability. The stated working-load-limit range is 800–30,000 kg. The source specifies a plate surface hardness below HRC30 / Brinell 300. The Japan Model is shown for lifting and vertical transfer of steel plate structures; the solid body is described as high-quality low-carbon alloy steel with a safety puller.
Product Details
- The standard-design clamp is for vertical lifting of steel plates and steel structures.
- The lifting ring is forged.

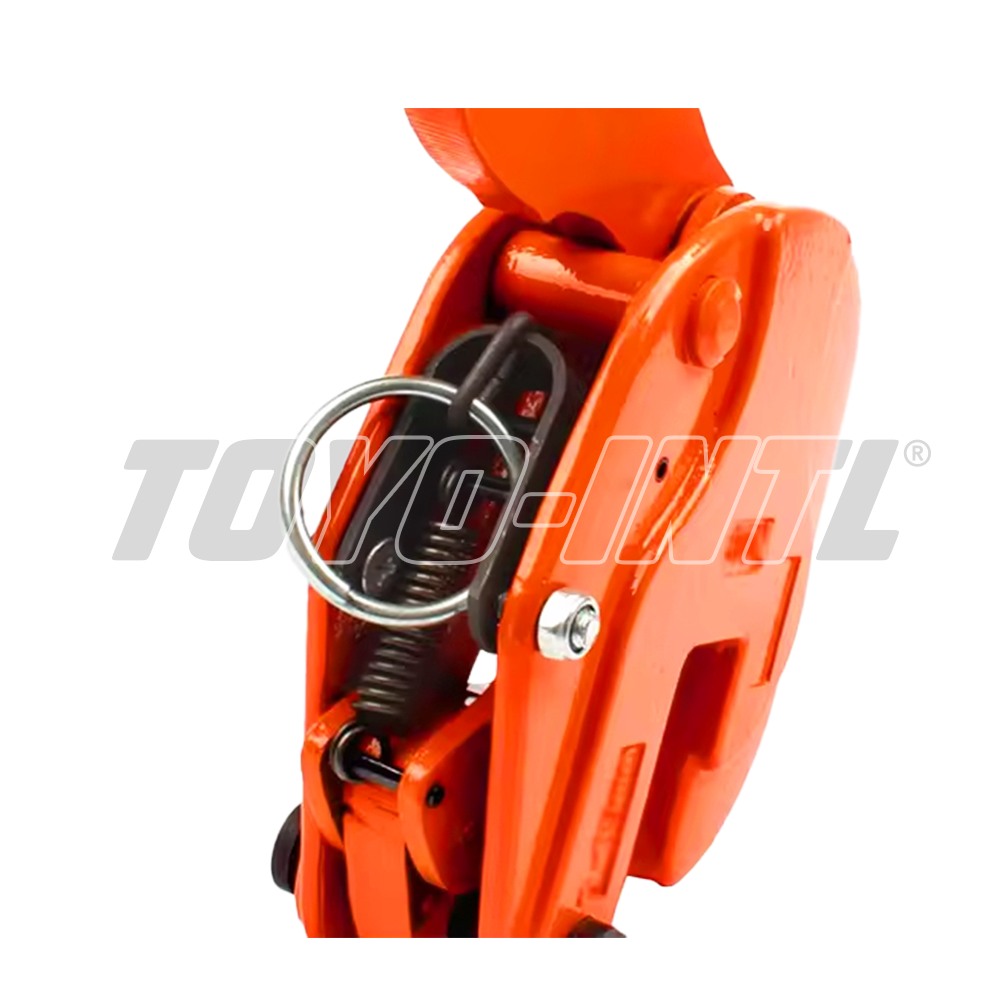

- A spring-loaded tightening lock provides positive initial clamping force.
- The safety mechanism is stated to prevent slipping when lifting force is applied and when the load is lowered.
- High-frequency quenching of die-forged special alloy steel is stated to improve cam durability.
- The stated working-load-limit range is 800–30,000 kg.
- The source specifies a plate surface hardness below HRC30 / Brinell 300.

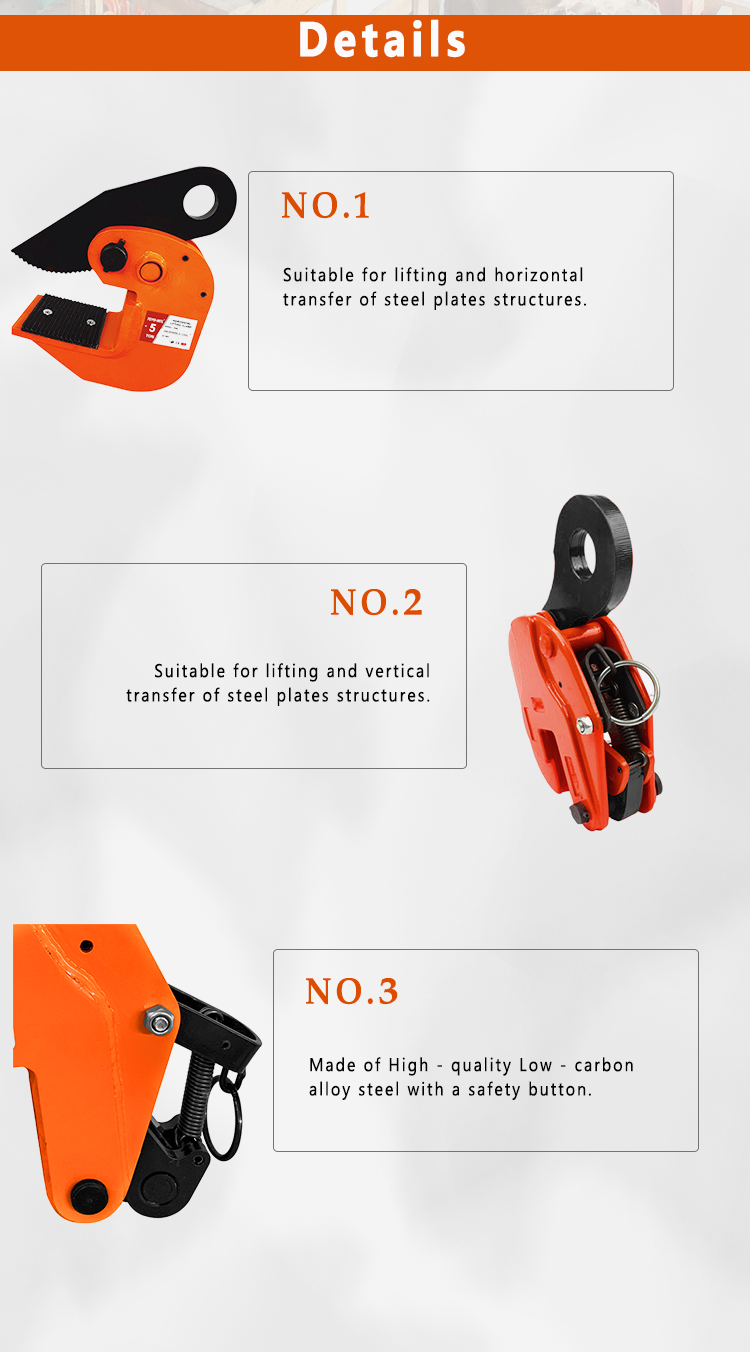

- The Japan Model is shown for lifting and vertical transfer of steel plate structures; the solid body is described as high-quality low-carbon alloy steel with a safety puller.
Technical Specifications
| Model | WLL (tonnes) | Jaw opening (mm) | Weight (kg) |
|---|---|---|---|
| CDH-B 0.8 | 0.8 | 0–16 | 2.8 |
| CDH-B 1 | 1 | 0–20 | 5 |
| CDH-B 2 | 2 | 0–30 | 6.2 |
| CDH-B 3.2 | 3.2 | 0–35 | 9.6 |
| CDH-B 5 | 5 | 0–50 | 15.8 |
| CDH-B 8 | 8 | 0–60 | 24 |
| CDH-B 10 | 10 | 0–90 | 31.2 |
| CDH-B 12 | 12 | 25–90 | 48 |
| CDH-B 16 | 16 | 60–125 | 80 |
| CDH-B 30 | 30 | 80–220 | 125 |
