HAND CHAIN BLOCK

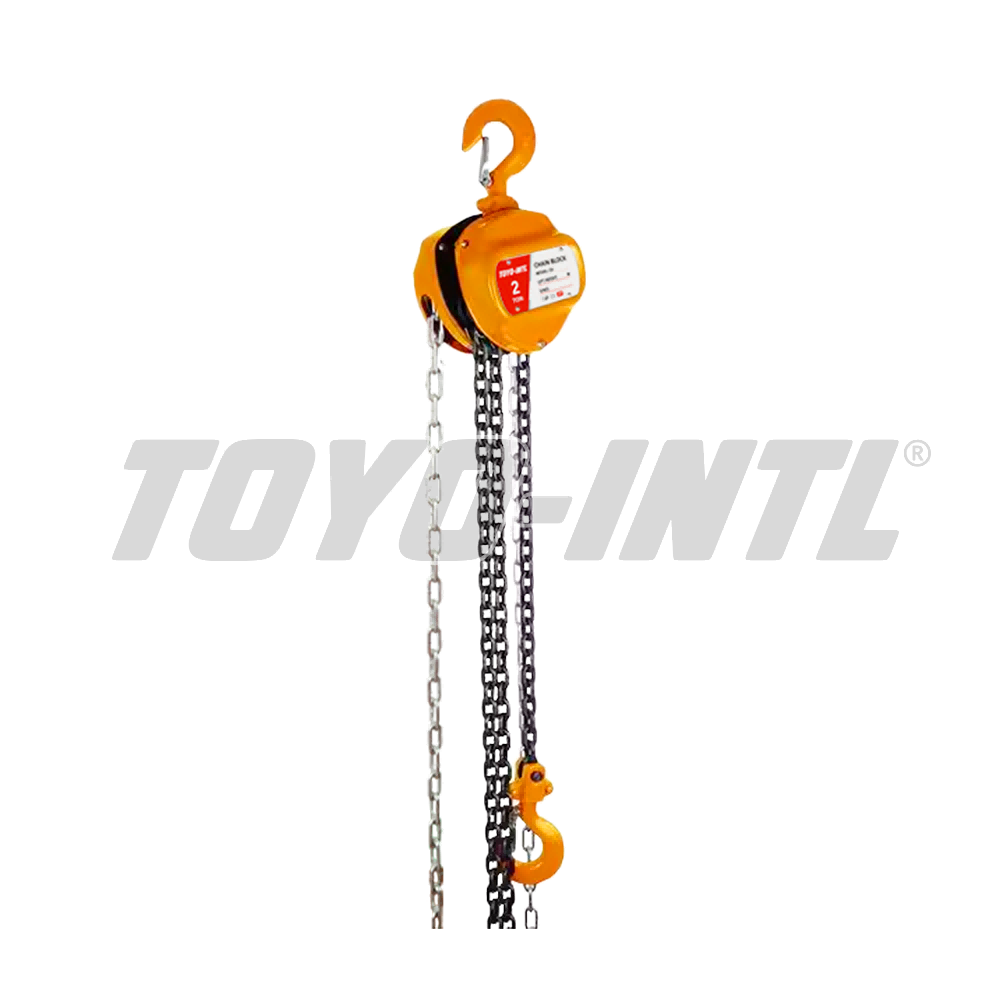

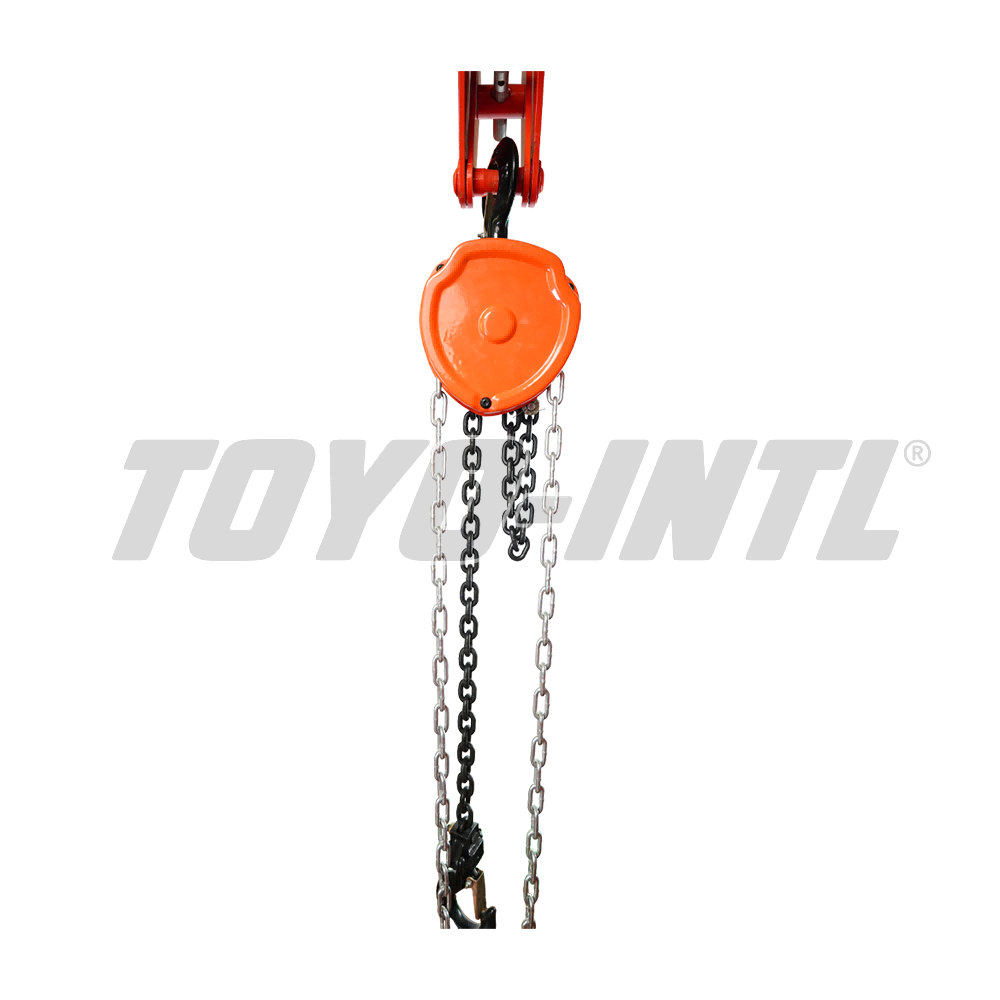

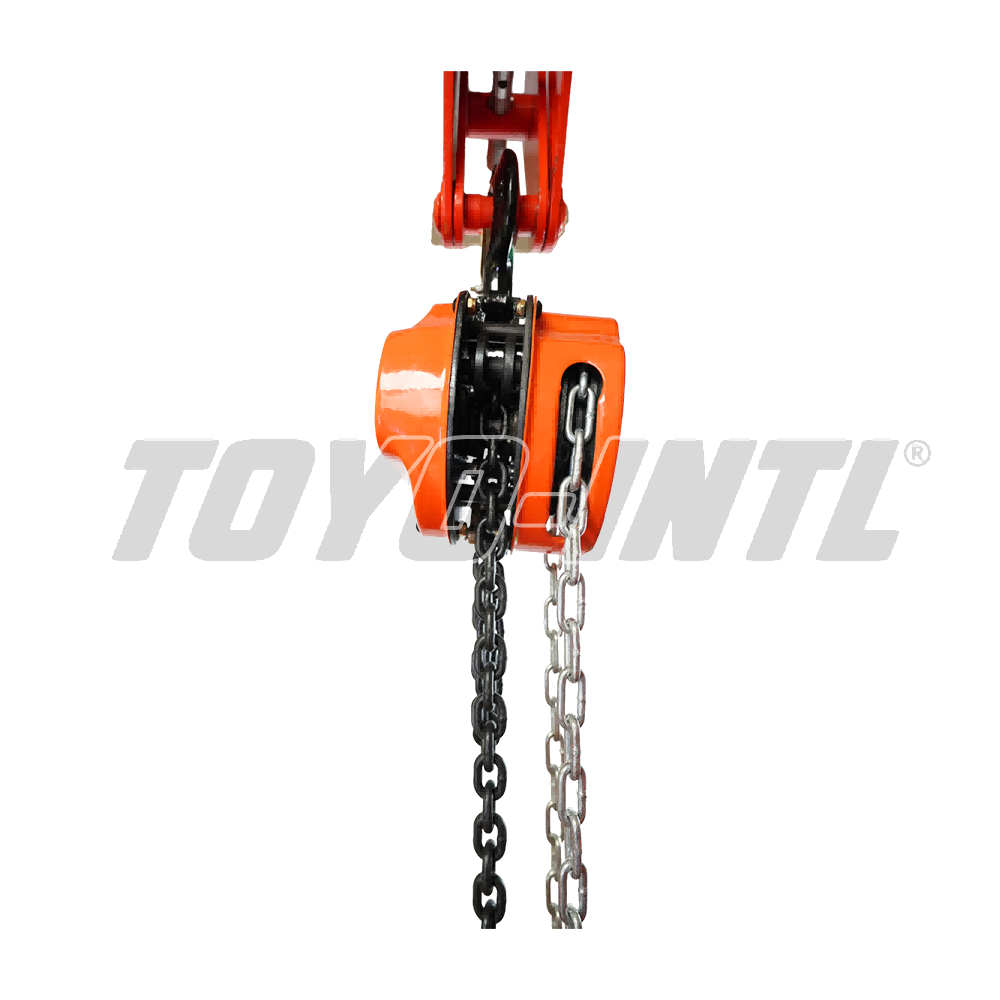

TOYO-INTL CK Chain Hoist
د.إ 275
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Superior Grade 100 load chain uses WAFIOS links to DIN standard. Load hooks are forged and heat-treated. Hooks include batch traceability and stretch indicators. Double pawls support a fail-safe brake mechanism; the remaining pawl operates if one pawl is unserviceable. The brake lining is asbestos-free. The source specifies a forged safety latch. Every unit is proof-load tested to 1.5x WLL and has an individual serial number. The steel-frame construction is described as lightweight, durable, rugged, and easy to handle.
Product Details
- Superior Grade 100 load chain uses WAFIOS links to DIN standard.

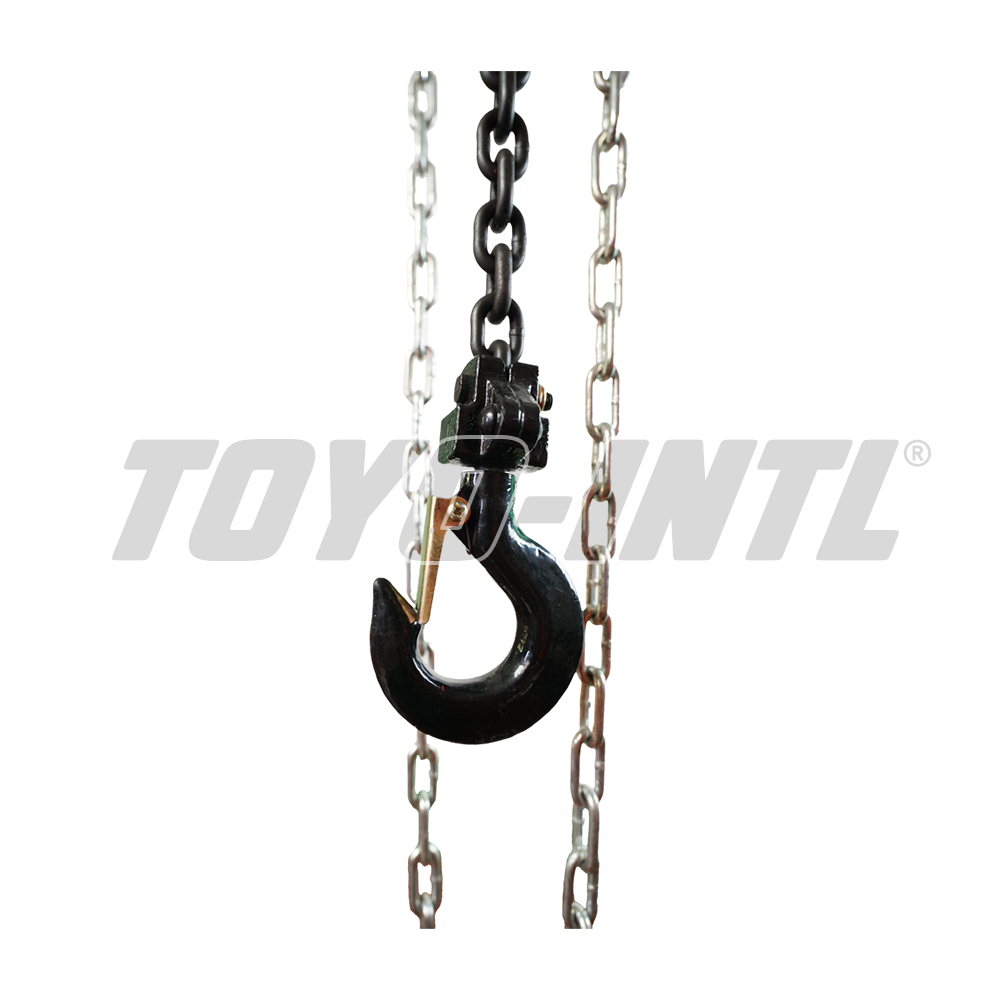

- Load hooks are forged and heat-treated.
- Hooks include batch traceability and stretch indicators.

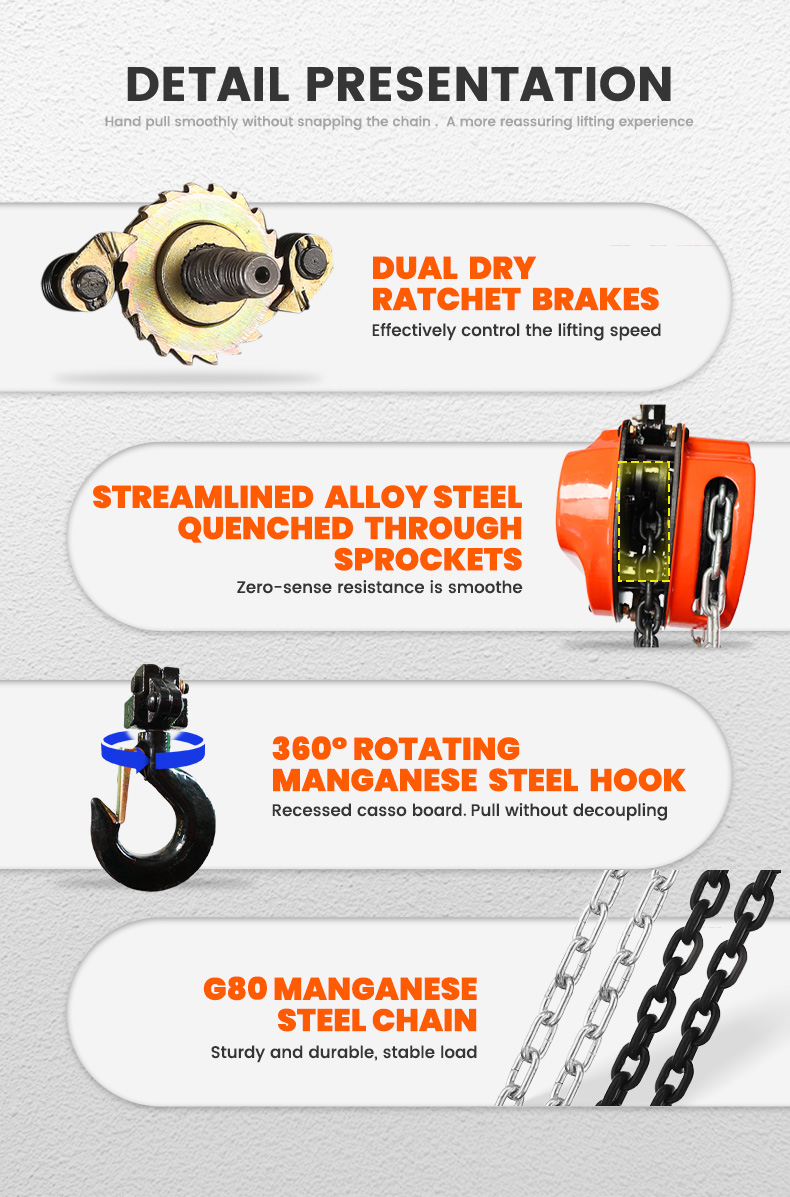

- Double pawls support a fail-safe brake mechanism; the remaining pawl operates if one pawl is unserviceable.
- The brake lining is asbestos-free.
- The source specifies a forged safety latch.
- Every unit is proof-load tested to 1.5x WLL and has an individual serial number.
- The steel-frame construction is described as lightweight, durable, rugged, and easy to handle.
Technical Specifications
| Product code | Capacity (t) | Standard lift (m) | Test load (t) | Pulling efforts (kg) | Chain fall no. | Load chain dia. (mm) | Net weight (kg) |
|---|---|---|---|---|---|---|---|
| CK005 | 0.5 | 3.0 | 0.75 | 22 | 1 | 6 | 8.1 |
| CK010 | 1.0 | 3.0 | 1.50 | 31 | 1 | 6 | 11.2 |
| CK015 | 1.5 | 3.0 | 2.25 | 35 | 1 | 8 | 15.3 |
| CK020 | 2.0 | 3.0 | 3.00 | 30 | 1 | 8 | 17.1 |
| CK030 | 3.0 | 3.0 | 4.50 | 35 | 2 | 8 | 18.0 |
| CK050 | 5.0 | 3.0 | 7.50 | 39 | 2 | 10 | 21.7 |
| CK100 | 10.0 | 3.0 | 12.50 | 41 | 4 | 10 | 65.2 |
| CK200 | 20.0 | 5.0 | 25.00 | 41×2 | 8 | 10 | 194.0 |
| CK300 | 30.0 | 5.0 | 37.50 | 47×2 | 12 | 10 | 458.0 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
