Pallet Trucks
TOYO-INTL CW Hand Pallet Truck
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

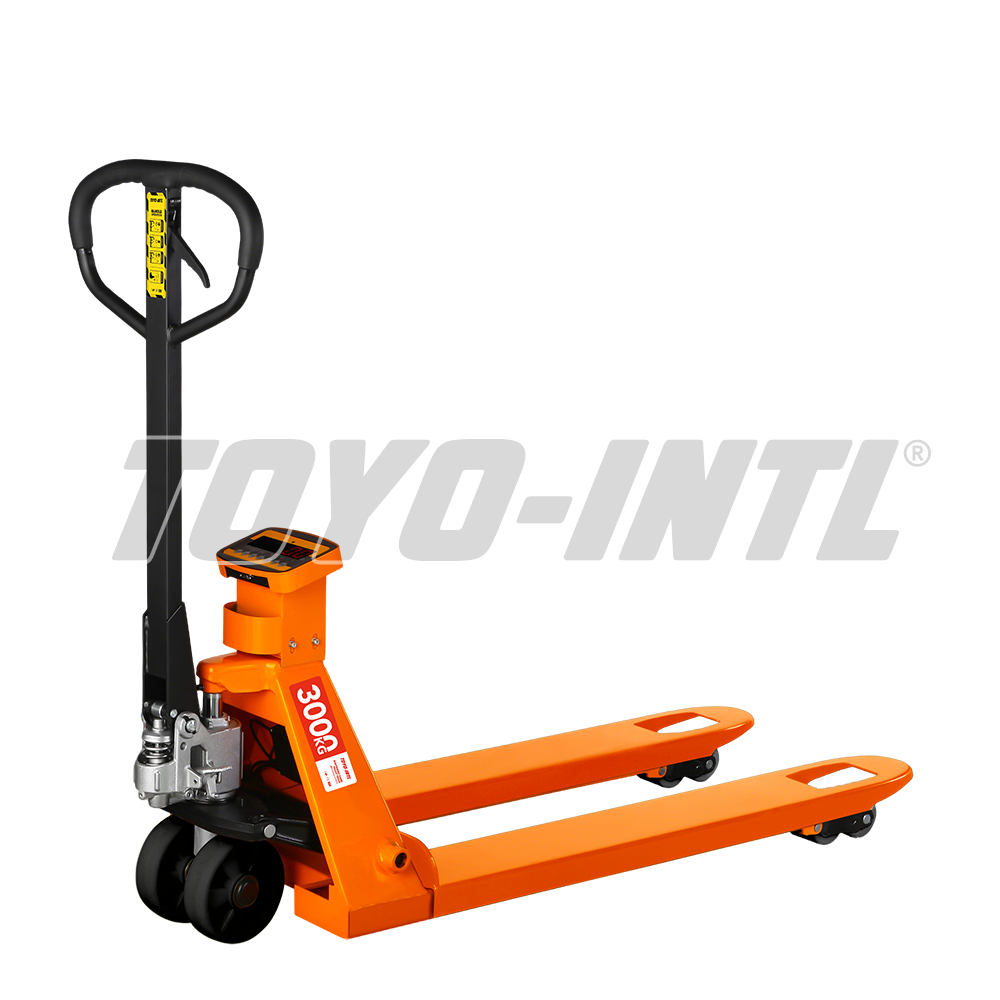

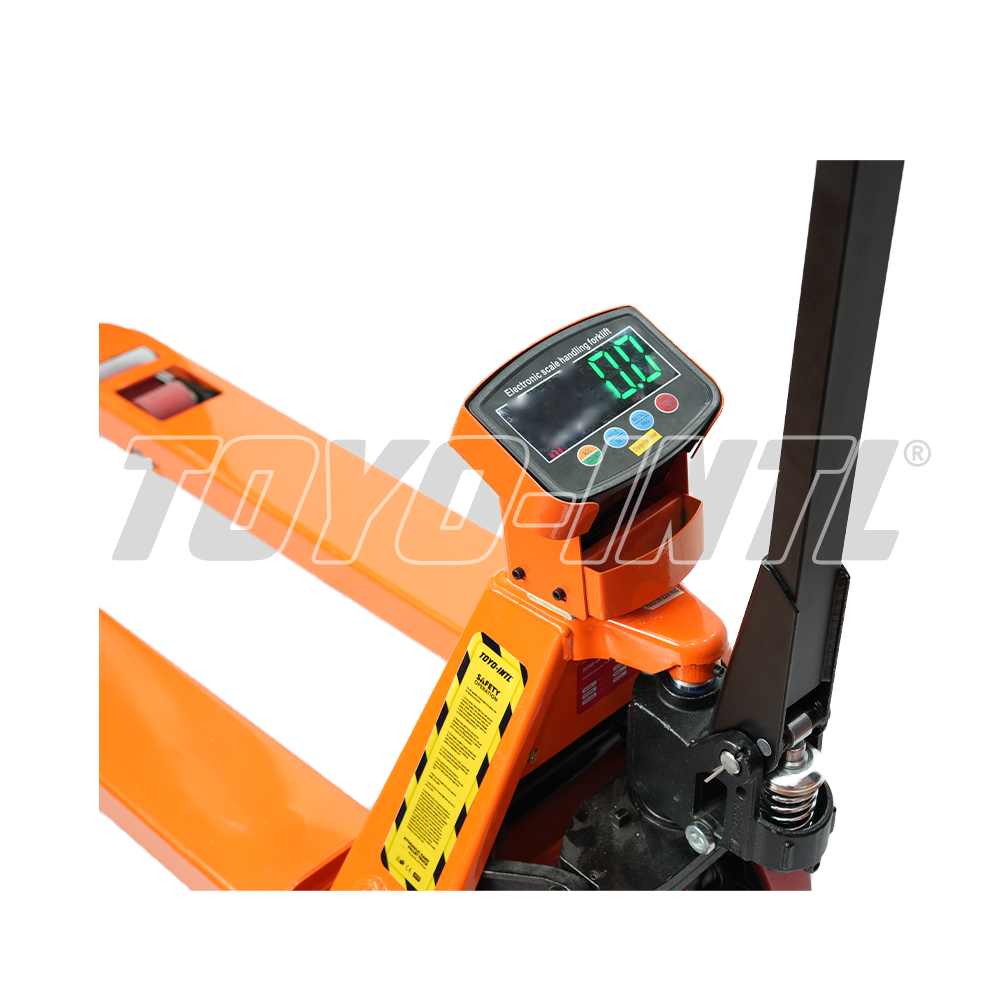

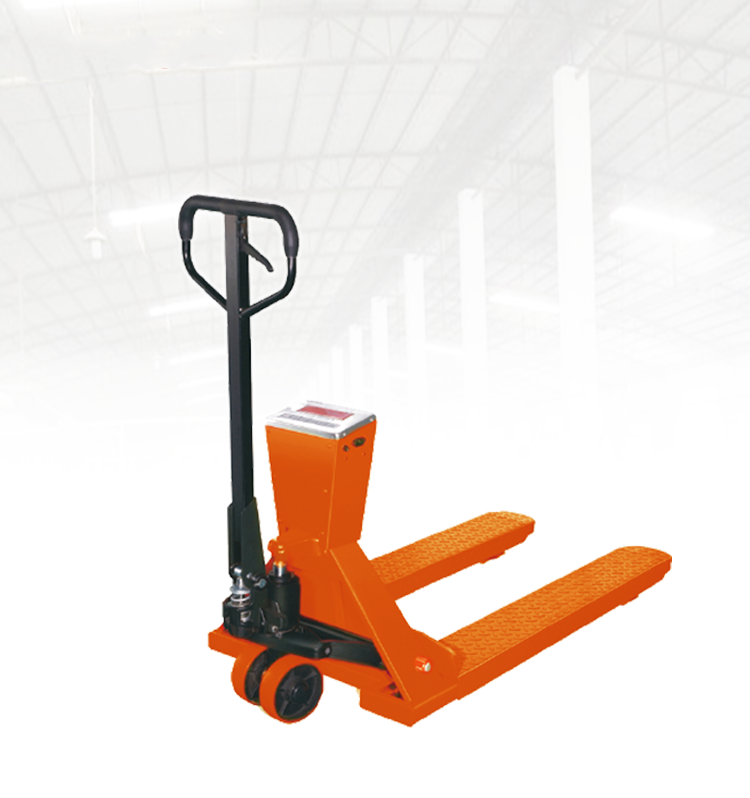

Hydraulic hand pallet truck with scale and an ergonomic handle. The handle has three operating positions. Capacity options are 1,500/2,000/2,500/3,000 kg. Total lift height is 195 mm. Lowered fork height is 85 mm. Fork length is 1,150/1,220 mm. Fork width is 550/685 mm. The table specifies φ180×50 steering wheels and φ80×70 fork wheels.
Product Details
- Hydraulic hand pallet truck with scale and an ergonomic handle.

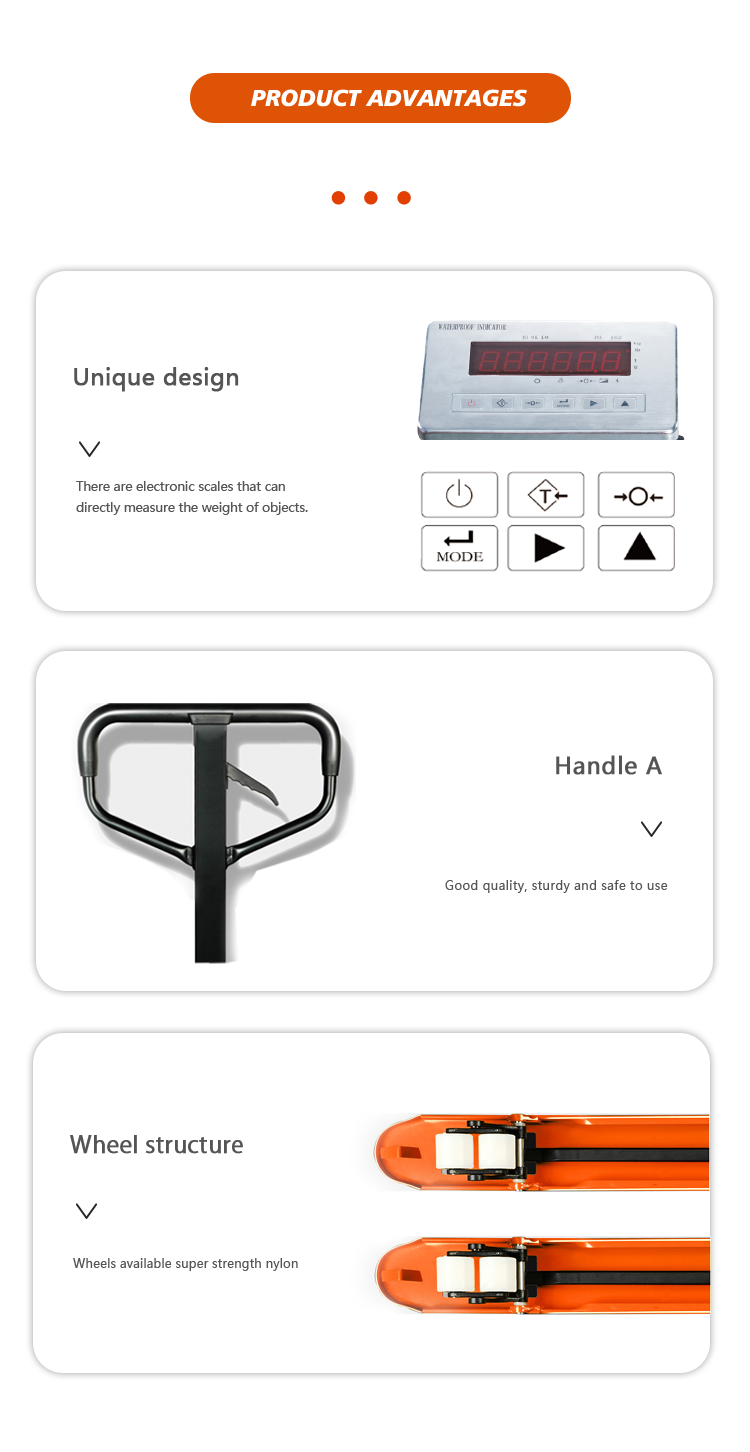

- The handle has three operating positions.
- Capacity options are 1,500/2,000/2,500/3,000 kg.
- Total lift height is 195 mm.
- Lowered fork height is 85 mm.
- Fork length is 1,150/1,220 mm.
- Fork width is 550/685 mm.

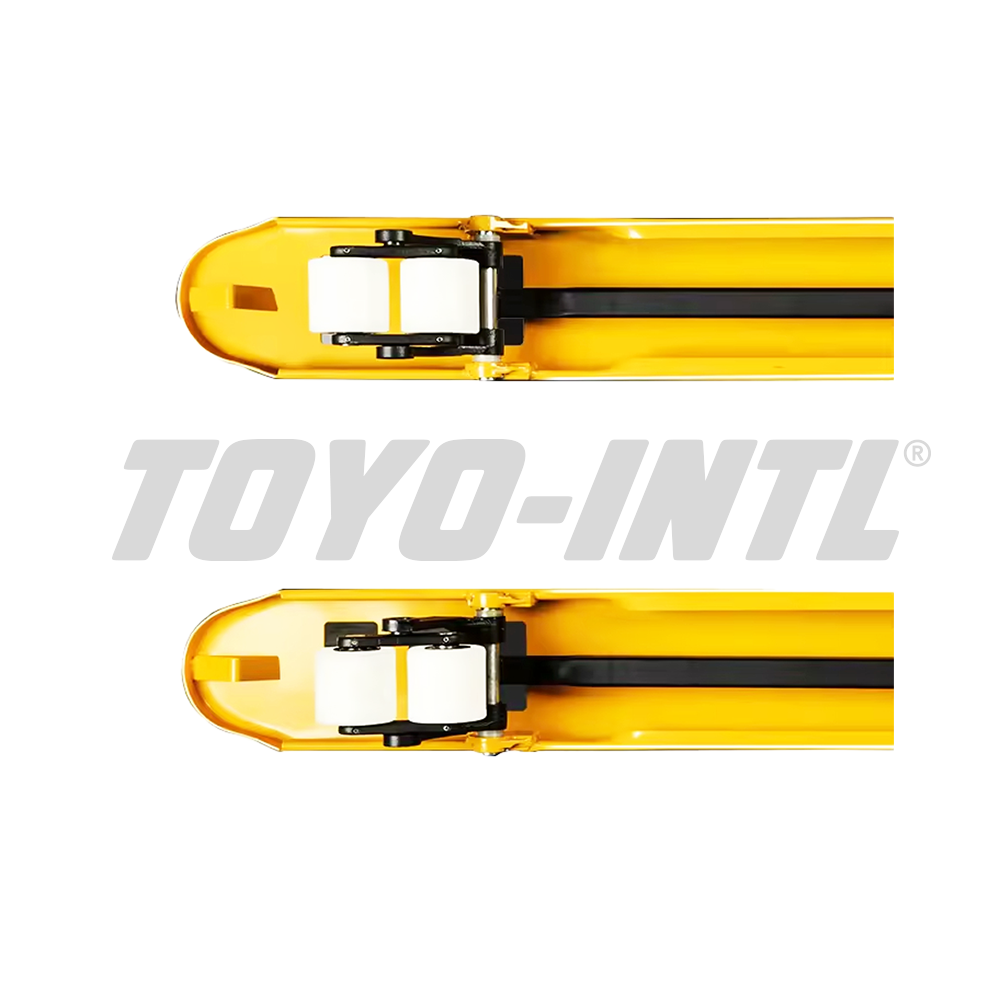

- The table specifies φ180×50 steering wheels and φ80×70 fork wheels.

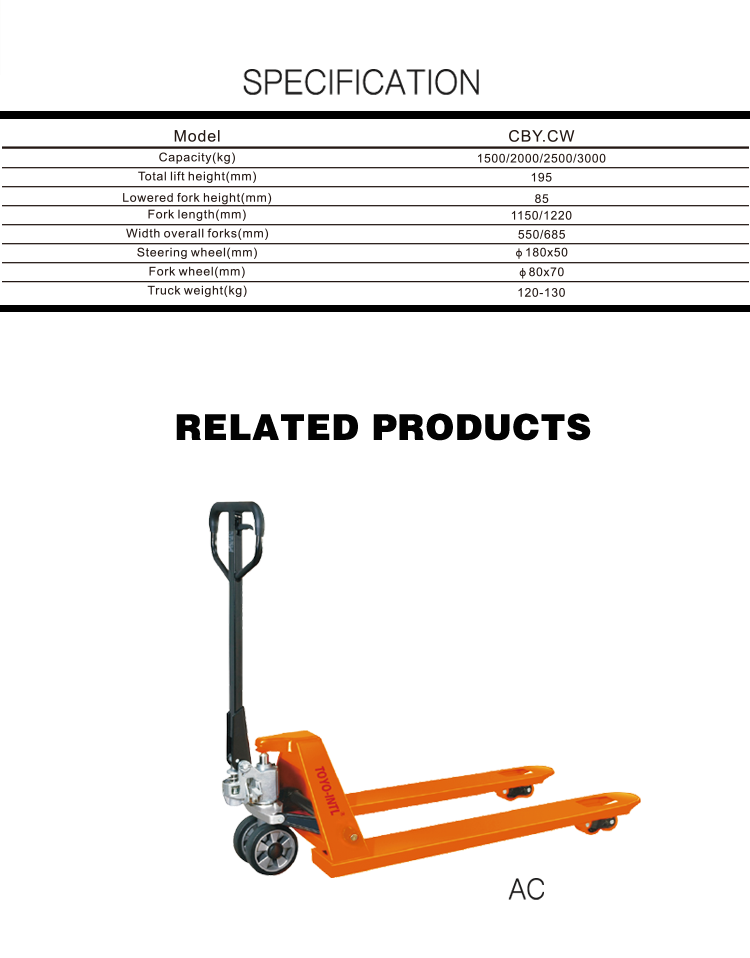

Technical Specifications
| Model | Capacity (kg) | Total lift height (mm) | Lowered fork height (mm) | Fork length (mm) | Overall fork width (mm) | Steering wheel | Fork wheel | Dead load (kg) |
|---|---|---|---|---|---|---|---|---|
| CW | 1,500/2,000/2,500/3,000 | 195 | 85 | 1,150/1,220 | 550/685 | φ180×50 | φ80×70 | 120–130 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
