HEAVY DUTY EQUIPMENT

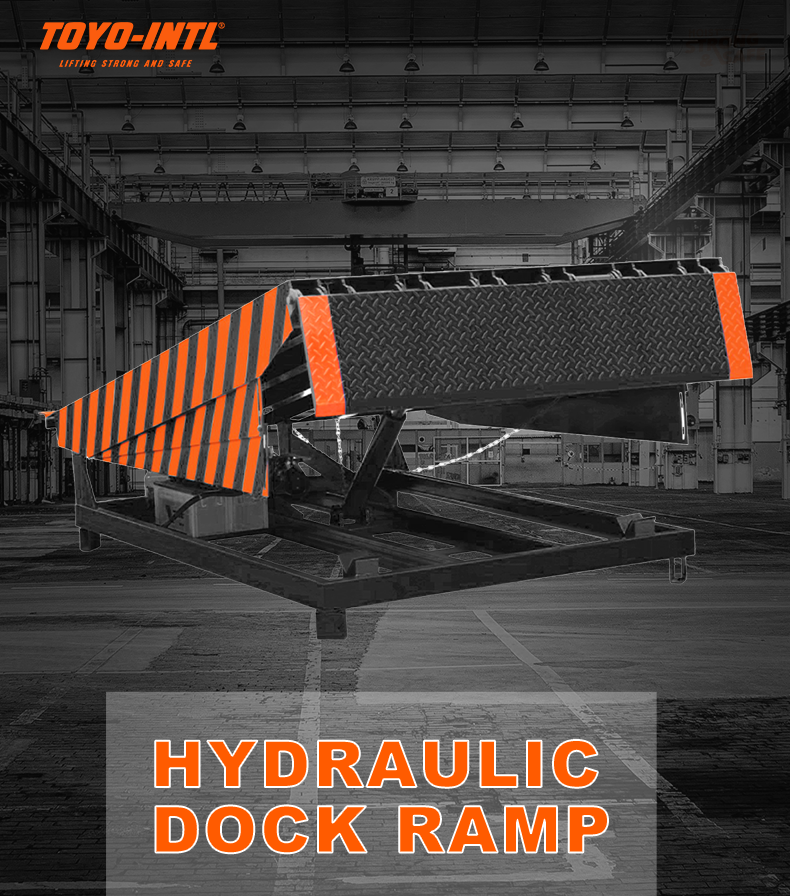

TOYO-INTL DCQ Hydraulic Dock Ramp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Dock ramps bridge the gap between loading docks and transport vehicles. They facilitate forklift loading and unloading. One end is level with the loading dock and the other reaches the vehicle cargo box. The ramp automatically adjusts its height for different vehicles and cargo-box changes. The image identifies enterprise entrances and logistics warehouses as typical installation sites. Maximum loading-capacity options are 6/8/10/12 t. Incline travel and downstroke are each 0.3 m in the table. Motor power is 0.75 kW in the table.
Product Details
- Dock ramps bridge the gap between loading docks and transport vehicles.
- They facilitate forklift loading and unloading.
- One end is level with the loading dock and the other reaches the vehicle cargo box.
- The ramp automatically adjusts its height for different vehicles and cargo-box changes.
- The image identifies enterprise entrances and logistics warehouses as typical installation sites.
- Maximum loading-capacity options are 6/8/10/12 t.
- Incline travel and downstroke are each 0.3 m in the table.
- Motor power is 0.75 kW in the table.
Technical Specifications
| Model | Max. loading capacity (T) | Overall length (m) | Overall width (m) | Tongue width (m) | Incline travel (m) | Downstroke (m) | Pit size (m) | Motor power (kW) |
|---|---|---|---|---|---|---|---|---|
| DCQ6-0.6 | 6 | 2 | 2.5 | 0.4 | 0.3 | 0.3 | 2.08×2.54×0.6 | 0.75 |
| DCQ8-0.6 | 8 | 2 | 2.5 | 0.4 | 0.3 | 0.3 | 2.08×2.54×0.6 | 0.75 |
| DCQ10-0.6 | 10 | 2 | 2.5 | 0.4 | 0.3 | 0.3 | 2.08×2.54×0.6 | 0.75 |
| DCQ12-0.6 | 12 | 2 | 2.5 | 0.4 | 0.3 | 0.3 | 2.08×2.54×0.6 | 0.75 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
