HEAVY DUTY EQUIPMENT
TOYO-INTL DCQY Movable Dock Ramp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

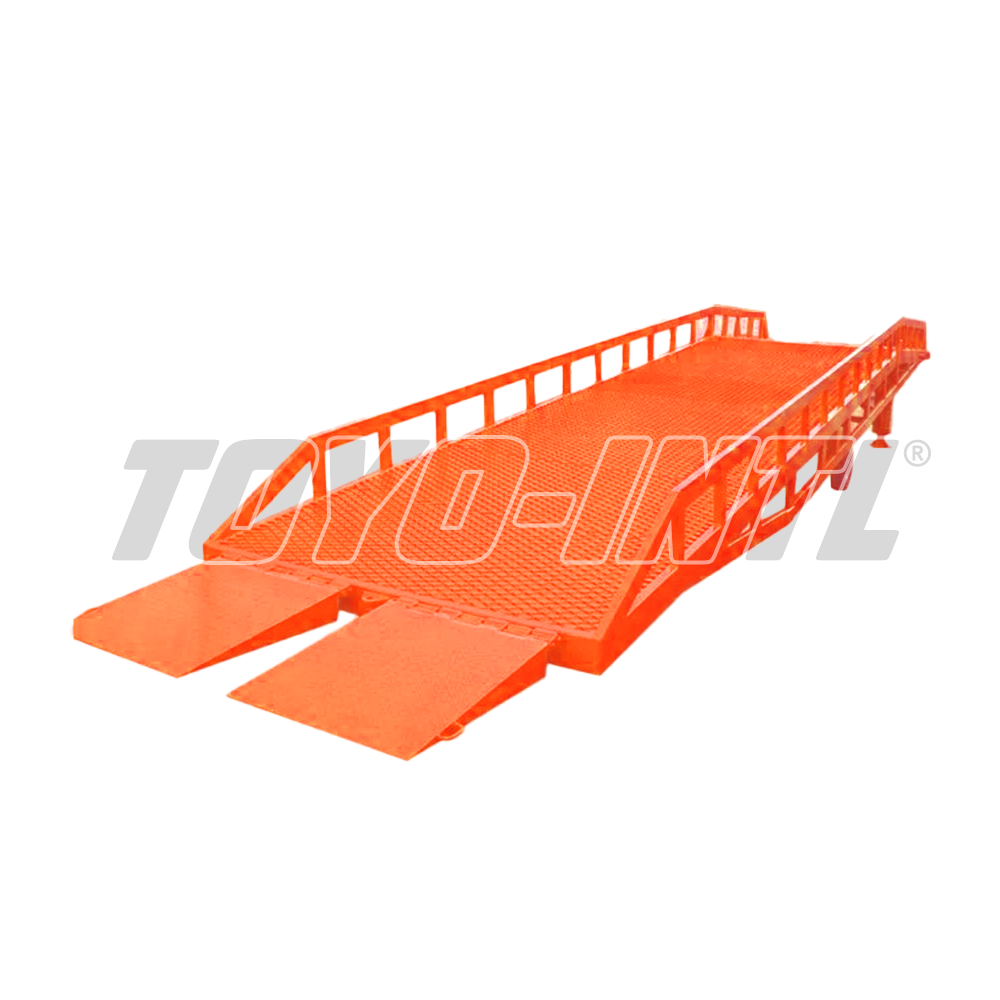

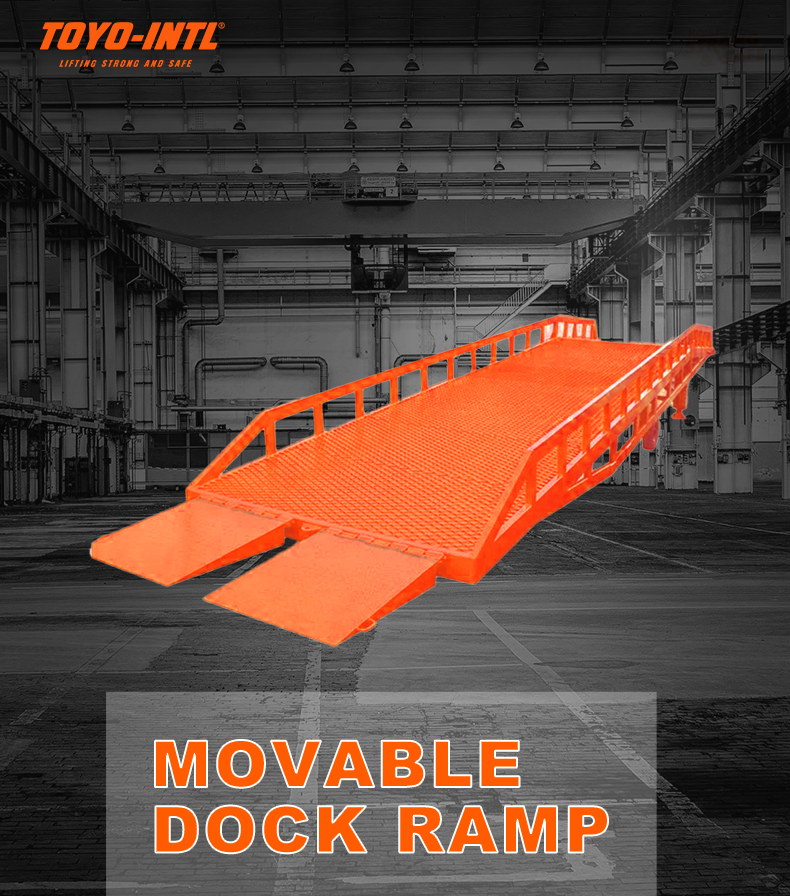

Movable dock ramp for loading and unloading without mobile handling equipment. The image names mobile loading/unloading sites as an application. It is described for logistics companies and warehouses. It is shown for use with pallet trucks and stacker trucks. Maximum loading-capacity options are 6/8/10/12 t. Overall length is 11 m and overall width is 2 m. Slope length is 7.15 m and slope width is 2 m. The listed lifting range is 1.1–1.7 m.
Product Details
- Movable dock ramp for loading and unloading without mobile handling equipment.
- The image names mobile loading/unloading sites as an application.
- It is described for logistics companies and warehouses.
- It is shown for use with pallet trucks and stacker trucks.
- Maximum loading-capacity options are 6/8/10/12 t.
- Overall length is 11 m and overall width is 2 m.
- Slope length is 7.15 m and slope width is 2 m.
- The listed lifting range is 1.1–1.7 m.
Technical Specifications
| Model | Max. loading capacity (T) | Overall length (m) | Overall width (m) | Overall height (m) | Slope length (m) | Slope width (m) | Lifting range (m) | Machine weight (m, as printed) |
|---|---|---|---|---|---|---|---|---|
| DCQY-6 | 6 | 11 | 2 | 1.1 | 7.15 | 2 | 1.1–1.7 | 2,250 |
| DCQY-8 | 8 | 11 | 2 | 1.1 | 7.15 | 2 | 1.1–1.7 | 2,350 |
| DCQY-10 | 10 | 11 | 2 | 1.1 | 7.15 | 2 | 1.1–1.7 | 2,450 |
| DCQY-12 | 12 | 11 | 2 | 1.1 | 7.15 | 2 | 1.1–1.7 | 3,000 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
