TOYO-INTL DIN580 DIN582 Eye Screw And Ring-nut
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The DIN580 source labels an eye screw with a bright or galvanized finish. The DIN582 source labels a ring nut with a bright or galvanized finish. The DIN580 image shows a circular eye with a threaded shank; the DIN582 image shows a circular ring with a female threaded opening. Both source tables cover side-d entries from M6* to M64. Both tables print two separate `WLL(T)` columns and a `Weight %(Kg)` column. Source asterisks and DIN582 M6 dashes are retained as printed.
Product Details
- The DIN580 source labels an eye screw with a bright or galvanized finish.
- The DIN582 source labels a ring nut with a bright or galvanized finish.

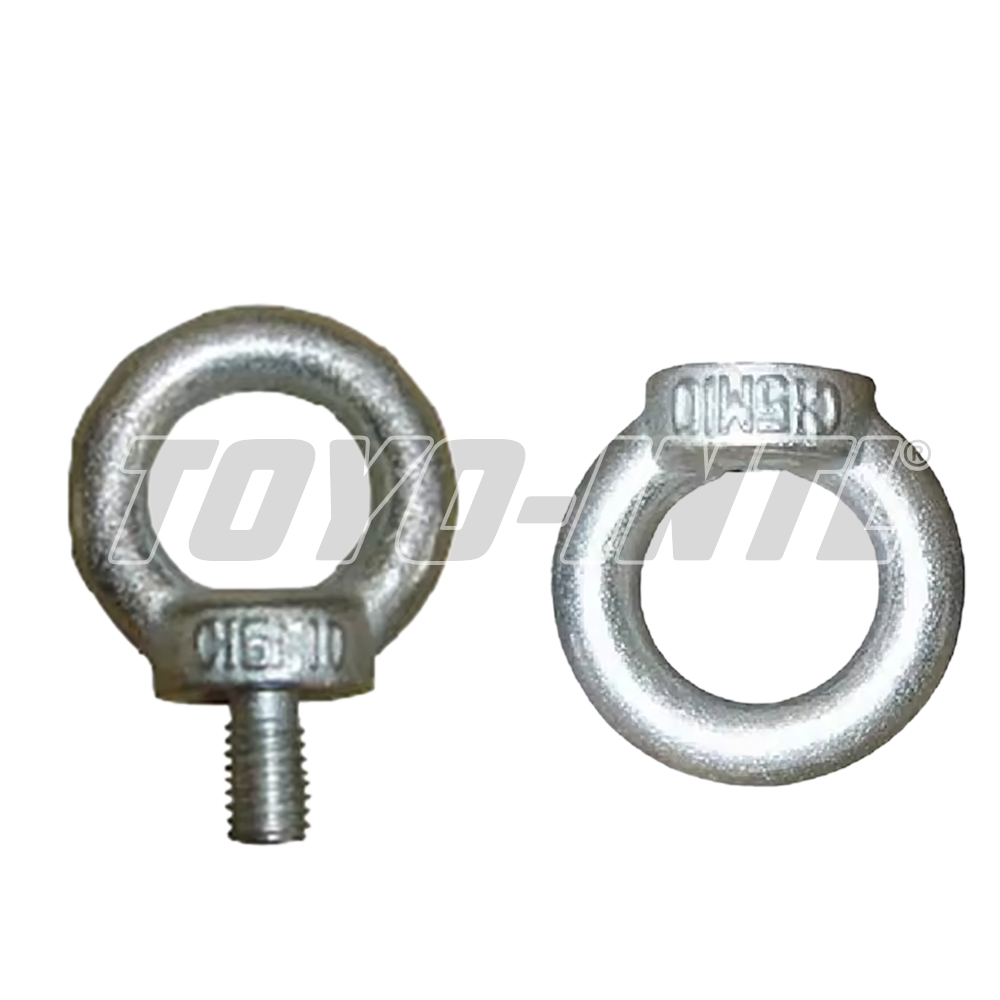

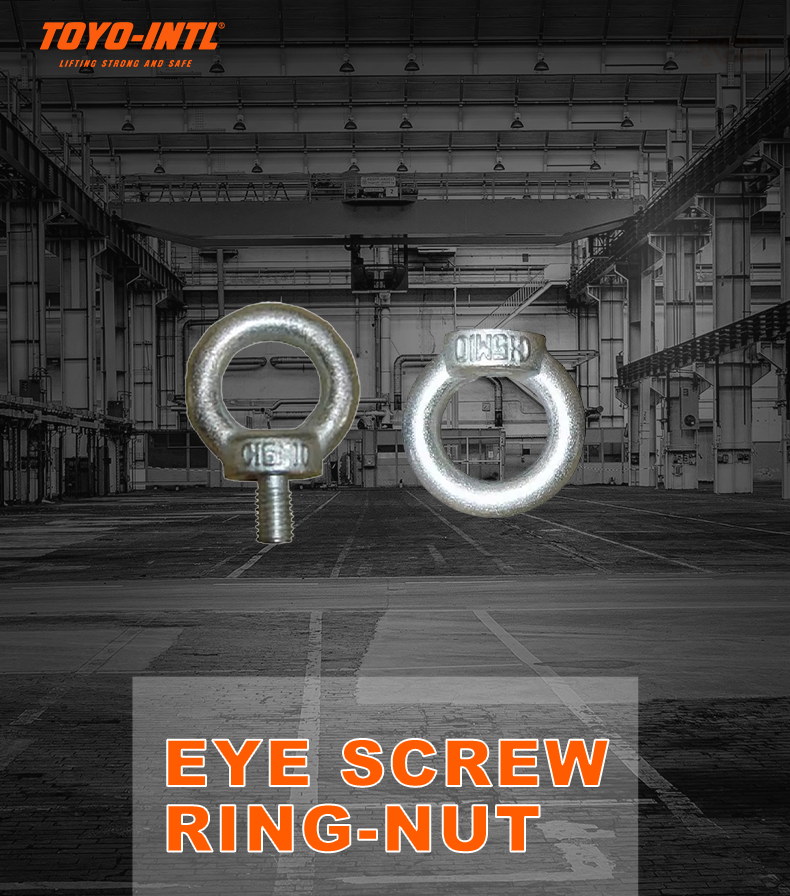

- The DIN580 image shows a circular eye with a threaded shank; the DIN582 image shows a circular ring with a female threaded opening.
- Both source tables cover side-d entries from M6* to M64.
- Both tables print two separate `WLL(T)` columns and a `Weight %(Kg)` column.
- Source asterisks and DIN582 M6 dashes are retained as printed.
Technical Specifications
DIN580 semantic parameters (standalone d1, d2, d3, b, e, h and k schematic dimensions removed; duplicate WLL headers retained)
| Side d | WLL(T) — column 1 | WLL(T) — column 2 | Weight %(Kg) |
|---|---|---|---|
| M6* | 0.07 | 0.05 | 5 |
| M8* | 0.14 | 0.095 | 6 |
| M10* | 0.23 | 0.17 | 11 |
| M12 | 0.34 | 0.24 | 18 |
| M14* | 0.49 | 0.34 | 28.5 |
| M16* | 0.7 | 0.50 | 28 |
| M20 | 1.2 | 0.83 | 45 |
| M22* | 1.5 | 1.05 | 67 |
| M24 | 1.8 | 1.27 | 87 |
| M27* | 2.5 | 1.65 | 88 |
| M30 | 3.6 | 2.60 | 166 |
| M33* | 4.3 | 3.20 | 172 |
| M36 | 5.1 | 3.70 | 265 |
| M39* | 6.1 | 4.30 | 280 |
| M42 | 7.0 | 5.00 | 403 |
| M45* | 8.0 | 5.50 | 425 |
| M48 | 8.6 | 6.10 | 638 |
| M52* | 9.9 | 7.30 | 660 |
| M56 | 11.5 | 8.30 | 880 |
| M64 | 16.0 | 11.0 | 1240 |
DIN582 semantic parameters (standalone d1, d2, d3, e, h and k schematic dimensions removed; duplicate WLL headers retained)
| Side d | WLL(T) — column 1 | WLL(T) — column 2 | Weight %(Kg) |
|---|---|---|---|
| M6* | – | – | 4.9 |
| M8* | 0.14 | 0.095 | 5 |
| M10* | 0.23 | 0.17 | 9 |
| M12 | 0.34 | 0.24 | 16 |
| M16 | 0.7 | 0.5 | 24 |
| M20 | 1.2 | 0.83 | 36 |
| M22* | 1.5 | 1.05 | 58 |
| M24 | 1.8 | 1.27 | 72 |
| M27* | 2.5 | 1.65 | 70 |
| M30 | 3.6 | 2.6 | 132 |
| M33* | 4.3 | 3.2 | 130 |
| M36 | 5.1 | 3.7 | 208 |
| M39* | 6.1 | 4.3 | 202 |
| M42 | 7 | 5 | 311 |
| M45* | 8 | 5.5 | 304 |
| M48 | 8.6 | 6.1 | 502 |
| M52* | 9.9 | 7.3 | 495 |
| M56 | 11.5 | 8.3 | 669 |
| M64 | 16 | 11 | 930 |
