RIGGING HARDWARE
TOYO-INTL DIN741 Stainless Steel Rope Clip
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

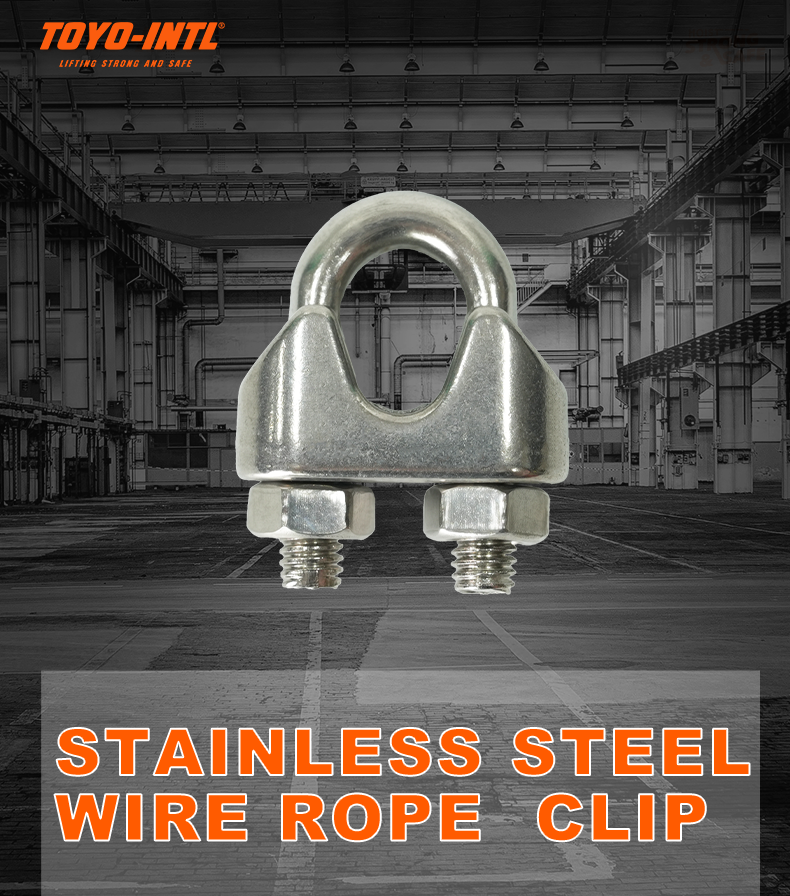

The source heading is “WIRE ROPE CLIP DIN741 CLIP.” The image shows a two-bolt wire-rope clip with a U-bolt and saddle. Nominal sizes are provided in both millimetres and inches. The source lists SWL in tons and kilograms. Source nominal-size entries run from 4.8 to 75 mm.
Product Details
- The source heading is “WIRE ROPE CLIP DIN741 CLIP.”

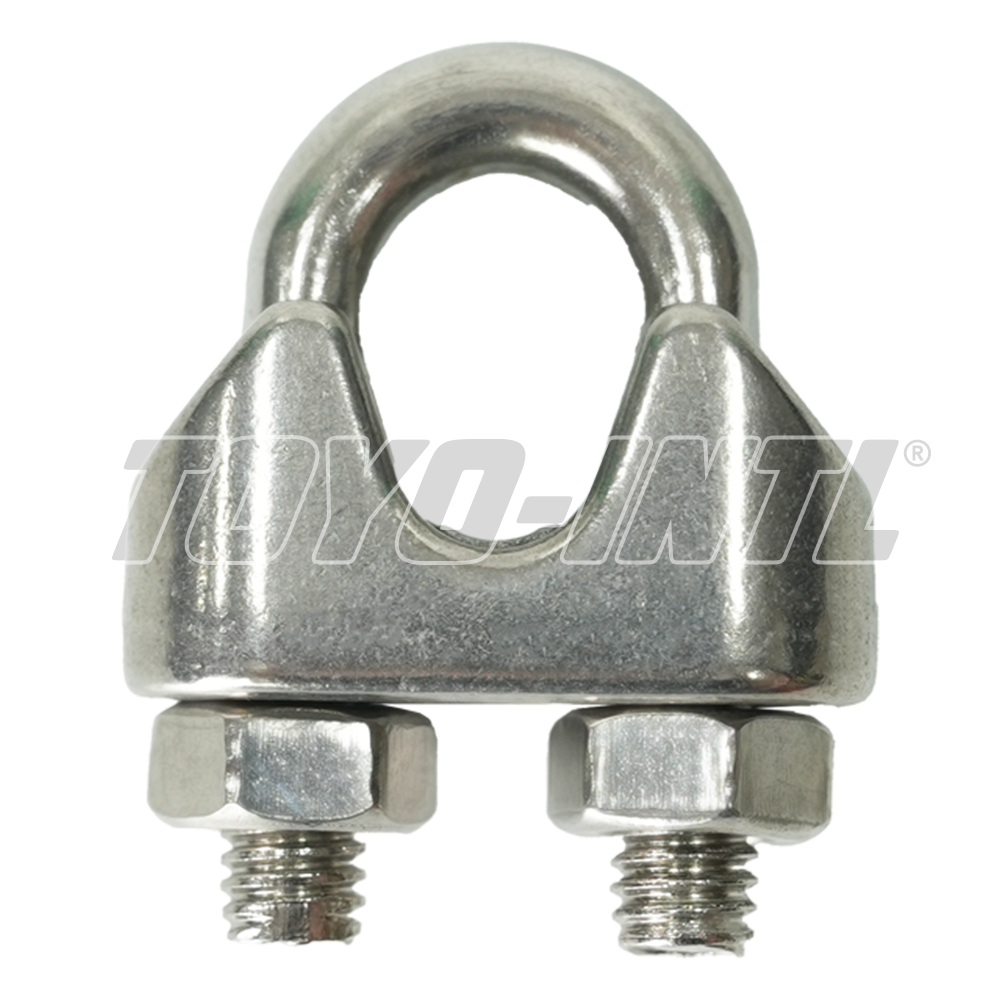

- The image shows a two-bolt wire-rope clip with a U-bolt and saddle.
- Nominal sizes are provided in both millimetres and inches.
- The source lists SWL in tons and kilograms.
- Source nominal-size entries run from 4.8 to 75 mm.
Technical Specifications
| Nominal size (mm) | Nominal size (in.) | SWL (Ton) | SWL (Kg) |
|---|---|---|---|
| 4.8 | 3/16 | 0.09 | 0.014 |
| 6 | 1/4 | 0.15 | 0.028 |
| 8 | 5/16 | 0.25 | 0.049 |
| 9 | 3/8 | 0.4 | 0.049 |
| 12 | 1/2 | 0.6 | 0.18 |
| 16 | 5/8 | 0.8 | 0.42 |
| 19 | 1/3 | 1.0 | 0.72 |
| 22 | 7/8 | 1.5 | 1.18 |
| 25 | 1 | 2.0 | 1.8 |
| 28 | 1-1/8 | 2.5 | 2.5 |
| 32 | 1-1/4 | 3.2 | 3.7 |
| 38 | 1-1/2 | 4.2 | 6.1 |
| 44 | 1-3/4 | 6.5 | – |
| 50 | 2 | 8 | – |
| 65 | 2-1/2 | 15 | – |
| 75 | 2 | 20 | – |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
