HOOK & LINK

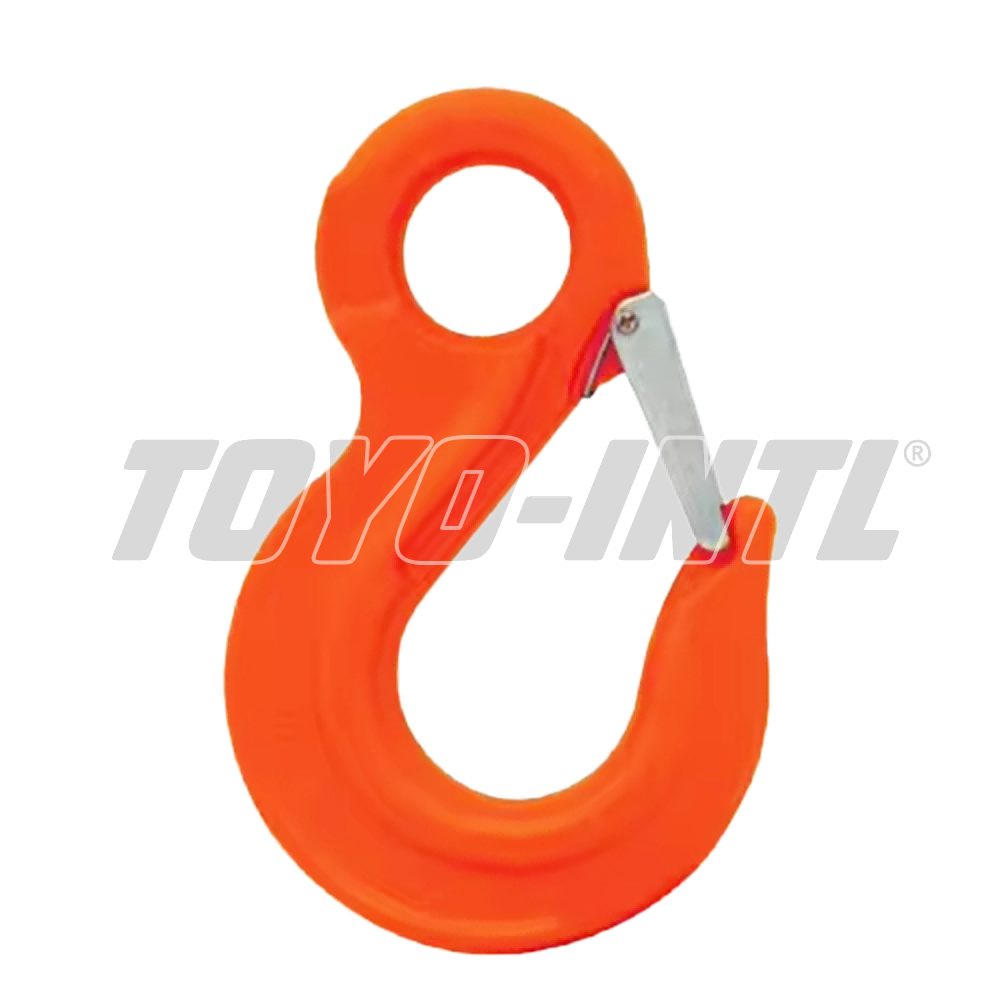

TOYO-INTL ESH Eye Hook With Latch
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The product is labeled Eye Sling Hook With Latch. The table lists sizes from 6 to 32 mm, including the printed 7/8 row. WLL values run from 1.12 to 31.5 T. A latch is visibly shown on the eye hook illustration. The retained E, L, I, and diameter dimensions are printed in mm. Listed weights run from 0.30 to 17.00 kg. Complete semantic specifications; pure schematic letter dimensions removed:
Product Details
- The product is labeled Eye Sling Hook With Latch.
- The table lists sizes from 6 to 32 mm, including the printed 7/8 row.
- WLL values run from 1.12 to 31.5 T.
- A latch is visibly shown on the eye hook illustration.
- The retained E, L, I, and diameter dimensions are printed in mm.
- Listed weights run from 0.30 to 17.00 kg.
- Complete semantic specifications; pure schematic letter dimensions removed:

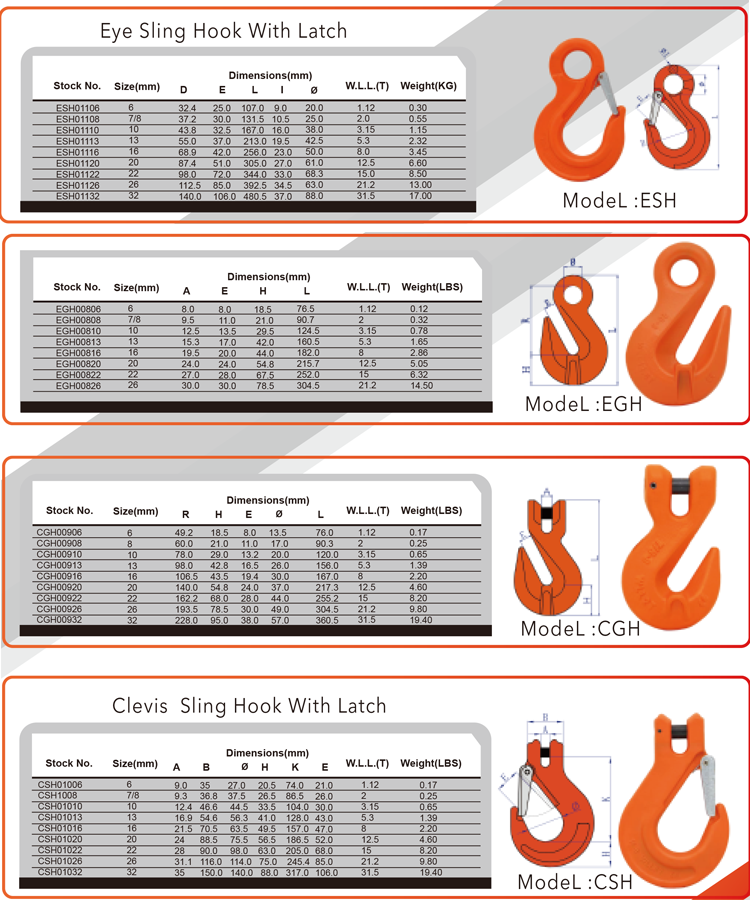

Technical Specifications
| Stock no. | Size (mm) | Diameter (mm) | WLL (T) | Weight (kg) |
|---|---|---|---|---|
| ESH006 | 6 | 20.0 | 1.12 | 0.30 |
| ESH008 | 7/8 | 25.0 | 2.0 | 0.55 |
| ESH010 | 10 | 38.0 | 3.15 | 1.15 |
| ESH013 | 13 | 42.5 | 5.3 | 2.32 |
| ESH016 | 16 | 50.0 | 8.0 | 3.45 |
| ESH020 | 20 | 61.0 | 12.5 | 6.60 |
| ESH022 | 22 | 68.3 | 15.0 | 8.50 |
| ESH026 | 26 | 63.0 | 21.2 | 13.00 |
| ESH032 | 32 | 88.0 | 31.5 | 17.00 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
