TOYO-INTL G209 G2310 US TYPE Bow Shackle
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
US-type bow shackle family with screw-pin and bolt-type variants. The source markings identify the G209/S209 and G2130/S2130 families. Nominal sizes run from 3/16 to 4 in across the two listed variants. Working load limits run from 1/3 to 150 t across the two tables. Listed weight per shackle runs from 0.06 to 338.00 lb. The images show a screw-pin closure for G209/S209 and a bolt-type pin with nut and retaining hardware for G2130/S2130.
Product Details
- US-type bow shackle family with screw-pin and bolt-type variants.
- The source markings identify the G209/S209 and G2130/S2130 families.
- Nominal sizes run from 3/16 to 4 in across the two listed variants.
- Working load limits run from 1/3 to 150 t across the two tables.
- Listed weight per shackle runs from 0.06 to 338.00 lb.

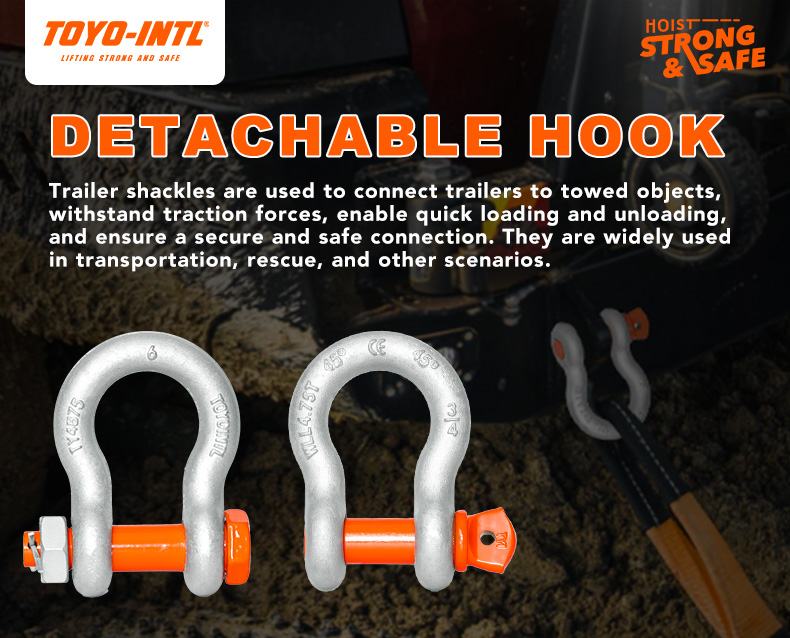

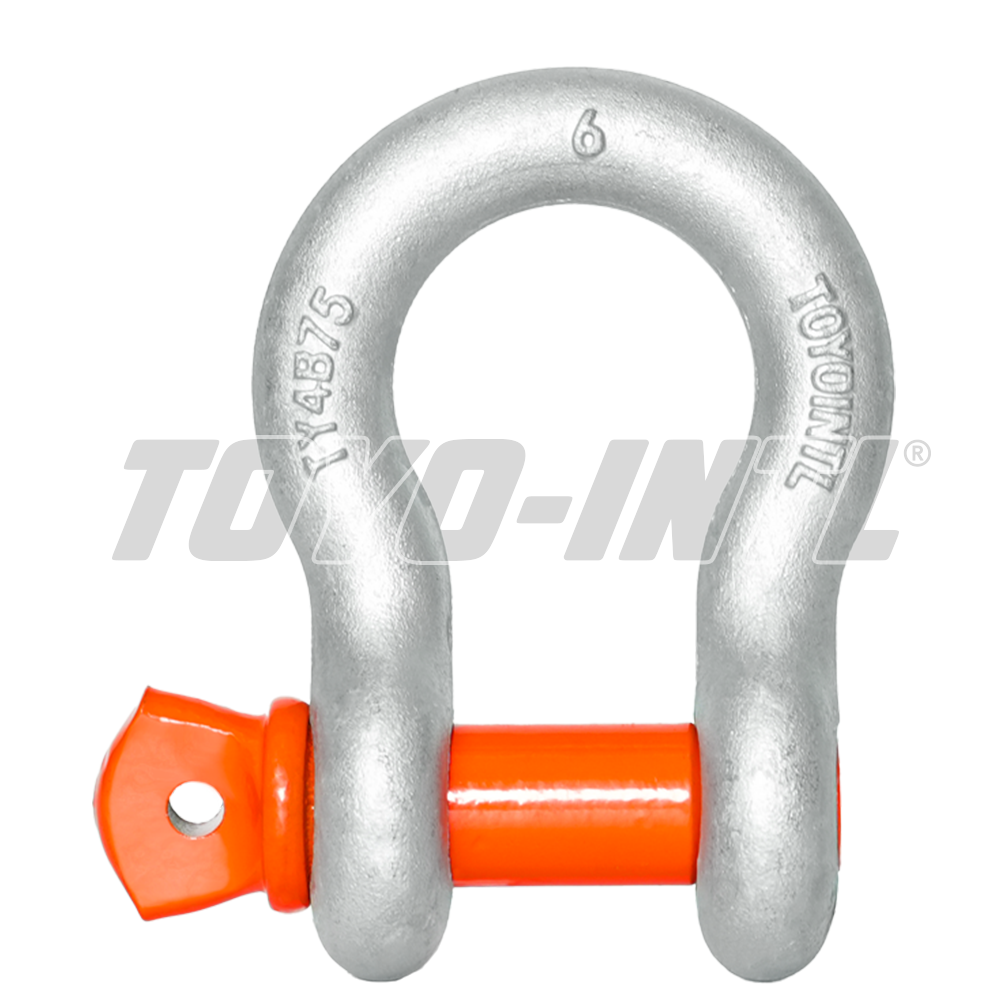

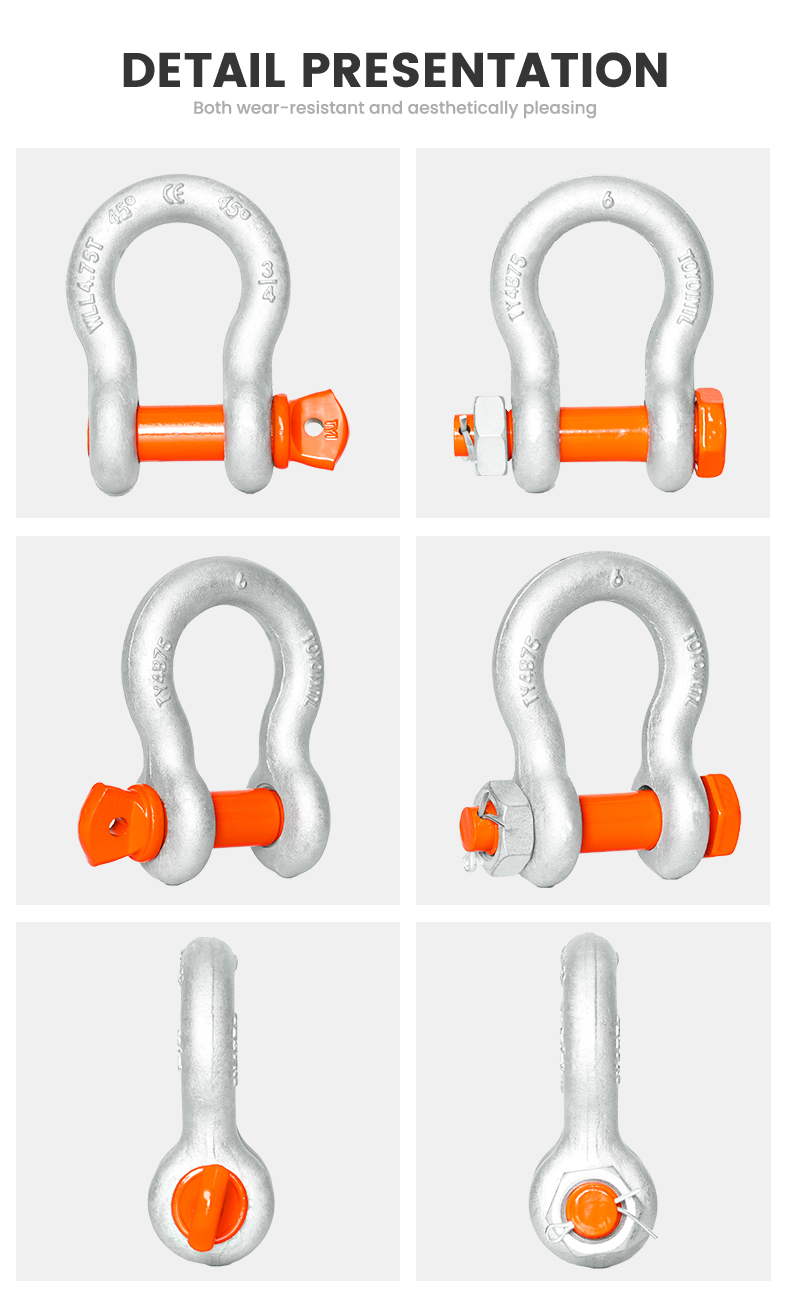

- The images show a screw-pin closure for G209/S209 and a bolt-type pin with nut and retaining hardware for G2130/S2130.
Technical Specifications
Screw Pin variant — G209 _ S209 semantic specifications
| Nominal size (in.) | Working load limit (t) | Weight each (lb) | Tolerance +/- (source C) | Tolerance +/- (source A) |
|---|---|---|---|---|
| 3/16 | 1/3 | 0.06 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.10 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.19 | 0.06 | 0.06 |
| 3/8 | 1 | 0.31 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.38 | 0.13 | 0.06 |
| 1/2 | 2 | 0.72 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.37 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.35 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.62 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.03 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 7.41 | 0.25 | 0.06 |
| 1-1/4 | 12 | 9.50 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 13.53 | 0.25 | 0.13 |
| 1-1/2 | 17 | 17.20 | 0.25 | 0.13 |
| 1-3/4 | 25 | 27.78 | 0.25 | 0.13 |
| 2 | 35 | 45.00 | 0.25 | 0.13 |
| 2-1/2 | 55 | 85.75 | 0.25 | 0.25 |
Bolt Type variant — G2130 _ S2130 semantic specifications
| Nominal size (in.) | Working load limit (t) | Weight each (lb) | Tolerance +/- (source C) | Tolerance +/- (source A) |
|---|---|---|---|---|
| 3/16 | 1/3 | 0.06 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.11 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.17 | 0.06 | 0.06 |
| 3/8 | 1 | 0.28 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.43 | 0.13 | 0.06 |
| 1/2 | 2 | 0.59 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.25 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.63 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.16 | 0.25 | 0.06 |
| 1 | 8-1/2 | 4.75 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 6.75 | 0.25 | 0.06 |
| 1-1/4 | 12 | 9.06 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 11.63 | 0.25 | 0.13 |
| 1-1/2 | 17 | 15.95 | 0.25 | 0.13 |
| 1-3/4 | 26 | 33.91 | 0.25 | 0.13 |
| 2 | 35 | 52.25 | 0.25 | 0.13 |
| 2-1/2 | 55 | 98.25 | 0.25 | 0.25 |
| 3 | 85 | 154.00 | 0.25 | 0.25 |
| 3-1/2 | 120 | 265.00 | 0.25 | 0.25 |
| 4 | 150 | 338.00 | 0.25 | 0.25 |
