RIGGING HARDWARE
TOYO-INTL G210 G2150 US TYPE D Shackle
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
US-type dee shackle family with screw-pin and bolt-type variants. The source markings identify the G210/S210 and G2150/S2150 families. Nominal sizes run from 1/4 to 3 in across the two listed variants. Working load limits run from 1/2 to 85 t across the two tables. Listed weight per shackle runs from 0.11 to 124.25 lb. The G210/S210 source notes a minimum proof load of 2.0 times WLL and maximum ultimate strength of 6 times WLL. The G2150/S2150 source notes individual proof testing with certification and round-head bolts with welded handles.
Product Details

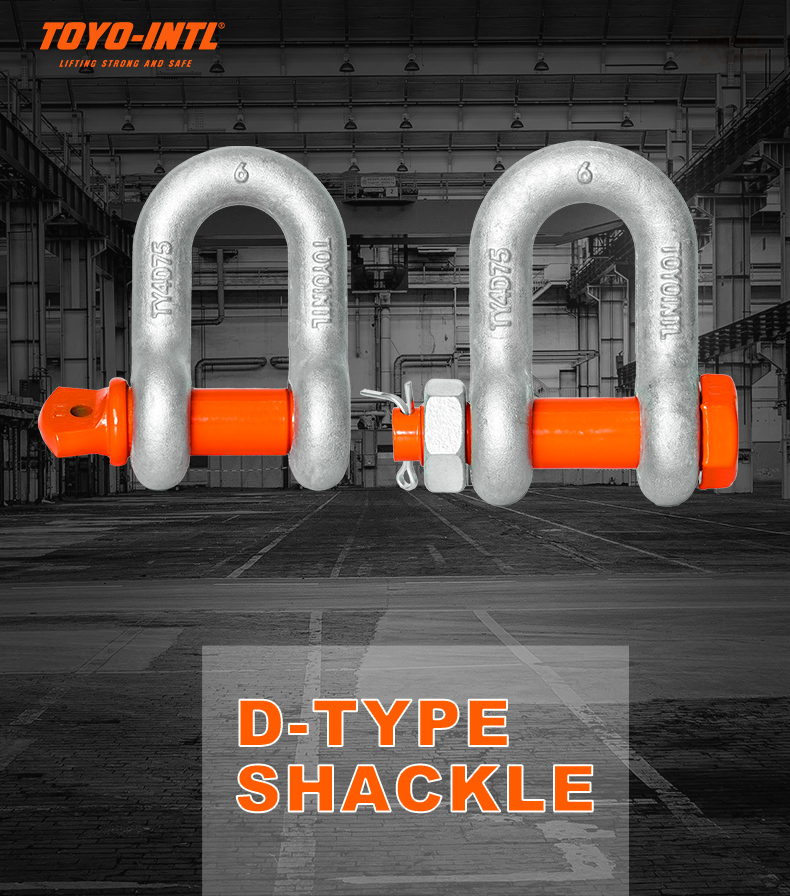

- US-type dee shackle family with screw-pin and bolt-type variants.
- The source markings identify the G210/S210 and G2150/S2150 families.
- Nominal sizes run from 1/4 to 3 in across the two listed variants.
- Working load limits run from 1/2 to 85 t across the two tables.
- Listed weight per shackle runs from 0.11 to 124.25 lb.
- The G210/S210 source notes a minimum proof load of 2.0 times WLL and maximum ultimate strength of 6 times WLL.
- The G2150/S2150 source notes individual proof testing with certification and round-head bolts with welded handles.
Technical Specifications
Screw Pin variant — G210 _ S210 semantic specifications
| Nominal size (in.) | Working load limit (t) | Weight each (lb) | Tolerance +/- (source C) | Tolerance +/- (source A) |
|---|---|---|---|---|
| 1/4 | 1/2 | 0.11 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.17 | 0.06 | 0.06 |
| 3/8 | 1 | 0.28 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.43 | 0.13 | 0.06 |
| 1/2 | 2 | 0.59 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.25 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.63 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.16 | 0.25 | 0.06 |
| 1 | 8-1/2 | 4.75 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 6.75 | 0.25 | 0.06 |
| 1-1/4 | 12 | 9.06 | 0.25 | 0.13 |
| 1-3/8 | 13-1/2 | 11.63 | 0.25 | 0.13 |
| 1-1/2 | 17 | 15.95 | 0.25 | 0.13 |
| 1-3/4 | 25 | 26.75 | 0.25 | 0.13 |
| 2 | 35 | 42.31 | 0.25 | 0.13 |
| 2-1/2 | 55 | 71.75 | 0.25 | 0.25 |
Bolt Type variant — G2150 _ S2150 semantic specifications
| Nominal size (in.) | Working load limit (t) | Weight each (lb) | Tolerance +/- (source G) | Tolerance +/- (source A) |
|---|---|---|---|---|
| 1/4 | 1/2 | 0.13 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.23 | 0.06 | 0.06 |
| 3/8 | 1 | 0.33 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.49 | 0.13 | 0.06 |
| 1/2 | 2 | 0.75 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.47 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.52 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.85 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.55 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 7.60 | 0.25 | 0.06 |
| 1-1/4 | 12 | 10.81 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 13.75 | 0.25 | 0.13 |
| 1-1/2 | 17 | 18.50 | 0.25 | 0.13 |
| 1-3/4 | 25 | 31.40 | 0.25 | 0.13 |
| 2 | 35 | 46.75 | 0.25 | 0.13 |
| 2-1/2 | 55 | 85.00 | 0.25 | 0.25 |
| 3 | 85 | 124.25 | 0.25 | 0.25 |
