CHAIN SLING & LOAD BINDER

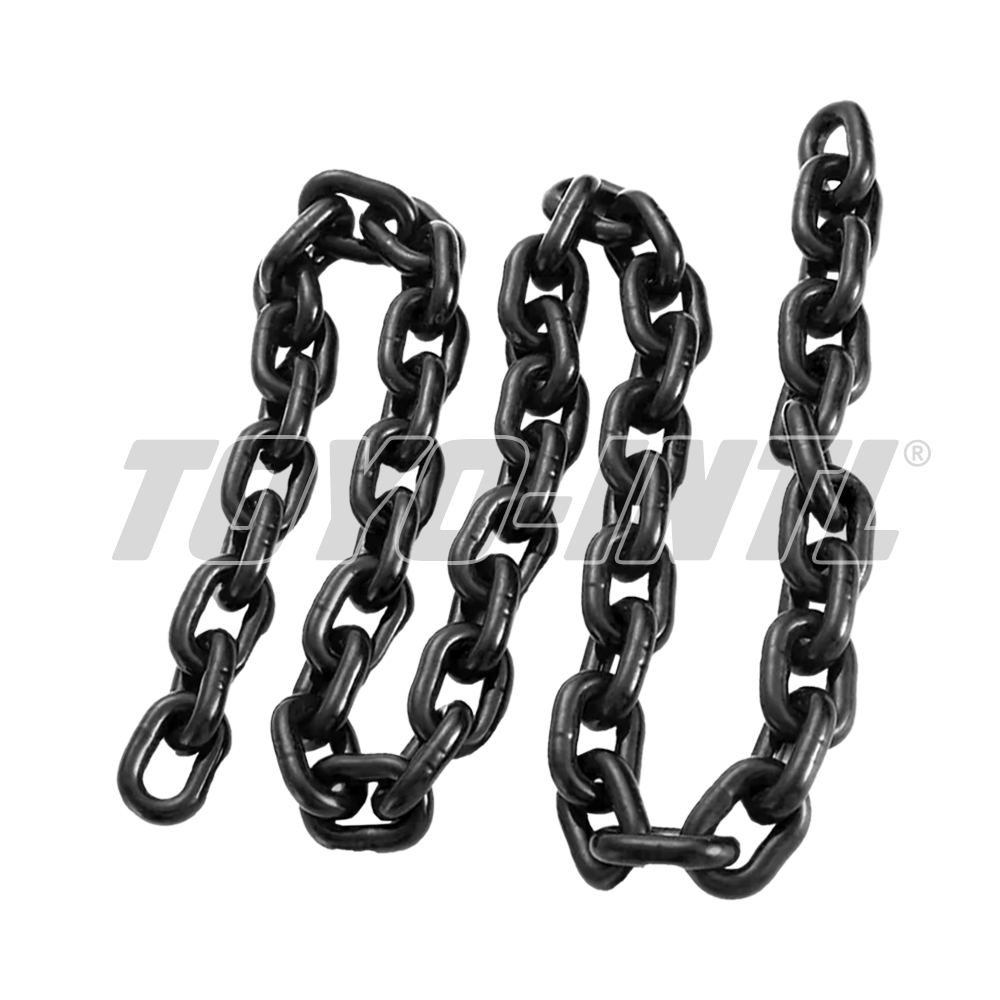

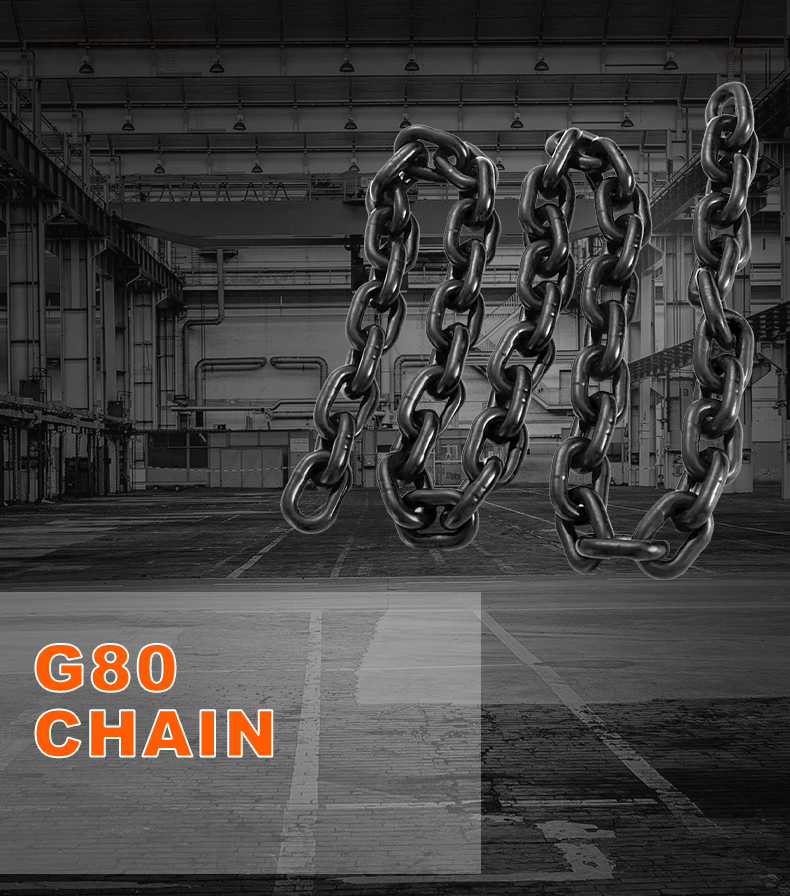

TOYO-INTL G80 Chain
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The G80 Chain is designed for load securing, chain-sling assembly or controlled rigging work. Alloy-steel or G80 components provide a dependable connection within the rated capacity. Hooks, links or tensioning parts are shaped for practical chain engagement. The design supports adjustment, shortening or tensioning where required by the product. Compact fittings help keep the rigging arrangement organized at the load. Inspect chain, hooks, pins and connection points before each operation.
Product Details
- The G80 Chain is designed for load securing, chain-sling assembly or controlled rigging work.
- Alloy-steel or G80 components provide a dependable connection within the rated capacity.
- Hooks, links or tensioning parts are shaped for practical chain engagement.
- The design supports adjustment, shortening or tensioning where required by the product.
- Compact fittings help keep the rigging arrangement organized at the load.
- Inspect chain, hooks, pins and connection points before each operation.
Technical Specifications
| Item No. | Chain Dia. p (mm) | Inside Length P (mm) | Outside Width W (mm) | Inside Width W1 (mm) | WLL(t) | Ultimate Load(t) | Weight Approx(kg) |
|---|---|---|---|---|---|---|---|
| AW-80-05 | 5 | 15.00 | 16.25 | 6.80 | 0.65 | 2.60 | 0.50 |
| AW-80-06 | 6 | 18.00 | 19.50 | 8.00 | 1.00 | 4.00 | 0.80 |
| AW-80-063 | 6.3 | 19.80 | 21.50 | 8.50 | 1.41 | 5.00 | 0.84 |
| AW-80-07 | 7 | 21.00 | 22.75 | 9.00 | 1.41 | 5.00 | 1.10 |
| AW-80-071 | 7.1 | 21.30 | 24.00 | 9.30 | 1.60 | 6.40 | 1.15 |
| AW-80-08 | 8 | 24.00 | 26.00 | 10.00 | 2.00 | 8.00 | 1.40 |
| AW-80-09 | 9 | 27.00 | 29.25 | 12.20 | 2.50 | 10.00 | 1.82 |
| AW-80-10 | 10 | 30.00 | 32.50 | 13.30 | 3.20 | 12.80 | 2.20 |
| AW-80-112 | 11.2 | 34.00 | 36.00 | 13.70 | 3.80 | 15.20 | 2.70 |
| AW-80-13 | 13 | 39.00 | 42.25 | 17.50 | 5.00 | 20.00 | 3.70 |
| AW-80-16 | 16 | 48.00 | 52.00 | 21.50 | 8.00 | 32.00 | 5.60 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
