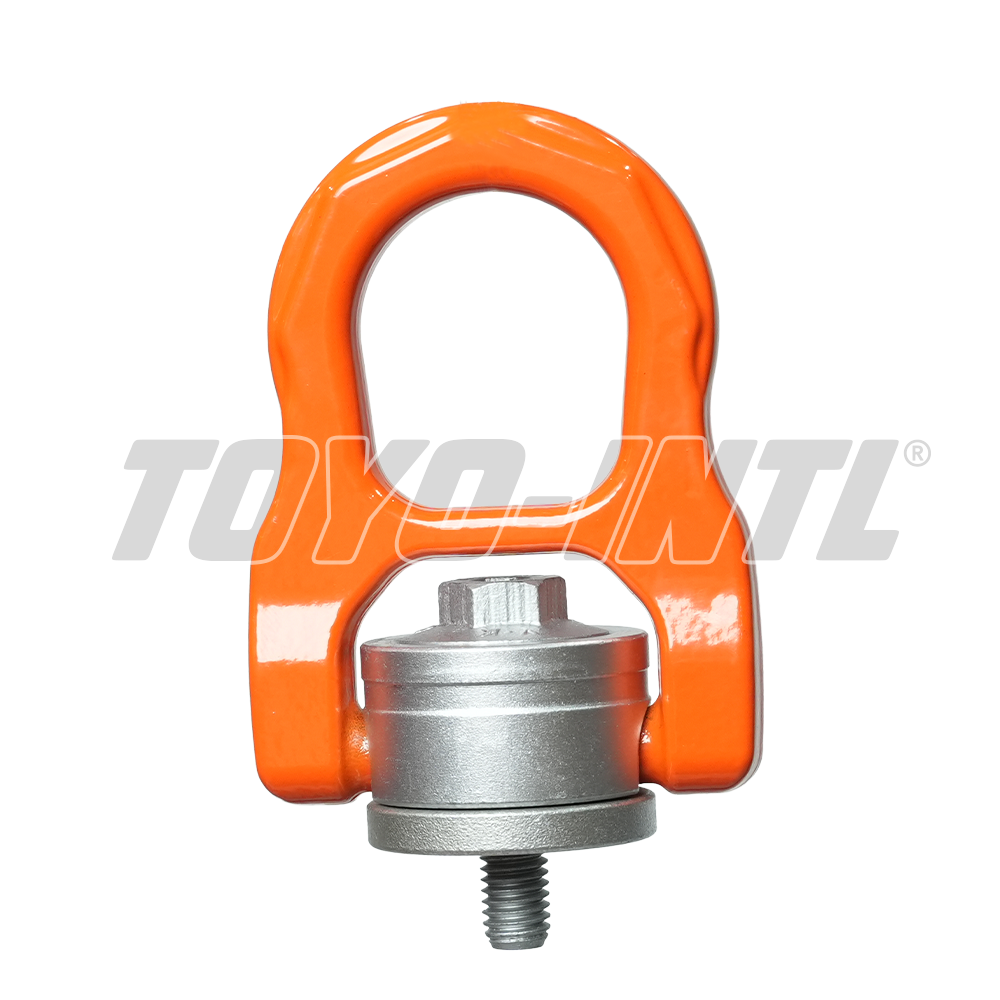

TOYO-INTL G80 Low Profile Swivel Hoist Ring with Metric Thread
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The heavy-duty hoist ring is specified with a 4:1 safety factor. It uses high-quality alloy steel and professional forging technology. The source states that the production process and raw materials are traceable. The ring is designed for easy installation. The bolt has an anti-corrosion design for use in more conditions. The source specifies DIN EN 1677-1 and bolt grade 10.9. Specifications are presented as complete for customized needs. Each product is inspected with a 6g go/no-go gauge.
Product Details
- The heavy-duty hoist ring is specified with a 4:1 safety factor.
- It uses high-quality alloy steel and professional forging technology.
- The source states that the production process and raw materials are traceable.
- The ring is designed for easy installation.
- The bolt has an anti-corrosion design for use in more conditions.
- The source specifies DIN EN 1677-1 and bolt grade 10.9.
- Specifications are presented as complete for customized needs.
- Each product is inspected with a 6g go/no-go gauge.
Technical Specifications
Parameters — metric thread (as printed; removed schematic columns: E, D, F, G, H, R, S, SW; A/B/C were already absent)
| Item | WLL/T | Thread | Locking torque/Nm | N.W./kg |
|---|---|---|---|---|
| HDH-M6 | 0.2 | M6×1.0 | 10 | 0.3 |
| HDH-M8 | 0.5 | M8×1.25 | 10 | 0.3 |
| HDH-M10 | 0.7 | M10×1.5 | 10 | 0.3 |
| HDH-M12 | 1 | M12×1.75 | 15 | 0.35 |
| HDH-M14 | 1.5 | M14×2.0 | 30 | 1.15 |
| HDH-M16 | 2 | M16×2.0 | 50 | 1.2 |
| HDH-M18 | 2.5 | M18×2.5 | 70 | 2.6 |
| HDH-M20 | 3 | M20×2.5 | 100 | 2.65 |
| HDH-M22 | 4 | M22×2.5 | 100 | 2.7 |
| HDH-M24 | 5 | M24×3.0 | 160 | 2.75 |
| HDH-M27 | 5.6 | M27×3.0 | 200 | 5.45 |
| HDH-M30 | 7.8 | M30×3.5 | 500 | 5.8 |
| HDH-M33 | 8.3 | M33×3.5 | 500 | 5.7 |
| HDH-M36S | 9 | M36×4.0 | 500 | 6 |
| HDH-M36B | 12.5 | M36×4.0 | 600 | 11.5 |
| HDH-M39 | 13.5 | M39×4.0 | 600 | 11.7 |
| HDH-M42 | 15.6 | M42×4.5 | 600 | 11.8 |
| HDH-M45 | 17.5 | M45×4.5 | 600 | 11.9 |
| HDH-M48 | 20 | M48×5.0 | 600 | 12.1 |
| HDH-M52 | 20 | M52×5.0 | 800 | 15.5 |
| HDH-M56 | 22 | M56×5.5 | 800 | 15.9 |
| HDH-M60 | 22 | M60×5.5 | 800 | 16.2 |
| HDH-M64 | 22.5 | M64×6.0 | 800 | 16.7 |
Parameters — UNC thread (as printed; removed schematic columns: E, D, F, G, H, R, S, SW; A/B/C were already absent)
| Item | WLL/T | Thread | TPI | Locking torque/Nm | N.W./kg |
|---|---|---|---|---|---|
| HDH-5/16 | 0.5 | 5/16 | 18 | 15 | 0.3 |
| HDH-3/8 | 0.6 | 3/8 | 16 | 15 | 0.3 |
| HDH-1/2 | 1 | 1/2 | 13 | 15 | 0.33 |
| HDH-5/8 | 2 | 5/8 | 11 | 30 | 1.2 |
| HDH-3/4 | 3 | 3/4 | 10 | 80 | 2.6 |
| HDH-7/8 | 4 | 7/8 | 9 | 90 | 2.65 |
| HDH-1 | 5 | 1 | 8 | 110 | 2.75 |
| HDH-1-1/4 | 8 | 1-1/4 | 7 | 200 | 5.55 |
| HDH-1-1/2 | 12.5 | 1-1/2 | 6 | 500 | 11.3 |
| HDH-1-3/4 | 16 | 1-3/4 | 5 | 500 | 12.2 |
| HDH-2 | 20 | 2 | 4.5 | 600 | 13.2 |
| HDH-2-1/4 | 22 | 2-1/4 | 4.5 | 800 | 15.8 |
| HDH-2-1/2 | 22.5 | 2-1/2 | 4 | 800 | 16.5 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
