TROLLEY SERIES
TOYO-INTL GCl-A Trolley
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The source identifies the product as a geared trolley series. The product image shows geared wheels and a hand chain. The table lists capacities from 1 to 10 t. Compatible rail width ranges are listed for each capacity. Compatible rail height ranges are listed for each capacity. Minimum rotation radius is specified where provided in the table. Listed net weights run from 14.0 to 101.0 kg.
Product Details
- The source identifies the product as a geared trolley series.

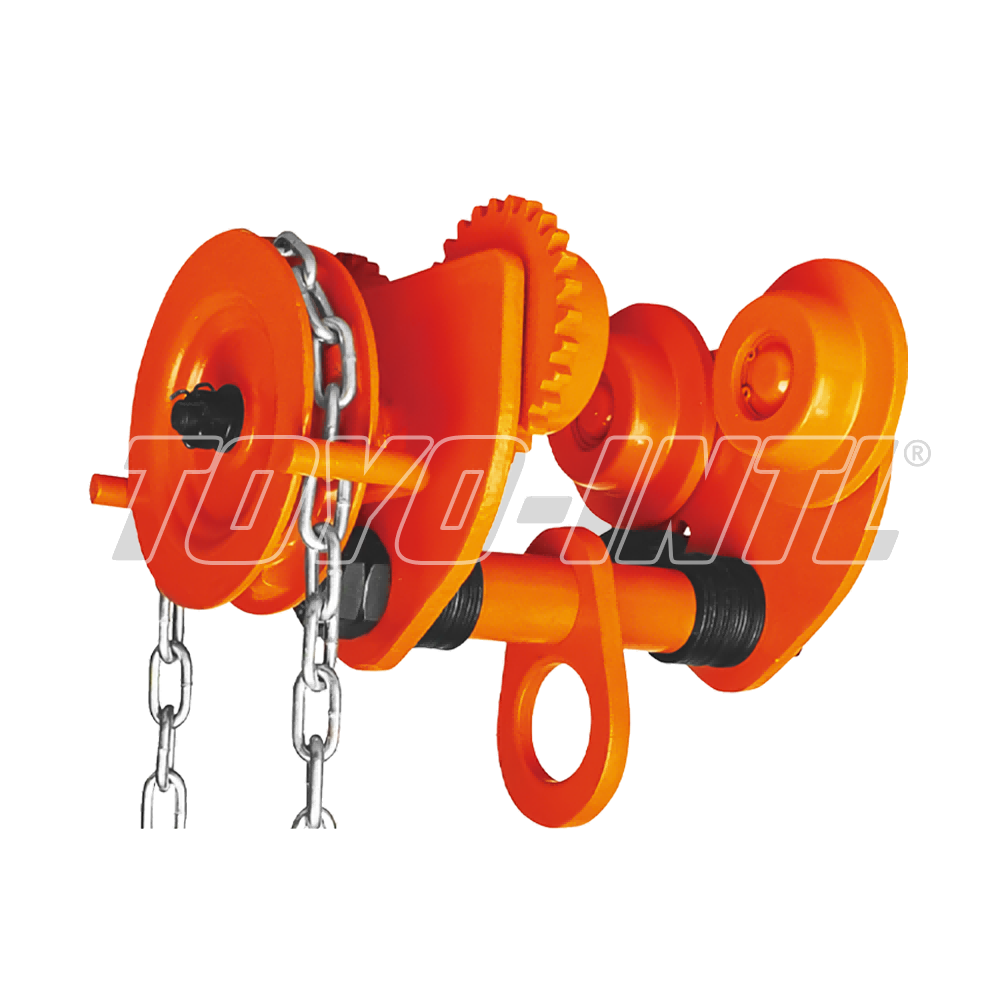

- The product image shows geared wheels and a hand chain.
- The table lists capacities from 1 to 10 t.
- Compatible rail width ranges are listed for each capacity.
- Compatible rail height ranges are listed for each capacity.
- Minimum rotation radius is specified where provided in the table.
- Listed net weights run from 14.0 to 101.0 kg.
Technical Specifications
| Model | Capacity (t) | Compatible rail width (mm) | Compatible rail height (mm) | Min. rotation radius (mm) | Net weight (kg) |
|---|---|---|---|---|---|
| GCL-A10 | 1 | 80–146 | 125–250 | 1300 | 14.0 |
| GCL-A20 | 2 | 80–168 | 150–400 | 1500 | 23.5 |
| GCL-A30 | 3 | 88–168 | 180–400 | 2000 | 33.5 |
| GCL-A50 | 5 | 100–170 | 250–450 | 2600 | 53.5 |
| GCL-A100 | 10 | 122–203 | 250–450 | — | 101.0 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
