TROLLEY SERIES
TOYO-INTL GCL-B Trolley
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

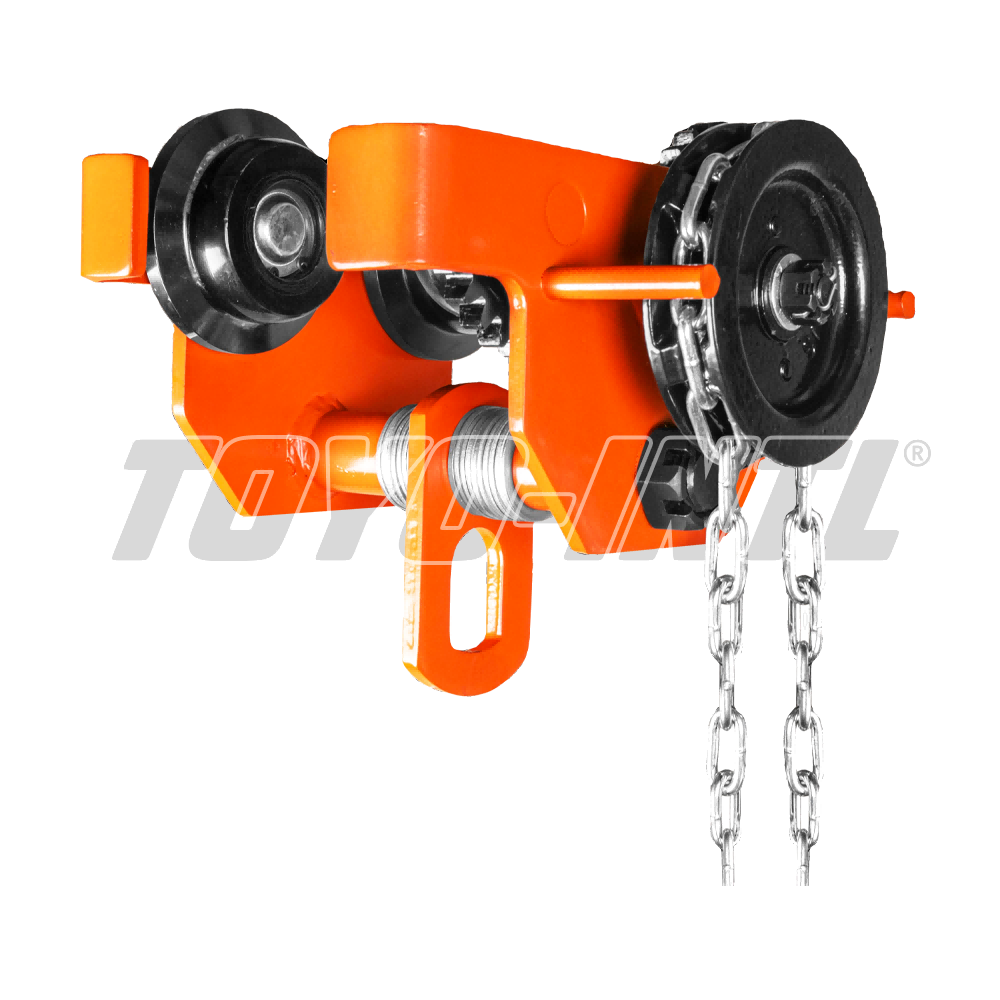

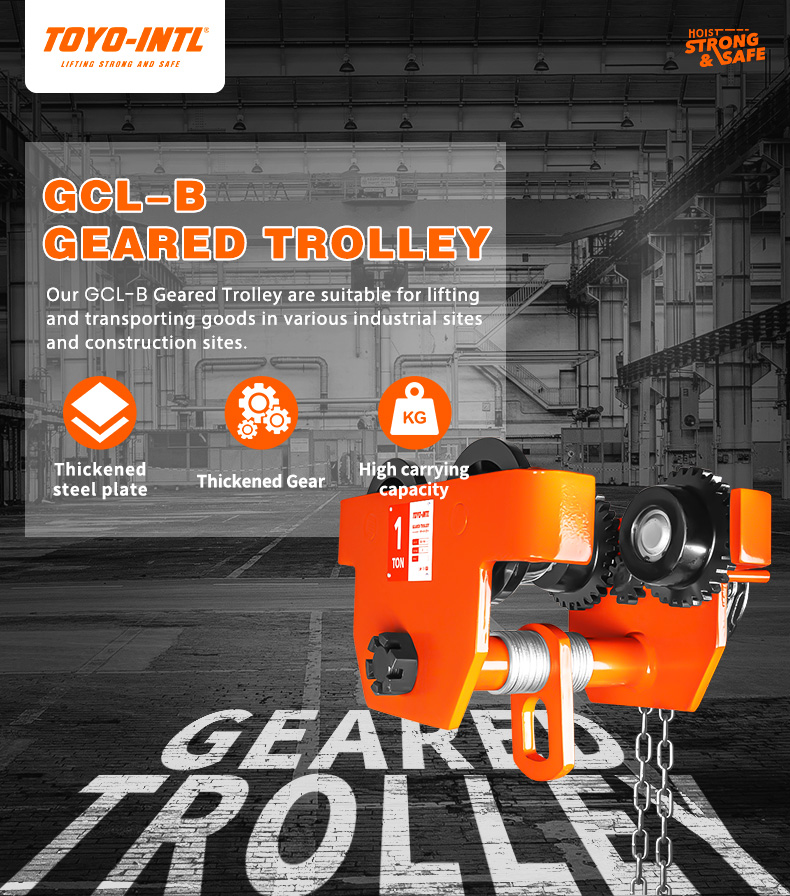

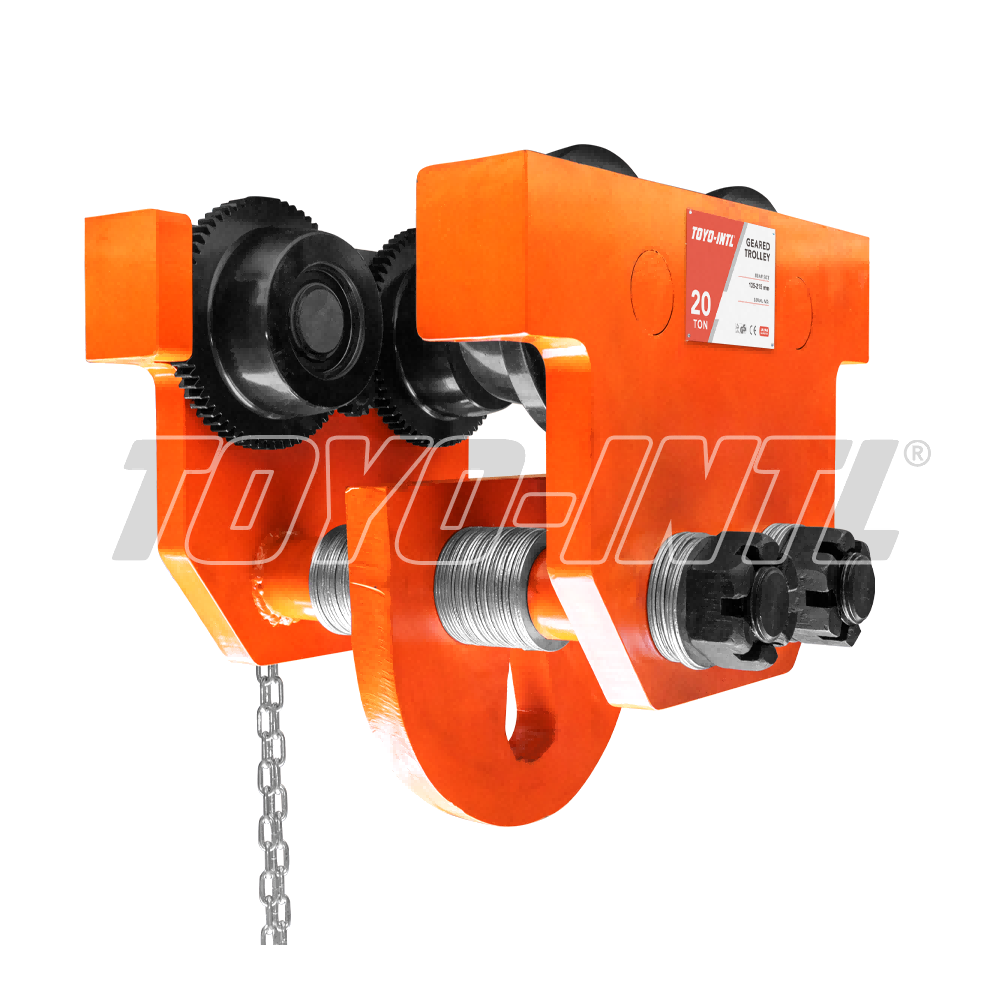

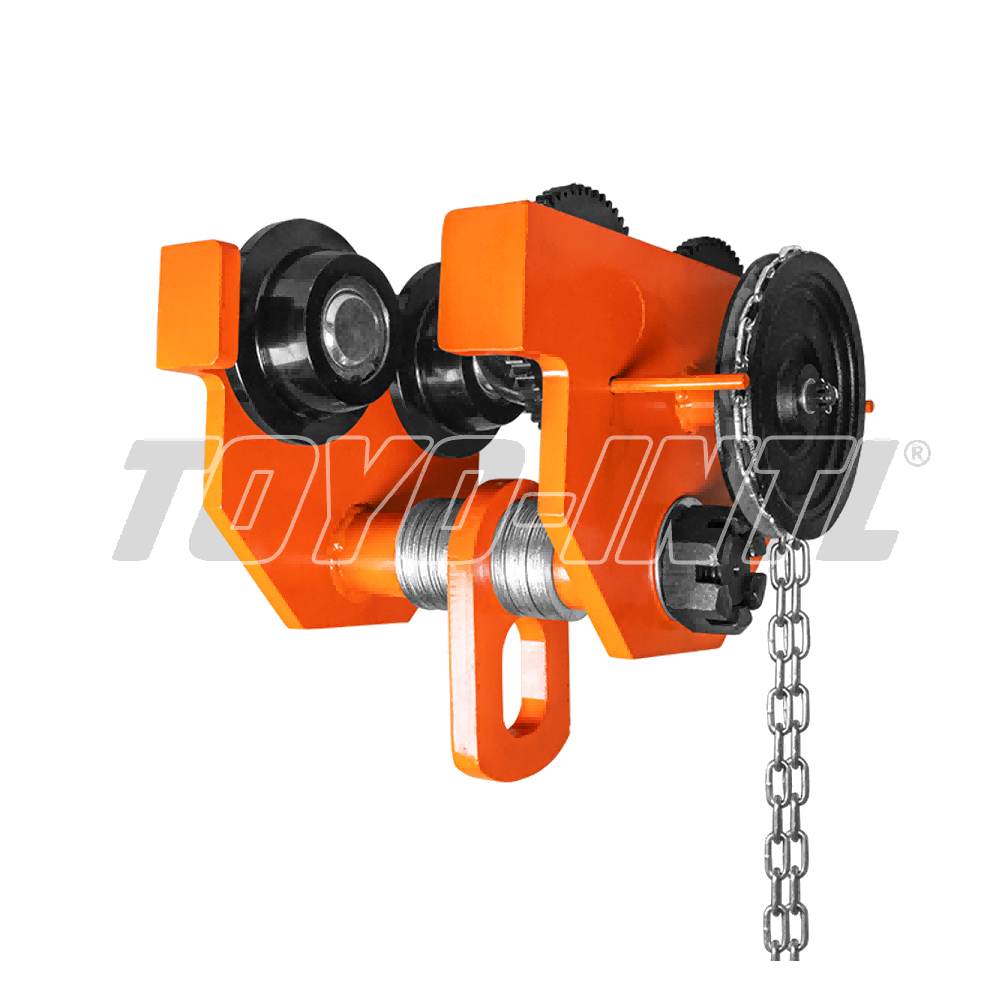

The source identifies the product as a geared trolley. High-grade sealed ball bearings are specified. Anti-drop plates are specified. The hand chain is galvanized. All structural parts are stated to be high-quality steel. Beam width is adjustable by adjusting the number of collars. The standard operating length for the geared trolley is stated as 3 m; other lengths are available upon request. The gear-guide mechanism in the flanged load sheave and guide roller is stated to facilitate smooth movement.

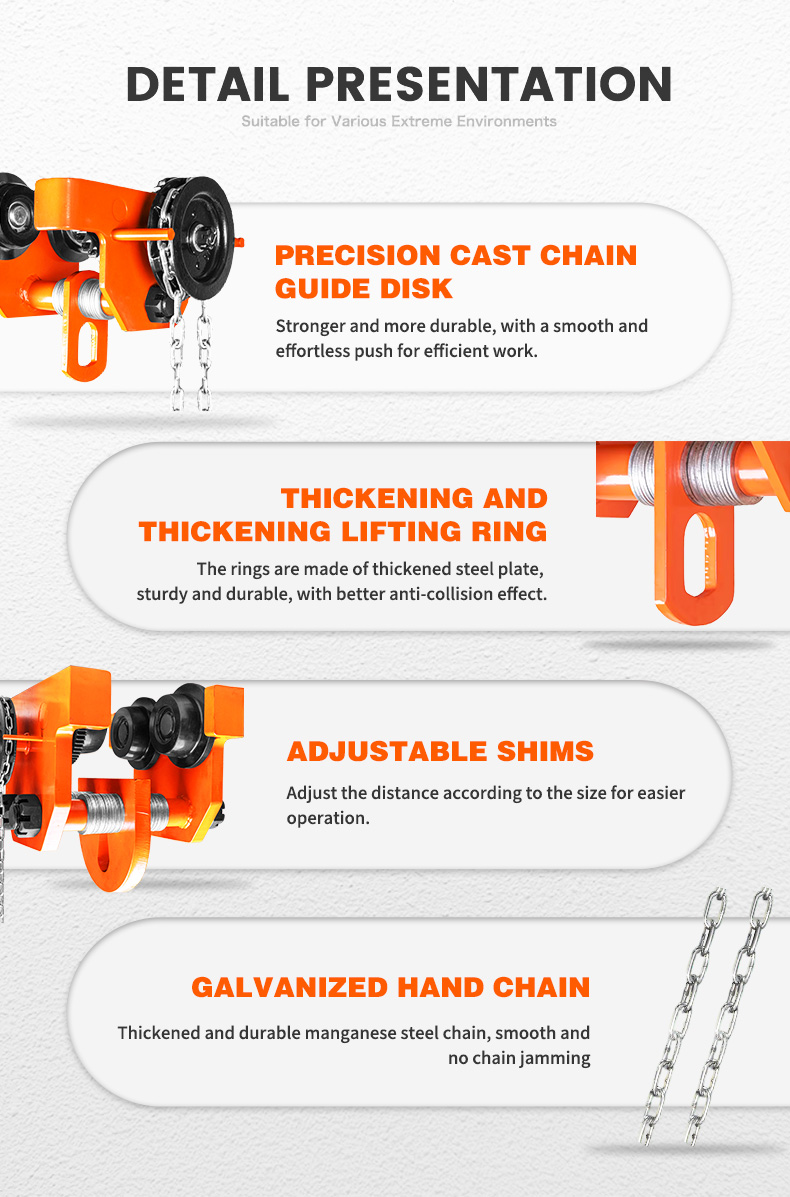

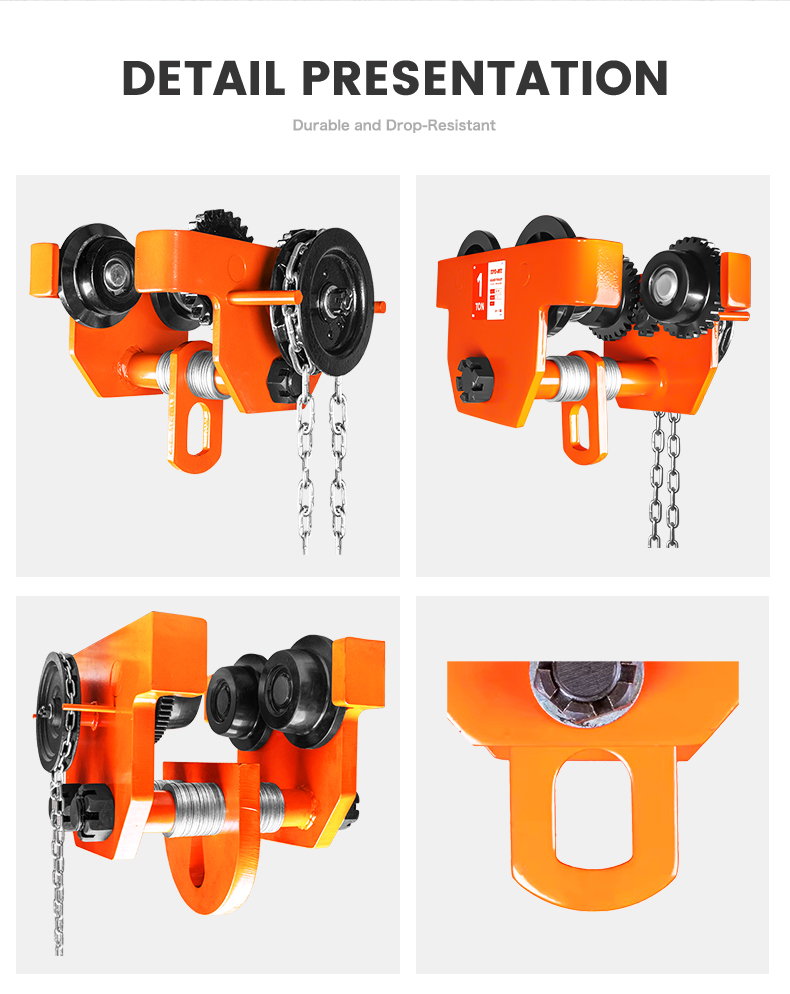

Product Details
- The source identifies the product as a geared trolley.
- High-grade sealed ball bearings are specified.
- Anti-drop plates are specified.
- The hand chain is galvanized.
- All structural parts are stated to be high-quality steel.
- Beam width is adjustable by adjusting the number of collars.
- The standard operating length for the geared trolley is stated as 3 m; other lengths are available upon request.
- The gear-guide mechanism in the flanged load sheave and guide roller is stated to facilitate smooth movement.
Technical Specifications
| Capacity / operating length (as printed) | I-beam width (mm) | N.W./G.W. (kg) | Carton size (mm) |
|---|---|---|---|
| 1T*3M | 80–146 | 10/11 | 280*250*180 |
| 2T*3M | 80–168 | 14/15 | 330*290*210 |
| 3T*3M | 88–168 | 23/24 | 330*310*240 |
| 5T*3M | 100–180 | 34/35 | 370*330*280 |
| 10T*3M | 100–180 | 71/79 | 480*480*360 |
| 20T*3M | 122–203 | 187 | 560*500*390 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
