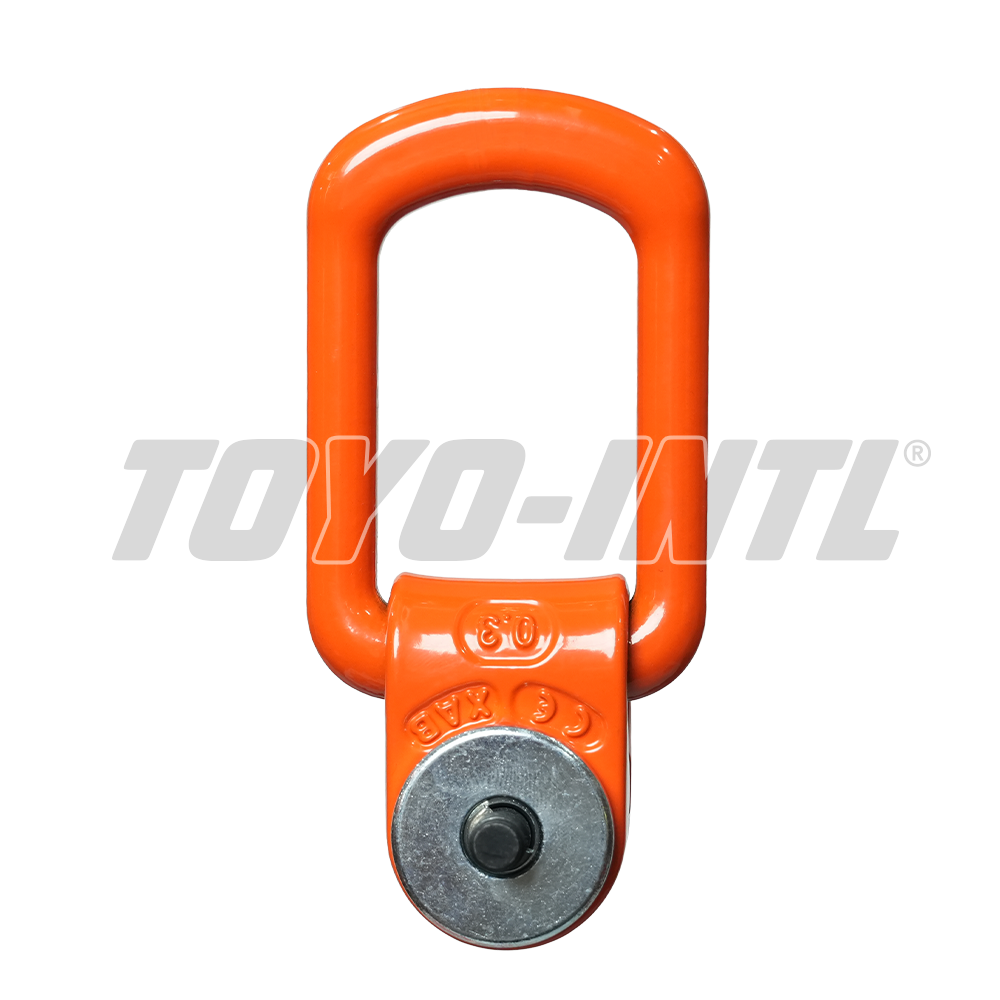

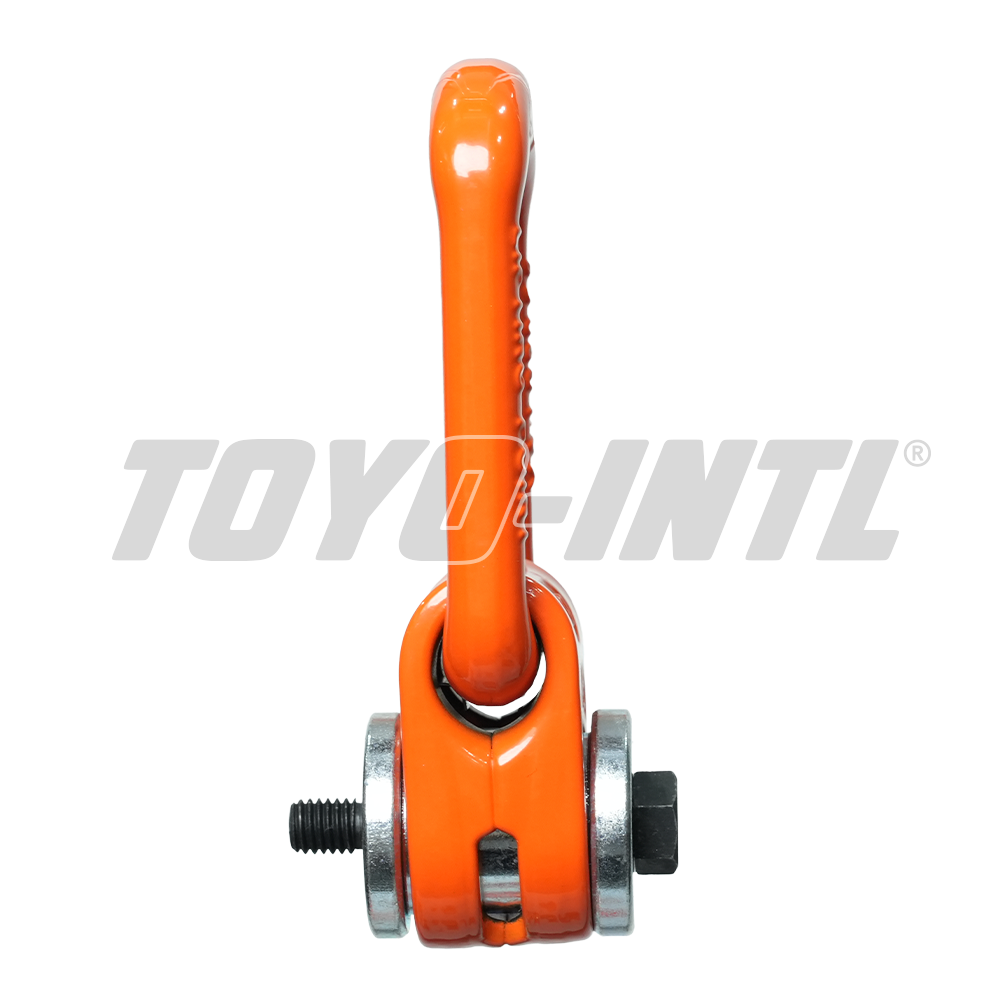

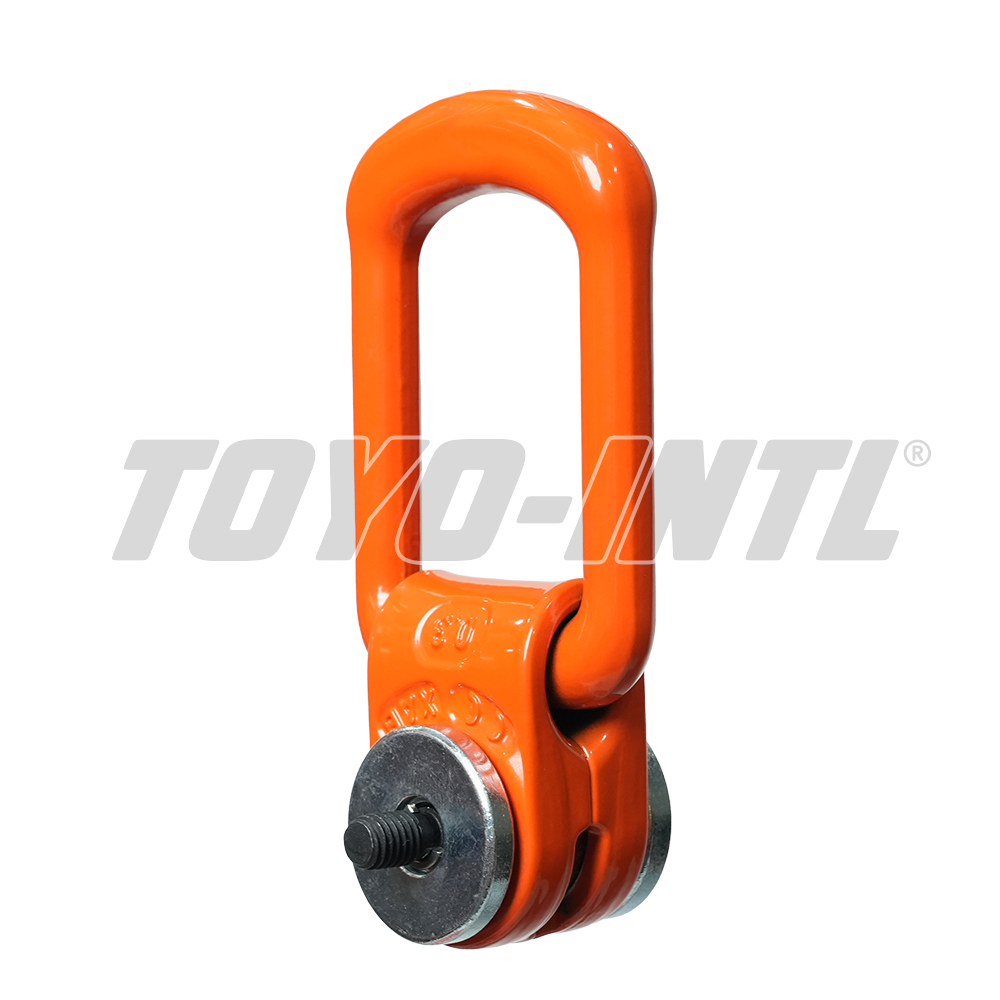

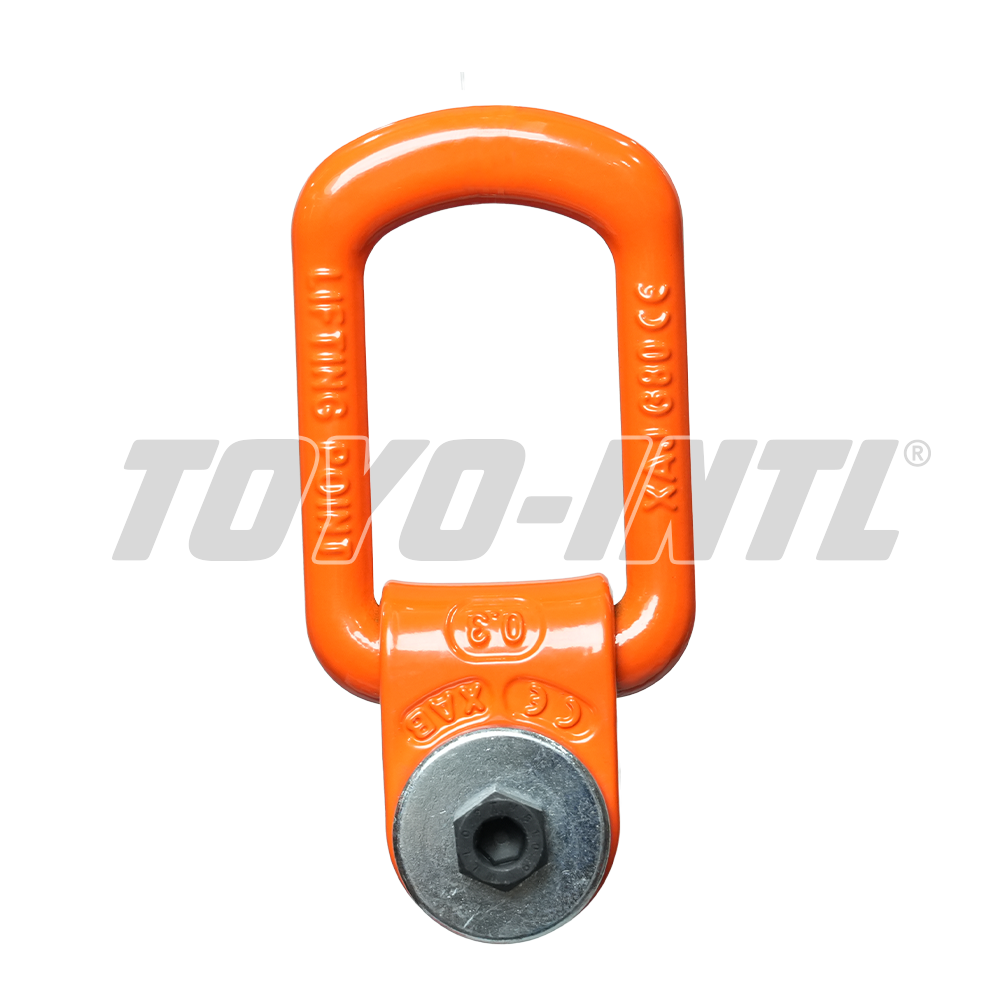

TOYO-INTL Heavy Duty Side Pull Lifting Point for Mold Flipping
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The SPS is presented as a side-load lifting point. The source specifies a 4:1 safety factor. It uses high-quality alloy steel and professional forging technology. The ring rotates 360° and pivots 180°. A built-in positioning circlip is shown with a hanging ring that can maintain hovering. The bolt has an anti-corrosion design for use in more conditions. The source specifies DIN EN 1677-1 and bolt grade 10.9. Each product is inspected with a 6g go/no-go gauge.
Product Details
- The SPS is presented as a side-load lifting point.
- The source specifies a 4:1 safety factor.
- It uses high-quality alloy steel and professional forging technology.
- The ring rotates 360° and pivots 180°.
- A built-in positioning circlip is shown with a hanging ring that can maintain hovering.
- The bolt has an anti-corrosion design for use in more conditions.
- The source specifies DIN EN 1677-1 and bolt grade 10.9.
- Each product is inspected with a 6g go/no-go gauge.
Technical Specifications
Parameters — metric thread (as printed; removed schematic columns: E, D, F, K, H, S; A/B/C were already absent)
| Item | WLL/T | Thread | Locking torque/Nm | N.G./kg |
|---|---|---|---|---|
| SPS-M8 | 0.5 | M8×1.25 | 10-40 | 0.65 |
| SPS-M10 | 0.7 | M10×1.5 | 10-40 | 0.65 |
| SPS-M12 | 1 | M12×1.75 | 15-40 | 0.65 |
| SPS-M14 | 1.5 | M14×2.0 | 30-100 | 0.66 |
| SPS-M16 | 2 | M16×2.0 | 45-130 | 0.67 |
| SPS-M18 | 2.5 | M18×2.5 | 100-170 | 1.8 |
| SPS-M20 | 3 | M20×2.5 | 100-170 | 1.8 |
| SPS-M22 | 3 | M22×2.5 | 100-170 | 1.9 |
| SPS-M24 | 4.5 | M24×3.0 | 190-280 | 1.9 |
| SPS-M27 | 5 | M27×3.0 | 250-500 | 5.3 |
| SPS-M30 | 7.3 | M30×3.5 | 270-600 | 5.3 |
| SPS-M33 | 8 | M33×3.5 | 270-600 | 5.3 |
| SPS-M36 | 10 | M36×4.0 | 270-600 | 5.4 |
| SPS-M39 | 10 | M39×4.0 | 350-800 | 5.6 |
| SPS-M42 | 12.5 | M42×4.5 | 350-800 | 5.8 |
| SPS-M45 | 15 | M45×4.5 | 350-800 | 5.9 |
| SPS-M48S | 16 | M48×5.0 | 350-800 | 6.1 |
| SPS-M48B | 20 | M48×5.0 | 350-800 | 11 |
| SPS-M52 | 20 | M52×5.0 | 350-900 | 11.4 |
| SPS-M56 | 25 | M56×5.5 | 350-900 | 11.5 |
| SPS-M60 | 25 | M60×5.5 | 350-600 | 12 |
| SPS-M64S | 32 | M64×6.0 | 500-1000 | 12.5 |
| SPS-M64B | 33 | M64×6.0 | 500-1000 | 42 |
| SPS-M72X4 | 35 | M72×4.0 | 500-1200 | 43 |
| SPS-M72X6 | 35 | M72×6.0 | 500-1200 | 43 |
| SPS-M80 | 40 | M80×6.0 | 500-1200 | 44.5 |
| SPS-M90 | 45 | M90×6.0 | 500-1500 | 46.5 |
| SPS-M100 | 50 | M100×6.0 | 500-1700 | 49 |
Parameters — UNC thread (as printed; removed schematic columns: E, D, F, K, H, S; A/B/C were already absent)
| Item | WLL/T | Thread | TPI | Locking torque/Nm | N.G./kg |
|---|---|---|---|---|---|
| SPS-5/16 | 0.5 | 5/16 | 18 | 10-40 | 0.65 |
| SPS-3/8 | 0.7 | 3/8 | 16 | 10-40 | 0.65 |
| SPS-1/2 | 1.5 | 1/2 | 13 | 15-40 | 0.65 |
| SPS-5/8 | 2 | 5/8 | 11 | 45-130 | 0.66 |
| SPS-3/4 | 3 | 3/4 | 10 | 45-130 | 1.8 |
| SPS-7/8 | 3 | 7/8 | 9 | 100-170 | 1.9 |
| SPS-1 | 4.5 | 1 | 8 | 190-280 | 1.8 |
| SPS-1-1/4 | 8 | 1-1/4 | 7 | 270-600 | 5.4 |
| SPS-1-1/2 | 10 | 1-1/2 | 6 | 270-600 | 5.5 |
| SPS-1-3/4 | 15 | 1-3/4 | 5 | 350-800 | 5.9 |
| SPS-2 | 20 | 2 | 4.5 | 350-800 | 11.2 |
| SPS-2-1/4 | 25 | 2-1/4 | 4.5 | 350-900 | 11.7 |
| SPS-2-1/2 | 32 | 2-1/2 | 4 | 500-1400 | 12.5 |
| SPS-2-3/4 | 33 | 2-3/4 | 4 | 500-1400 | 42.5 |
| SPS-3 | 35 | 3 | 4 | 500-1400 | 43.5 |
| SPS-3-1/4 | 40 | 3-1/4 | 4 | 500-1400 | 44 |
| SPS-3-1/2 | 42 | 3-1/2 | 4 | 500-1700 | 44.5 |
| SPS-3-3/4 | 45 | 3-3/4 | 4 | 500-1700 | 46.5 |
| SPS-4 | 50 | 4 | 4 | 500-1700 | 49 |
