TOYO-INTL HHBB Explosion-Proof Electric Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Explosion-proof electric chain hoist. The main specification table covers 1–35 t rated capacities. Listed lifting speeds range from 0.7 to 6.8 m/min. The lifting motor rows show 3-phase, 220–440 V, 50/60 Hz power. Operating speed is listed as 10–20 m/min. The table lists 7.1, 10.0 and 11.2 mm load-chain options. Trolley I-beam widths shown in the table range from 80–220 mm.
Product Details

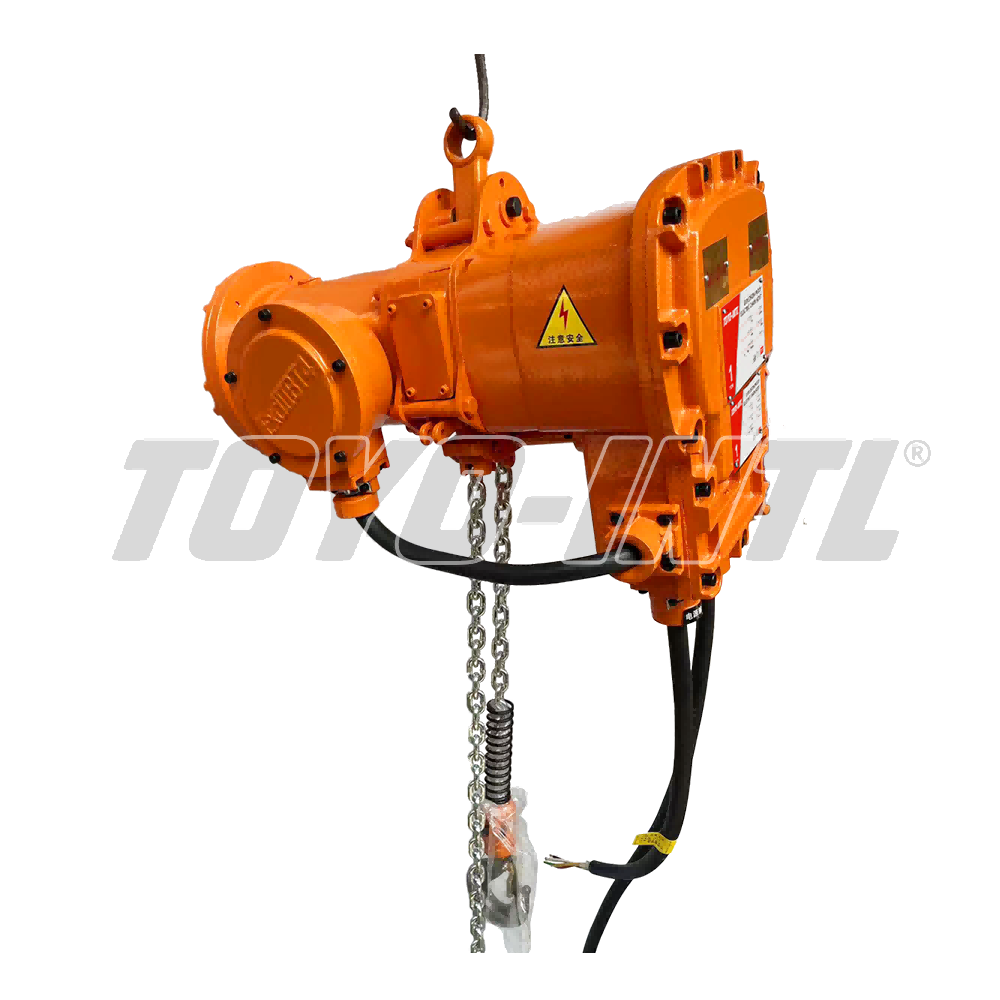

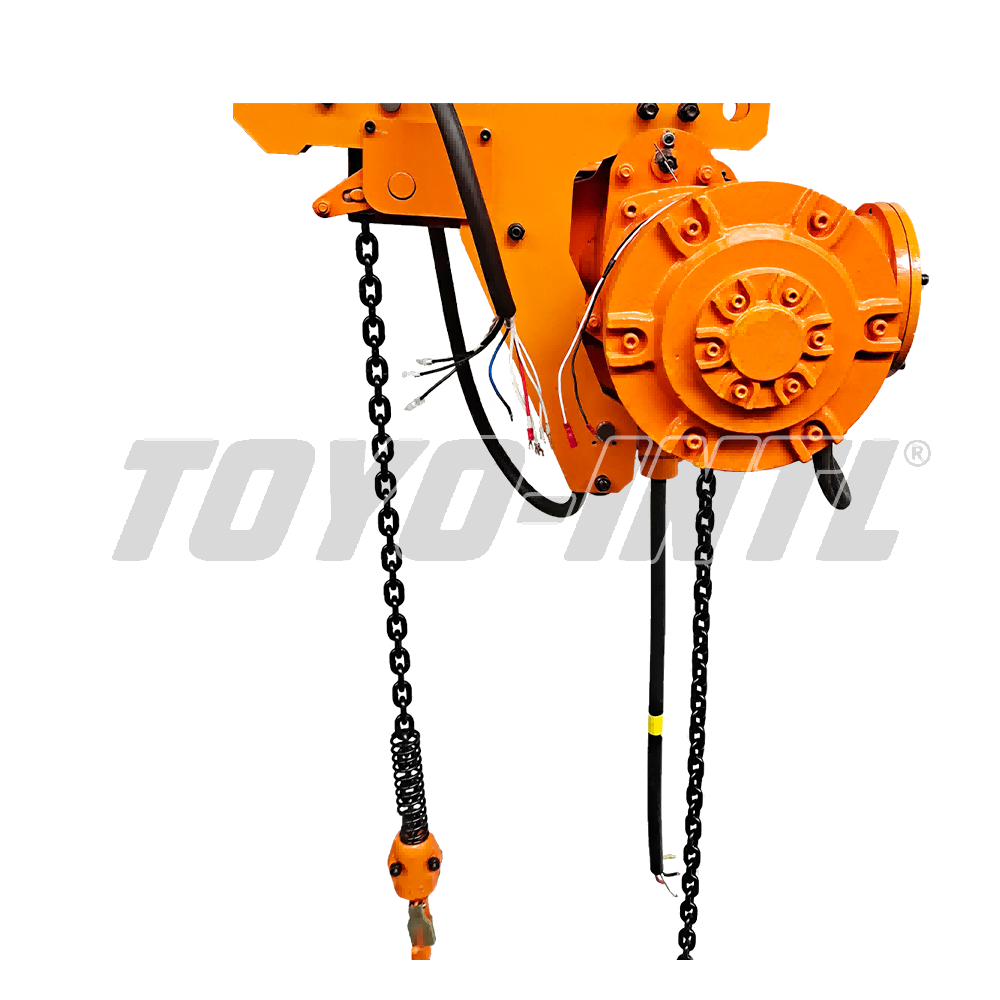

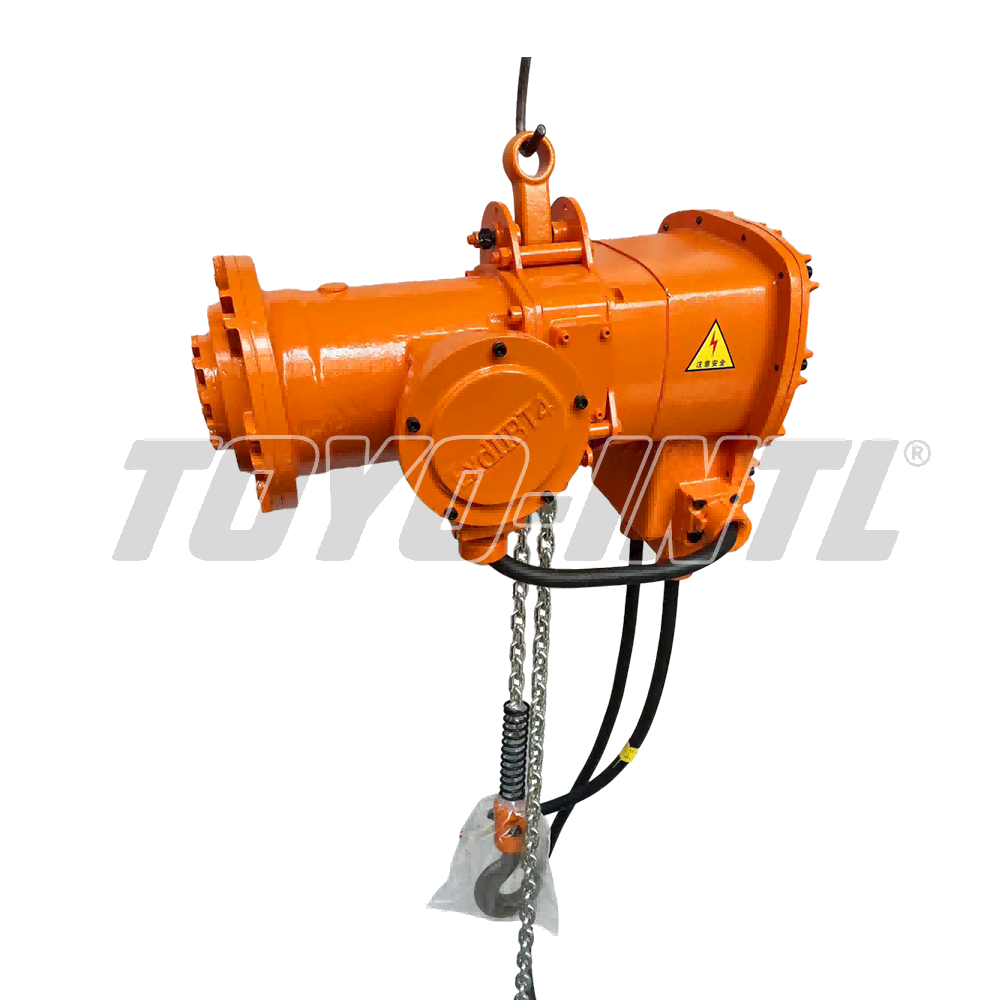

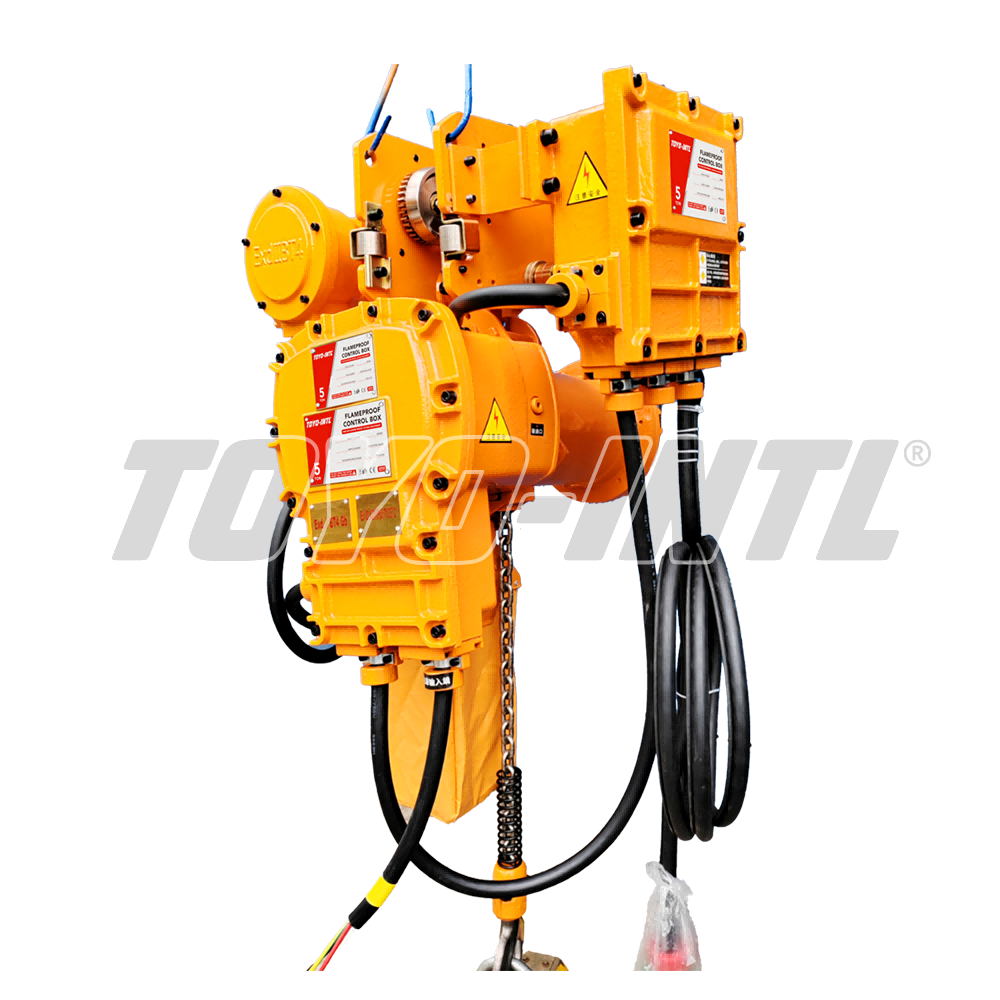

- Explosion-proof electric chain hoist.
- The main specification table covers 1–35 t rated capacities.
- Listed lifting speeds range from 0.7 to 6.8 m/min.
- The lifting motor rows show 3-phase, 220–440 V, 50/60 Hz power.
- Operating speed is listed as 10–20 m/min.
- The table lists 7.1, 10.0 and 11.2 mm load-chain options.
- Trolley I-beam widths shown in the table range from 80–220 mm.
Technical Specifications

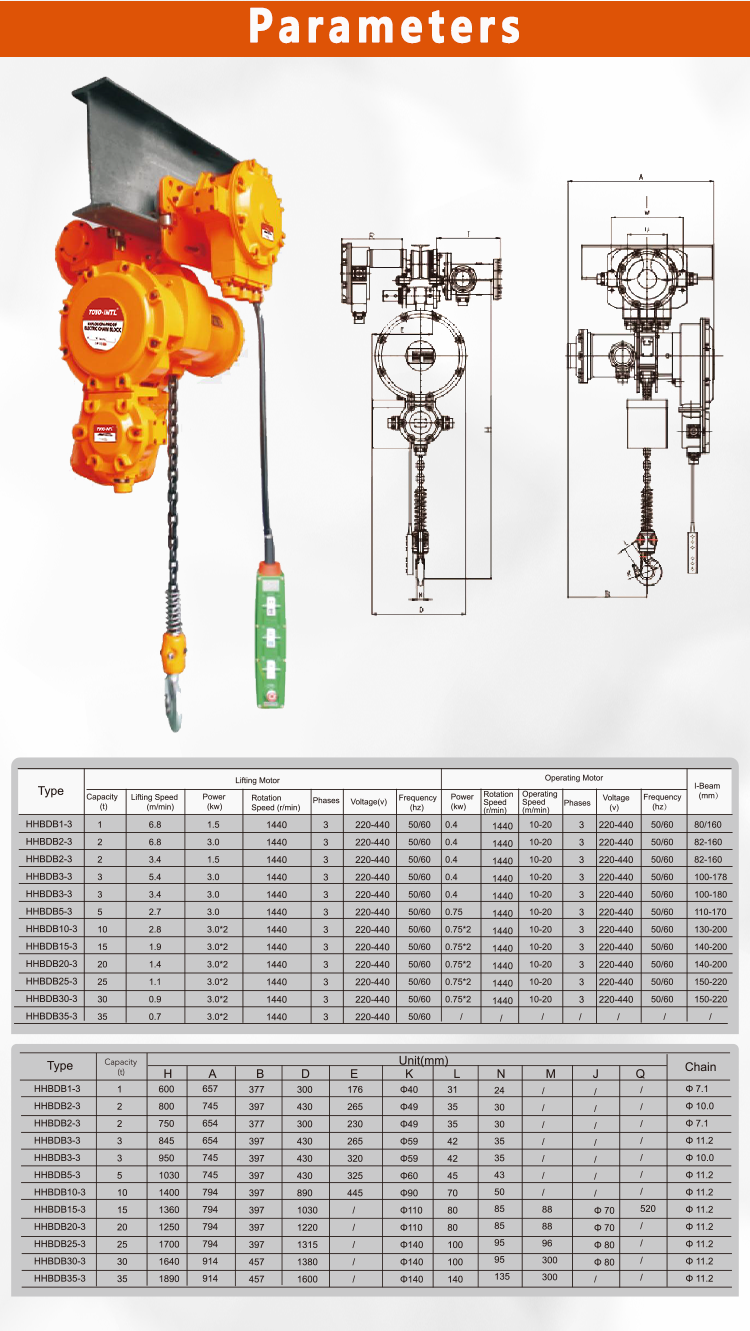

### Main specification table
| Type | Capacity (t) | Lifting speed (m/min) | Lifting motor power (kW) | Lifting motor speed (r/min) | Lifting phases | Lifting voltage (V) | Lifting frequency (Hz) | Operating motor power (kW) | Operating motor speed (r/min) | Operating speed (m/min) | Operating phases | Operating voltage (V) | Operating frequency (Hz) | I-beam (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBB1-3 | 1 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 80/160 |
| HHBB2-3 | 2 | 6.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 82-160 |
| HHBB2-3 | 2 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 82-160 |
| HHBB3-3 | 3 | 5.4 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 100-178 |
| HHBB3-3 | 3 | 3.4 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 100-180 |
| HHBB5-3 | 5 | 2.7 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 110-170 |
| HHBB10-3 | 10 | 2.8 | 3.0×2 | 1440 | 3 | 220-440 | 50/60 | 0.75×2 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 130-200 |
| HHBB15-3 | 15 | 1.9 | 3.0×2 | 1440 | 3 | 220-440 | 50/60 | 0.75×2 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 140-200 |
| HHBB20-3 | 20 | 1.4 | 3.0×2 | 1440 | 3 | 220-440 | 50/60 | 0.75×2 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 140-200 |
| HHBB25-3 | 25 | 1.1 | 3.0×2 | 1440 | 3 | 220-440 | 50/60 | 0.75×2 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 150-220 |
| HHBB30-3 | 30 | 0.9 | 3.0×2 | 1440 | 3 | 220-440 | 50/60 | 0.75×2 | 1440 | 10-20 | 3 | 220-440 | 50/60 | 150-220 |
| HHBB35-3 | 35 | 0.7 | 3.0×2 | 1440 | 3 | 220-440 | 50/60 | / | / | / | / | / | / | / |
The source dimension table has Type, Capacity, Chain and the letter-only Unit columns H, A, B, D, E, K, L, N, M, J and Q. The letter-only columns were removed as requested.
| Type | Capacity (t) | Chain (mm) |
|---|---|---|
| HHBB1-3 | 1 | 7.1 |
| HHBB2-3 | 2 | 10.0 |
| HHBB2-3 | 2 | 7.1 |
| HHBB3-3 | 3 | 11.2 |
| HHBB3-3 | 3 | 10.0 |
| HHBB5-3 | 5 | 11.2 |
| HHBB10-3 | 10 | 11.2 |
| HHBB15-3 | 15 | 11.2 |
| HHBB20-3 | 20 | 11.2 |
| HHBB25-3 | 25 | 11.2 |
| HHBB30-3 | 30 | 11.2 |
| HHBB35-3 | 35 | 11.2 |
