ELECTRIC HOIST
TOYO-INTL HHBD Electric Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Light but hard aluminum-alloy shell with high heat dissipation and a tightness-oriented design for harsh work environments. Inverter protection is described as extending motor life, smoothing start-up and reducing heat and noise. Double-speed operation supports slow-speed lifting and precise height/object positioning. A side magnetic braking device provides instant braking during a power dump. An inverse-phase-sequence protection device prevents operation after a power-supply wiring error. Top and bottom limit switches stop the motor automatically to prevent the chain from exceeding its travel. A 24 V/36 V device is described as preventing emergencies caused by switch leakage. The chain bag is described as light, handsome and durable.
Product Details

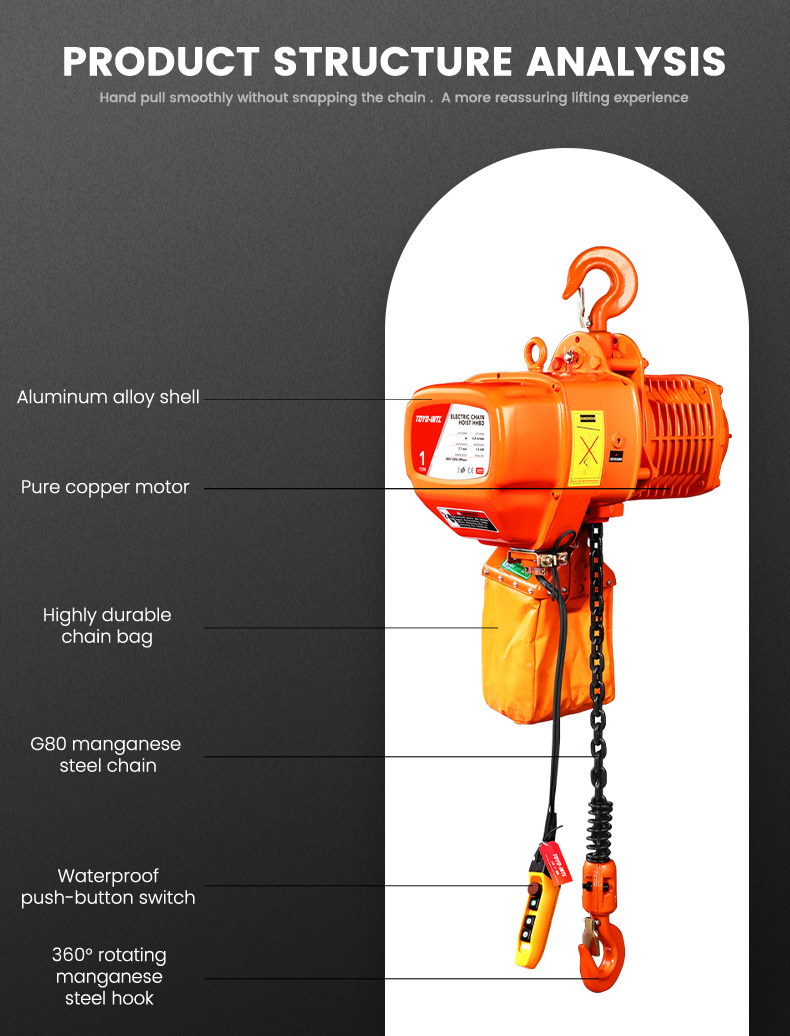

- Light but hard aluminum-alloy shell with high heat dissipation and a tightness-oriented design for harsh work environments.
- Inverter protection is described as extending motor life, smoothing start-up and reducing heat and noise.
- Double-speed operation supports slow-speed lifting and precise height/object positioning.
- A side magnetic braking device provides instant braking during a power dump.
- An inverse-phase-sequence protection device prevents operation after a power-supply wiring error.
- Top and bottom limit switches stop the motor automatically to prevent the chain from exceeding its travel.
- A 24 V/36 V device is described as preventing emergencies caused by switch leakage.
- The chain bag is described as light, handsome and durable.
Technical Specifications
### Main specification table
| Product code | Capacity (t) | Lifting height (m) | Lifting speed (m/min) | Lifting motor power (kW) | Lifting motor speed (r/min) | Lifting phases | Lifting voltage (V) | Lifting frequency (Hz) | Operating motor power (kW) | Operating motor speed (r/min) | Operating speed (m/min) | Operating phases | Operating voltage (V) | Operating frequency (Hz) | I-beam (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBD0101 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 | 68-153 |
| HHBD0151 | 1.5 | 3/9 | 8.8 | 3.0 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 | 82-178 |
| HHBD0201 | 2 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 | 82-178 |
| HHBD0202 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 | 82-178 |
| HHBD0251 | 2.5 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 100-178 |
| HHBD0301 | 3 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 100-178 |
| HHBD0302 | 3 | 3/9 | 4.4 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 100-178 |
| HHBD0303 | 3 | 3/9 | 2.2 | 1.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 100-178 |
| HHBD0502 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 112-178 |
| HHBD1004 | 10 | 3/9 | 2.8 | 3.0×2 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 150-220 |
The source dimension table has Product code, Capacity, Chain and letter-only dimensions H, A, B, D, E, I, K, L, N, E, U, R and T. The letter-only dimensions were removed. The source prints a diameter mark before each chain value; the diameter values are retained as semantic data.
| Product code | Capacity (t) | Chain diameter (mm) |
|---|---|---|
| HHBD0101 | 1 | 7.1 |
| HHBD0151 | 1.5 | 10.0 |
| HHBD0201 | 2 | 10.0 |
| HHBD0202 | 2 | 7.1 |
| HHBD0251 | 2.5 | 11.2 |
| HHBD0301 | 3 | 11.2 |
| HHBD0302 | 3 | 10.0 |
| HHBD0303 | 3 | 7.1 |
| HHBD0502 | 5 | 11.2 |
| HHBD1004 | 10 | 11.2 |
