ELECTRIC HOIST

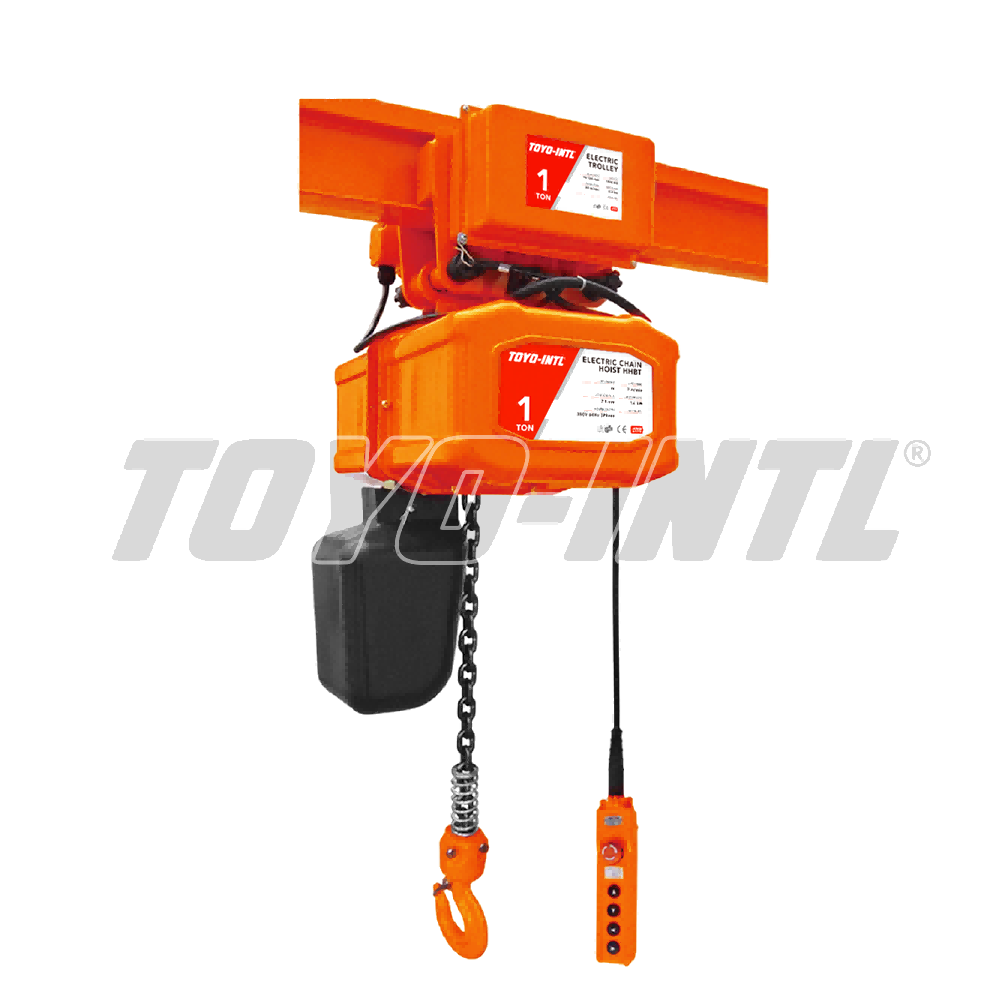

TOYO-INTL HHBT Electric Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Compact, high-efficient motor with an asbestos-free DC brake; the source says electricity consumption is reduced. Pressed-steel hoist body with high strength, light weight and compact form. Top and bottom safety hooks are made from high-tensile alloy steel with special treatment. The source says the treated hooks will not break and will deform gradually under sudden overload. High-strength plastic chain container with stated durability. Top and bottom limit switches automatically cut power to prevent the load chain from running out. A phase-error relay prevents the motor from running after an incorrect wire connection.
Product Details

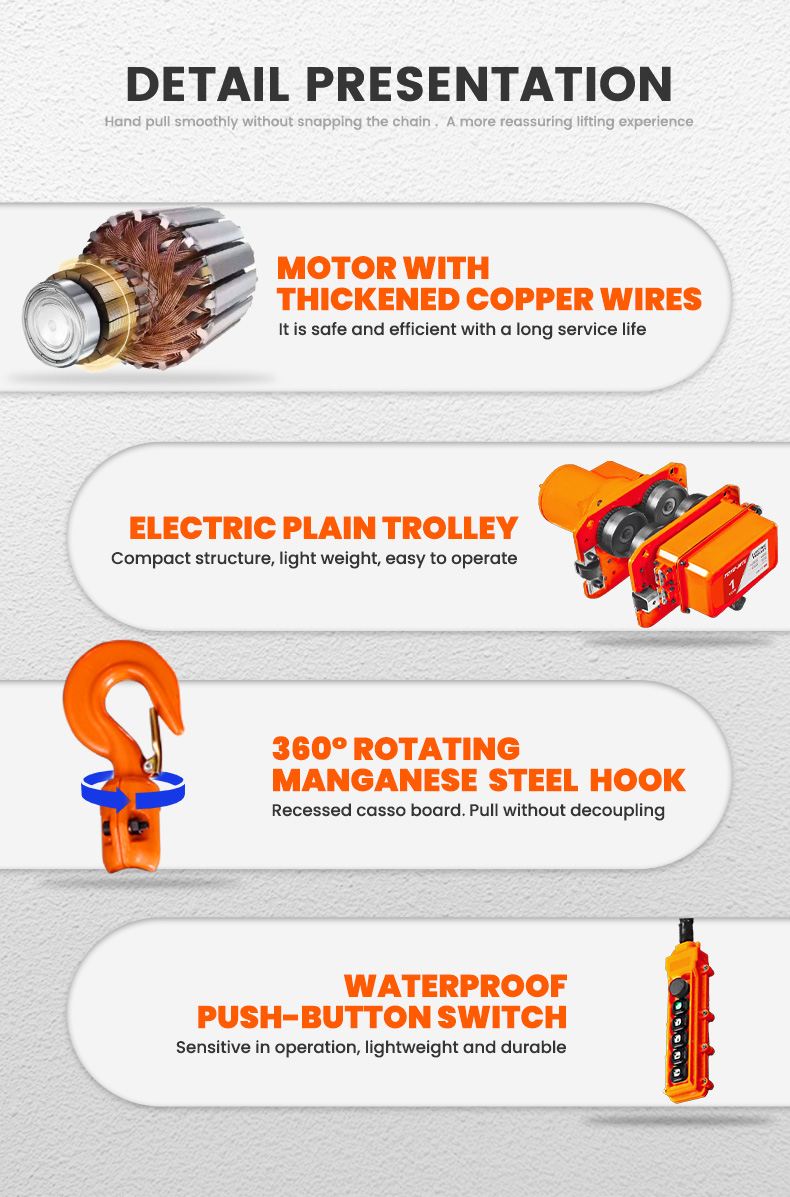

- Compact, high-efficient motor with an asbestos-free DC brake; the source says electricity consumption is reduced.
- Pressed-steel hoist body with high strength, light weight and compact form.
- Top and bottom safety hooks are made from high-tensile alloy steel with special treatment.
- The source says the treated hooks will not break and will deform gradually under sudden overload.
- High-strength plastic chain container with stated durability.
- Top and bottom limit switches automatically cut power to prevent the load chain from running out.
- A phase-error relay prevents the motor from running after an incorrect wire connection.
Technical Specifications
| Model | Capacity (t) | Standard lift (m) | Running test load (t) | Motor power (kW) | No. of chain | Load-chain diameter (mm) | Lifting speed (m/min) | Power supply | Control voltage (V) | Net weight (kg) | Extra weight per metre of extra lift (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HHBT-0.5a | 0.5 | 3 | 0.625 | 0.8 | 1 | 7.1 | 7 | 380V/50HZ/3P | 24 | 50 | 1.1 |
| HHBT-1.0a | 1.0 | 3 | 1.25 | 1.6 | 1 | 7.1 | 7 | 380V/50HZ/3P | 24 | 55 | 1.1 |
| HHBT-2.0a | 2.0 | 3 | 2.5 | 1.6 | 2 | 7.1 | 3.5 | 380V/50HZ/3P | 24 | 60 | 2.2 |
| HHBT-3.0a | 3 | 3 | 3.75 | 1.6 | 3 | 7.1 | 2.3 | 380V/50HZ/3P | 24 | 65 | 3.3 |
| HHBT-5.0a | 5.0 | 3 | 6.25 | 3.0 | 3 | 7.1 | 2.6 | 380V/50HZ/3P | 24 | 100 | 5.2 |
| HHBT-10.0a | 10.0 | 3 | 12.5 | 2×3.0 | 6 | 7.1 | 2.6 | 380V/50HZ/3P | 24 | 950 | 10.4 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
