LIFTING JACK

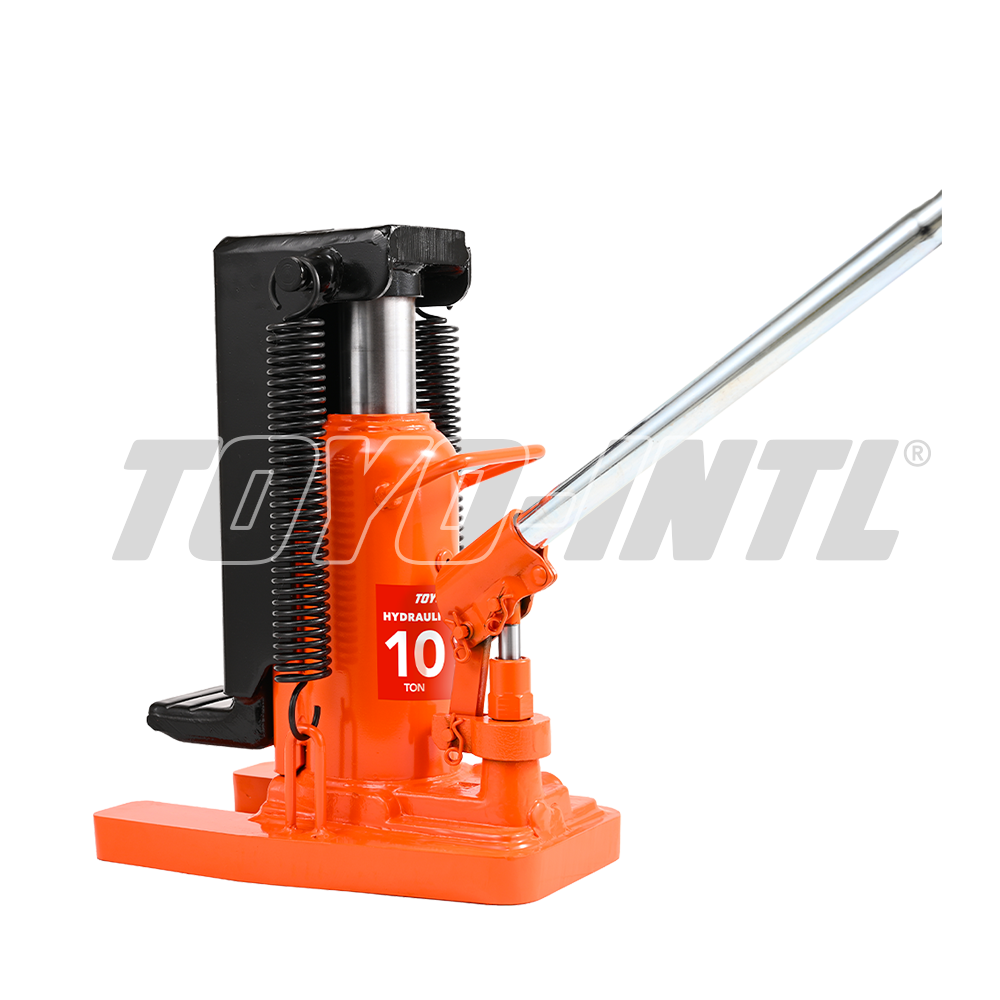

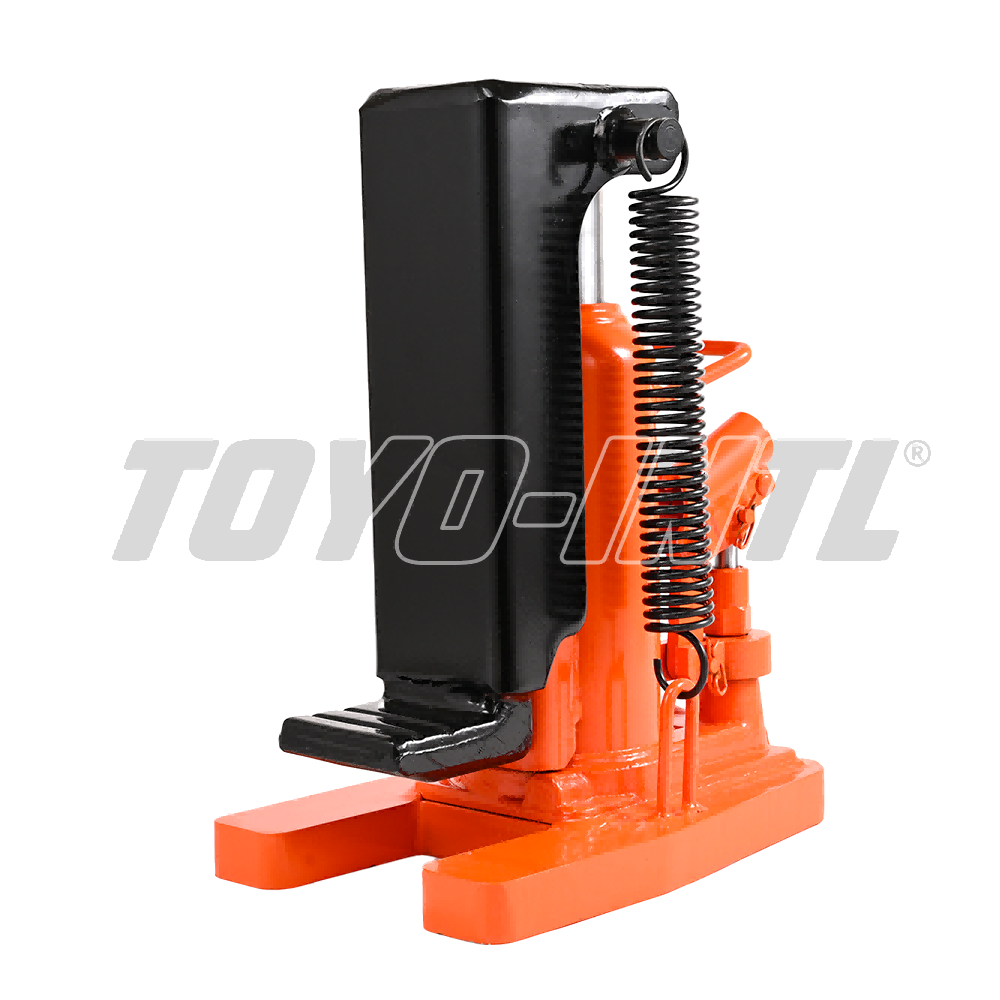

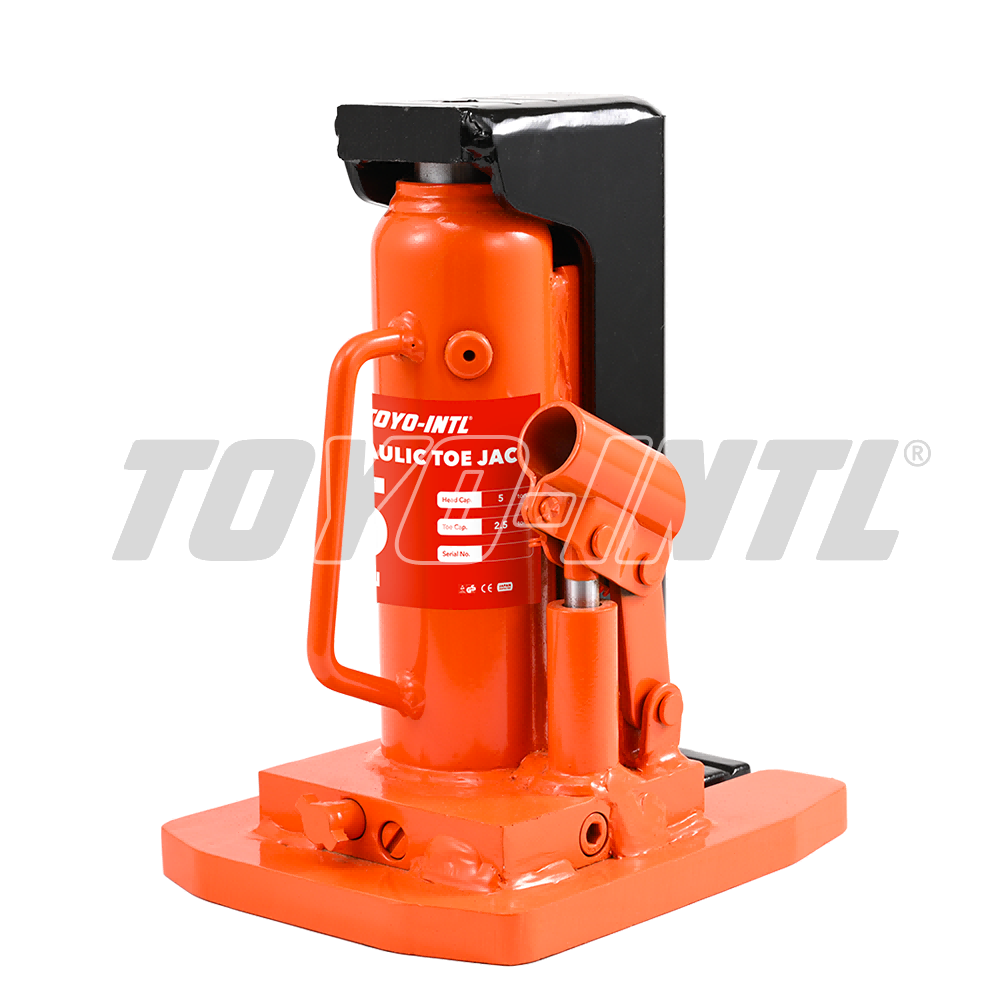

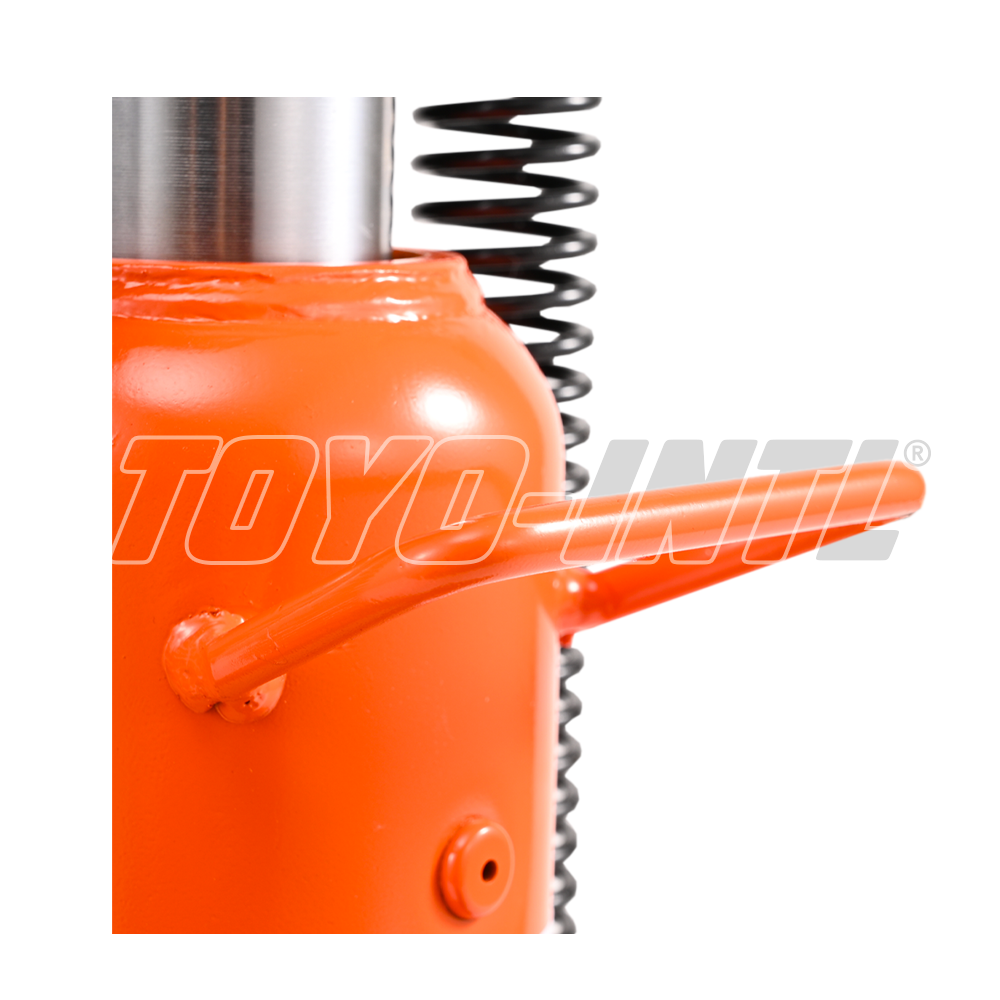

TOYO-INTL HTL Hydraulic Jack With Toe-lift
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The source presents the product as a manual hydraulic cylinder with toe-lift. It is described for use in mechanical equipment. Bridge construction is listed as an application. Railway-track installation and maintenance are listed as applications. Heavy loading and unloading in transportation is listed as an application. Car tractor repair is listed as an application.
Product Details
- The source presents the product as a manual hydraulic cylinder with toe-lift.
- It is described for use in mechanical equipment.
- Bridge construction is listed as an application.
- Railway-track installation and maintenance are listed as applications.
- Heavy loading and unloading in transportation is listed as an application.
- Car tractor repair is listed as an application.
Technical Specifications
| Model | Top load (T) | Java Load (T) | Minimum height (mm) | Lifting height (mm) | Claw height (mm) | Base size (mm) | Net weight (kg) |
|---|---|---|---|---|---|---|---|
| HTL-2.5 | 5 | 2.5 | 247 | 124 | 16 | 215×125 | 8.8 |
| HTL-5 | 10 | 5 | 290 | 155 | 20 | 255×180 | 18 |
| HTL-10 | 20 | 10 | 308 | 165 | 25 | 290×190 | 29 |
| HTL-15 | 30 | 15 | 335 | 155 | 30 | 340×235 | 44.5 |
| HTL-25 | 50 | 25 | 360 | 155 | 35 | 395×295 | 74.5 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
