LIFTING CLAMP & MAGNET LIFTER
TOYO-INTL JG Beam Clamp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

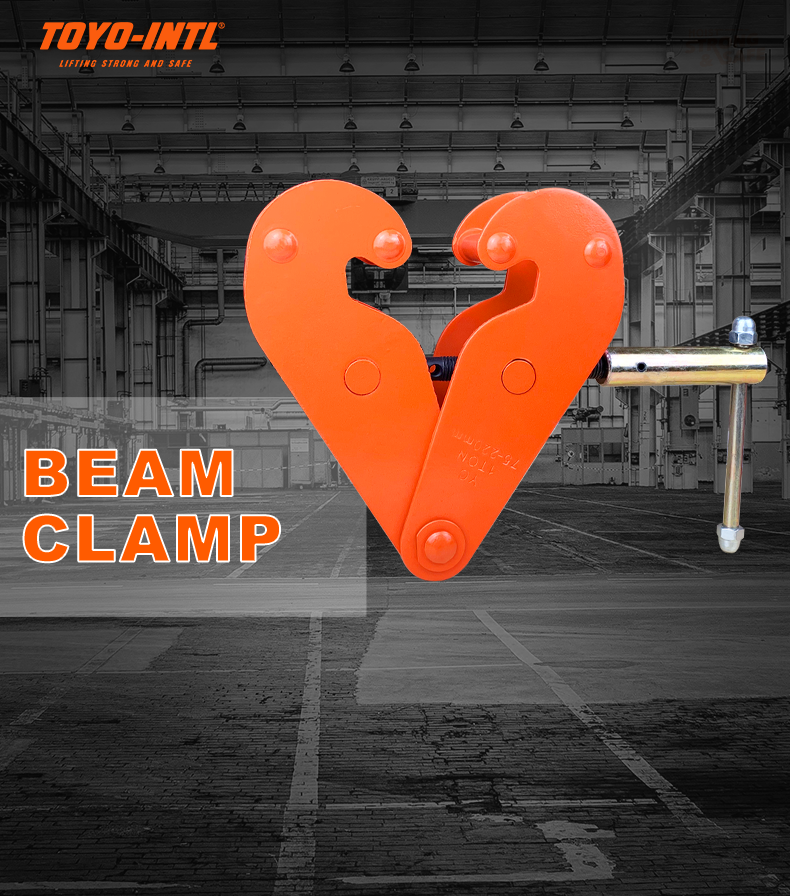

The beam clamp provides a quick and versatile rigging point for hoisting equipment, pulley blocks, or loads. The source states flexible application due to a wide adjustment range. A central threaded spindle allows easy attachment and a safe, secure grip. The spindle can be secured against loosening. The clamp fits a wide range of beams and flange widths and has a low-headroom design. The special Beam Clamp Jaw design applies loads away from the flange edge. The safety mounting and crank use an easy, simple mechanism stated to increase safety. The table provides capacity-load options from 1 to 10 t.
Product Details
- The beam clamp provides a quick and versatile rigging point for hoisting equipment, pulley blocks, or loads.
- The source states flexible application due to a wide adjustment range.
- A central threaded spindle allows easy attachment and a safe, secure grip.
- The spindle can be secured against loosening.
- The clamp fits a wide range of beams and flange widths and has a low-headroom design.
- The special Beam Clamp Jaw design applies loads away from the flange edge.
- The safety mounting and crank use an easy, simple mechanism stated to increase safety.
- The table provides capacity-load options from 1 to 10 t.
Technical Specifications
| Model | Capacity load (t) | Test load (kn, as printed) | I-beam width range (mm) | Net weight (kg) |
|---|---|---|---|---|
| JGS-1 | 1 | 12.3 | 75–220 | 3.8 |
| JGS-2 | 2 | 24.5 | 75–220 | 4.6 |
| JGS-3 | 3 | 36.8 | 80–320 | 9 |
| JGS-5 | 5 | 61.3 | 80–320 | 11 |
| JGS-10 | 10 | 122.5 | 90–320 | 16 |
