TOYO-INTL JHW Heavy Duty Hand Winch
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

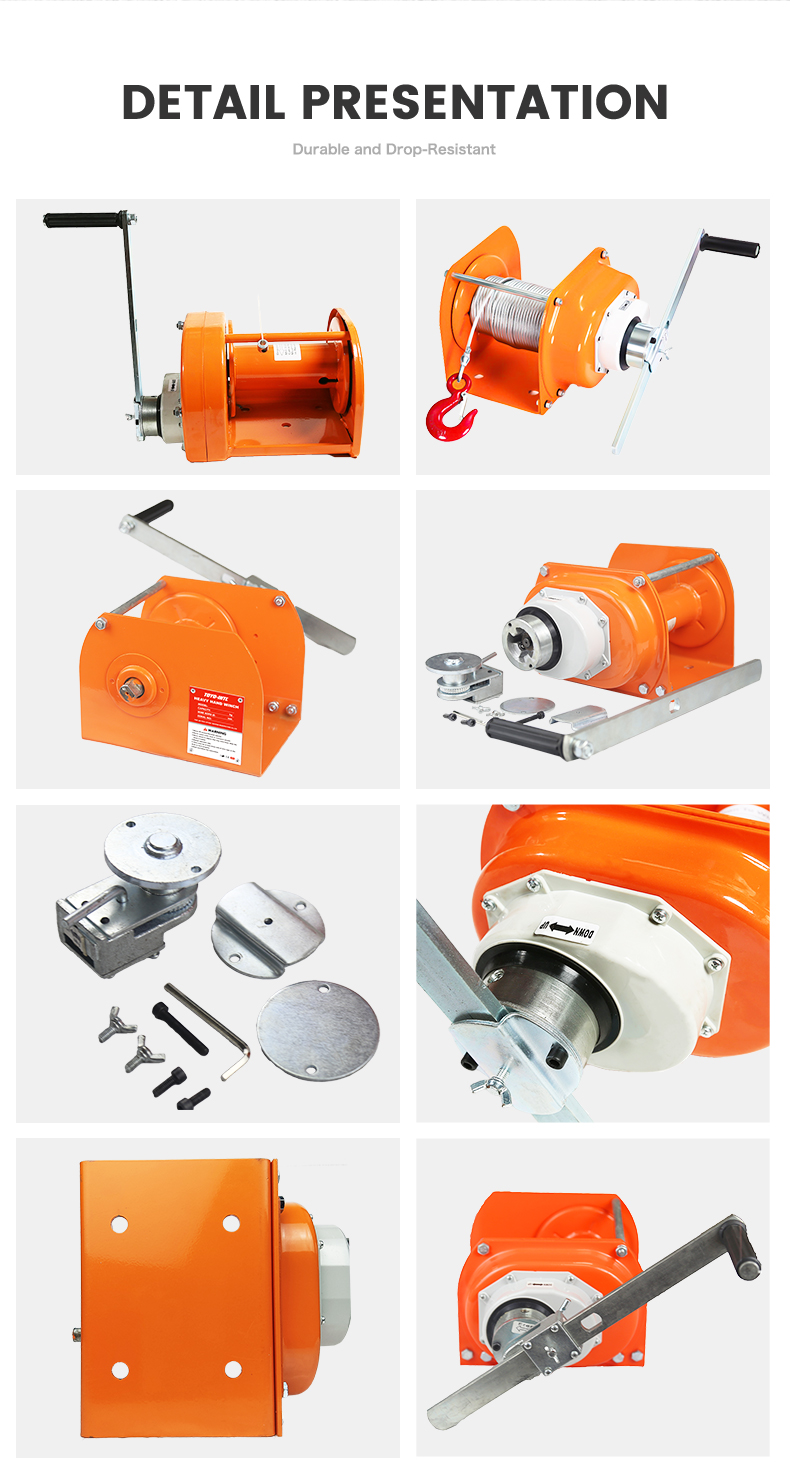

Heavy-duty hand winch with ratchet handle. The ratchet handle permits reciprocating movement in both directions for hoisting and lowering. The image describes the design as suitable for confined locations. Safe working loads range from 0.5 to 3 t. Test loads range from 6.125 to 36.75 kN. Adopted wire-rope sizes are 6.3×40 m, 8×40 m, 9×40 m and 12.5×40 m. Transmission ratios shown range from 4.33:1 to 29.16:1. Minimum hand-turn force is listed as 120–180 N.
Product Details
- Heavy-duty hand winch with ratchet handle.
- The ratchet handle permits reciprocating movement in both directions for hoisting and lowering.
- The image describes the design as suitable for confined locations.
- Safe working loads range from 0.5 to 3 t.
- Test loads range from 6.125 to 36.75 kN.
- Adopted wire-rope sizes are 6.3×40 m, 8×40 m, 9×40 m and 12.5×40 m.
- Transmission ratios shown range from 4.33:1 to 29.16:1.
- Minimum hand-turn force is listed as 120–180 N.
Technical Specifications
| Model/configuration | Safe working load (t) | Test load (kN) | Adopted wire rope diameter × length (m) | Transmission ratio | Maximum link-pole action length (mm) | Minimum hand-turn force (N) | Net weight (kg) |
|---|---|---|---|---|---|---|---|
| 0.5t | 0.5 | 6.125 | 6.3×40 | 4.33:1 | 350 | 120 | 14.4 |
| 1t | 1 | 12.25 | 8×40 | 12.19:1 | 350 | 120 | 19.7 |
| 2t | 2 | 24.5 | 9×40 | 22.68:1 | 350 | 130 | 25.1 |
| 3t | 3 | 36.75 | 12.5×40 | 29.16:1 | 350 | 180 | 44.3 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
