PULLER & WINCH

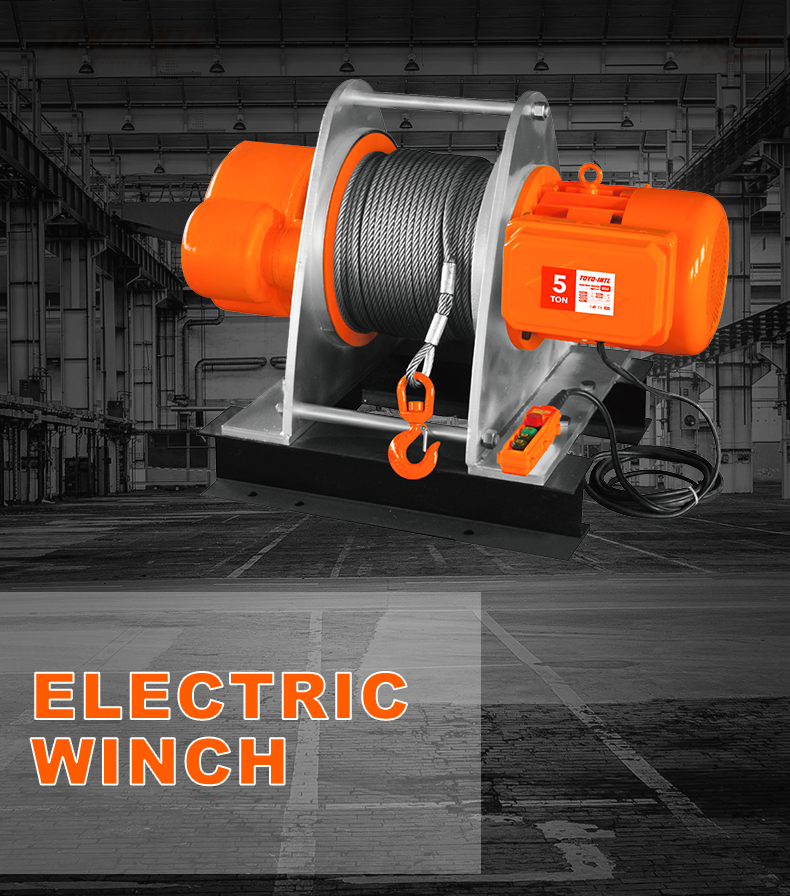

TOYO-INTL KDJ Electric Winch
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Electric winch configurations for 220 V/380 V power supply. The image states production coverage from 230 V to 380 V for electric hoists. Rotor motor or ordinary motor with gearbox is described as an available flexibility. Fast trigger, small volume, light weight and compact structure are highlighted. The product is described as easy to use. Detail callouts show powerful fan cooling. Detail callouts show an alloy-steel hook and enclosed gear transmission.
Product Details
- Electric winch configurations for 220 V/380 V power supply.
- The image states production coverage from 230 V to 380 V for electric hoists.
- Rotor motor or ordinary motor with gearbox is described as an available flexibility.
- Fast trigger, small volume, light weight and compact structure are highlighted.
- The product is described as easy to use.
- Detail callouts show powerful fan cooling.
- Detail callouts show an alloy-steel hook and enclosed gear transmission.
Technical Specifications
| Model | Capacity (t) | Lift height (m) | Wire-rope diameter (mm) | Lifting speed (m/min) | Power supply | Motor rate (kW) |
|---|---|---|---|---|---|---|
| KDJ-1T | 1 | 100 | 9 | 16 | 220V/380V | 3 |
| KDJ-1.5T | 1.5 | 100 | 11 | 16 | 220V/380V | 4.5 |
| KDJ-2T | 2 | 100 | 13 | 16 | 220V/380V | 7.5 |
| KDJ-3T | 3 | 100 | 17.5 | 16 | 220V/380V | 7.5 |
| KDJ-5T | 5 | 200 | 19.5 | 14 | 220V/380V | 13 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
