LEVER HOIST

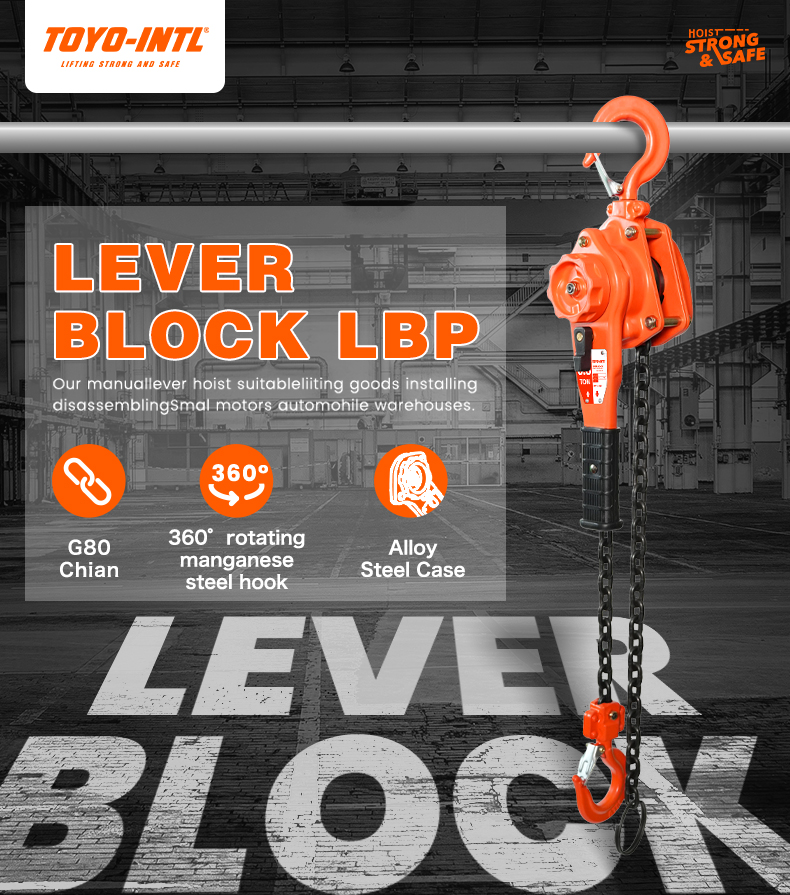

TOYO-INTL LBP Lever Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The source specifies all-steel construction with a rugged gear case and hand wheel. A reinforced double-pawl brake with larger-diameter pawl springs is specified. The curling design feeds the hand chain directly into the wheel sprocket from multiple directions and angles. The load chain is specified as G80 heat-treated alloy chain. Forged alloy-steel hooks are shown as rotating 360 degrees for rigging. The source says the hooks slowly stretch to indicate overload. Sealed roller bearings are specified to improve performance and service life. The product is load-tested to 150% of capacity with a certificate.
Product Details
- The source specifies all-steel construction with a rugged gear case and hand wheel.
- A reinforced double-pawl brake with larger-diameter pawl springs is specified.
- The curling design feeds the hand chain directly into the wheel sprocket from multiple directions and angles.
- The load chain is specified as G80 heat-treated alloy chain.
- Forged alloy-steel hooks are shown as rotating 360 degrees for rigging.
- The source says the hooks slowly stretch to indicate overload.
- Sealed roller bearings are specified to improve performance and service life.
- The product is load-tested to 150% of capacity with a certificate.
Technical Specifications
| Model | W.L.L. (t) | Lift (m) | Proof load (t) | Lever force kg(n) (lbs) | Load-chain falls | Load-chain size | N.W. (kg) | Additional weight per lift (kg) |
|---|---|---|---|---|---|---|---|---|
| LBG(LBP) 0.8 | 0.8 | 1.5 | 1.2 | 22(215)(48) | 1 | 5.6×15.7 | 6.3 | 0.7 |
| LBG(LBP) 1 | 1 | 1.5 | 1.5 | 30(294)(66) | 1 | 5.6×15.7 | 6.3 | 0.7 |
| LBG(LBP) 1.6 | 1.6 | 1.5 | 2.4 | 31(304)(68) | 1 | 7.1×19.9 | 8.5 | 1.1 |
| LBG(LBP) 3.2 | 3.2 | 1.5 | 4.8 | 38(372)(84) | 1 | 10×28 | 14.2 | 2.3 |
| LBG(LBP) 6.3 | 6.3 | 1.5 | 9.5 | 39(382)(86) | 2 | 10×28 | 26 | 4.6 |
| LBG(LBP) 9 | 9 | 1.5 | 13.5 | 40(392)(88) | 3 | 10×28 | 40 | 6.9 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
