CHAIN SLING & LOAD BINDER
TOYO-INTL LLB LEVER RIGGING
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

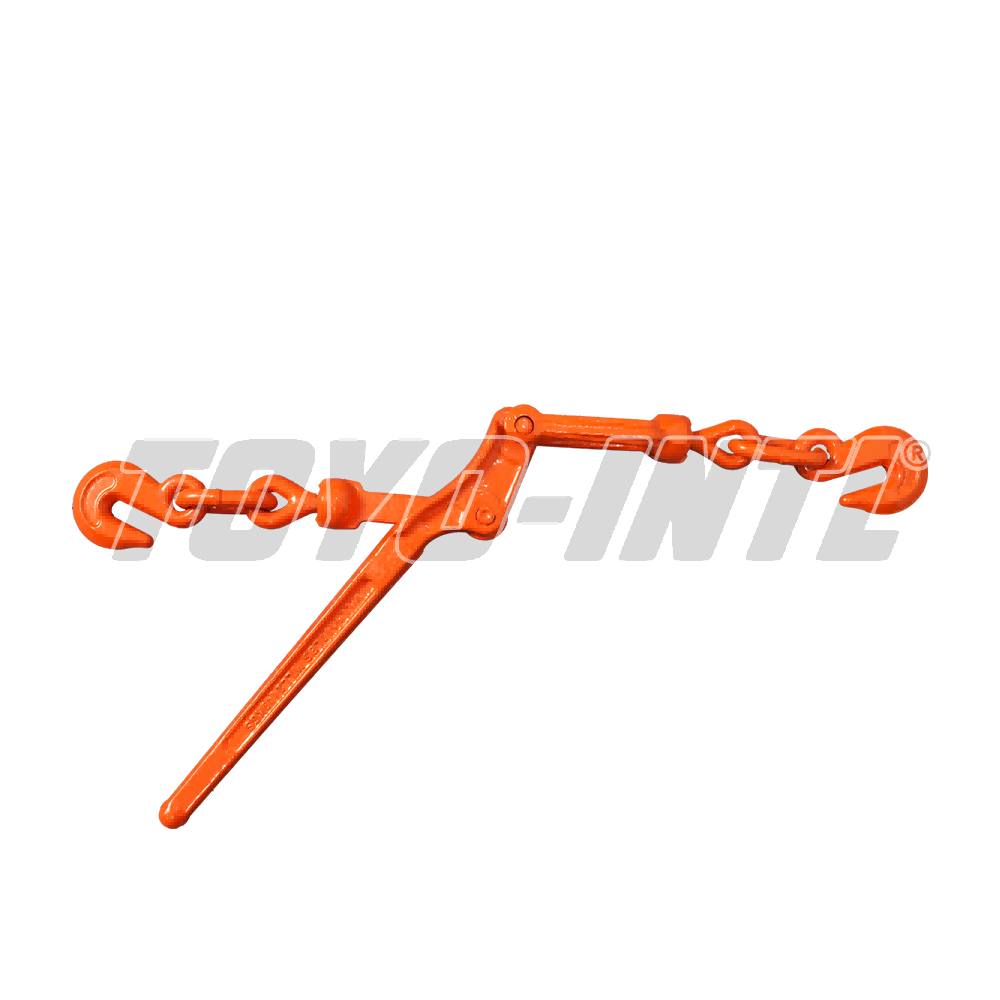

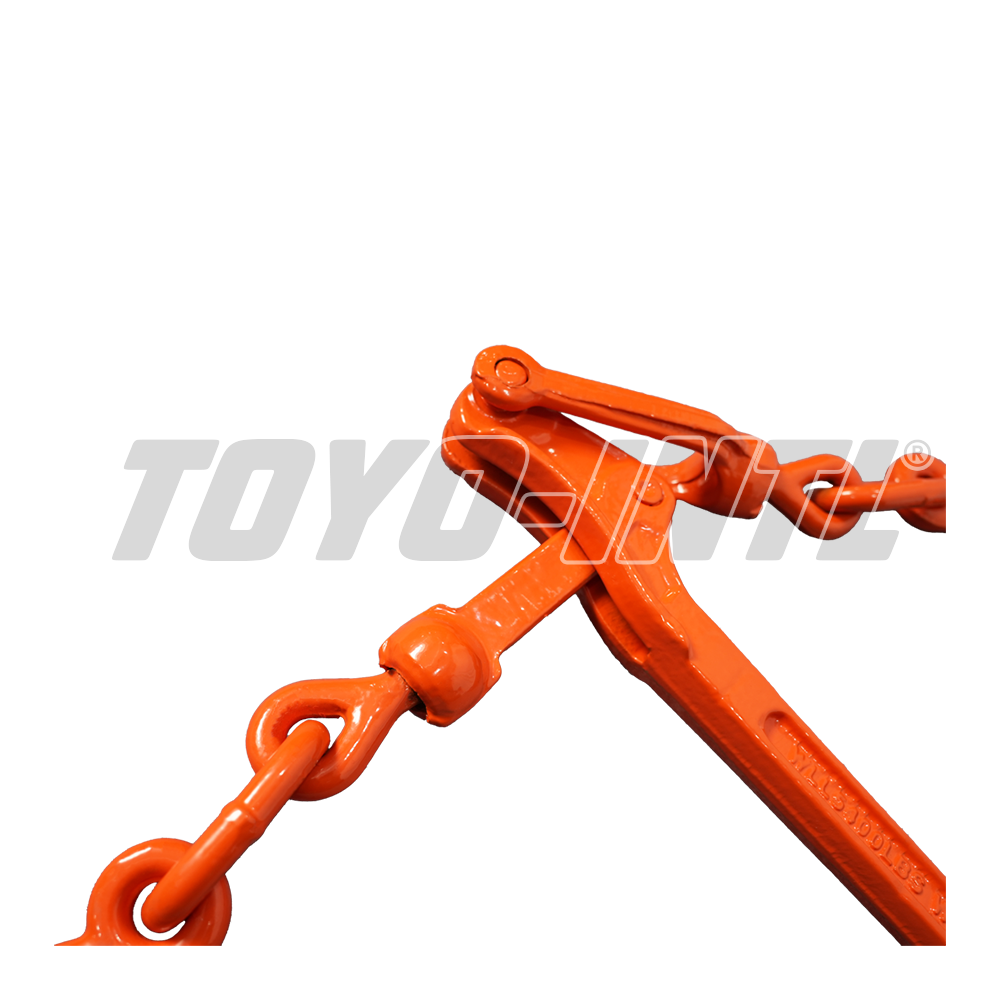

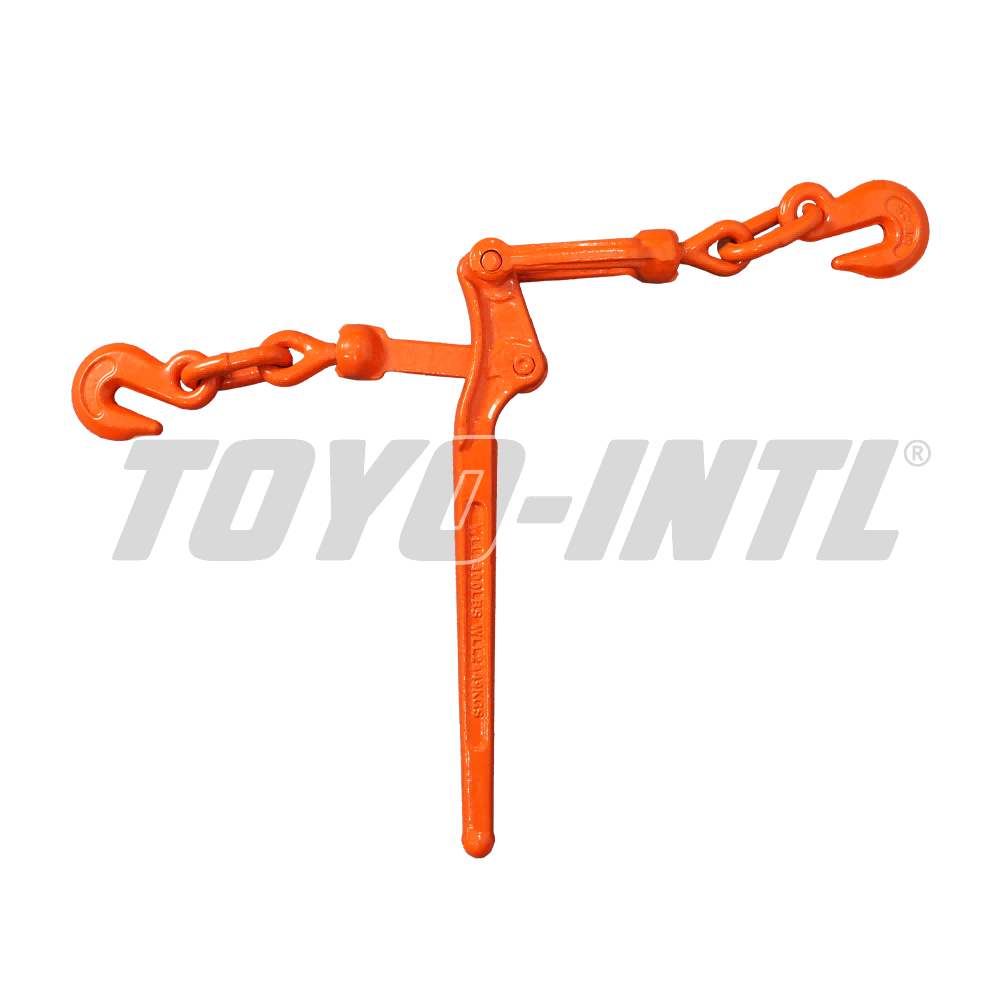

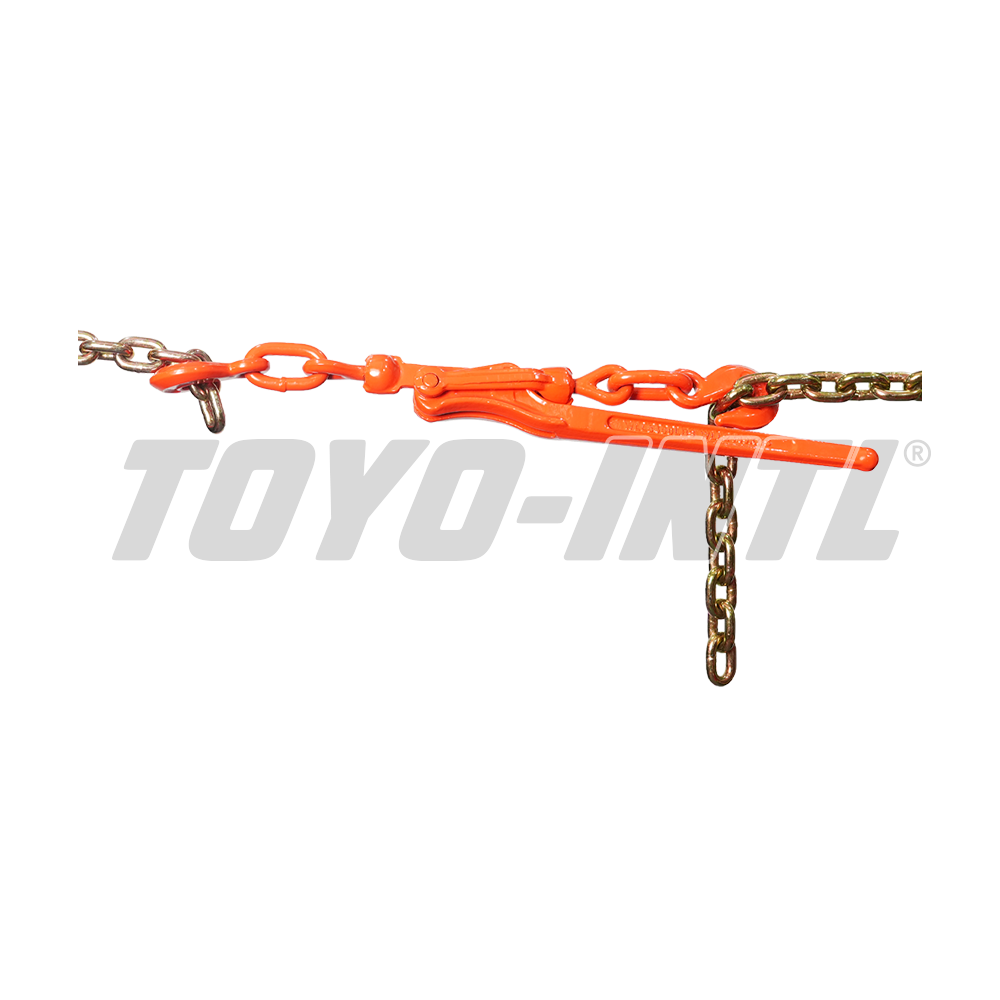

Forged lever load binder construction. Made from quenched and tempered alloy steel. Extra-heavy construction at the leverage point helps prevent the binder-toggle heel from spreading away from the load. The leverage design permits easy release. Ball-and-socket swivel joints at the hook assemblies permit a straight-line pull.
Product Details
- Forged lever load binder construction.
- Made from quenched and tempered alloy steel.
- Extra-heavy construction at the leverage point helps prevent the binder-toggle heel from spreading away from the load.
- The leverage design permits easy release.
- Ball-and-socket swivel joints at the hook assemblies permit a straight-line pull.

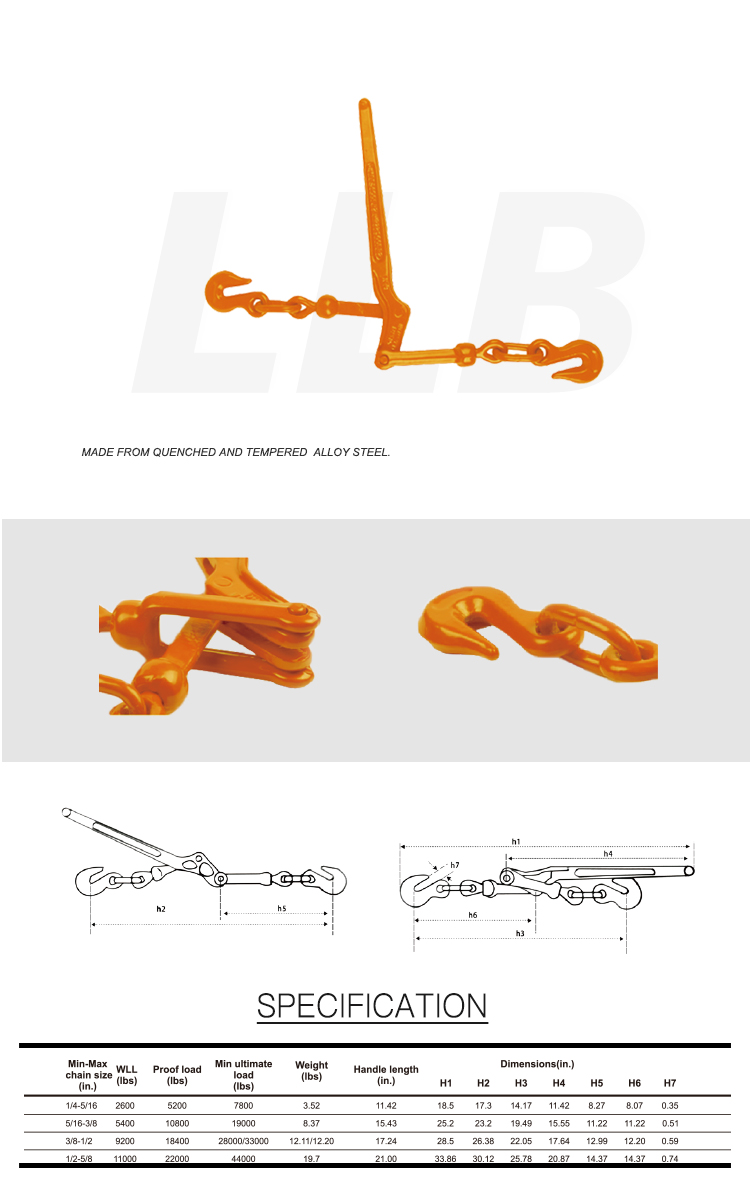

Technical Specifications
| Min–max chain size (in) | WLL (lb) | Proof load (lb) | Min ultimate load (lb) | Weight (lb) | Handle length (in) |
|---|---|---|---|---|---|
| 1/4-5/16 | 2,600 | 5,200 | 7,800 | 3.52 | 11.42 |
| 5/16-3/8 | 5,400 | 10,800 | 19,000 | 8.37 | 15.43 |
| 3/8-1/2 | 9,200 | 18,400 | 28,000/33,000 | 12.11/12.20 | 17.24 |
| 1/2-5/8 | 11,000 | 22,000 | 44,000 | 19.7 | 21.00 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
