HOOK & LINK
TOYO-INTL LTO Omega Link
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The product is presented as an omega ring. The source states that ultimate load is four times the working load limit. The source states that proof load is 2.5 times the working load limit. The table covers six listed item codes from LTO06 through LTO20. The listed working-load limits run from 1.4 t to 16 t. The listed weights run from 0.12 kg to 2.2 kg.
Product Details

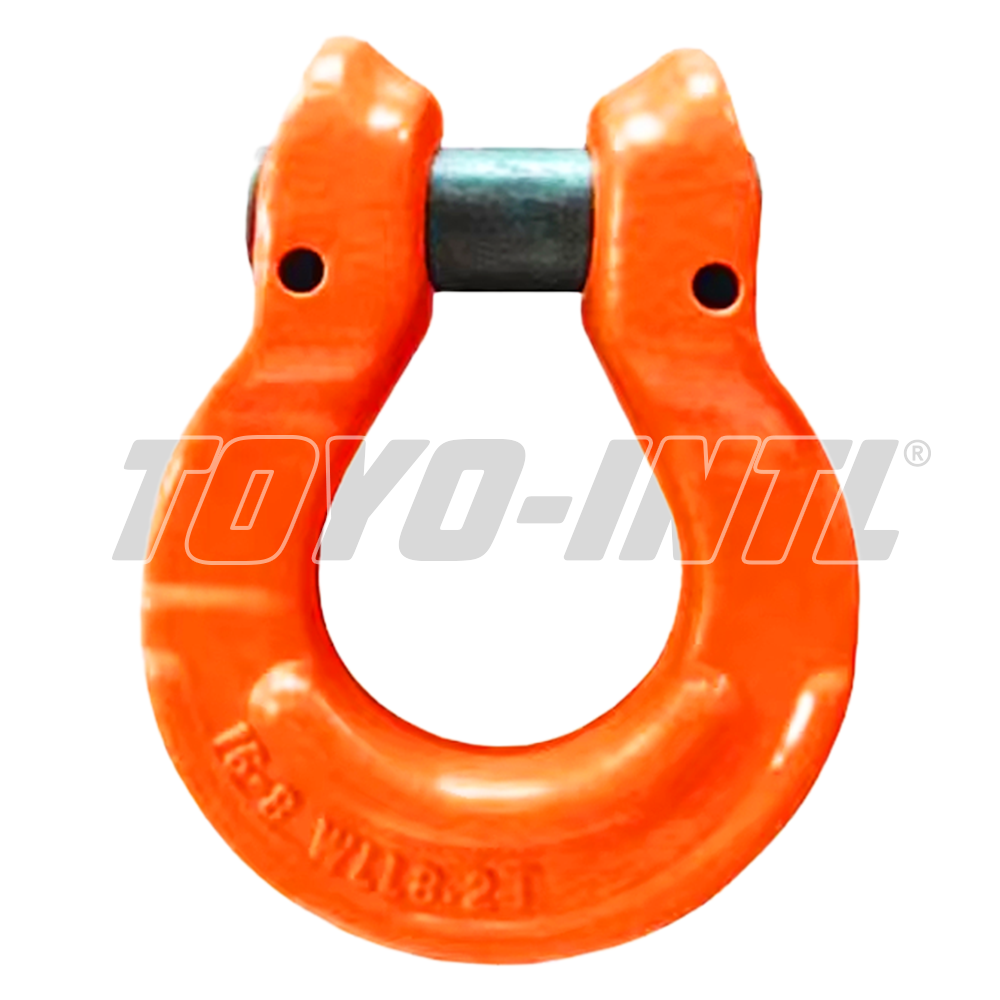

- The product is presented as an omega ring.
- The source states that ultimate load is four times the working load limit.
- The source states that proof load is 2.5 times the working load limit.
- The table covers six listed item codes from LTO06 through LTO20.
- The listed working-load limits run from 1.4 t to 16 t.
- The listed weights run from 0.12 kg to 2.2 kg.
Technical Specifications
| Item | Size | Diameter Ø (mm) | W.L.L./t | Weight/kg |
|---|---|---|---|---|
| LTO06 | 6 | 20.5 | 1.4 | 0.12 |
| LTO08 | 8 | 23.5 | 2.5 | 0.22 |
| LTO10 | 10 | 31.5 | 4 | 0.36 |
| LTO13 | 13 | 41 | 6.7 | 0.71 |
| LTO16 | 6 | 47.5 | 10 | 1.3 |
| LTO20 | 20 | 58 | 16 | 2.2 |
