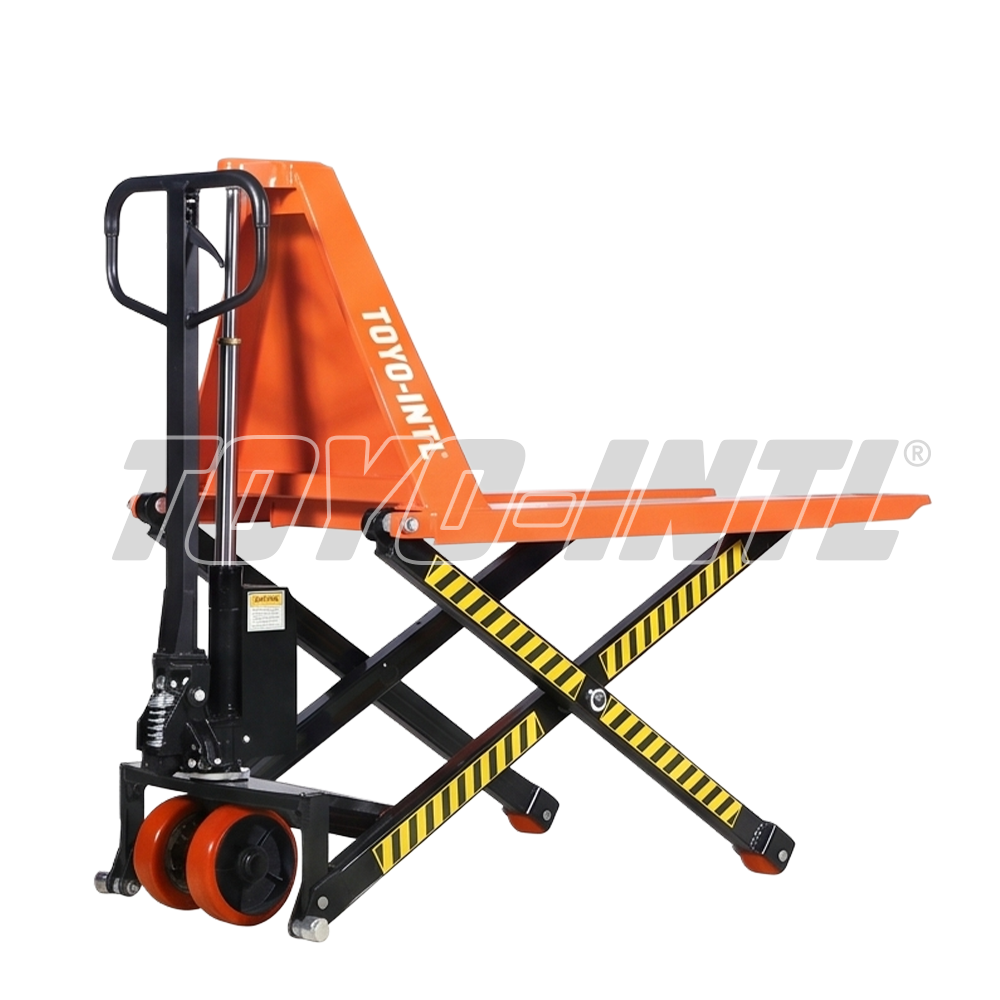

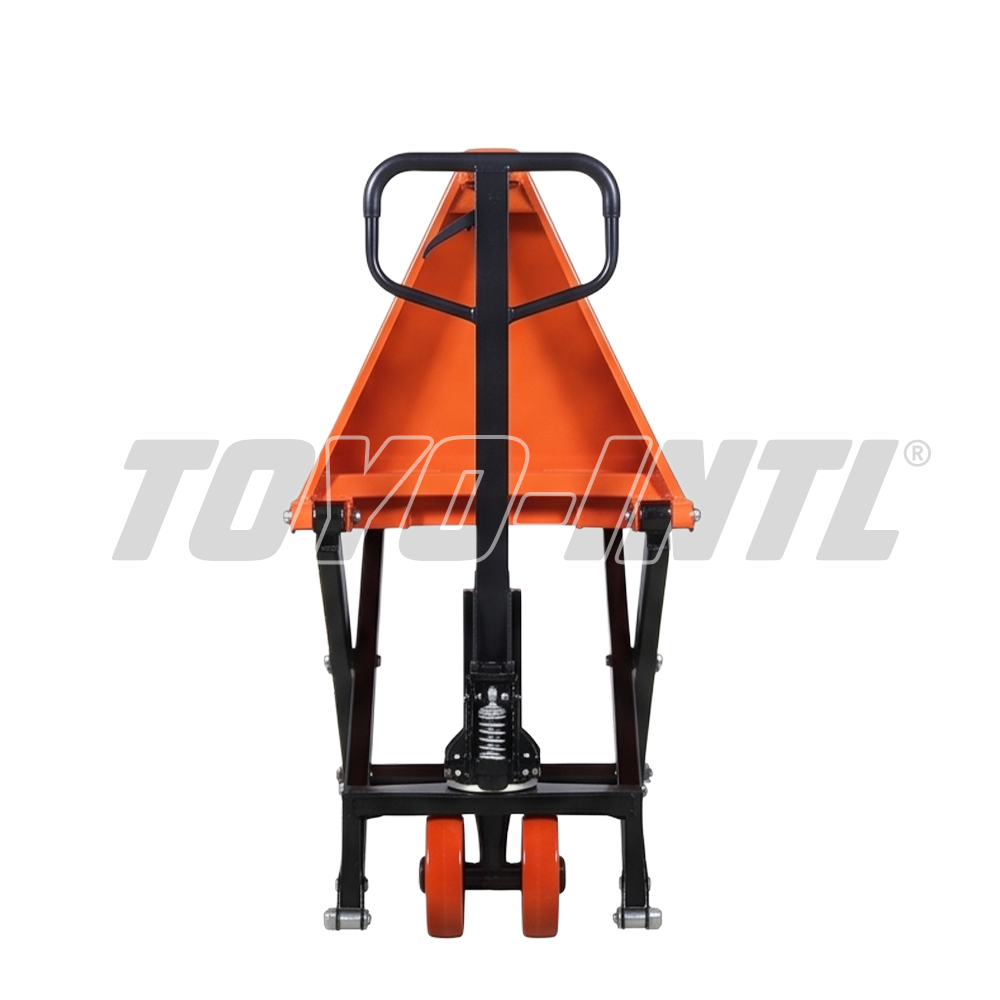

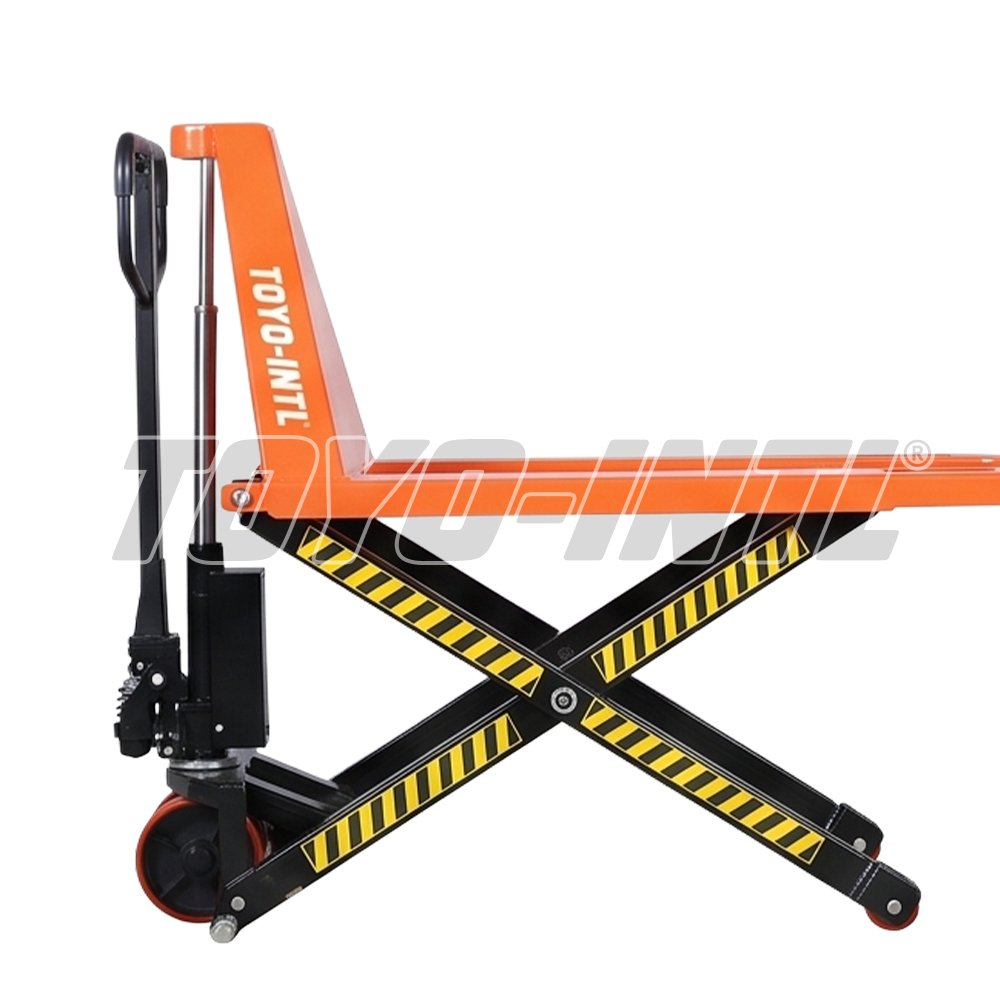

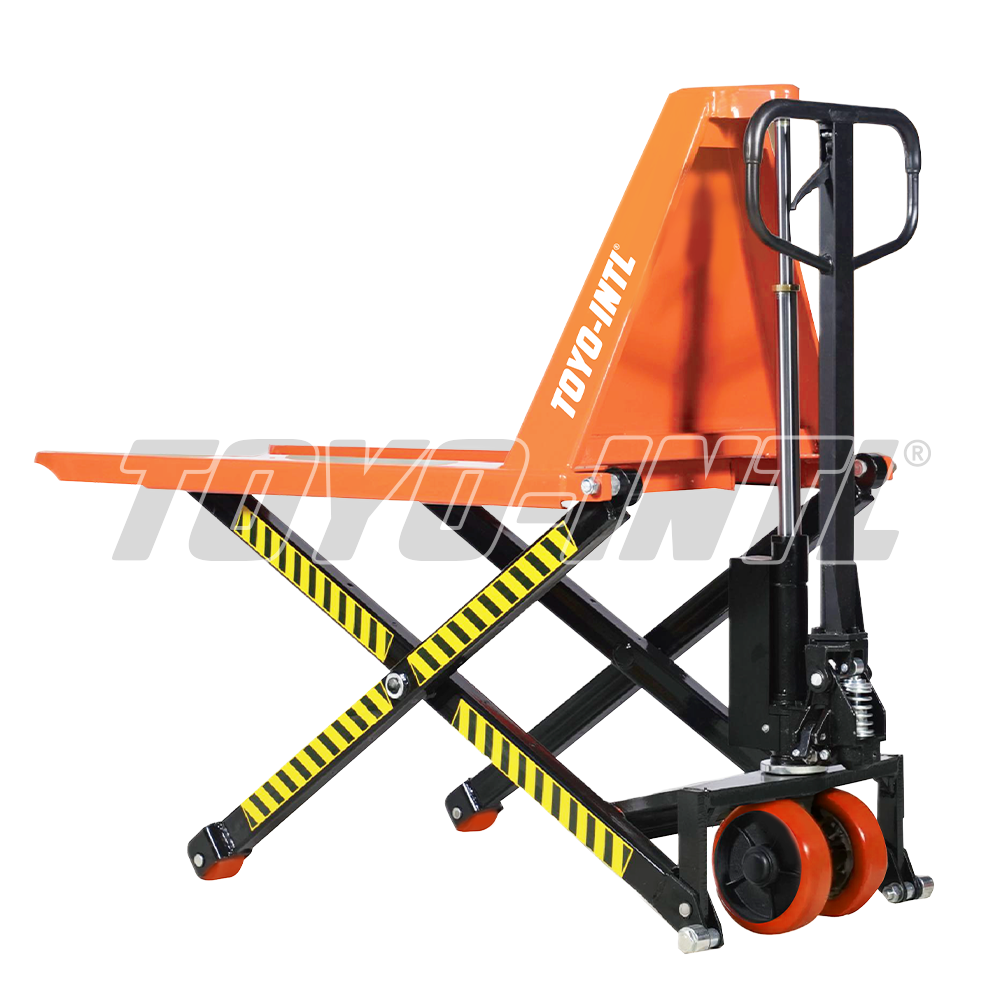

TOYO-INTL Manual Scissor High Lift Truck with PU Wheels
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Scissor-type manual high-lift truck. Thickened scissors are described as anti-bending and non-deforming. PU silent wheels reduce noise and do not damage the ground. The dual-speed pump lifts quickly below 300 kg. The same pump lifts slowly and with less effort above 300 kg. Rated load is 1,500 kg. Maximum lifting height is 800 mm. Fork outer-width options are 550/685 mm.
Product Details
- Scissor-type manual high-lift truck.
- Thickened scissors are described as anti-bending and non-deforming.
- PU silent wheels reduce noise and do not damage the ground.
- The dual-speed pump lifts quickly below 300 kg.
- The same pump lifts slowly and with less effort above 300 kg.
- Rated load is 1,500 kg.
- Maximum lifting height is 800 mm.
- Fork outer-width options are 550/685 mm.
Technical Specifications
| Model | Specification (mm) | Rated load (kg) | Height when fork lowered (mm) | Maximum lifting height (mm) | Wheel type | Large wheel size | Bearing wheel size | Vehicle height (mm) | Overall length (mm) | Fork length (mm) | Fork outer width (mm) | Single fork width (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHLT15-550 | 550 | 1,500 | 85 | 800 | PU | 180×50 | 70×50 | 1,365 | 1,580 | 1,150 | 550 | 160 | 123 |
| SHLT15-685 | 685 | 1,500 | 85 | 800 | Polyurethane | 180×50 | 70×50 | 1,365 | 1,580 | 1,150 | 685 | 160 | 129 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
