HOOK & LINK

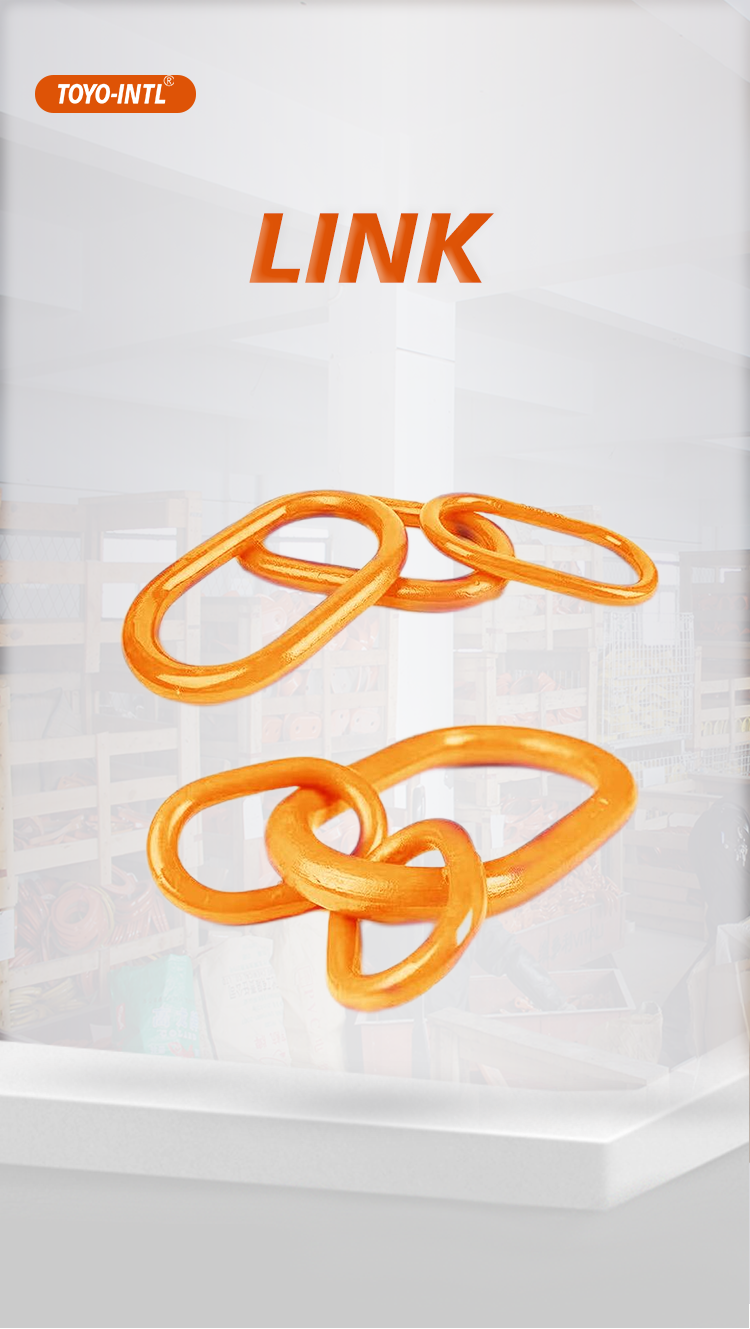

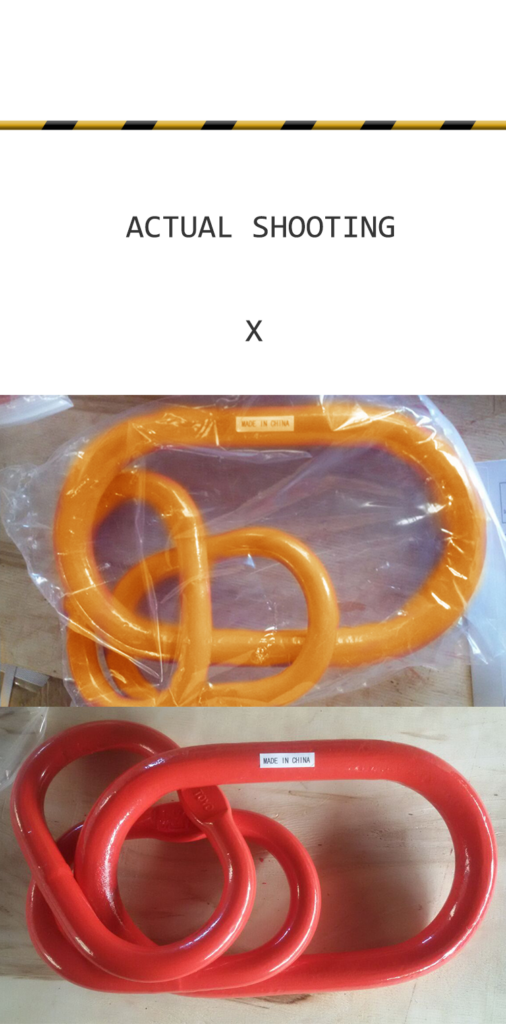

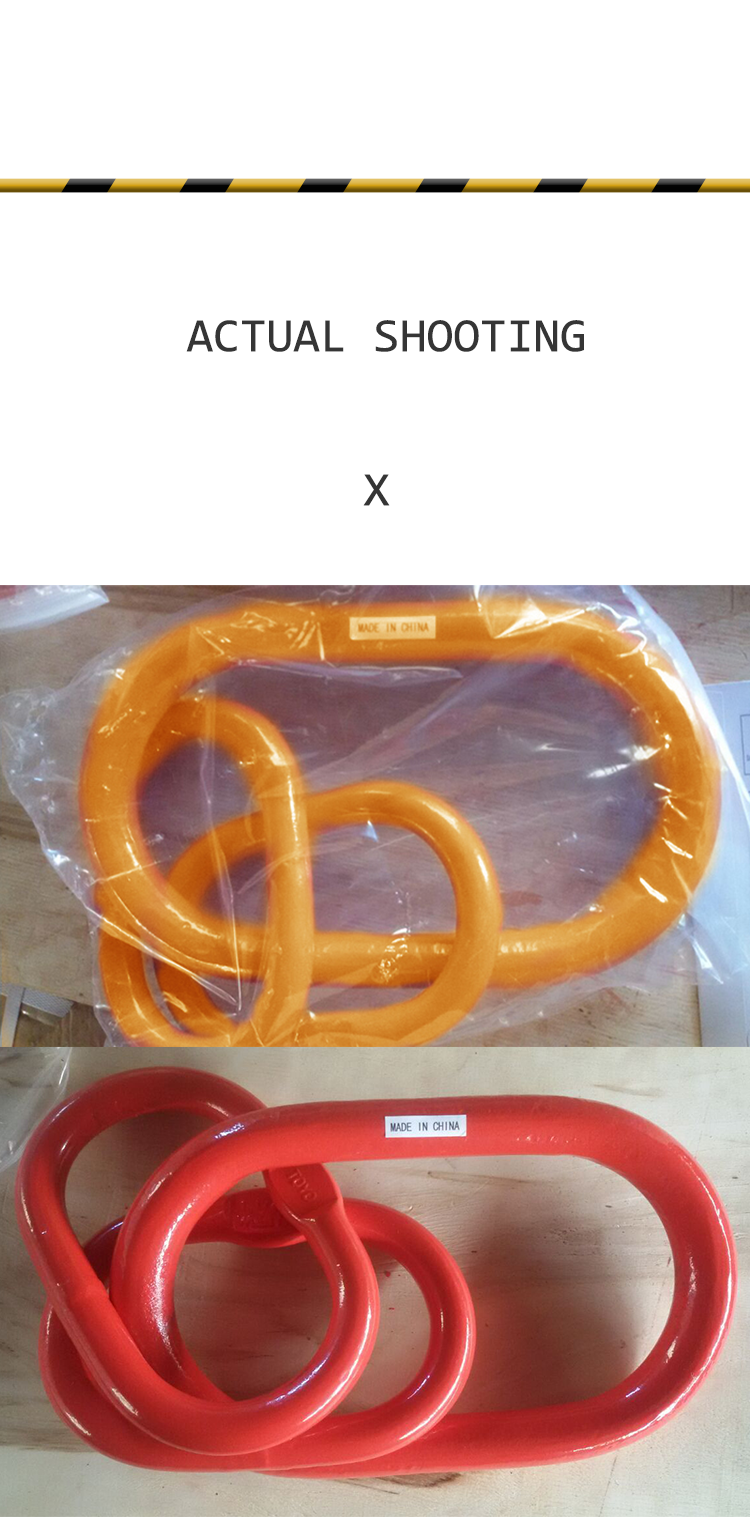

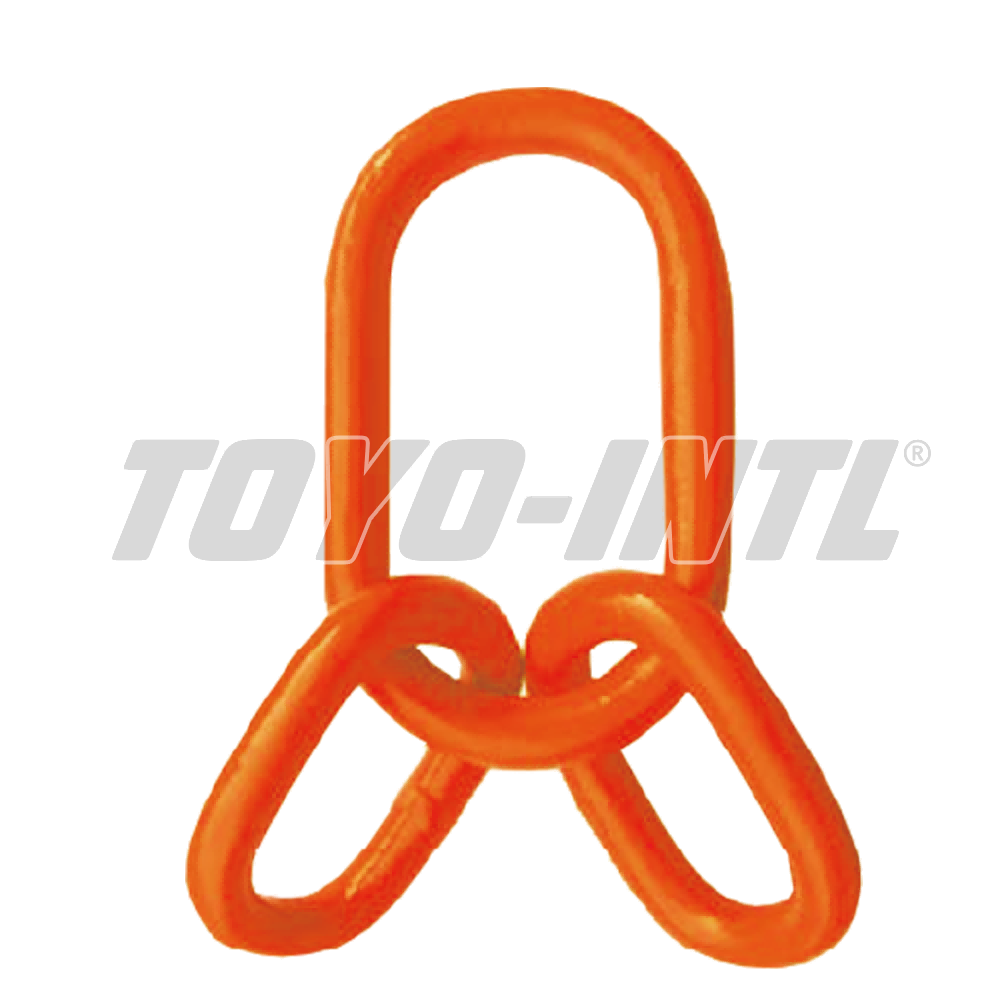

TOYO-INTL MASTER LINK ASSEMBLY
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The master link assembly uses high-grade alloy steel. The material is specified as quenched and tempered. The design factor is 4:1 for chain. The design factor is 5:1 for wire rope. Each assembly is individually proof tested to 2.5 × WLL based on the 4:1 design factor unless otherwise specified. The source states that certification is provided. The table identifies an alloy grade 80 welded master link assembly.
Product Details
- The master link assembly uses high-grade alloy steel.
- The material is specified as quenched and tempered.
- The design factor is 4:1 for chain.
- The design factor is 5:1 for wire rope.
- Each assembly is individually proof tested to 2.5 × WLL based on the 4:1 design factor unless otherwise specified.
- The source states that certification is provided.
- The table identifies an alloy grade 80 welded master link assembly.

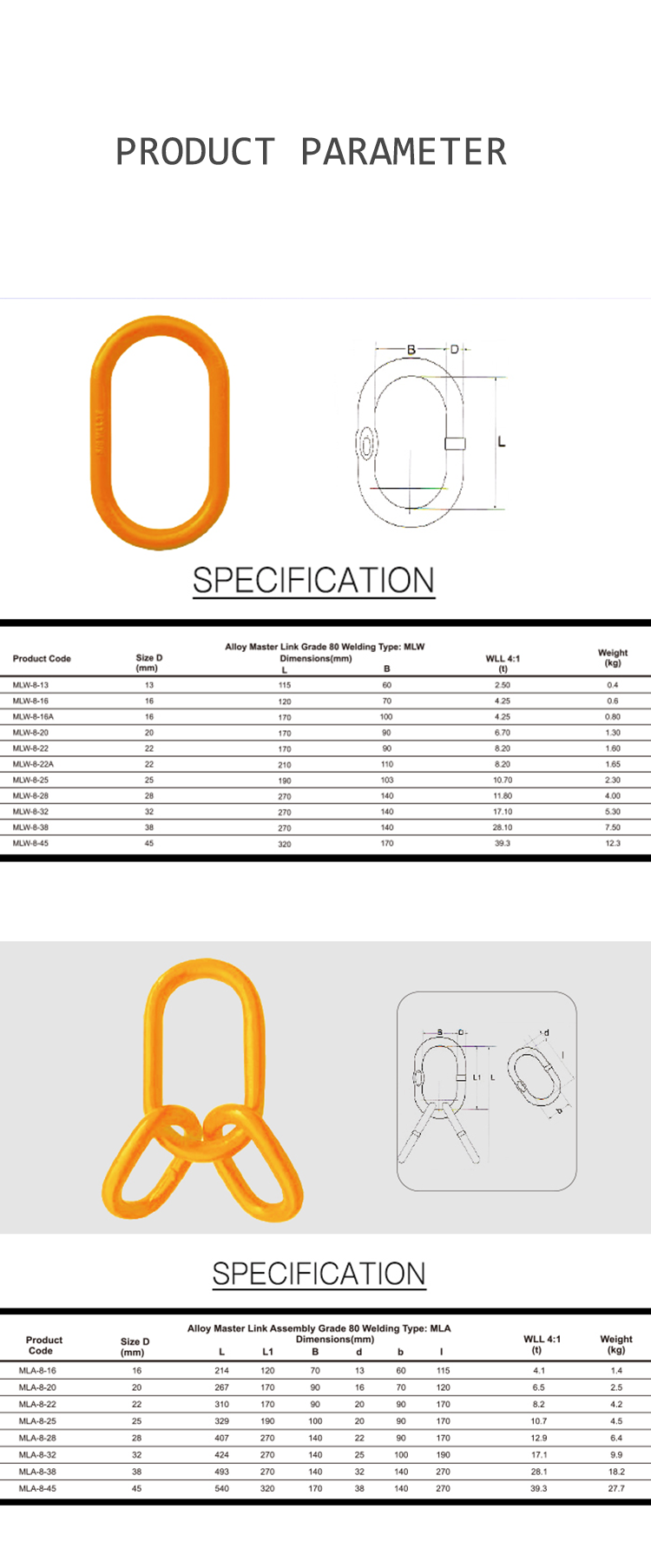

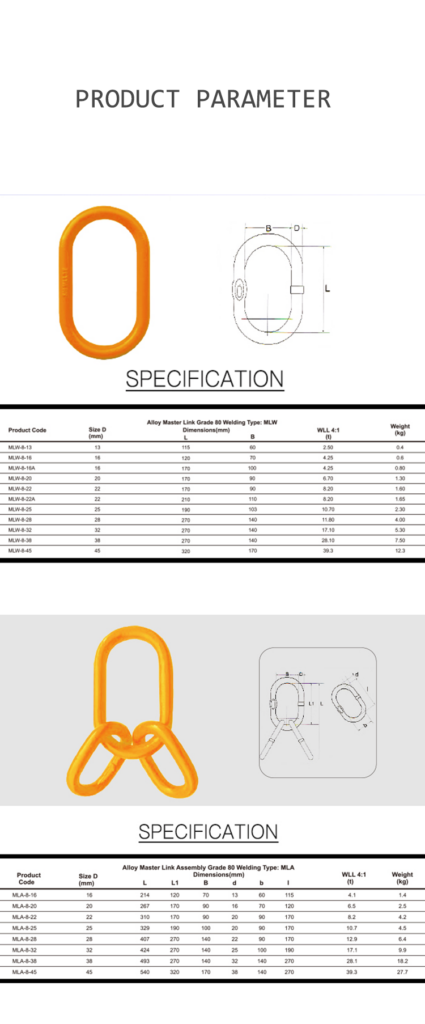

Technical Specifications
| Product code | Size D (inch) | WLL 4:1/t | Weight/kg |
|---|---|---|---|
| MLA-20 | 3/4″ | 4.7 | 1.67 |
| MLA-22 | 7/8″ | 8 | 2.70 |
| MLA-25 | 1″ | 11 | 4.10 |
| MLA-28 | 1-1/8″ | 11.8 | 6.88 |
| MLA-32 | 1-1/4″ | 16 | 7.00 |
| MLA-38 | 1-1/2″ | 21.7 | 12.63 |
| MLA-45 | 1-3/4″ | 28.4 | 17.50 |
| MLA-51 | 2″ | 35 | 27.20 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
