HOOK & LINK

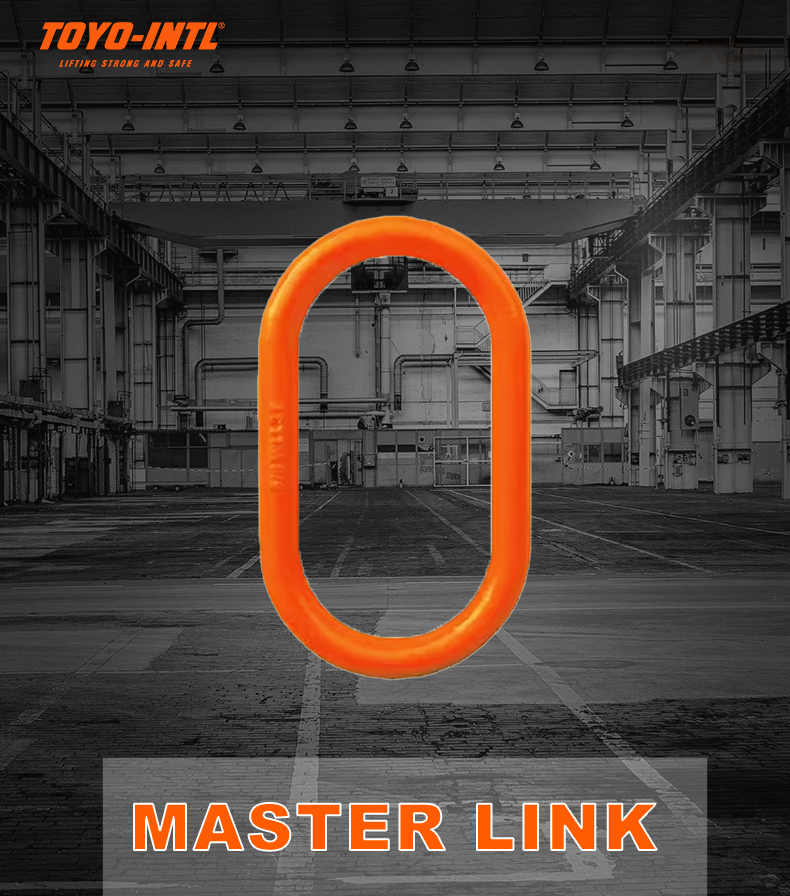

TOYO-INTL MLW Master Link
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Each link has a Product Identification Code (PIC) for material traceability. The PIC is shown together with the size and manufacturer's mark. The source specifies a larger inside width and length for use with a thimble. The table identifies the product as an alloy master link, grade 80, welding type MLW. The WLL column is specified at a 4:1 basis. The listed WLL values run from 2 t to the printed 35/45 t entry. The listed weights run from 0.45 kg to 17.20 kg.
Product Details
- Each link has a Product Identification Code (PIC) for material traceability.
- The PIC is shown together with the size and manufacturer’s mark.
- The source specifies a larger inside width and length for use with a thimble.
- The table identifies the product as an alloy master link, grade 80, welding type MLW.
- The WLL column is specified at a 4:1 basis.
- The listed WLL values run from 2 t to the printed 35/45 t entry.
- The listed weights run from 0.45 kg to 17.20 kg.
Technical Specifications
| Product code | Size D (inch) | WLL 4:1/t | Weight/kg |
|---|---|---|---|
| MLW-14 | 1/2″ | 2 | 0.45 |
| MLW-16 | 5/8″ | 3 | 0.70 |
| MLW-20 | 3/4″ | 4.7 | 1.05 |
| MLW-22 | 7/8″ | 6.4 | 1.50 |
| MLW-25 | 1″ | 11 | 2.10 |
| MLW-28 | 1-1/8″ | 11.8 | 3.81 |
| MLW-32 | 1-1/4″ | 16 | 4.25 |
| MLW-38 | 1-1/2″ | 21.7 | 7.20 |
| MLW-45 | 1-3/4″ | 28.4 | 11.55 |
| MLW-51 | 2″ | 35/45 | 17.20 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
