HAND CHAIN BLOCK
TOYO-INTL MNAC Chain Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

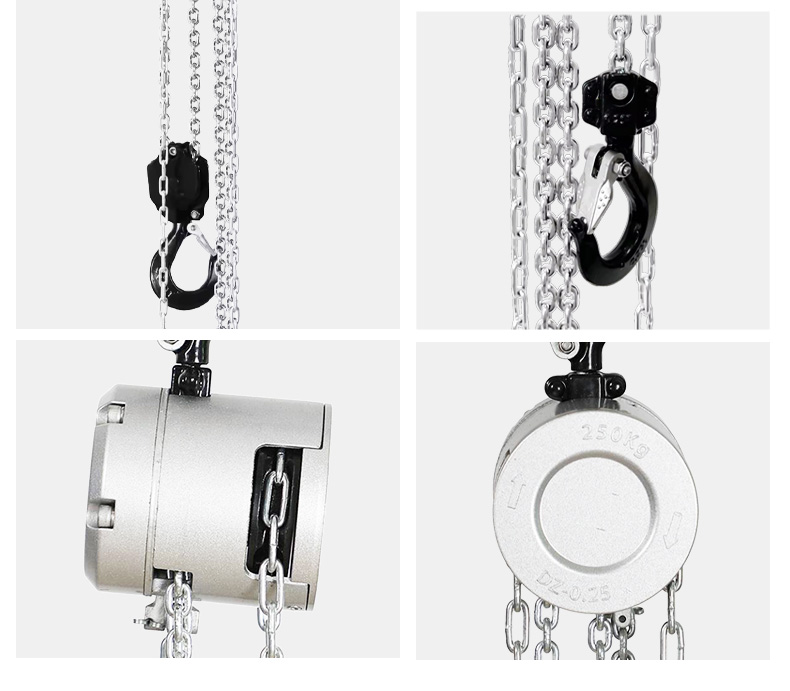

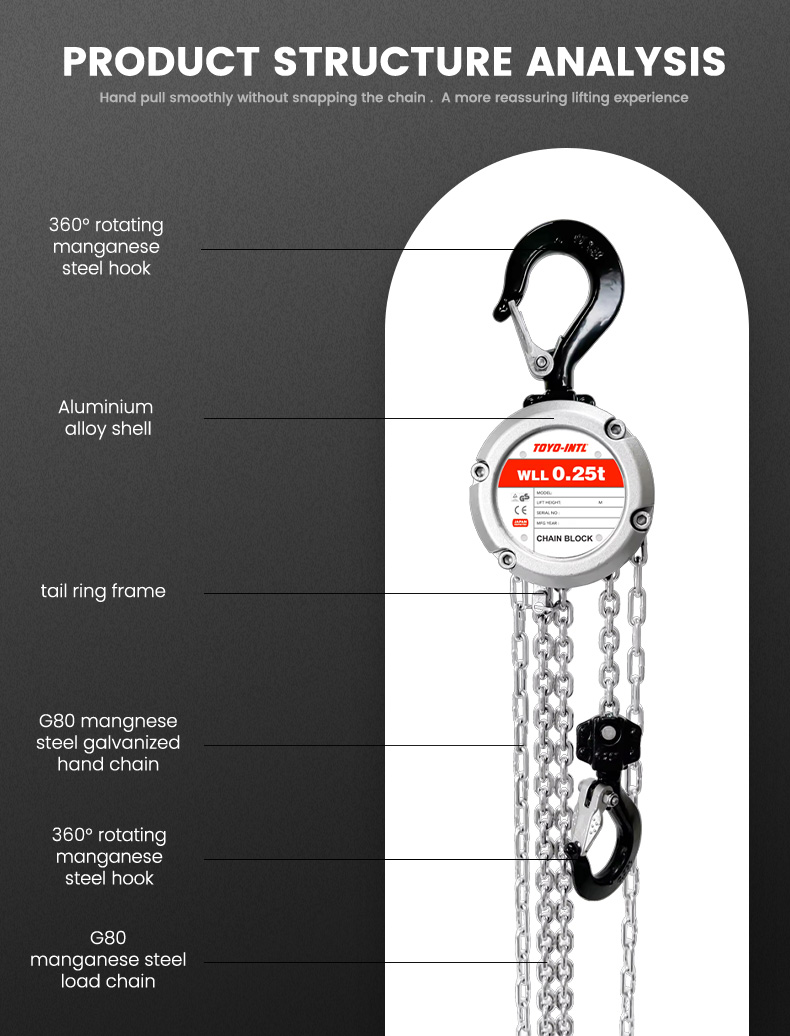

The hoist can rotate 360 degrees and be pulled from any angle. The source labels a professional dust-proof function. Suspension devices and load-bearing hooks use anti-aging, high-strength alloy steel. The source states that overload deformation occurs before sudden hook breakage. The safety latch is shown with a hook that rotates 360 degrees. An enclosed design protects the internal components. An advanced load limiter prevents lifting beyond rated capacity. The housing is lightweight die-cast aluminium; the source also labels a G80 chain.
Product Details
- The hoist can rotate 360 degrees and be pulled from any angle.
- The source labels a professional dust-proof function.
- Suspension devices and load-bearing hooks use anti-aging, high-strength alloy steel.
- The source states that overload deformation occurs before sudden hook breakage.
- The safety latch is shown with a hook that rotates 360 degrees.
- An enclosed design protects the internal components.
- An advanced load limiter prevents lifting beyond rated capacity.
- The housing is lightweight die-cast aluminium; the source also labels a G80 chain.
Technical Specifications
| Parameter | Unit | MNAC025 | MNAC050 |
|---|---|---|---|
| Standard lifting height | m | 2.5 | 2.5 |
| Chain fall | — | 1 | 1 |
| Full load force | N | 210 | 230 |
| Test load | kg | 375 | 750 |
| Load chain size | mm | 3.2X9 | 4X12 |
| Hand chain size | mm | 3X16.5 | 3X16.5 |
| Net weight | kg | 2.4 | 3.9 |
| Packing weight | kg | 2.7 | 4.2 |
| Packing dimensions | cm | 18X11X11 | 23.5X13.5X12 |
| Weight per lift metre | kg/m | 0.23 | 0.341 |
| Hand chain weight per lift metre | kg/m | 0.34 | 0.34 |

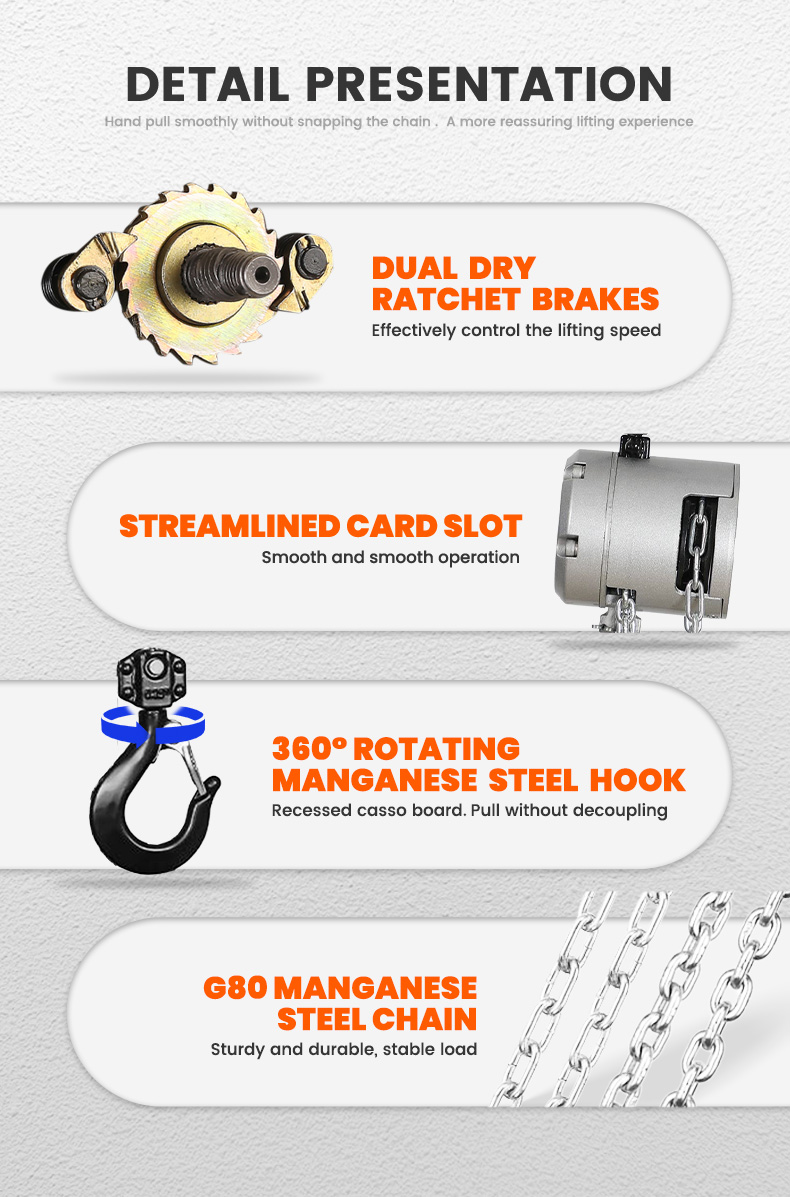

Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
