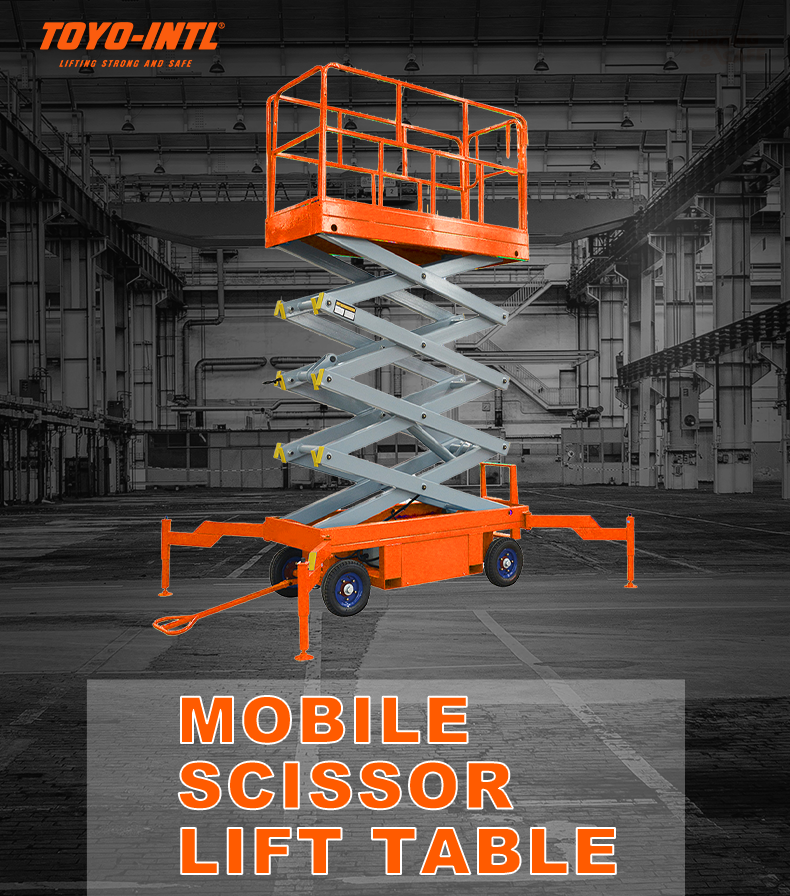

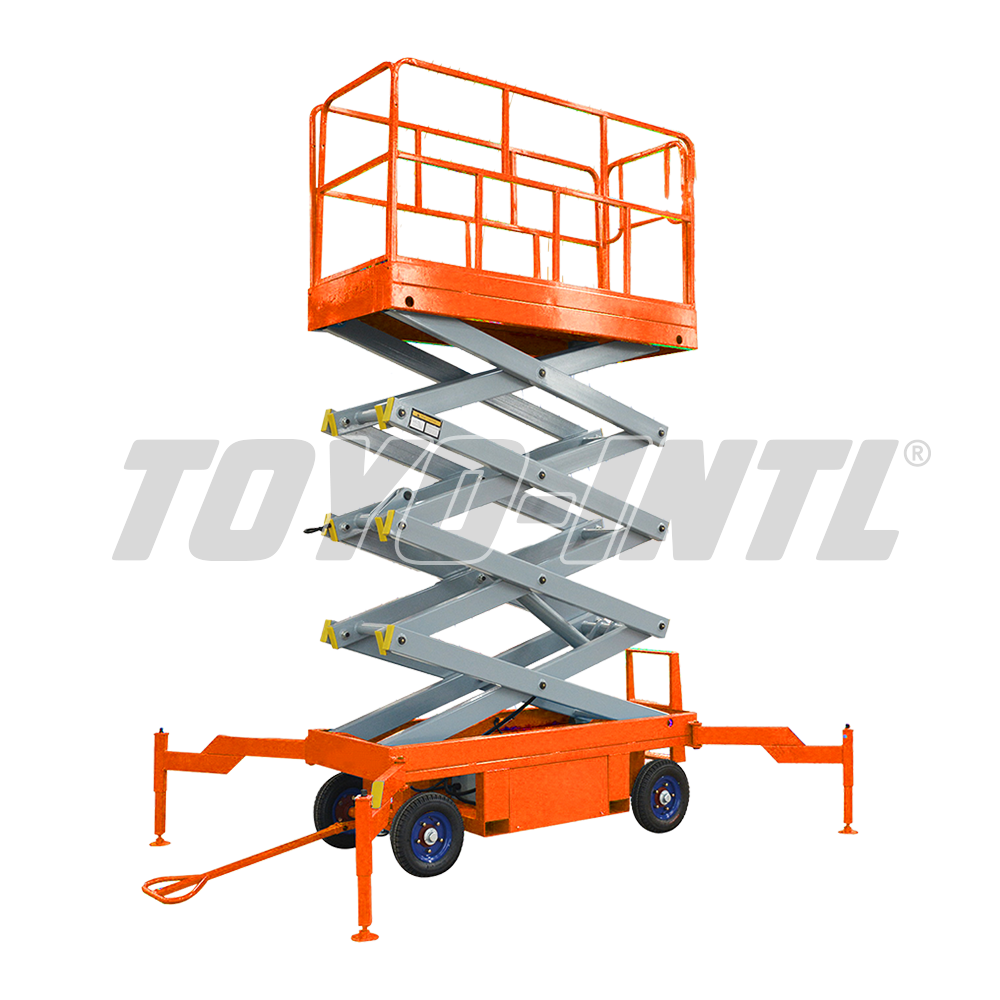

TOYO-INTL MSLT Mobile Scissor Lift Table
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The scissor-type mechanical structure is presented for high stability when elevated. The platform is described as having a wide operating range and high load capacity. The lift table is suitable for overhead work. The source describes operation by multiple workers at the same time. The machine is designed for hard, flat ground. The stated ambient operating range is -20°C to 40°C.
Product Details
- The scissor-type mechanical structure is presented for high stability when elevated.
- The platform is described as having a wide operating range and high load capacity.
- The lift table is suitable for overhead work.
- The source describes operation by multiple workers at the same time.
- The machine is designed for hard, flat ground.
- The stated ambient operating range is -20°C to 40°C.
Technical Specifications
| Model | Platform size (mm) | Load capacity (kg) | Max. platform height (m) | Max. working height (m) | Overall dimensions (mm) | Machine weight (kg) |
|---|---|---|---|---|---|---|
| MSLT0.5-4 | 2100×830 | 500 | 4 | 6 | 2250x950x1100 | 800 |
| MSLT0.5-6/7 | 2100×830 | 500 | 6/6.8 | 8/8.8 | 2250x950x1200 | 880/970 |
| MSLT0.5-8 | 2100×930 | 500 | 8 | 10 | 2250x1060x1380 | 1050 |
| MSLT0.5-9 | 2100×930 | 500 | 9 | 11 | 2250x1060x1500 | 1165 |
| MSLT0.5-10 | 2100×1230 | 500 | 10 | 12 | 2250x1350x1530 | 1360 |
| MSLT0.3-11 | 2100×1230 | 300 | 11 | 13 | 2250x1350x1650 | 1400 |
| MSLT0.5-12 | 2550×1530 | 500 | 12 | 14 | 2796x1670x1750 | 2260 |
| MSLT0.5-14 | 2812×1530 | 500 | 14 | 16 | 3067x1730x1810 | 2486 |
| MSLT0.3-16 | 2812×1600 | 300 | 16 | 18 | 3067x1810x2080 | 3063 |
| MSLT0.3-18 | 3070×1600 | 300 | 18 | 20 | 3321x1810x2080 | 3900 |
| MSLT1.0-4 | 2100×1200 | 1000 | 4 | 6 | 2250x1350x1180 | 1250 |
| MSLT1.0-6 | 2100×1200 | 1000 | 6 | 8 | 2250x1350x1300 | 1400 |
| MSLT1.0-8 | 2100×1200 | 1000 | 8 | 10 | 2250x1350x1420 | 1585 |
| MSLT1.0-10 | 2100×1200 | 1000 | 10 | 12 | 2250x1350x1530 | 1700 |
| MSLT1.0-12 | 2550×1530 | 1000 | 12 | 14 | 2796x1670x1750 | 2560 |
| MSLT1.0-14 | 2812×1600 | 1000 | 14 | 16 | 3067x1810x1900 | 3230 |
| MSLT1.5-6 | 2100×1530 | 1500 | 6 | 8 | 2250x1750x1530 | 1780 |
| MSLT1.5-8 | 2100×1530 | 1500 | 8 | 10 | 2250x1750x1690 | 2070 |
| MSLT1.5-10 | 2100×1530 | 1500 | 10 | 12 | 2250x1750x1850 | 2250 |
| MSLT1.5-12 | 2550×1530 | 1500 | 12 | 14 | 2796x1762x1850 | 2900 |
| MSLT1.5-14 | 2816×1600 | 1500 | 14 | 16 | 3045x1852x1960 | 3400 |
| MSLT2.0-6 | 2100×1530 | 2000 | 6 | 8 | 2250x1750x1530 | 1780 |
| MSLT2.0-8 | 2100×1530 | 2000 | 8 | 10 | 2250x1750x1690 | 2070 |
| MSLT2.0-10 | 2100×1530 | 2000 | 10 | 12 | 2250x1750x1850 | 2250 |
| MSLT2.0-12 | 2550×1600 | 2000 | 12 | 14 | 2796x1852x1954 | 3200 |
| MSLT2.0-14 | 2816×1600 | 2000 | 14 | 16 | 3067x1852x2230 | 3900 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
