HAND CHAIN BLOCK

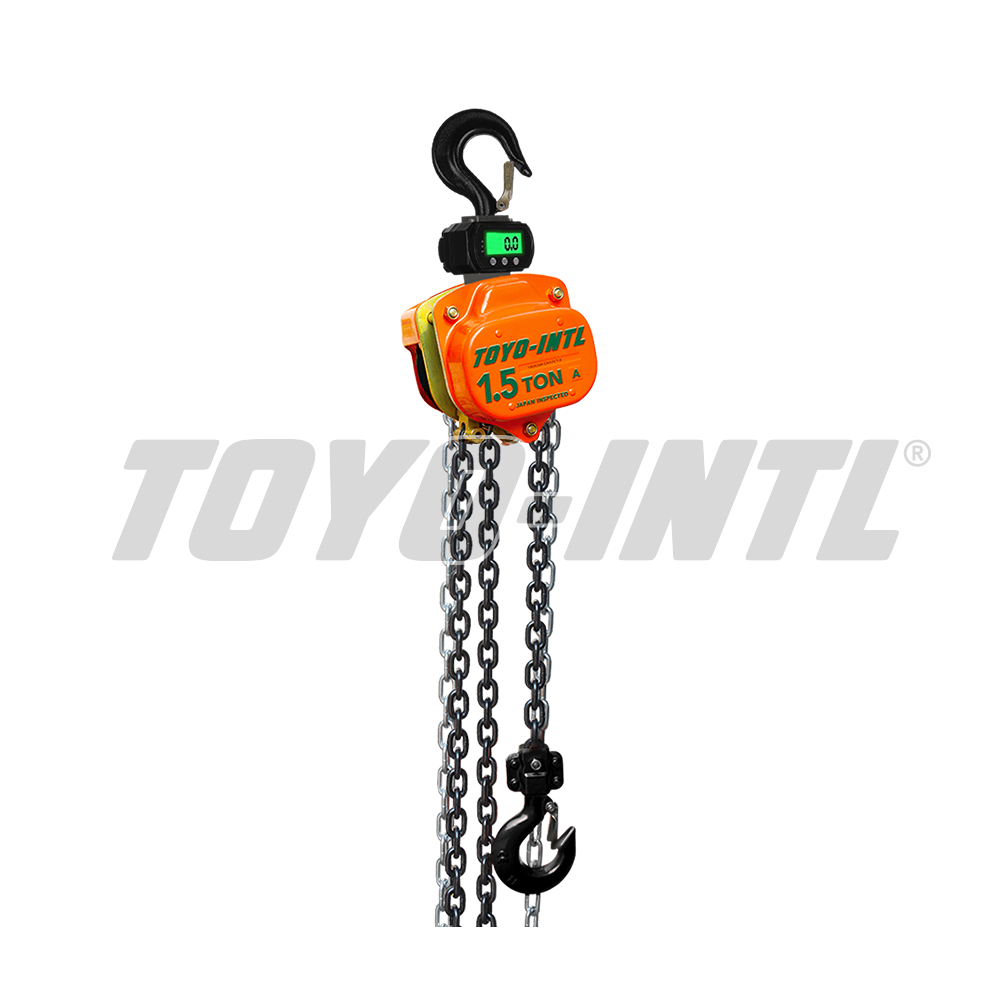

Toyo-Intl New Product Weight VTD Display Chain Block
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The New Product Weight VTD Display Chain Hoist is designed for controlled vertical lifting in workshops, warehouses and rigging operations. Manual chain operation supports steady load positioning without an external power source. Load-bearing components are selected for dependable service within the rated working load. Hooks with safety latches help secure the load during setup and lifting. Compact construction supports practical handling and routine inspection. Use the specified chain fall and rated capacity for each lift.
Product Details
- The New Product Weight VTD Display Chain Hoist is designed for controlled vertical lifting in workshops, warehouses and rigging operations.
- Manual chain operation supports steady load positioning without an external power source.
- Load-bearing components are selected for dependable service within the rated working load.
- Hooks with safety latches help secure the load during setup and lifting.
- Compact construction supports practical handling and routine inspection.
- Use the specified chain fall and rated capacity for each lift.
Technical Specifications
| Model | Capacity(t) | Standard Lift(m) | Running test(t) | Effort required to lift max load(n) | No.of falls of load chain | Load chain diameter(mm) | Net weight (kg) | Packing (L*W*H)(cm) | Max Cap.(kg) |
|---|---|---|---|---|---|---|---|---|---|
| VTD-0.5T | 0.5 | 2.5 | 0.5 | 350 | 1 | 5 | 8.4 | 22*14*15 | 500 |
| VTD-1T | 1 | 2.5 | 1 | 330 | 1 | 6.3 | 12 | 25*19*16 | 1000 |
| VTD-1.5T | 1.5 | 2.5 | 1.5 | 348 | 1 | 7.1 | 16.2 | 33*24*16 | 1500 |
| VTD-2T | 2 | 3 | 2 | 365 | 1 | 8 | 20 | 33*24*19 | 2000 |
| VTD-3T | 3 | 3 | 3 | 360 | 2 | 7.1 | 24 | 34.5*24*16 | 3000 |
| VTD-5T | 5 | 3 | 5 | 410 | 2 | 9 | 41 | 40*30*19 | 5000 |
| VTD-10T | 10 | 3 | 10 | 410 | 4 | 9 | 79 | 48*42*18.5 | 10000 |
| VTD-15T | 15 | 3 | 15 | 435 | 6 | 9 | 120 | 69*56*20 | 15000 |
| VTD-20T | 20 | 3 | 20 | 435*2 | 8 | 9 | 193 | 78*68*20 | 20000 |
| VTD-30T | 30 | 3 | 30 | 435*2 | 12 | 9 | 220 | 85*67*30 | 30000 |
| VTD-50T | 50 | 3 | 50 | 435*2 | 22 | 9 | 1092 | 110*100*130 | 50000 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
