ELECTRIC HOIST
TOYO-INTL PAW Electric Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The aluminum-alloy casting is described as solid, light, and simple in structure. The copper-wire winding motor is described as low-resistance and high-temperature-resistant. The anti-rotation aviation special steel wire rope is shown with a high safety factor and long service life. The high-quality alloy hook rotates 360 degrees and has an anti-skid design. The ultra-quiet deceleration system is shown with high transmission efficiency. The smart limiter automatically stops operation when the limit baffle reaches the limiter.
Product Details
- The aluminum-alloy casting is described as solid, light, and simple in structure.
- The copper-wire winding motor is described as low-resistance and high-temperature-resistant.
- The anti-rotation aviation special steel wire rope is shown with a high safety factor and long service life.
- The high-quality alloy hook rotates 360 degrees and has an anti-skid design.
- The ultra-quiet deceleration system is shown with high transmission efficiency.
- The smart limiter automatically stops operation when the limit baffle reaches the limiter.
Technical Specifications

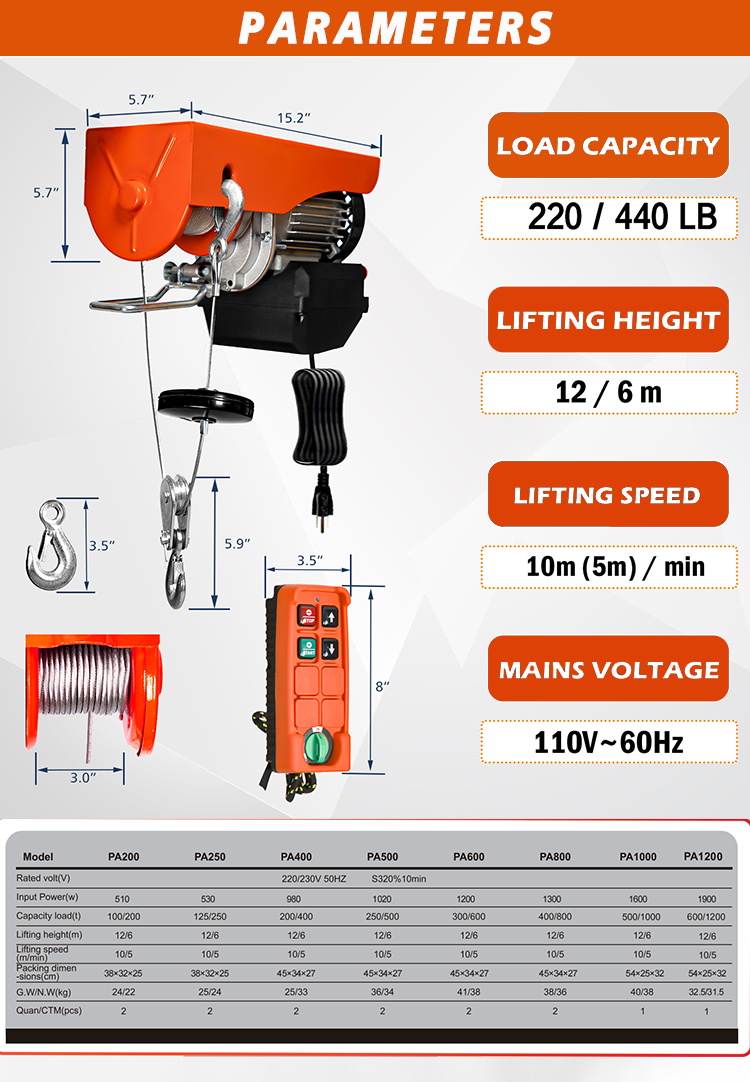

The PAW image shows the same complete table values as PA, with an additional hand-remote arrangement visible in the product image
| Model | Rated voltage | Source duty note | Input power (W) | Capacity load (kg) | Lifting height (m) | Lifting speed (m/min) | Packing dimensions (cm) | G.W./N.W. (kg) | Quantity/CTN (pcs) |
|---|---|---|---|---|---|---|---|---|---|
| PA200 | 220/230 V 50 Hz | S320%10min | 510 | 100/200 | 12/6 | 10/5 | 38×32×25 | 24/22 | 2 |
| PA250 | 220/230 V 50 Hz | S320%10min | 530 | 125/250 | 12/6 | 10/5 | 38×32×25 | 25/24 | 2 |
| PA400 | 220/230 V 50 Hz | S320%10min | 980 | 200/400 | 12/6 | 10/5 | 45×34×27 | 25/33 | 2 |
| PA500 | 220/230 V 50 Hz | S320%10min | 1020 | 250/500 | 12/6 | 10/5 | 45×34×27 | 36/34 | 2 |
| PA600 | 220/230 V 50 Hz | S320%10min | 1200 | 300/600 | 12/6 | 10/5 | 45×34×27 | 41/38 | 2 |
| PA800 | 220/230 V 50 Hz | S320%10min | 1300 | 400/800 | 12/6 | 10/5 | 45×34×27 | 38/36 | 2 |
| PA1000 | 220/230 V 50 Hz | S320%10min | 1600 | 500/1000 | 12/6 | 10/5 | 54×25×32 | 40/38 | 1 |
| PA1200 | 220/230 V 50 Hz | S320%10min | 1900 | 600/1200 | 12/6 | 10/5 | 54×25×32 | 32.5/31.5 | 1 |
PAW trolley specification
| Rated capacity (T) | Assembling height (m) | Moving speed (m/min) | Rated voltage (v) | Power (source: v) | Speed (r/min) | Minimum track radius (m) | Crooked-steel-beam model (a) | Steel-beam track width (mm) | N.W. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 6 | 13 | AC 100/110/120/220 | 160 | 1400 | 1 | 10–18 | 68–94 | 14 |
| 1.0 | 6 | 13 | AC 100/110/120/220 | 540 | 1400 | 1.5 | 14–20 | 80–102 | 18 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
