LIFTING CLAMP & MAGNET LIFTER

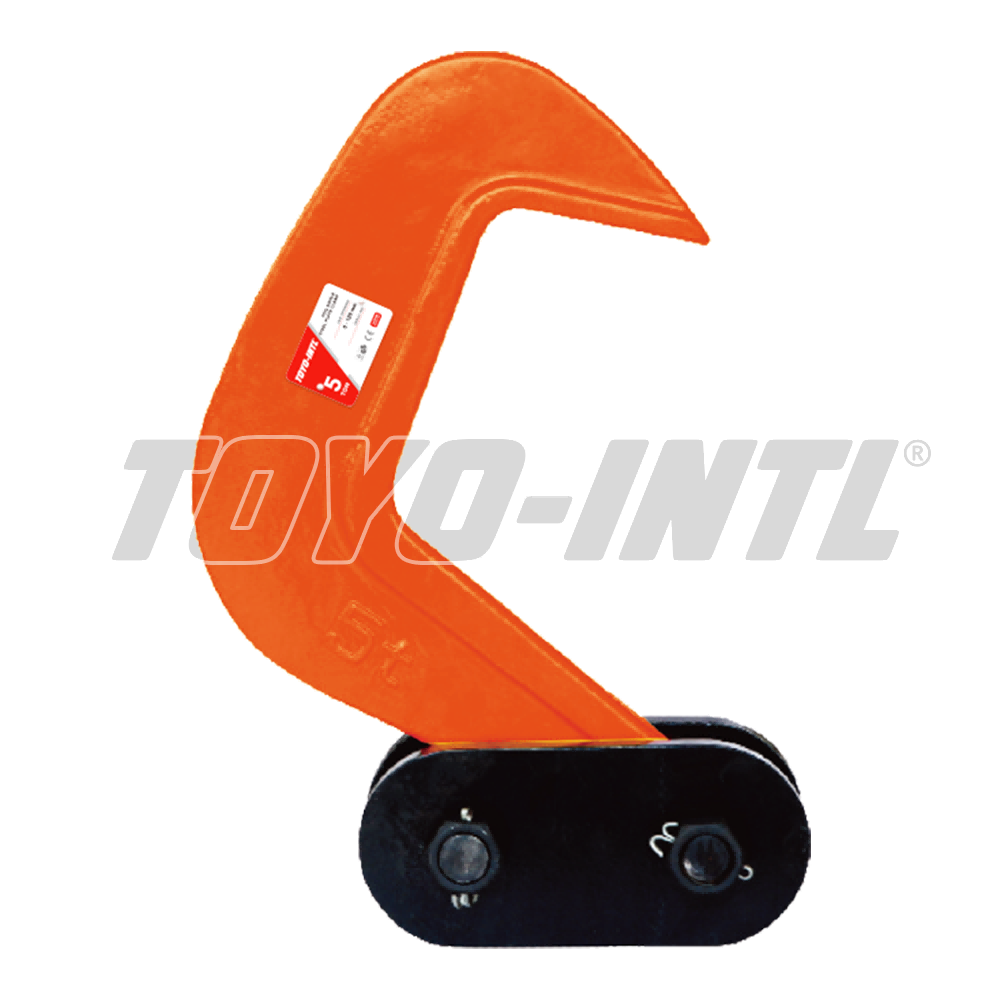

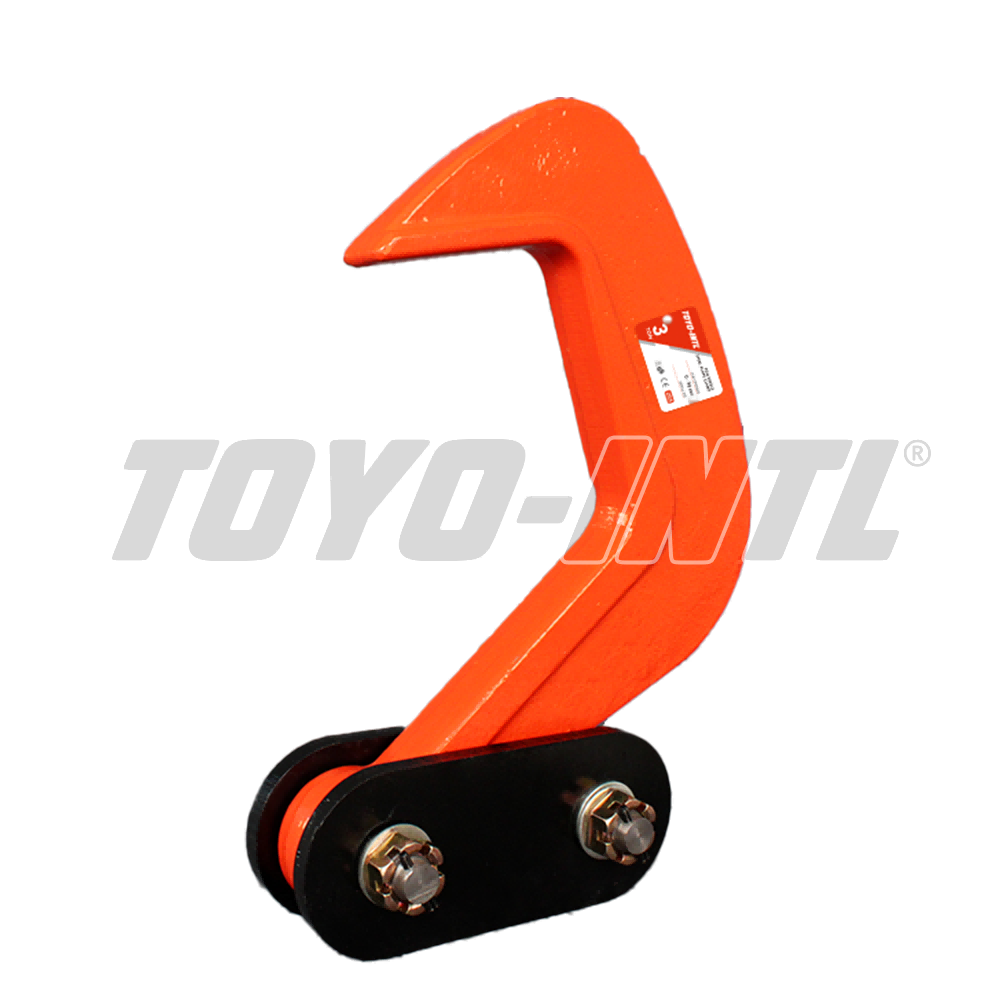

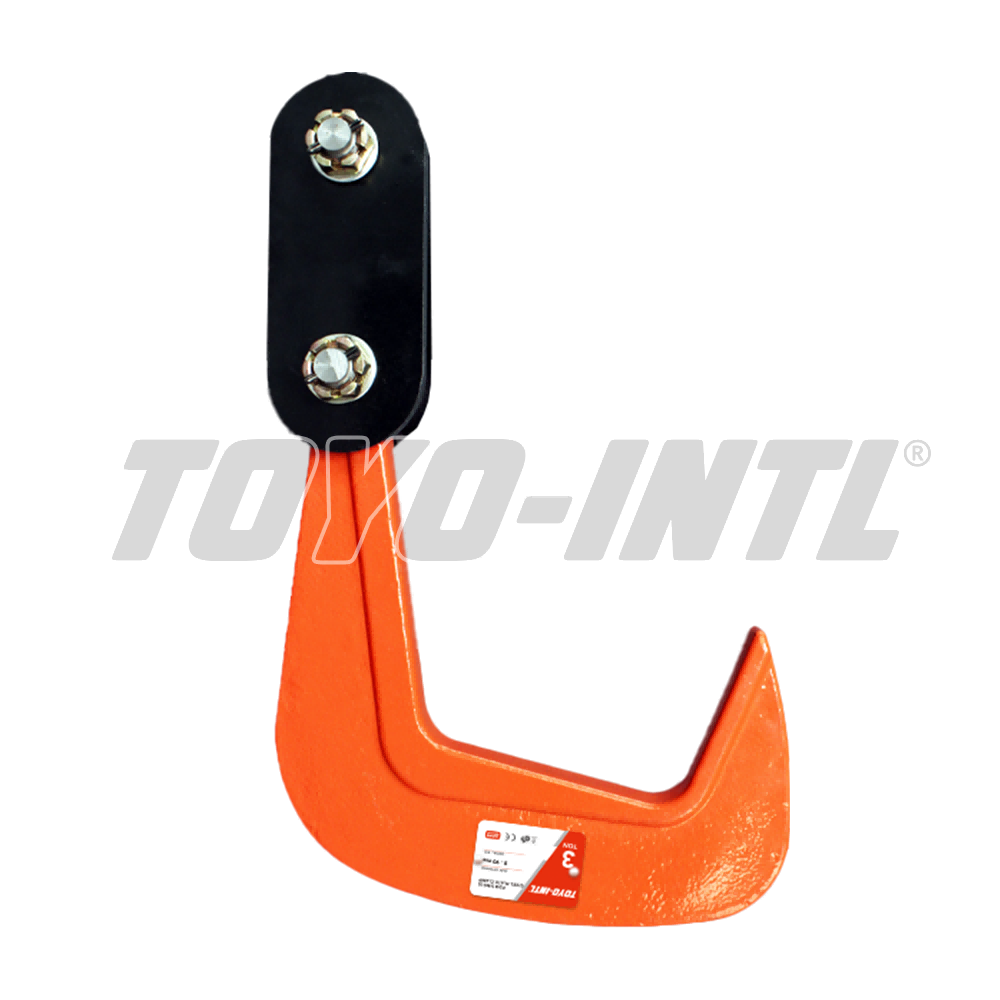

TOYO-INTL PDQ Lifting Clamp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The clamp is suitable for lifting and transporting single or multiple steel plates. It is manufactured from high-quality carbon steel. The source warns to avoid snatch or shock loading. The lifting beam must be in use. The roller at the head of the hook is stated not to damage the sling rope. The WLL statement applies when clamps are used in pairs with a lift angle of 60°. The source states that at least four clamps must always be used in lifting operations and notes automatic unloading. The table provides WLL options from 1.0 to 20.0 tonnes and jaw openings from 0–50 to 0–250 mm.
Product Details
- The clamp is suitable for lifting and transporting single or multiple steel plates.
- It is manufactured from high-quality carbon steel.
- The source warns to avoid snatch or shock loading.
- The lifting beam must be in use.
- The roller at the head of the hook is stated not to damage the sling rope.
- The WLL statement applies when clamps are used in pairs with a lift angle of 60°.
- The source states that at least four clamps must always be used in lifting operations and notes automatic unloading.
- The table provides WLL options from 1.0 to 20.0 tonnes and jaw openings from 0–50 to 0–250 mm.

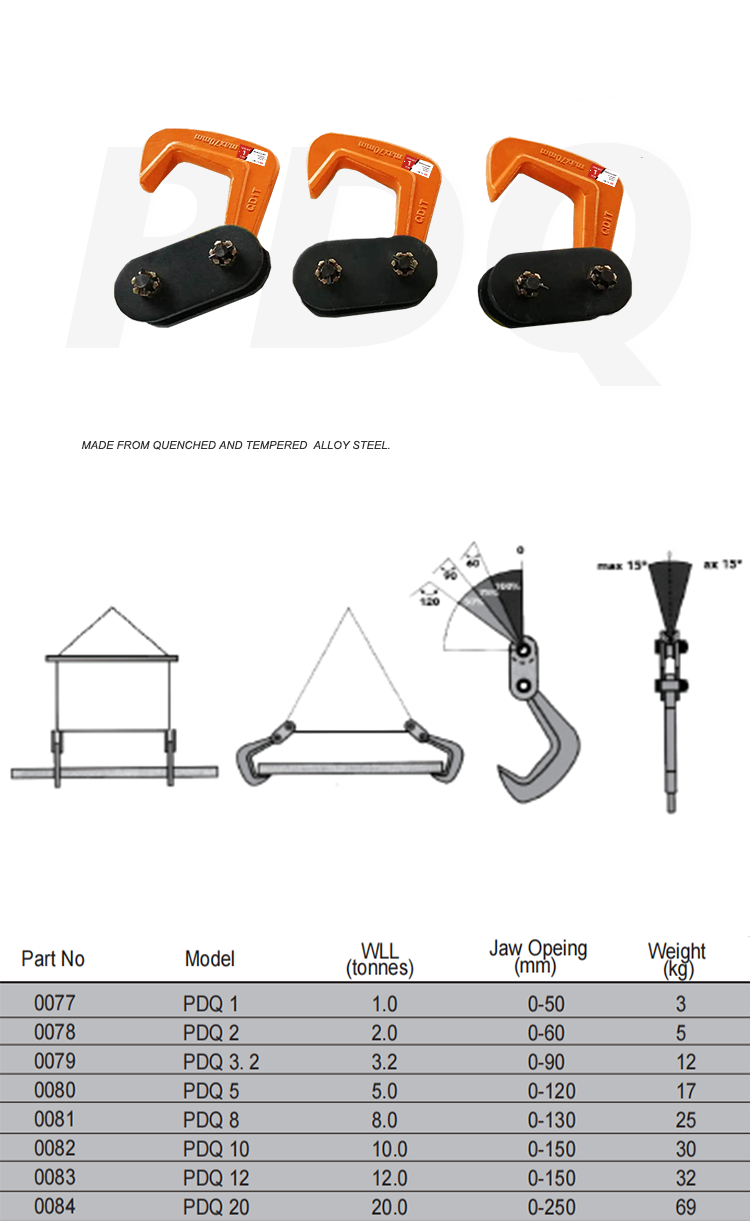

Technical Specifications
| Model | WLL (tonnes) | Jaw opening (mm) | Weight (kg) |
|---|---|---|---|
| PDQ 1 | 1.0 | 0–50 | 3 |
| PDQ 2 | 2.0 | 0–60 | 5 |
| PDQ 3.2 | 3.2 | 0–90 | 12 |
| PDQ 5 | 5.0 | 0–120 | 17 |
| PDQ 8 | 8.0 | 0–130 | 25 |
| PDQ 10 | 10.0 | 0–150 | 30 |
| PDQ 12 | 12.0 | 0–150 | 32 |
| PDQ 20 | 20.0 | 0–250 | 69 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
