LIFTING JACK

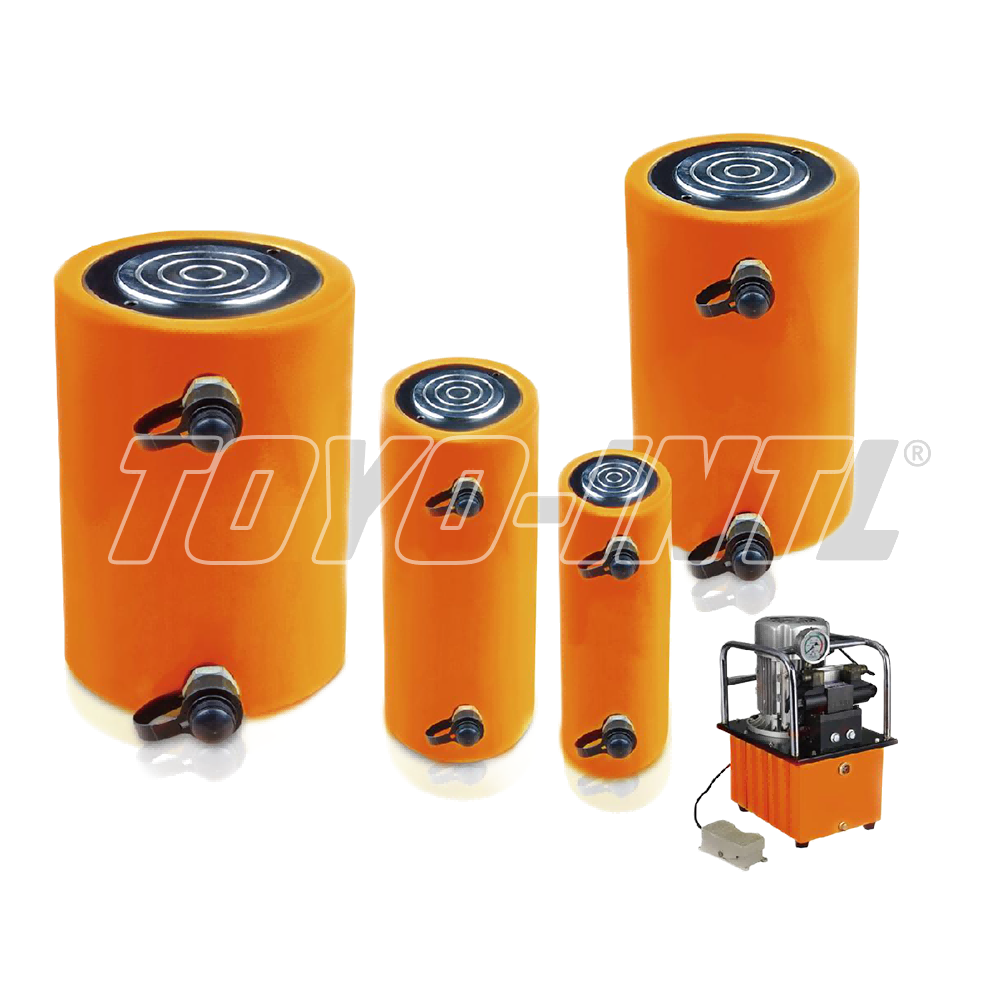

TOYO-INTL PR Double-acting Hydraulic Cylinder
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The PR Double-acting Hydraulic Cylinder is designed for controlled lifting during equipment service, installation and maintenance. The lifting mechanism supports steady raising and controlled lowering of the load. A steel body and stable support base help maintain alignment during operation. The compact format is practical for workshops, vehicles and field maintenance. Position the jack on a firm, level surface before lifting. Use suitable stands or supports whenever the load must remain raised. Hydraulic actuation supports smooth lifting and controlled lowering.
Product Details
- The PR Double-acting Hydraulic Cylinder is designed for controlled lifting during equipment service, installation and maintenance.
- The lifting mechanism supports steady raising and controlled lowering of the load.
- A steel body and stable support base help maintain alignment during operation.
- The compact format is practical for workshops, vehicles and field maintenance.
- Position the jack on a firm, level surface before lifting.
- Use suitable stands or supports whenever the load must remain raised.
- Hydraulic actuation supports smooth lifting and controlled lowering.
Technical Specifications

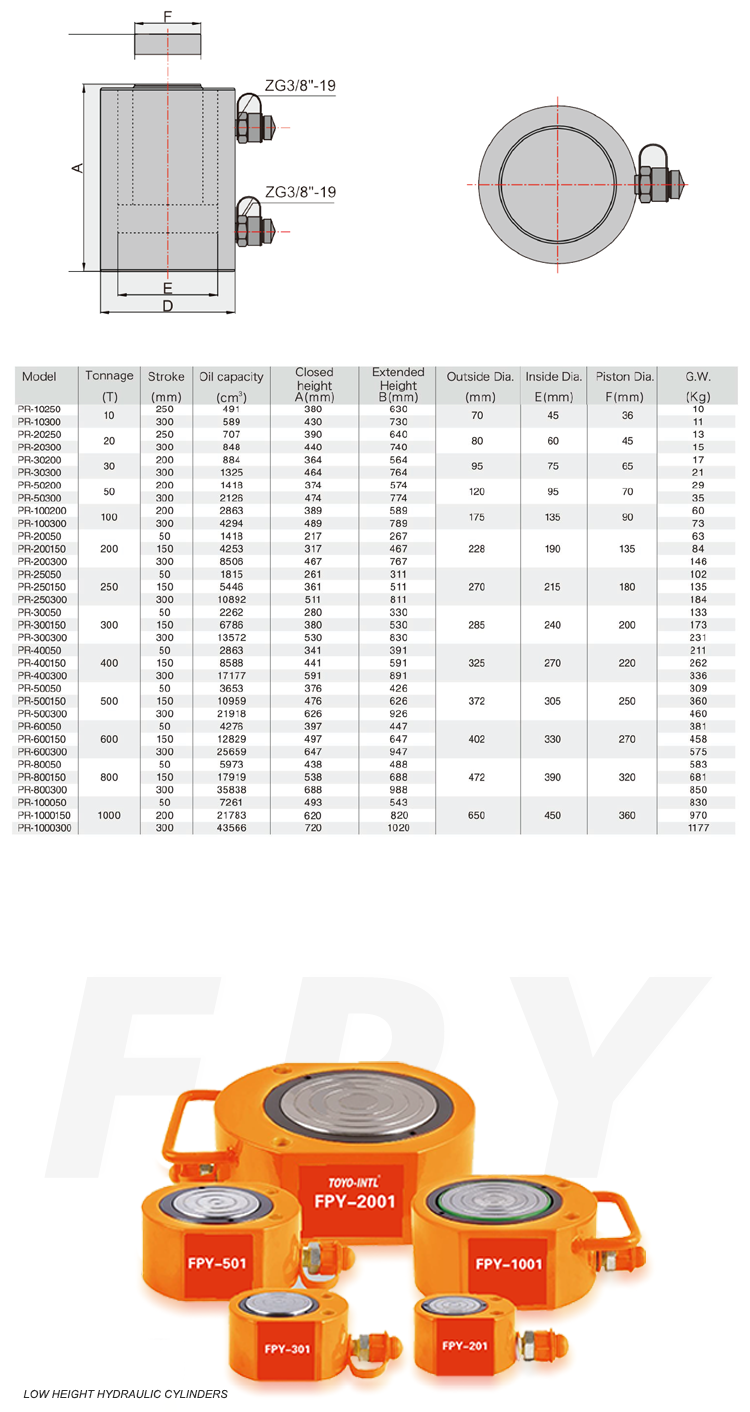

| Model | Tonnage (T) | Stroke (mm) | Oil capacity (cm³) | Closed height A (mm) | Extended Height B (mm) | Outside Dia. (mm) | Inside Dia. E (mm) | Piston Dia. F (mm) | G.W. (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| PR-10250 | 10 | 250 | 491 | 380 | 630 | 70 | 45 | 36 | 10 |
| PR-10300 | 10 | 300 | 589 | 430 | 730 | 70 | 45 | 36 | 11 |
| PR-20250 | 20 | 250 | 707 | 390 | 640 | 80 | 60 | 45 | 13 |
| PR-20300 | 20 | 300 | 848 | 440 | 740 | 80 | 60 | 45 | 15 |
| PR-30200 | 30 | 200 | 884 | 364 | 564 | 95 | 75 | 65 | 17 |
| PR-30300 | 30 | 300 | 1325 | 464 | 764 | 95 | 75 | 65 | 21 |
| PR-50200 | 50 | 200 | 1418 | 374 | 574 | 120 | 95 | 70 | 29 |
| PR-50300 | 50 | 300 | 2126 | 474 | 774 | 120 | 95 | 70 | 35 |
| PR-100200 | 100 | 200 | 2863 | 389 | 589 | 175 | 135 | 90 | 60 |
| PR-100300 | 100 | 300 | 4294 | 489 | 789 | 175 | 135 | 90 | 73 |
| PR-20050 | 200 | 50 | 1418 | 217 | 267 | 228 | 190 | 135 | 63 |
| PR-200150 | 200 | 150 | 4253 | 317 | 467 | 228 | 190 | 135 | 84 |
| PR-200300 | 200 | 300 | 8506 | 467 | 767 | 228 | 190 | 135 | 146 |
| PR-25050 | 250 | 50 | 1815 | 261 | 311 | 270 | 215 | 180 | 102 |
| PR-250150 | 250 | 150 | 5446 | 361 | 511 | 270 | 215 | 180 | 135 |
| PR-250300 | 250 | 300 | 10892 | 511 | 811 | 270 | 215 | 180 | 184 |
| PR-30050 | 300 | 50 | 2262 | 280 | 330 | 285 | 240 | 200 | 133 |
| PR-300150 | 300 | 150 | 6786 | 380 | 530 | 285 | 240 | 200 | 173 |
| PR-300300 | 300 | 300 | 13572 | 530 | 830 | 285 | 240 | 200 | 231 |
| PR-40050 | 400 | 50 | 2863 | 341 | 391 | 325 | 270 | 220 | 211 |
| PR-400150 | 400 | 150 | 8588 | 441 | 591 | 325 | 270 | 220 | 262 |
| PR-400300 | 400 | 300 | 17177 | 591 | 891 | 325 | 270 | 220 | 336 |
| PR-50050 | 500 | 50 | 3653 | 376 | 426 | 372 | 305 | 250 | 309 |
| PR-500150 | 500 | 150 | 10959 | 476 | 626 | 372 | 305 | 250 | 360 |
| PR-500300 | 500 | 300 | 21918 | 626 | 926 | 372 | 305 | 250 | 460 |
| PR-60050 | 600 | 50 | 4276 | 397 | 447 | 402 | 330 | 270 | 381 |
| PR-600150 | 600 | 150 | 12829 | 497 | 647 | 402 | 330 | 270 | 458 |
| PR-600300 | 600 | 300 | 25659 | 647 | 947 | 402 | 330 | 270 | 575 |
| PR-80050 | 800 | 50 | 5973 | 438 | 488 | 472 | 390 | 320 | 583 |
| PR-800150 | 800 | 150 | 17919 | 538 | 688 | 472 | 390 | 320 | 681 |
| PR-800300 | 800 | 300 | 35838 | 688 | 988 | 472 | 390 | 320 | 850 |
| PR-100050 | 1000 | 50 | 7261 | 493 | 543 | 650 | 450 | 360 | 830 |
| PR-1000150 | 1000 | 200 | 21783 | 620 | 820 | 650 | 450 | 360 | 970 |
| PR-1000300 | 1000 | 300 | 43566 | 720 | 1020 | 650 | 450 | 360 | 1177 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
