CHAIN SLING & LOAD BINDER
TOYO-INTL RLB RATCHET RIGGING
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Forged ratchet load binder construction. The listed chain-size range runs from 1/4-5/16 in to 1/2-5/8 in. Listed WLL ratings span 2,600 to 13,000 lb. Listed proof loads span 5,200 to 26,000 lb. Listed minimum ultimate loads span 7,800 to 46,000 lb. Listed handle lengths are 7.16 to 13.92 in. Listed weights are 3.52 to 14.38 lb.
Product Details
- Forged ratchet load binder construction.
- The listed chain-size range runs from 1/4-5/16 in to 1/2-5/8 in.
- Listed WLL ratings span 2,600 to 13,000 lb.
- Listed proof loads span 5,200 to 26,000 lb.
- Listed minimum ultimate loads span 7,800 to 46,000 lb.
- Listed handle lengths are 7.16 to 13.92 in.
- Listed weights are 3.52 to 14.38 lb.

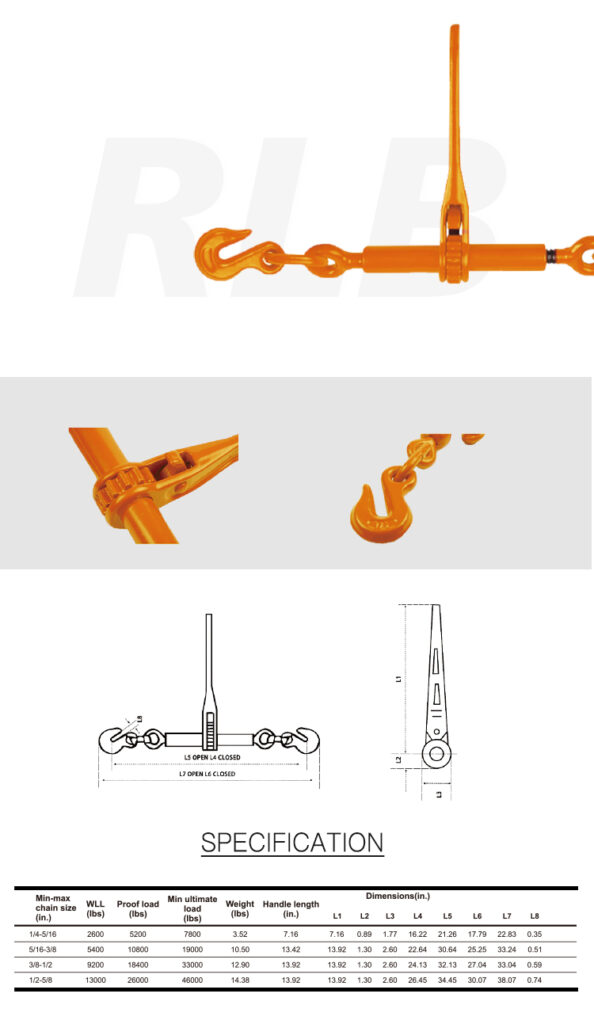

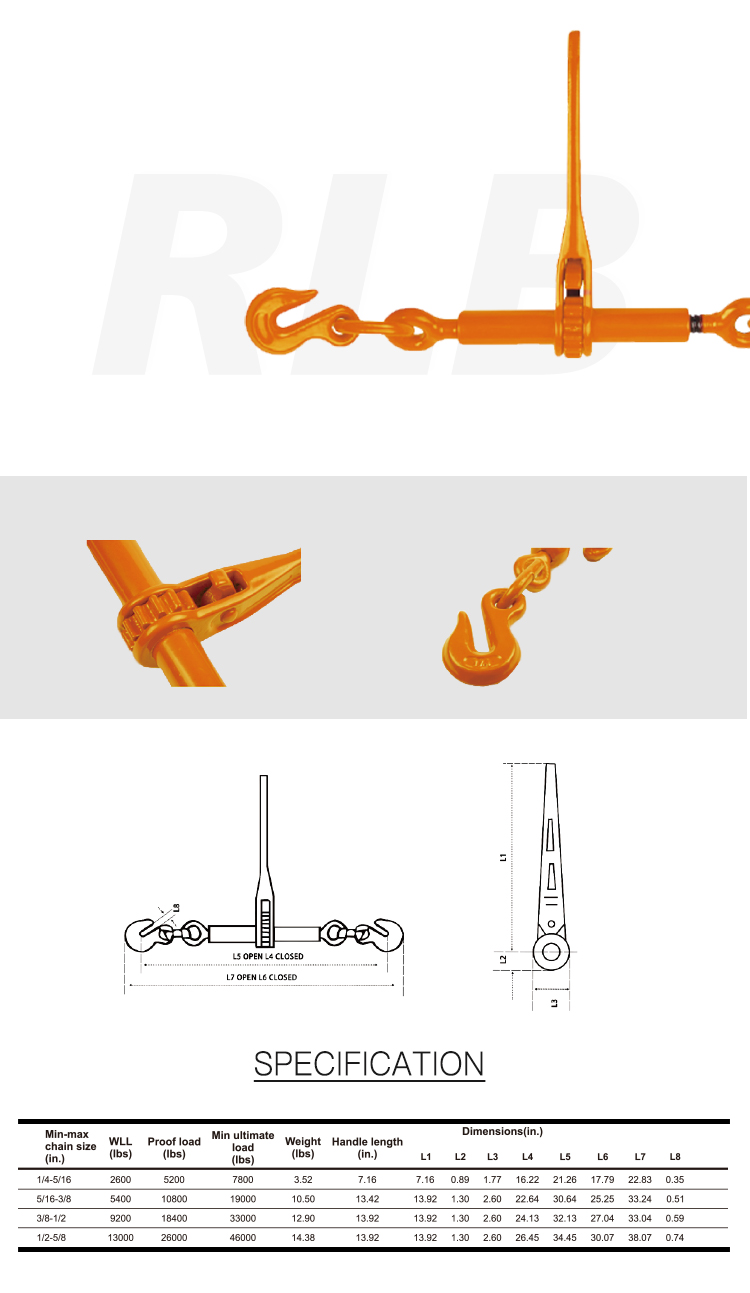

Technical Specifications
| Min–max chain size (in) | WLL (lb) | Proof load (lb) | Min ultimate load (lb) | Weight (lb) | Handle length (in) |
|---|---|---|---|---|---|
| 1/4-5/16 | 2,600 | 5,200 | 7,800 | 3.52 | 7.16 |
| 5/16-3/8 | 5,400 | 10,800 | 19,000 | 10.50 | 13.42 |
| 3/8-1/2 | 9,200 | 18,400 | 33,000 | 12.90 | 13.92 |
| 1/2-5/8 | 13,000 | 26,000 | 46,000 | 14.38 | 13.92 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
