TOYO-INTL SBH Snatch Pulley
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The source identifies the product as a `SNATCH BLOCK (Hook Type)`. The hook-type block is shown with a hook attachment. The table lists S.W.L. values from 2 to 50 t. Listed sheave diameters run from 75 to 600 mm. The listed wire-diameter ranges run from 7–9 to 46–50 mm. Listed net weights run from 4 to 408 kg.
Product Details
- The source identifies the product as a `SNATCH BLOCK (Hook Type)`.

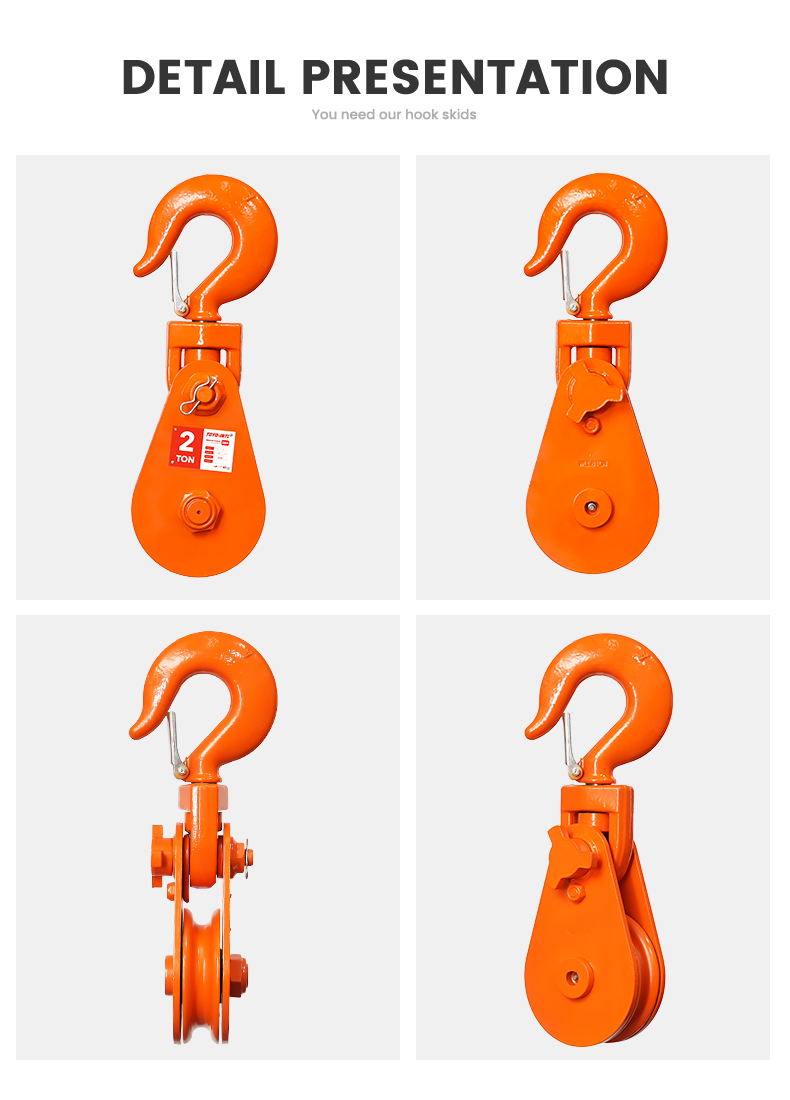

- The hook-type block is shown with a hook attachment.
- The table lists S.W.L. values from 2 to 50 t.
- Listed sheave diameters run from 75 to 600 mm.
- The listed wire-diameter ranges run from 7–9 to 46–50 mm.
- Listed net weights run from 4 to 408 kg.
Technical Specifications
| Model | S.W.L. (t) | Sheave diameter (mm) | For wire diameter (mm) | N.W. (kg) |
|---|---|---|---|---|
| SBH-3″ × 1 | 2 | 75 | 7–9 | 4 |
| SBH-4-1/2″ × 1 | 4 | 115 | 10–12 | 6.1 |
| SBH-6″ × 1 | 4 | 150 | 16–18 | 13.8 |
| SBH-6″ × 1 | 8 | 150 | 20–22 | 14.4 |
| SBH-8″ × 1 | 8 | 200 | 20–22 | 16 |
| SBH-8″ × 1 | 15 | 200 | 22–24 | 24 |
| SBH-10″ × 1 | 10 | 250 | 24–26 | 37.5 |
| SBH-10″ × 1 | 12 | 250 | 24–26 | 42 |
| SBH-12″ × 1 | 12 | 300 | 24–26 | 56 |
| SBH-12″ × 1 | 15 | 300 | 26–26 | 65 |
| SBH-14″ × 1 | 22 | 355 | 28–32 | 90 |
| SBH-16″ × 1 | 22 | 400 | 28–32 | 108 |
| SBH-16″ × 1 | 30 | 400 | 32–35 | 135 |
| SBH-20″ × 1 | 30 | 500 | 32–35 | 210 |
| SBH-24″ × 1 | 50 | 600 | 46–50 | 408 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
