Pallet Trucks

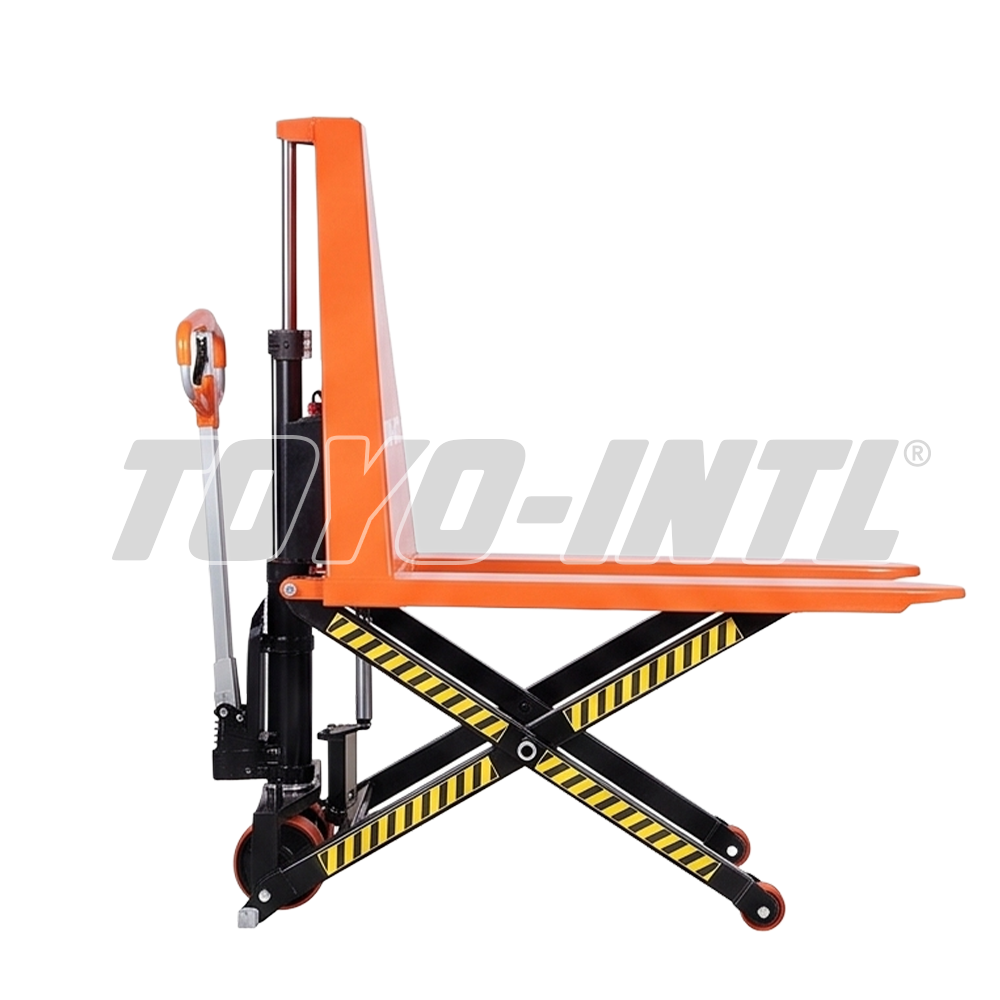

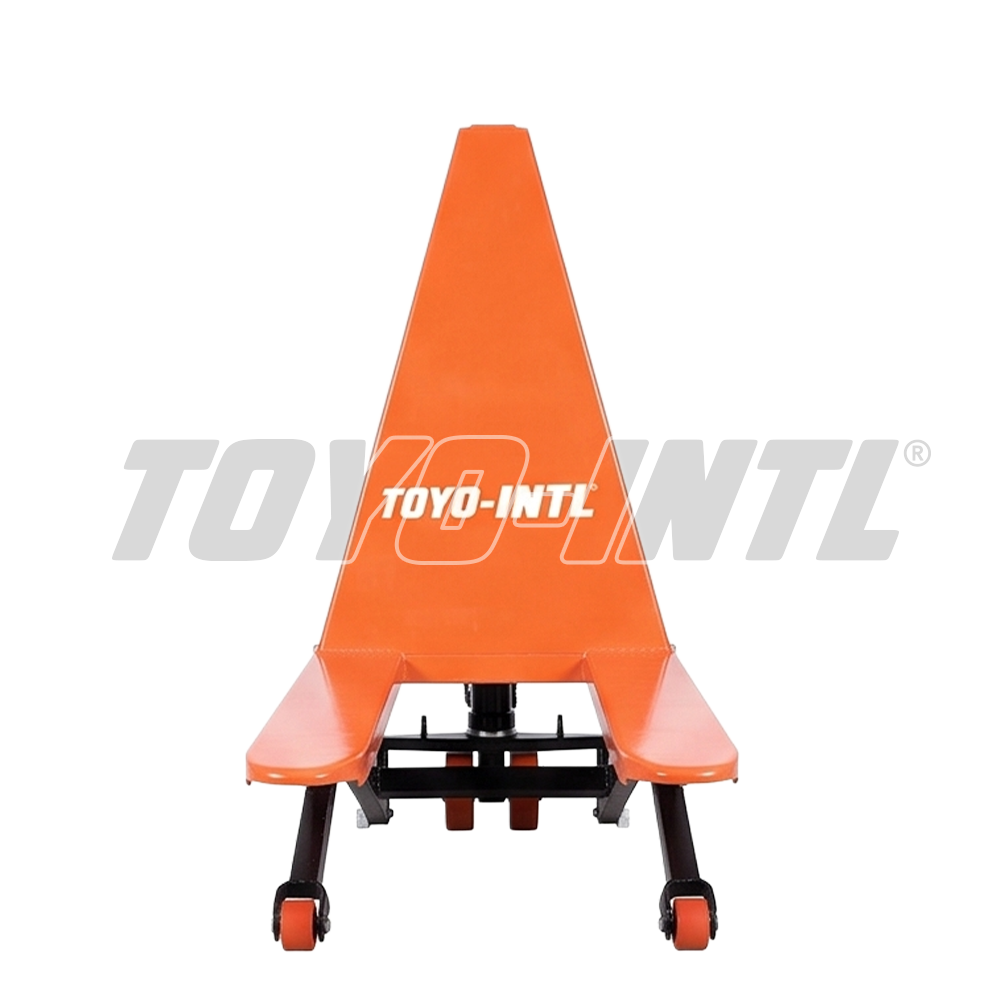

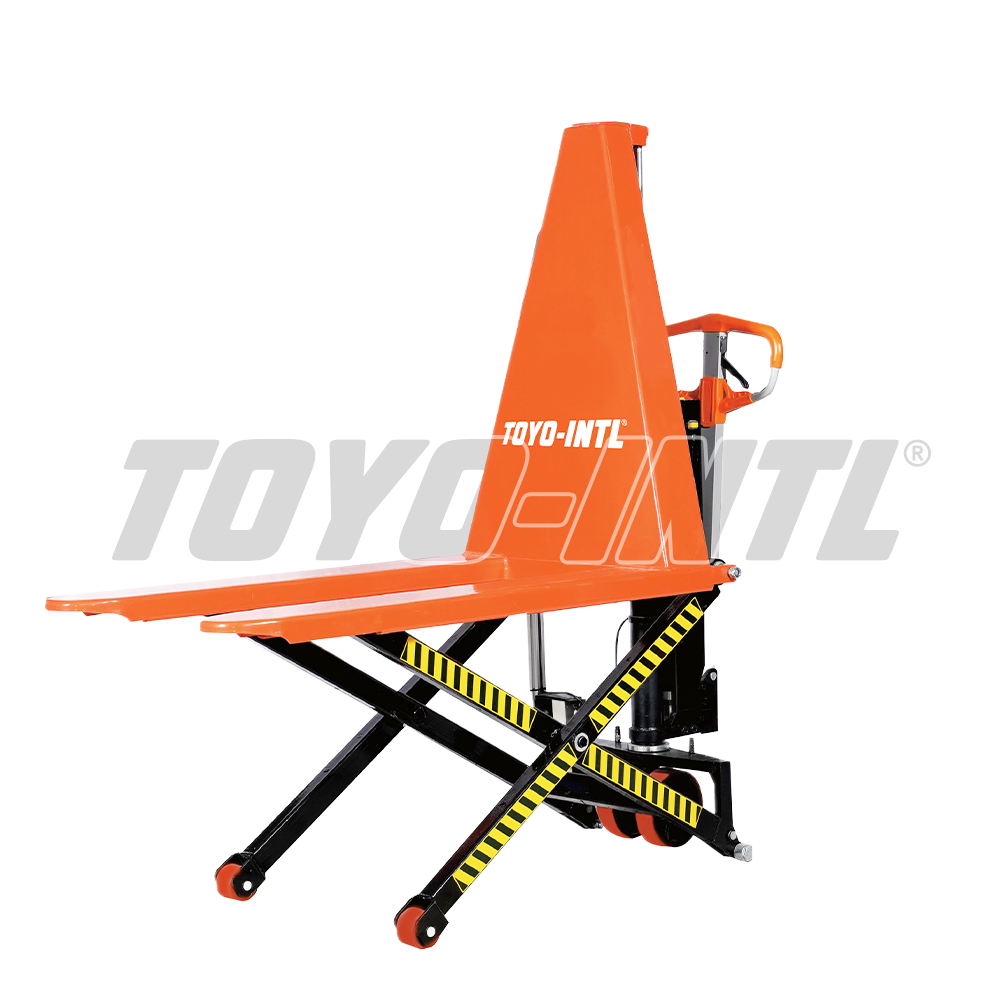

TOYO-INTL Semi Electric High Lift Truck with Lithium Battery
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Semi-electric high-lift truck with infrared induction. The chrome-plated handle uses high-quality steel. Thickened scissors are described as sturdy, stable, and deformation-resistant. An integrated sealed oil cylinder supports effortless lifting/lowering without oil leakage. Polyurethane silent wheels reduce noise and do not harm the ground. Infrared photoelectric sensing provides automatic lifting/lowering. The integrated oil pump provides smooth, easy lifting. The table lists 1,500 kg rated load, 800 mm maximum lift, and a 48 V/12 Ah lithium battery.
Product Details
- Semi-electric high-lift truck with infrared induction.
- The chrome-plated handle uses high-quality steel.
- Thickened scissors are described as sturdy, stable, and deformation-resistant.
- An integrated sealed oil cylinder supports effortless lifting/lowering without oil leakage.
- Polyurethane silent wheels reduce noise and do not harm the ground.
- Infrared photoelectric sensing provides automatic lifting/lowering.
- The integrated oil pump provides smooth, easy lifting.
- The table lists 1,500 kg rated load, 800 mm maximum lift, and a 48 V/12 Ah lithium battery.
Technical Specifications
| Model | Specifications (mm) | Rated load (kg) | Height when fork lowered (mm) | Maximum lifting height (mm) | Maximum lifting stroke (mm) | Wheel type | Large wheel size | Bearing wheel size | Vehicle height (mm) | Overall length (mm) | Fork length (mm) | Fork outer width (mm) | Single fork width (mm) | Battery type | Battery voltage/capacity (V/Ah) | Lifting motor power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EHLT15-550 | 550 | 1,500 | 85 | 800 | >710 | Polyurethane/Nylon | φ180×50 | φ74×55 | 1,208 | 1,650 | 1,150 | 550 | 160 | Lithium battery | 48/12 | 0.8 | 149 |
| EHLT15-685 | 685 | 1,500 | 85 | 800 | >710 | Polyurethane/Nylon | φ180×50 | φ74×55 | 1,208 | 1,650 | 1,150 | 685 | 160 | Lithium battery | 48/12 | 0.8 | 155 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
