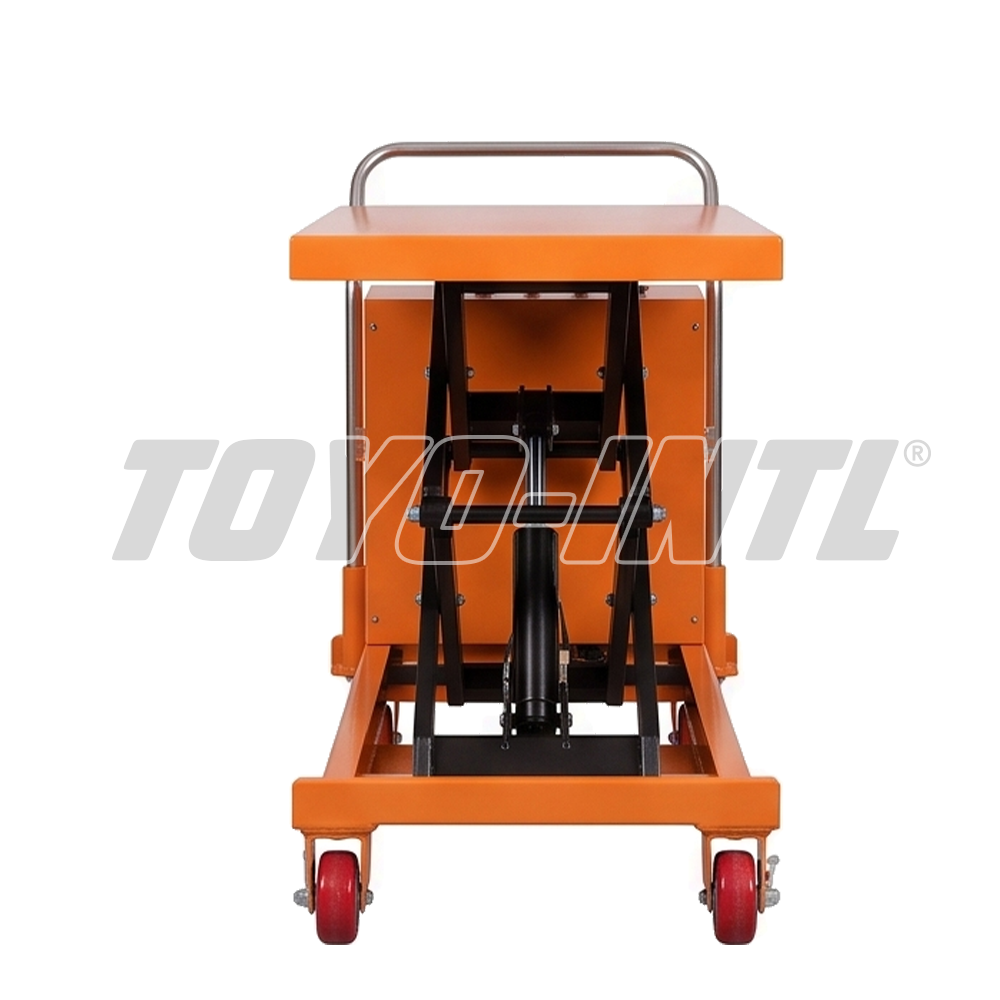

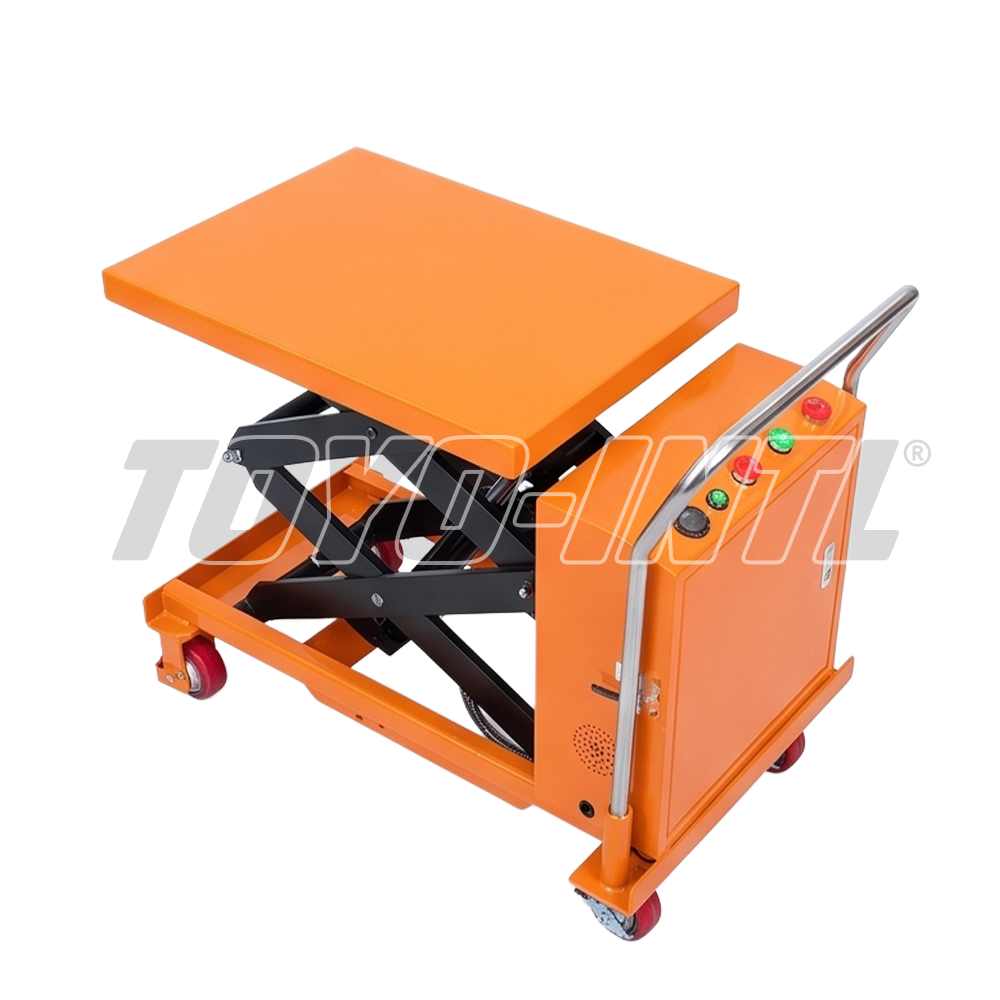

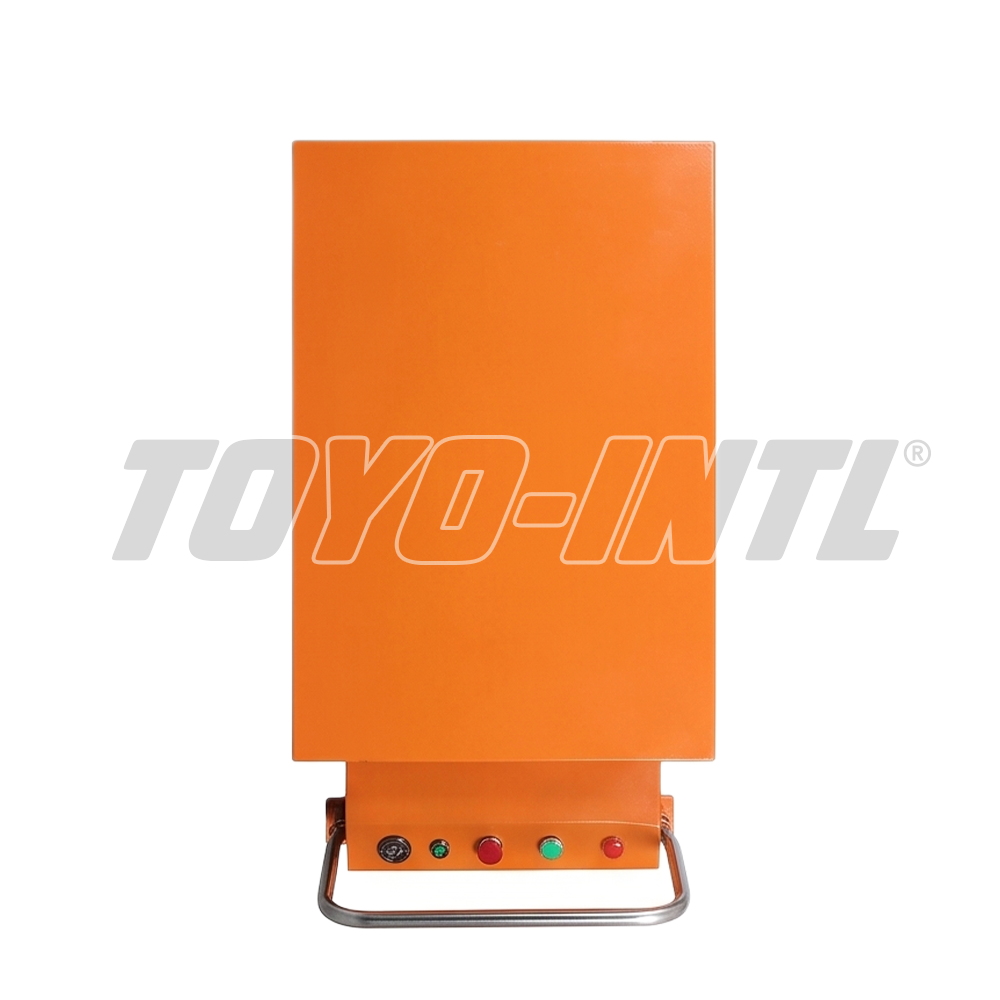

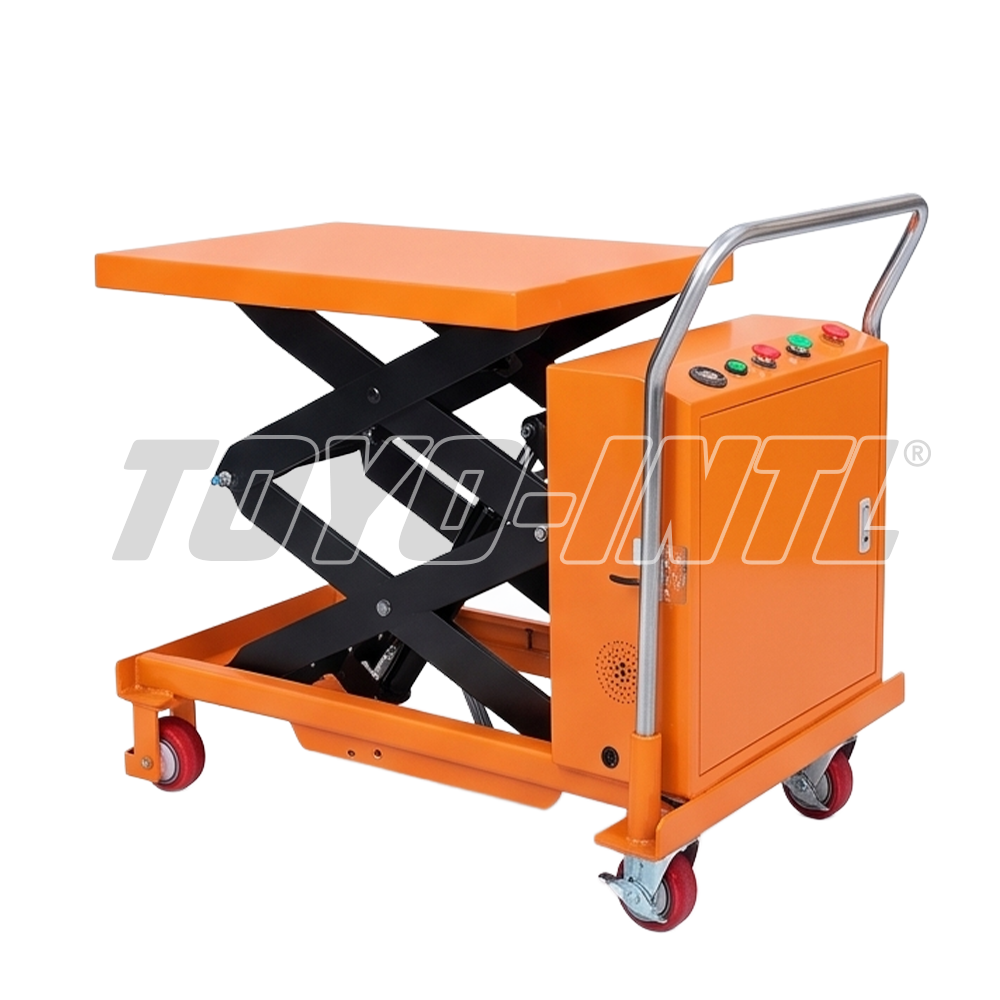

TOYO-INTL Semi Electric Platform Truck with Hydraulic Lift
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The source describes hydraulic lifting by foot pedal and battery-powered operation without a power outlet. The lowest loading height is stated as 36 cm, allowing pallet jacks or hand trucks to roll directly onto the platform without lifting. Maximum lift is stated as up to 3 m for high racks, workstations, and repair areas. Manganese-steel scissor legs and an overload-protection valve are specified for stable lifting up to 1000 kg. One-person pushing is supported by 5–6 inch wheels and a reasonable self-weight.
Product Details
- The source describes hydraulic lifting by foot pedal and battery-powered operation without a power outlet.
- The lowest loading height is stated as 36 cm, allowing pallet jacks or hand trucks to roll directly onto the platform without lifting.
- Maximum lift is stated as up to 3 m for high racks, workstations, and repair areas.
- Manganese-steel scissor legs and an overload-protection valve are specified for stable lifting up to 1000 kg.
- One-person pushing is supported by 5–6 inch wheels and a reasonable self-weight.
Technical Specifications
| Model | Load capacity (kg) | Weight (kg) | Platform surface (mm) | Max. platform height (m) | Min. platform height (cm) | Caster size (inch) | Battery |
|---|---|---|---|---|---|---|---|
| SPT-1 | 150 | 198 | 700×450 | 1.26 | 30 | 4 | 48V/40AH |
| SPT-2 | 500 | 131 | 905×500 | 0.9 | 28 | 5 | 12V/65AH |
| SPT-3 | 500 | 151 | 905×500 | 1.5 | 36 | 5 | 12V/65AH |
| SPT-4 | 500 | 340 | 1300×800 | 3.0 | 55 | 6 | 12V/100AH |
| SPT-5 | 1000 | 209 | 1200×600 | 1.7 | 45 | 6 | 12V/80AH |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
