Pallet Trucks

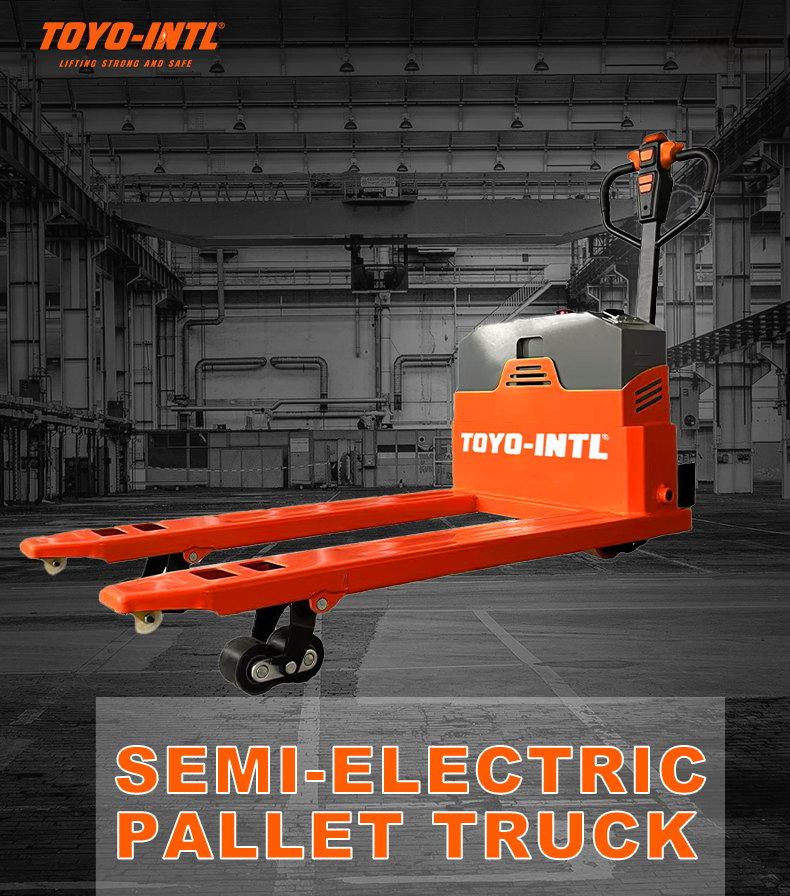

TOYO-INTL SEPT Semi-Electric Pallet truck
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Fully electric transport vehicle with walking-style operation. The chrome-plated handle uses high-quality steel. Thickened scissors are described as sturdy, stable, and deformation-resistant. An integrated sealed oil cylinder supports effortless lifting/lowering without leakage. Polyurethane wheels are specified. Electromagnetic braking is specified. The table lists 1,500 and 2,000 kg load versions. Lithium-battery and DC-brushless drive-control options are specified.
Product Details
- Fully electric transport vehicle with walking-style operation.
- The chrome-plated handle uses high-quality steel.
- Thickened scissors are described as sturdy, stable, and deformation-resistant.
- An integrated sealed oil cylinder supports effortless lifting/lowering without leakage.
- Polyurethane wheels are specified.
- Electromagnetic braking is specified.
- The table lists 1,500 and 2,000 kg load versions.
- Lithium-battery and DC-brushless drive-control options are specified.
Technical Specifications
| Field | SEPT15FL | SEPT20FL |
|---|---|---|
| Drive mode | Electric | Electric |
| Operation type | Walking style | Walking style |
| Load (kg) | 1,500 | 2,000 |
| Weight with battery (kg) | 115.5 | 117.5 |
| Vehicle length (mm) | 1,600 | 1,600 |
| Vehicle width (mm) | 550/685 | 550/685 |
| Vehicle height (mm) | 1,200 | 1,200 |
| Lift height (mm) | 195 | 195 |
| Fork size (mm) | 56/160/1,150 | 56/160/1,150 |
| Fork outer width (mm) | 550/685 | 550/685 |
| Wheel type | PU/PU polyurethane | PU/PU polyurethane |
| Drive wheel size | φ160×50 | φ160×50 |
| Bearing wheel size | 4×φ80×70 | 4×φ80×70 |
| Walking speed, full/empty load (km/h) | 4/5 | 4/5 |
| Climbing degree, full/empty load (%) | 3/5 | 3/5 |
| Braking method | Electromagnetic braking | Electromagnetic braking |
| Drive motor power (kW) | 0.75 | 1 |
| Lifting motor power (kW) | 0.5 | 0.8 |
| Battery voltage / capacity (V/Ah) | 48V 10Ah | 48V 15Ah |
| Battery weight (kg) | 4.3 | 5.1 |
| Battery size (L/W/H) (mm) | 210/173/85 | 210/173/85 |
| Battery type | Lithium battery | Lithium battery |
| Drive control type | DC brushless | DC brushless |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
