RIGGING HARDWARE

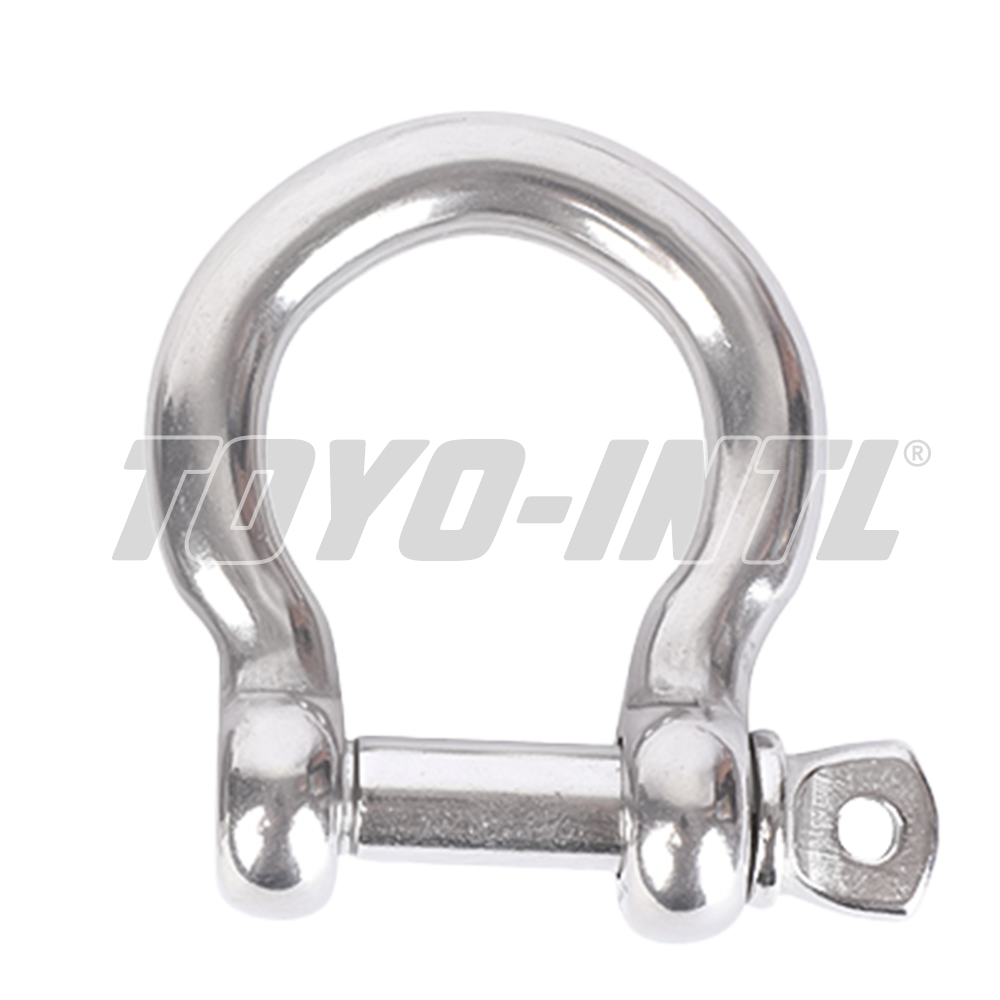

TOYO-INTL Stainless Steel Bow Shackle
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Bow shackle form. The source table covers sizes from 4 to 32 mm. Working load limits run from 0.09 to 4.50 t. Listed weights run from 0.013 to 3.90 kg. The source lists 12 size variants.
Product Details
- Bow shackle form.
- The source table covers sizes from 4 to 32 mm.
- Working load limits run from 0.09 to 4.50 t.
- Listed weights run from 0.013 to 3.90 kg.
- The source lists 12 size variants.
Technical Specifications
| Size (mm) | WLL (T) | WT (kg) |
|---|---|---|
| 4 | 0.09 | 0.013 |
| 5 | 0.10 | 0.015 |
| 6 | 0.15 | 0.027 |
| 8 | 0.25 | 0.061 |
| 10 | 0.50 | 0.107 |
| 12 | 0.60 | 0.21 |
| 16 | 1.10 | 0.46 |
| 20 | 1.60 | 0.90 |
| 22 | 2.50 | 1.26 |
| 25 | 3.00 | 1.78 |
| 28 | 3.50 | 2.65 |
| 32 | 4.50 | 3.90 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
