ELECTRIC HOIST

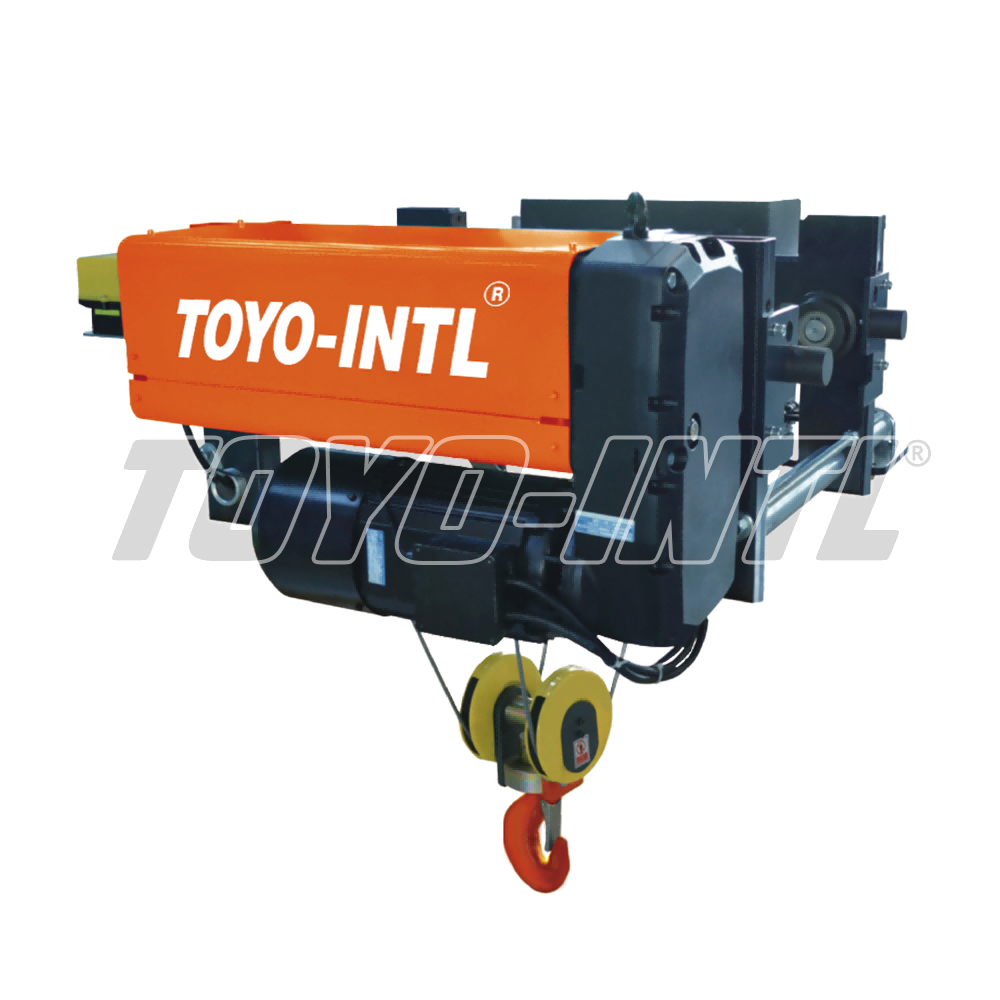

TOYO-INTL SWH Double Girder Electric Hoist
The modular design provides options for different customer needs. Advanced technology and components keep the hoist high-performance in limited size and height. The imported wire rope is specified at 2160 MPa tensile strength with galvanized corrosion resistance. The intelligent safety monitor records running and overload time and gives a brake-facing wear alarm. Adjustable screw-type upper and lower limit switches automatically cut off the lifting and lowering motion at the limit positions. A high-strength nylon or nodular-cast-iron rope guide is described as lightweight, wear-resistant, and protective against rope loosening and groove jumping. The Q345 seamless-steel drum is processed for concentricity; rope-groove depth conforms to FEM and high-strength plates/bolts secure the rope end. The frequency-conversion control box, three-in-one cross-travel drives, integrated hoist drive, and DIN-standard safety-latched T-grade hook block are shown.
Product Details
- The modular design provides options for different customer needs.
- Advanced technology and components keep the hoist high-performance in limited size and height.
- The imported wire rope is specified at 2160 MPa tensile strength with galvanized corrosion resistance.
- The intelligent safety monitor records running and overload time and gives a brake-facing wear alarm.
- Adjustable screw-type upper and lower limit switches automatically cut off the lifting and lowering motion at the limit positions.
- A high-strength nylon or nodular-cast-iron rope guide is described as lightweight, wear-resistant, and protective against rope loosening and groove jumping.
- The Q345 seamless-steel drum is processed for concentricity; rope-groove depth conforms to FEM and high-strength plates/bolts secure the rope end.

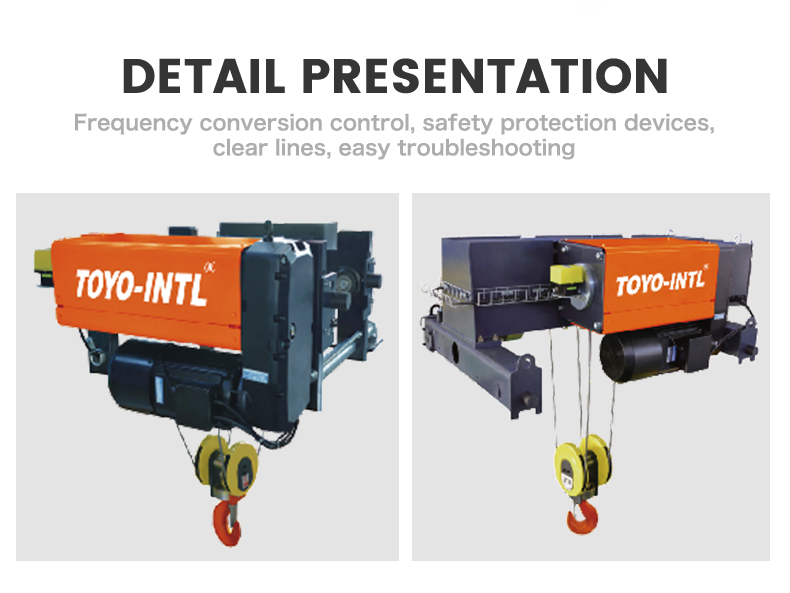

- The frequency-conversion control box, three-in-one cross-travel drives, integrated hoist drive, and DIN-standard safety-latched T-grade hook block are shown.
Technical Specifications
| Capacity (kg) | Lift height (m) | Lifting speed (m/min) | Traveling speed (m/min) | Traveling power (kW) | Hoist work group (FEM/ISO) |
|---|---|---|---|---|---|
| 1000 | 6/9/12/15/18 | 1.6/10 | 5/20 | 0.2 | 4m/M7 |
| 1250 | 6/9/12/15/18 | 1.6/10 | 5/20 | 0.2 | 3m/M6 |
| 1600 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.2 | 3m/M6 |
| 1600 | 6/9/12/15/18 | 1.3/8 | 5/20 | 0.2 | 4m/M7 |
| 2000 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.31 | 2m/M5 |
| 2000 | 6/9/12/15/18 | 1.3/8 | 5/20 | 0.31 | 3m/M6 |
| 2500 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.31 | 3m/M6 |
| 2500 | 6/9/12/15/18 | 1.3/8 | 5/20 | 0.31 | 2m/M5 |
| 3200 | 6/9/12/15/18 | 1.0/6.3 | 5/20 | 0.31 | 2m/M5 |
| 3200 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.44 | 2m/M5 |
| 5000 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.44 | 2m/M5 |
| 5000 | 6/9/12/15/18 | 1.3/8 | 5/20 | 0.44 | 1Am/M4 |
| 5000 | 6/9/12/15/18 | 1.6/10 | 5/20 | 0.44 | 2m/M5 |
| 5000 | 6/9/12/15/18 | 1.3/8 | 5/20 | 0.44 | 3m/M6 |
| 6300 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.64 | 2m/M5 |
| 6300 | 6/9/12/15/18 | 1.0/6.3 | 5/20 | 0.64 | 3m/M6 |
| 6300 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.64 | 4m/M7 |
| 8000 | 6/9/12/15/18 | 1.3/8.0 | 5/20 | 0.64 | 3m/M6 |
| 8000 | 6/9/12/15/18 | 1.0/6.3 | 5/20 | 0.96 | 1Am/M4 |
| 10000 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.96 | 2m/M5 |
| 10000 | 6/9/12/15/18 | 1.0/6.3 | 5/20 | 0.96 | 1Am/M4 |
| 12500 | 6/9/12/15/18 | 0.66/4 | 5/20 | 0.96 | 2m/M5 |
| 12500 | 6/9/12/15/18 | 0.8/5 | 5/20 | 0.96 | 1Am/M4 |
| 5000 | 18/22/26/30 | 1.6/10 | 5/20 | 0.44 | 2m/M5 |
| 8000 | 18/22/26/30 | 1.3/8 | 5/20 | 0.96 | 2m/M5 |
| 10000 | 18/22/26/30 | 1.3/8 | 5/20 | 0.96 | 1Am/M4 |
| 16000 | 6/9/12/15/18 | 0.66/4 | 5/20 | 0.96×2 | 2m/M5 |
