HOOK & LINK
TOYO-INTL Swivel ALLOY STEEL SAFETY HOOK 2
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The product is labeled Swivel Safety Hook and Alloy Swivel Safety Hook Type HSA. It is specified for Grade 80 chain sizes from 6 to 22 mm. Working-load-limit values run from 1.12 to 15.0 t. The product illustration shows a swivel safety-hook assembly. Net weight values run from 0.6 to 16.0 kg. The printed 18,20 chain-size value is retained exactly as shown. Complete semantic specifications; pure schematic letter dimensions removed:
Product Details
- The product is labeled Swivel Safety Hook and Alloy Swivel Safety Hook Type HSA.
- It is specified for Grade 80 chain sizes from 6 to 22 mm.
- Working-load-limit values run from 1.12 to 15.0 t.

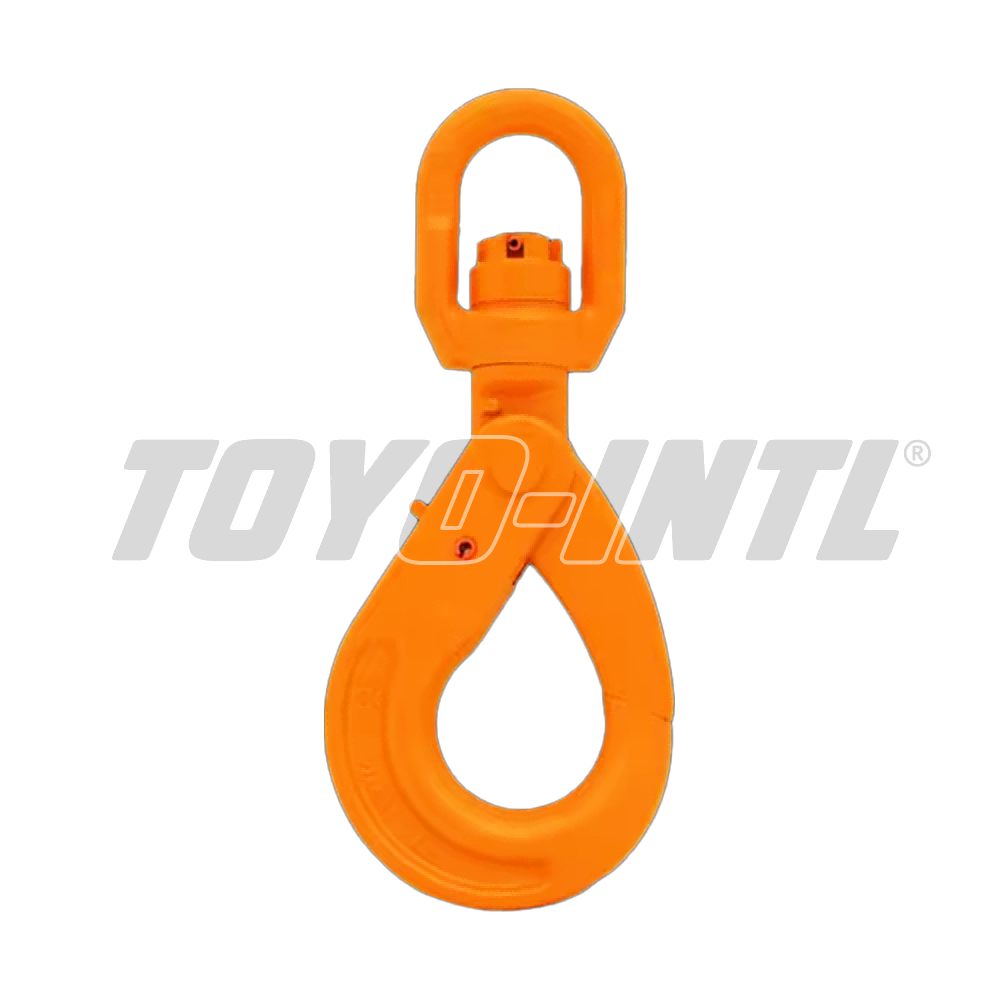

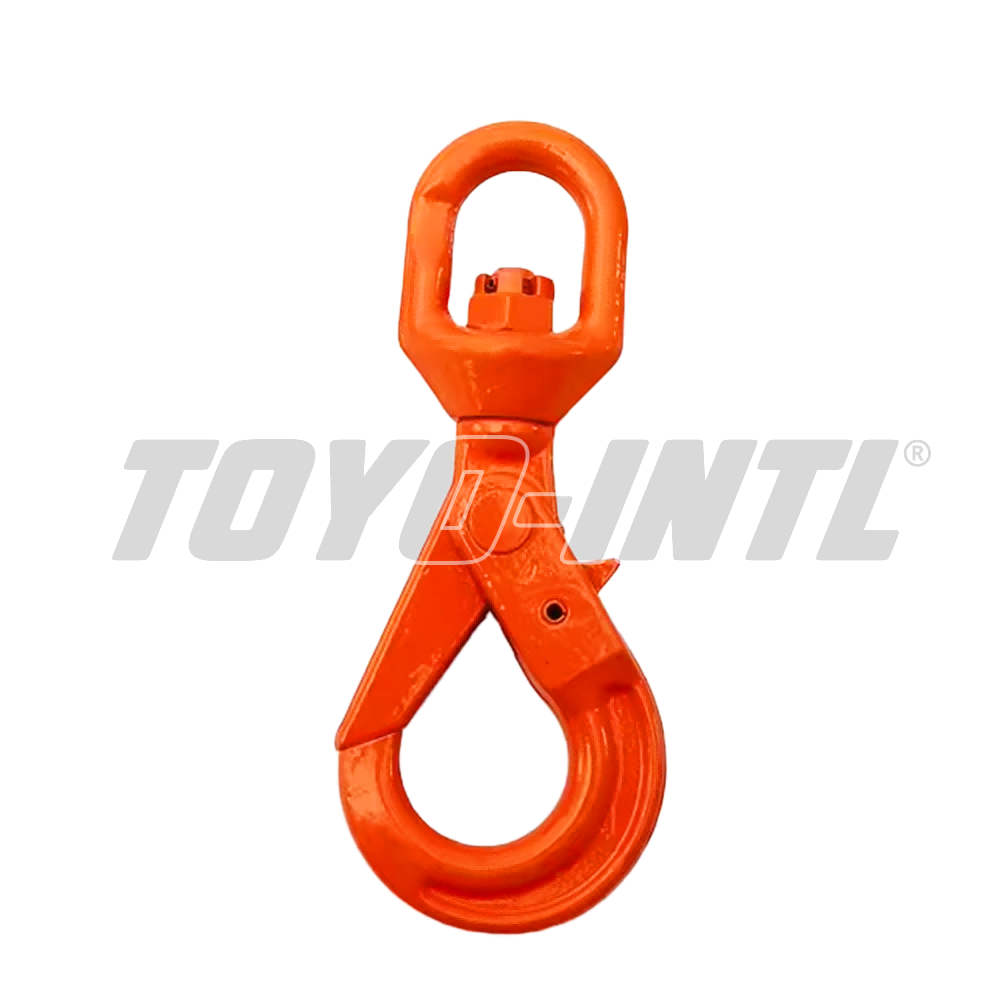

- The product illustration shows a swivel safety-hook assembly.
- Net weight values run from 0.6 to 16.0 kg.
- The printed 18,20 chain-size value is retained exactly as shown.
- Complete semantic specifications; pure schematic letter dimensions removed:

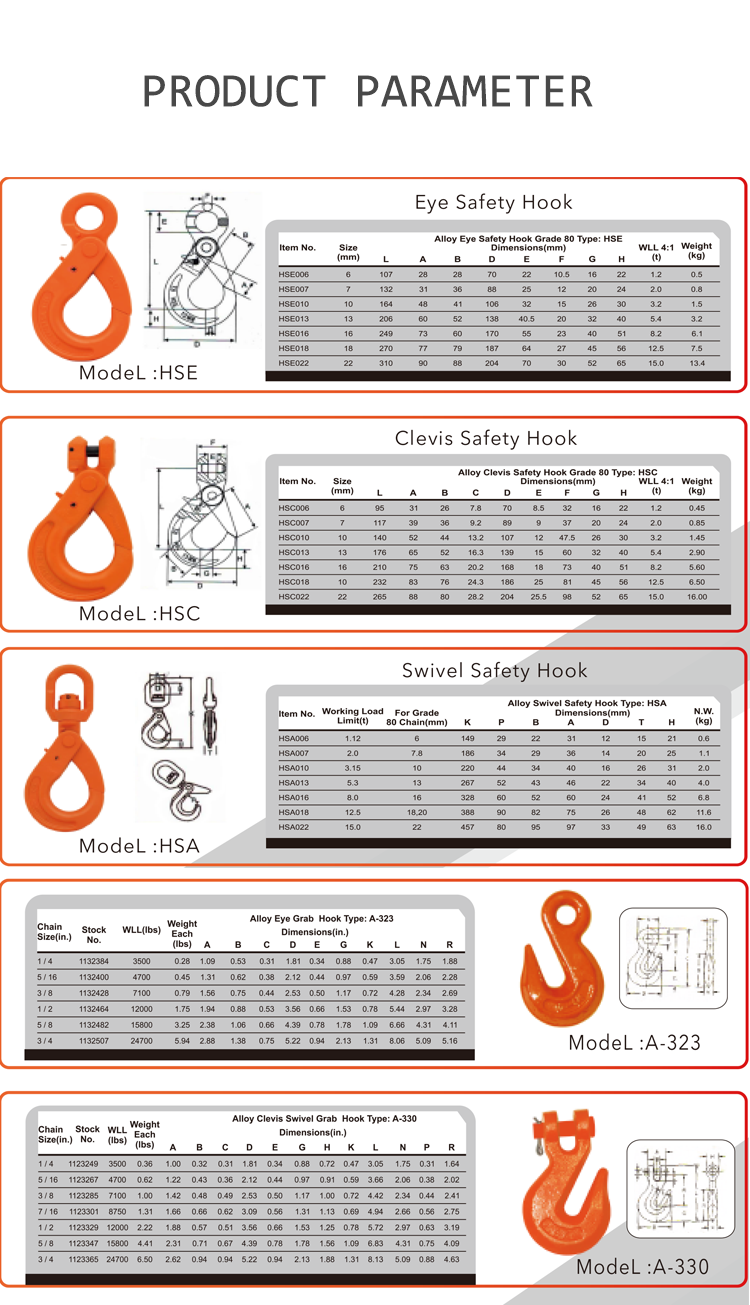

Technical Specifications
| Item no. | Working load limit (t) | Grade 80 chain (mm) | N.W. (kg) |
|---|---|---|---|
| HSA006 | 1.12 | 6 | 0.6 |
| HSA007 | 2.0 | 7.8 | 1.1 |
| HSA010 | 3.15 | 10 | 2.0 |
| HSA013 | 5.3 | 13 | 4.0 |
| HSA016 | 8.0 | 16 | 6.8 |
| HSA018 | 12.5 | 18,20 | 11.6 |
| HSA022 | 15.0 | 22 | 16.0 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
