ELECTRIC HOIST
TOYO-INTL TC Electric Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Permanent magnet frequency conversion technology, stablelifting and falling without shaking. Intelligent integratedcontrol appliances can save energy by more than 45%.Elec-trical control 4v low voltage is safe and reliable, no worryabout electric shock. Overload and overheat protection can ensure safe and dura-ble, and high and low speed can be switched at will, whichmake the machine suitable for different scenarios. Optional-accurate weight display and real-time monitoringrecord keeping for query, wireless control + wireless commu-nication. Overwind prevent device:when wire to the upper limit,power cut off automatically, and machine stop automaticallyto prevent collisions.

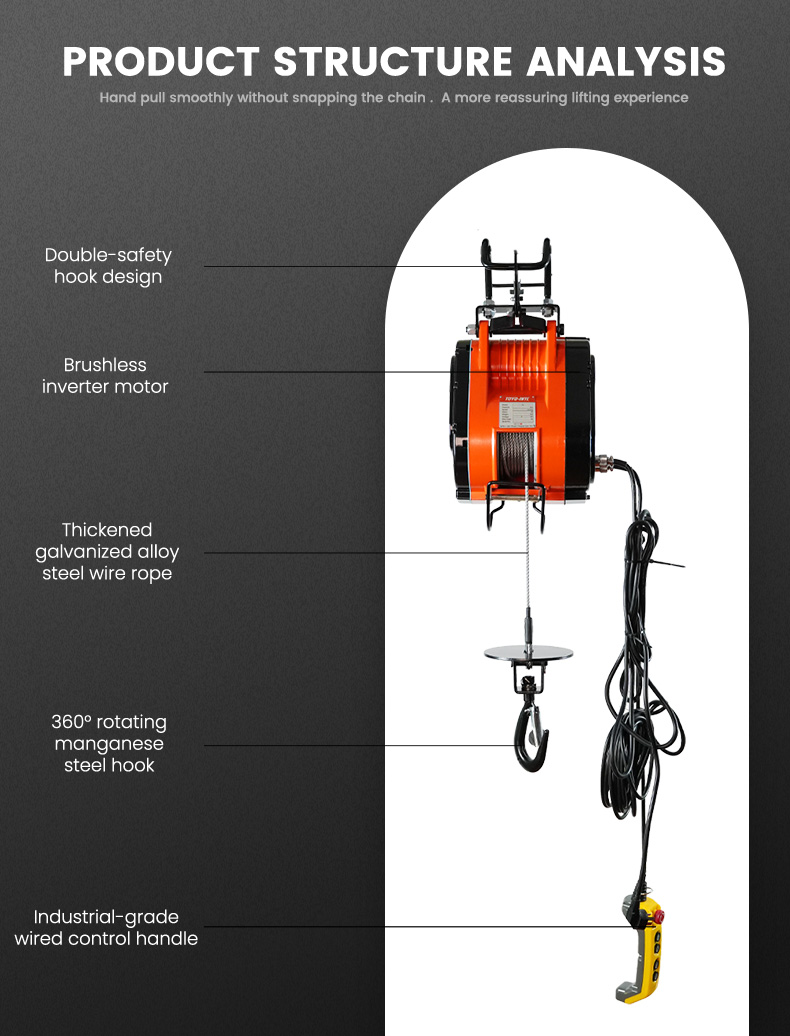

Product Details
- Permanent magnet frequency conversion technology, stablelifting and falling without shaking. Intelligent integratedcontrol appliances can save energy by more than 45%.Elec-trical control 4v low voltage is safe and reliable, no worryabout electric shock.
- Overload and overheat protection can ensure safe and dura-ble, and high and low speed can be switched at will, whichmake the machine suitable for different scenarios.
- Optional-accurate weight display and real-time monitoringrecord keeping for query, wireless control + wireless commu-nication.
- Overwind prevent device:when wire to the upper limit,power cut off automatically, and machine stop automaticallyto prevent collisions.
Technical Specifications
| Model | Lifting Capacity(kg) | Permanent magnet inverter motor (Kw) | Lifting speed(m/min) low | Lifting speed(m/min) high | Brake | Lifting height(m) | wire rope(mm×m) | Power supply(m) | Control line (m) | Hook type | N.W (kg) | G.W (kg) | Package size (cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC100DS | 100 | 1.5 | 10 | 30 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC160DS | 160 | 1.5 | 9 | 24 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC190DS | 190 | 1.5 | 8 | 21 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC250DS | 250 | 1.5 | 7 | 18 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC300DS | 300 | 1.5 | 6 | 15 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC350DS | 350 | 1.5 | 5 | 14 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC190DSK | 190 | 2.5 | 12 | 34 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC250DSK | 250 | 2.5 | 11 | 30 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC300DSK | 300 | 2.5 | 10 | 27 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC350DSK | 350 | 2.5 | 9 | 24 | electric+manual | 29 | 5×30 | 4.5 | 6 | N1 | 16 | 19 | 50×30×28 |
| TC280DS | 280 | 2.5 | 10 | 28 | electric+manual | 49 | 5×50 | 4.5 | 6 | N1 | 24 | 28 | 55×33×31 |
| TC360DS | 360 | 2.5 | 9 | 23 | electric+manual | 49 | 5×50 | 4.5 | 6 | N1 | 24 | 28 | 55×33×31 |
| TC500DS | 500 | 2.5 | 7 | 17 | electric+manual | 29 | 6×30 | 4.5 | 6 | N1 | 24 | 28 | 55×33×31 |
| TC750DS | 750 | 2.5 | 6 | 15 | electric+manual | 20 | 8×20 | 4.5 | 6 | N1 | 24 | 28 | 55×33×31 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
