LIFTING CLAMP & MAGNET LIFTER

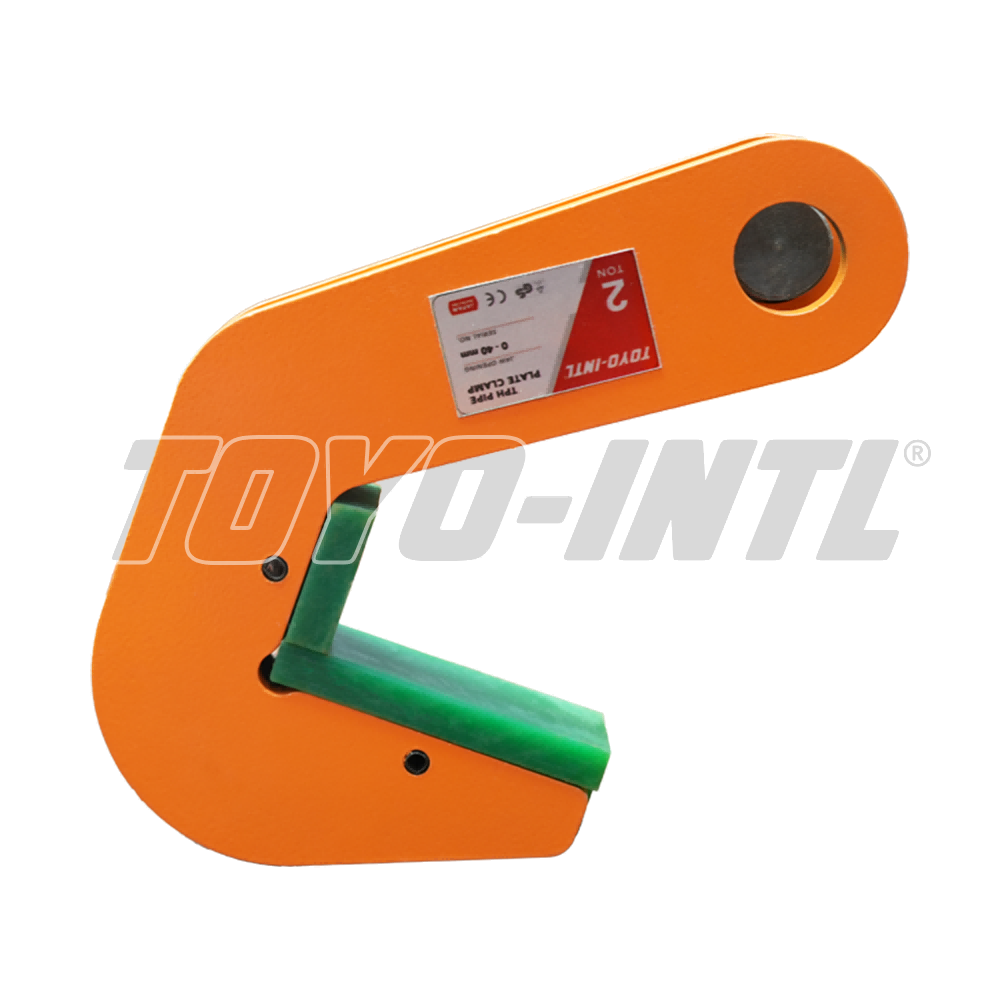

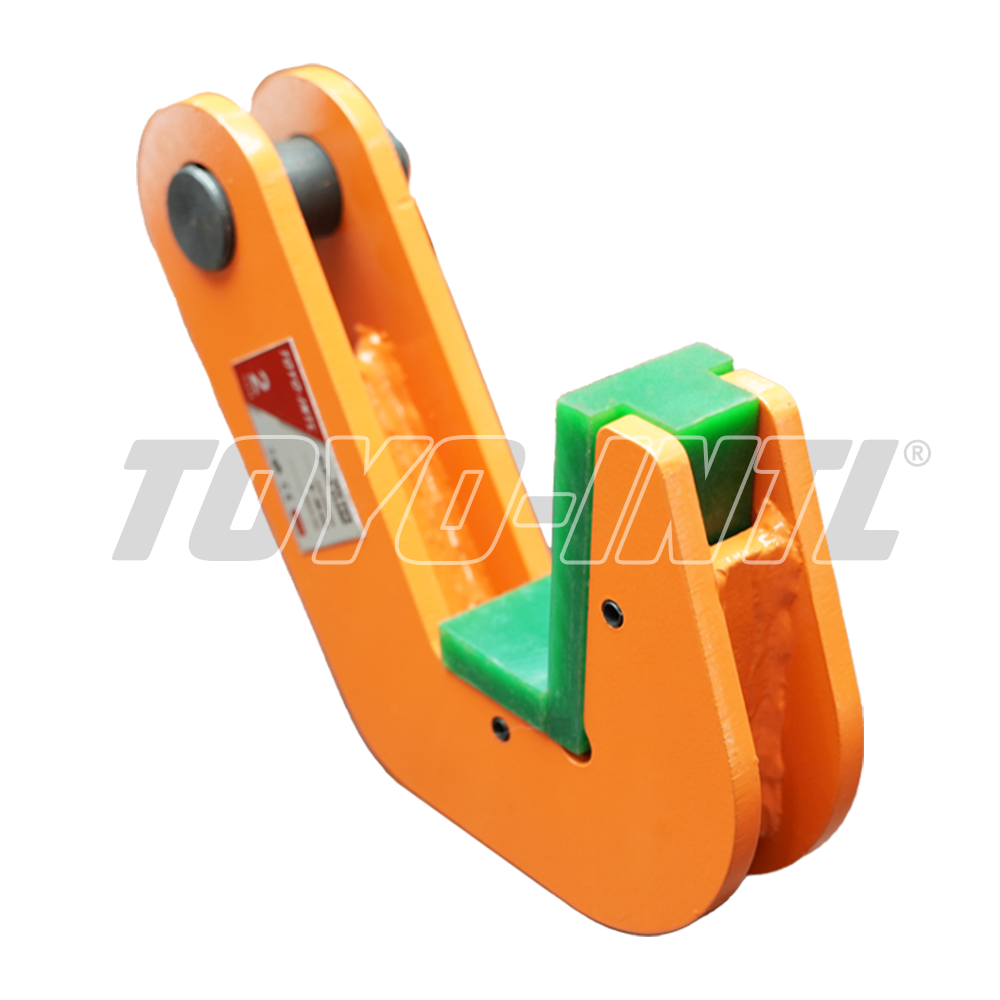

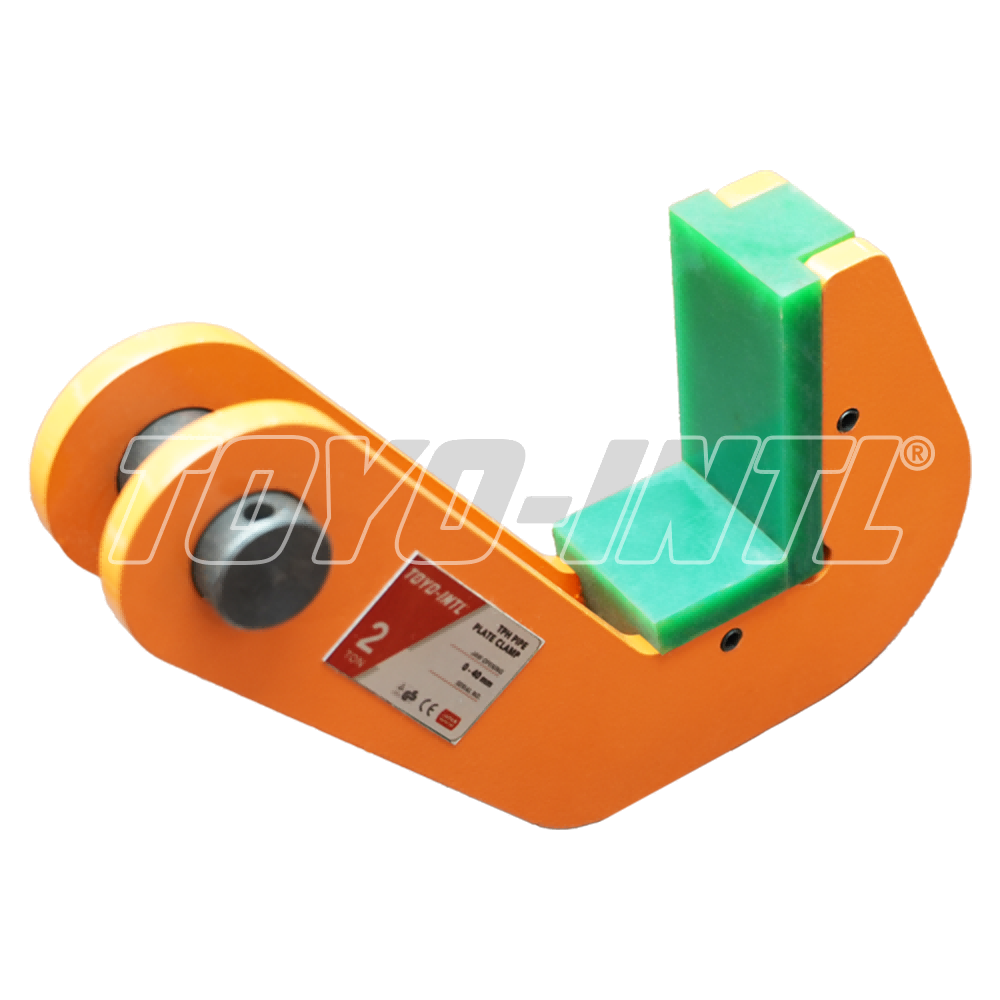

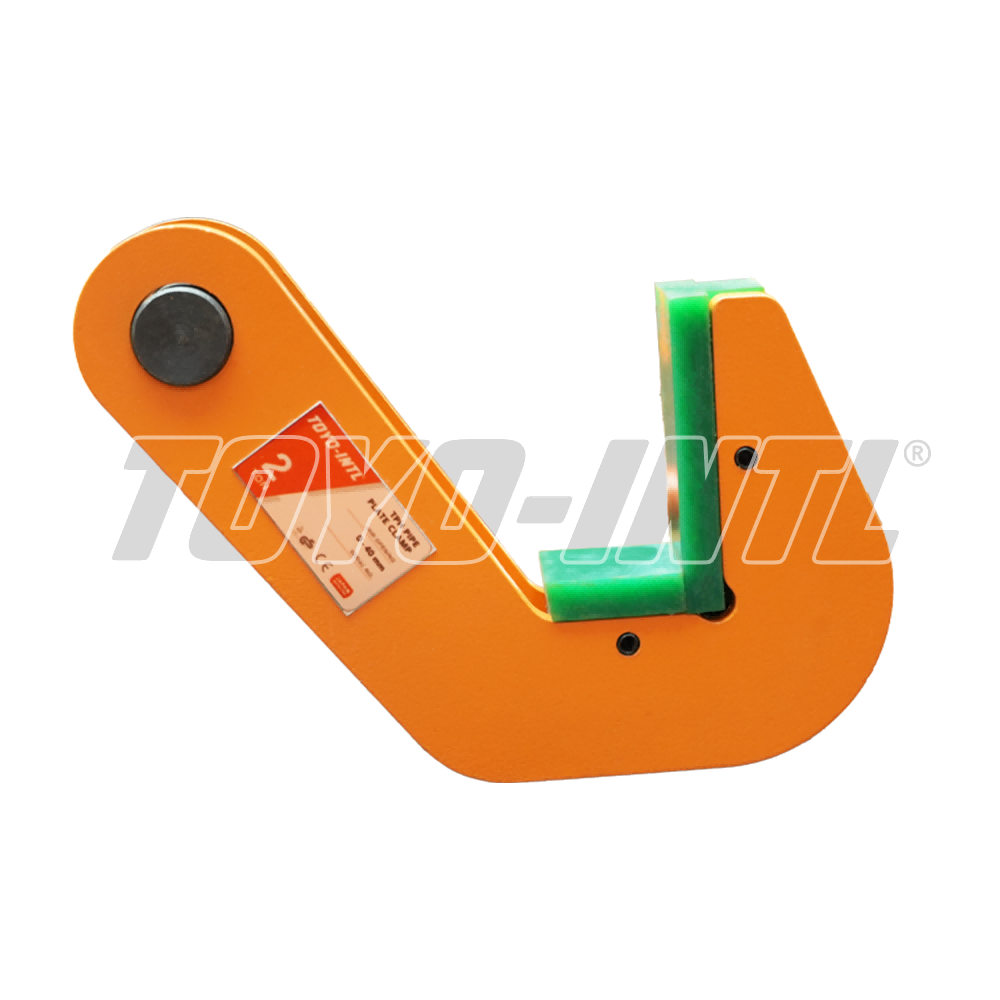

TOYO-INTL TPH Lifting Clamp
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The clamp is for horizontal lifting and transporting of steel and concrete pipes. The source describes a compact shape and relatively low own weight with high lifting capacity. The surface is equipped with “special” plastic. The TPH is delivered per pair. The plastic cover is easy to change. The table provides WLL options from 1.5 to 18.0 tonnes. Listed jaw openings are 40, 50, or 70 mm by model. Listed weights range from 1.5 to 22 kg.
Product Details
- The clamp is for horizontal lifting and transporting of steel and concrete pipes.
- The source describes a compact shape and relatively low own weight with high lifting capacity.
- The surface is equipped with “special” plastic.
- The TPH is delivered per pair.
- The plastic cover is easy to change.
- The table provides WLL options from 1.5 to 18.0 tonnes.
- Listed jaw openings are 40, 50, or 70 mm by model.
- Listed weights range from 1.5 to 22 kg.
Technical Specifications

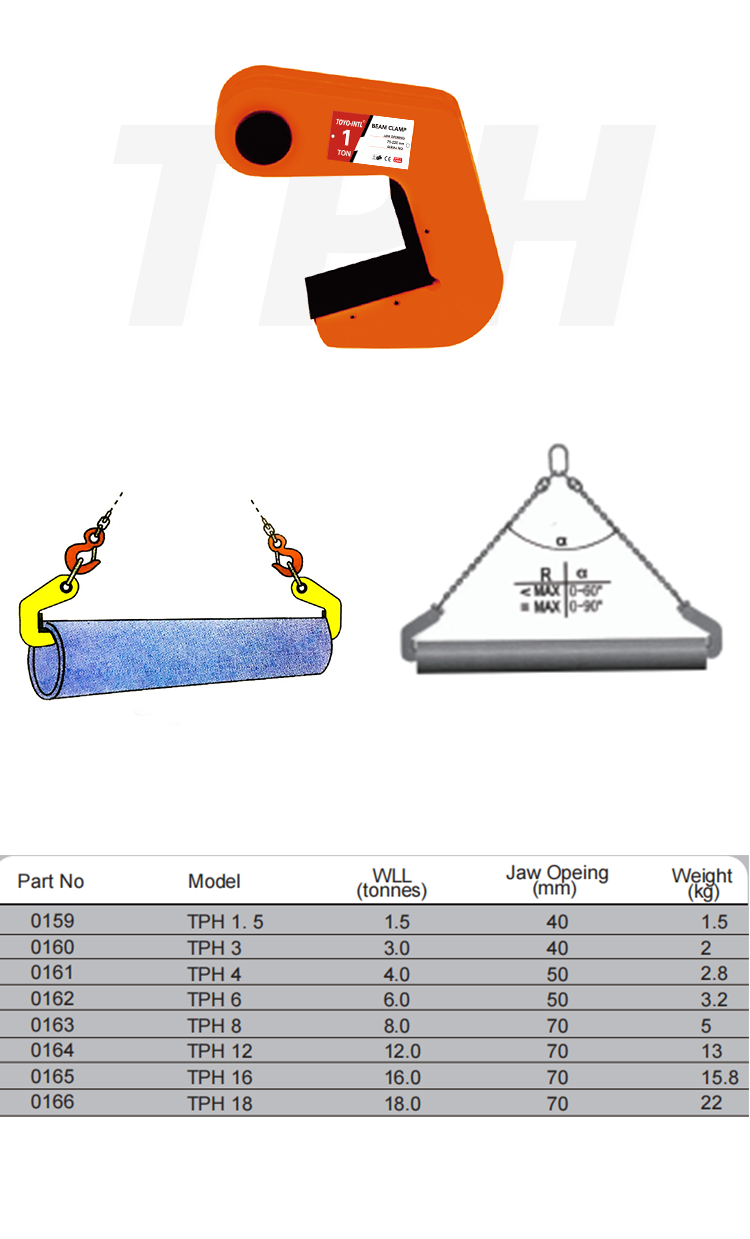

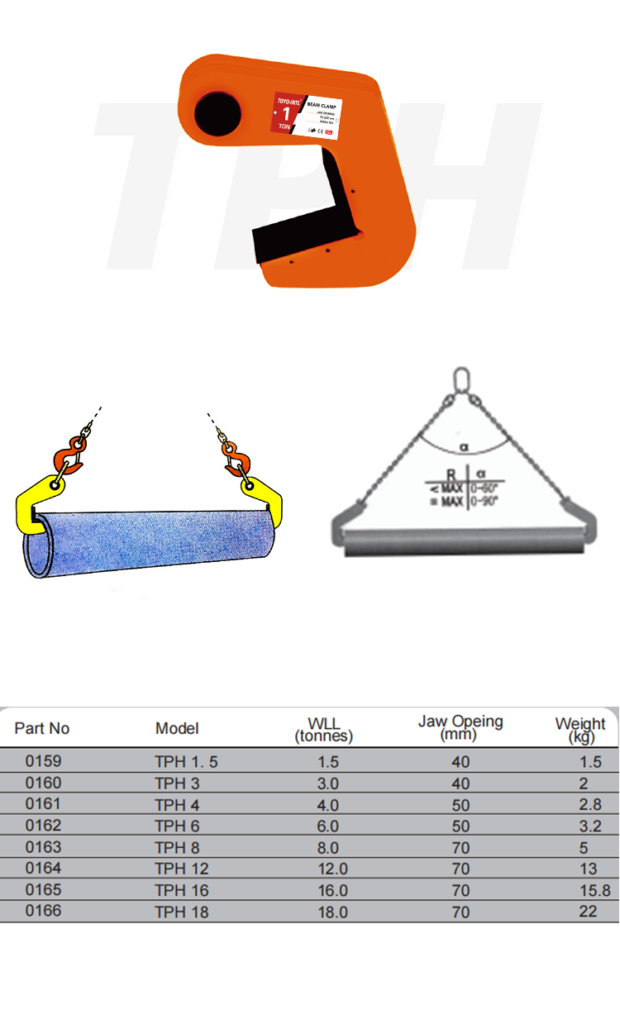

| Model | WLL (tonnes) | Jaw opening (mm) | Weight (kg) |
|---|---|---|---|
| TPH 1.5 | 1.5 | 40 | 1.5 |
| TPH 3 | 3.0 | 40 | 2 |
| TPH 4 | 4.0 | 50 | 2.8 |
| TPH 6 | 6.0 | 50 | 3.2 |
| TPH 8 | 8.0 | 70 | 5 |
| TPH 12 | 12.0 | 70 | 13 |
| TPH 16 | 16.0 | 70 | 15.8 |
| TPH 18 | 18.0 | 70 | 22 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
