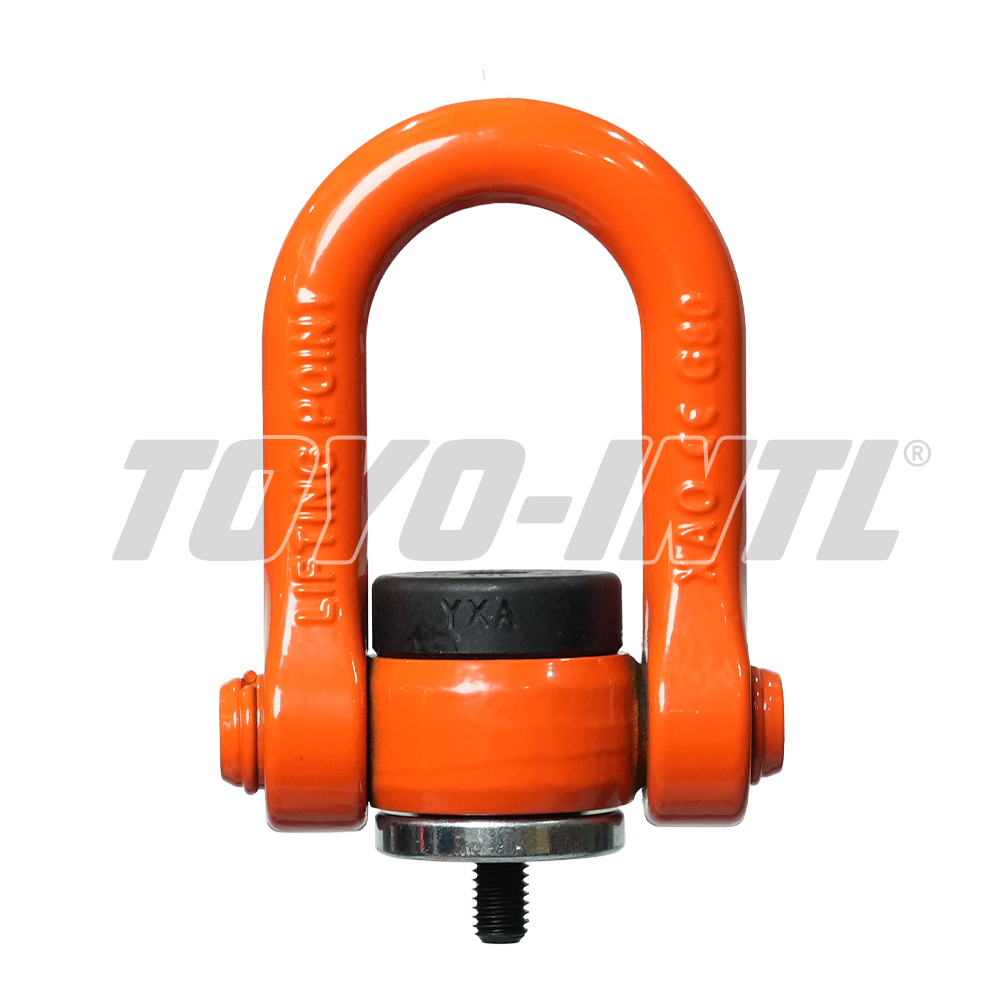

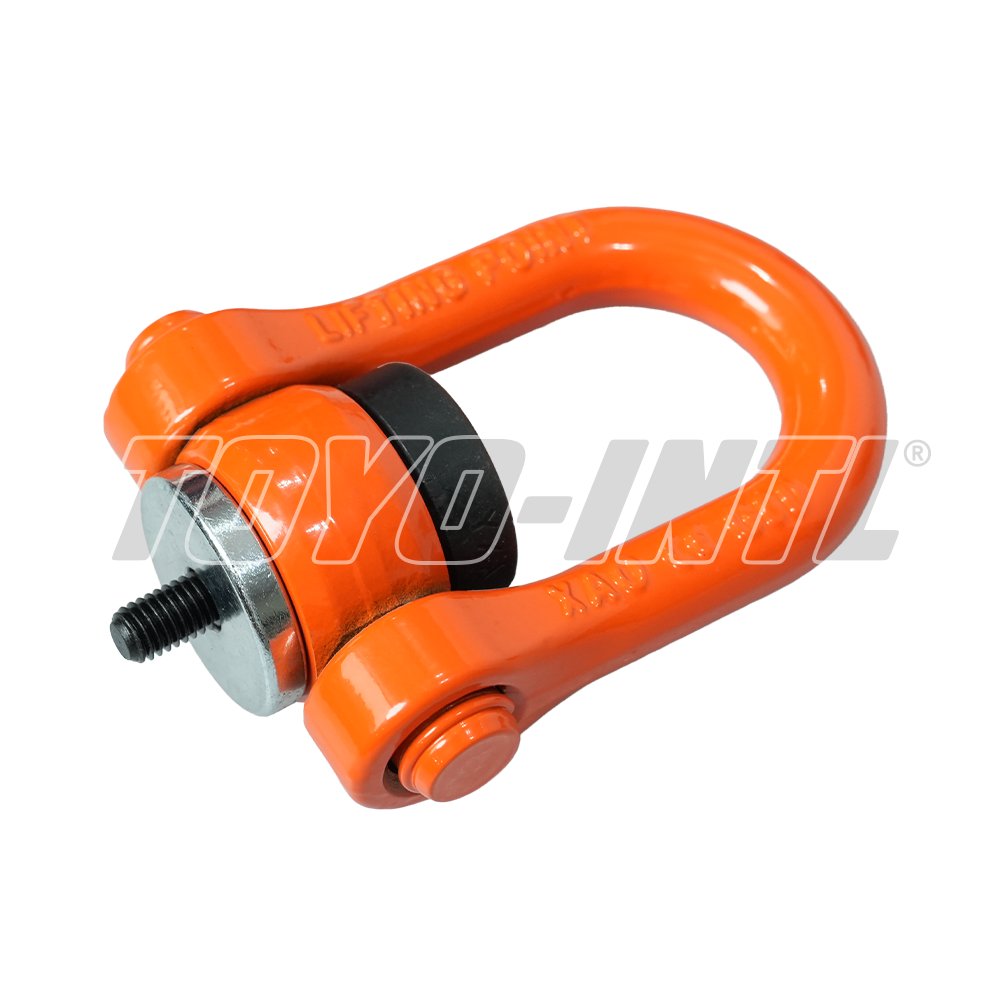

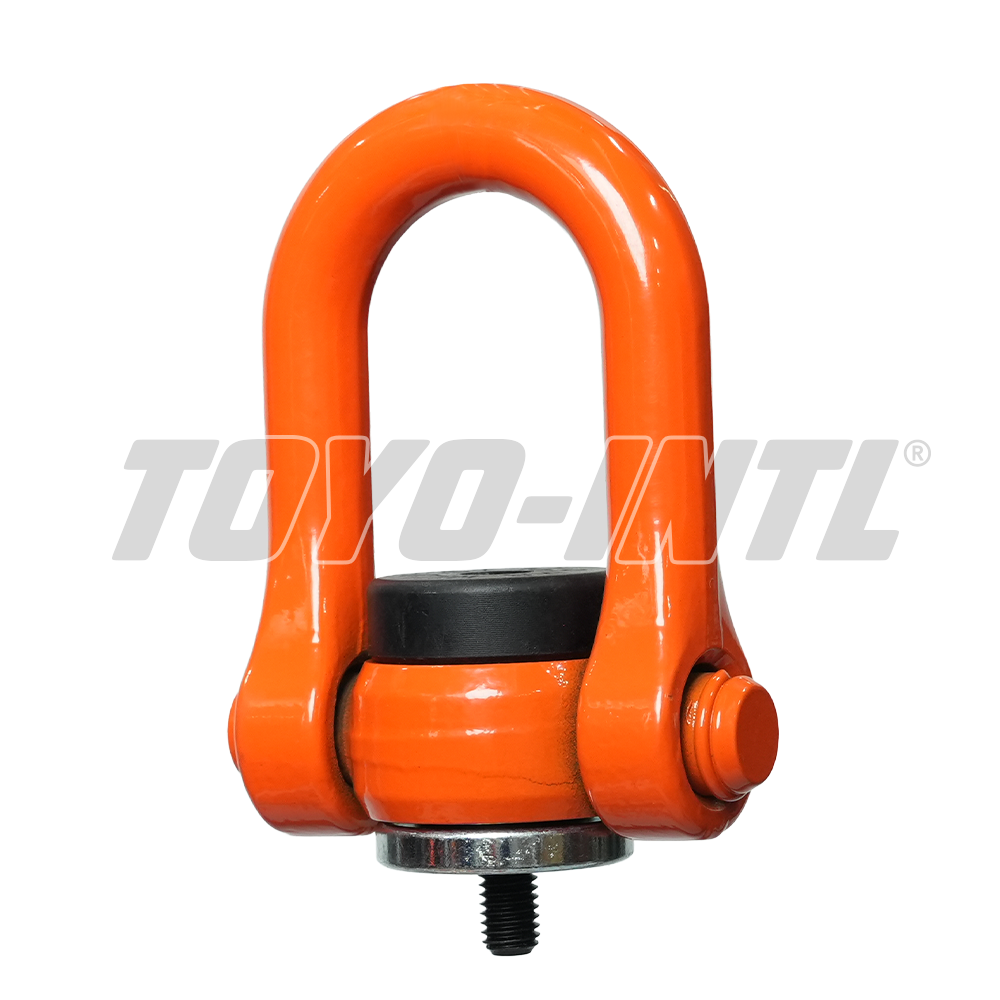

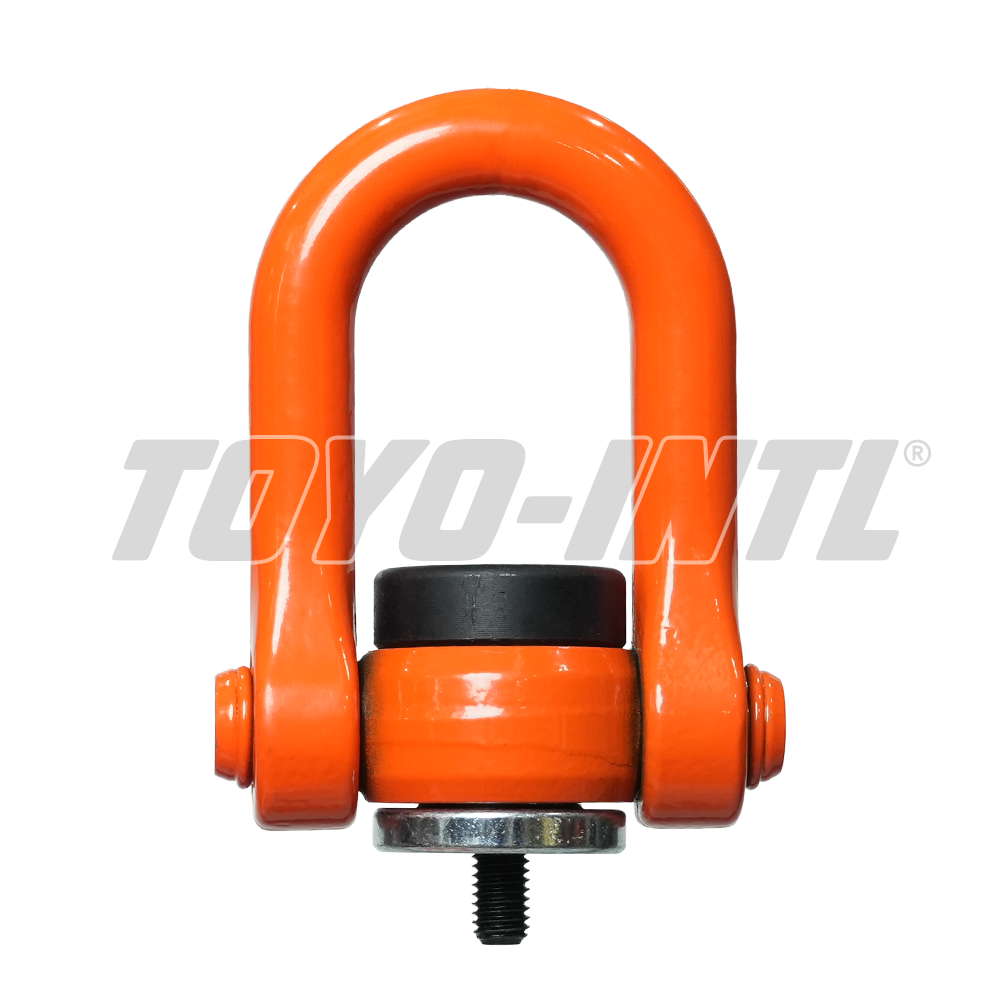

TOYO-INTL TSH Swivel Hoist Ring with 360 Degree Rotation
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The TSH is presented as a swivel hoist ring. The product drawing shows 360° rotation. The product drawing shows a 180° pivot. The image provides both metric and UNC thread tables. Metric options in the table run from M8 to M100. UNC options in the table run from 5/16 to 4. The printed safety factor is 4:1. The footnote states that bolt length and thread specification can be customized.
Product Details
- The TSH is presented as a swivel hoist ring.
- The product drawing shows 360° rotation.
- The product drawing shows a 180° pivot.
- The image provides both metric and UNC thread tables.
- Metric options in the table run from M8 to M100.
- UNC options in the table run from 5/16 to 4.
- The printed safety factor is 4:1.
- The footnote states that bolt length and thread specification can be customized.
Technical Specifications
Parameters — metric thread (as printed; removed schematic columns: E, D, F, K, H, S; A/B/C were already absent)
| Item | WLL/T | Thread | Locking torque/Nm | N.G./kg |
|---|---|---|---|---|
| TSH-M8 | 0.5 | M8-1.25 | 10-40 | 0.65 |
| TSH-M10 | 0.7 | M10-1.5 | 10-40 | 0.65 |
| TSH-M12 | 1.0 | M12-1.75 | 15-40 | 0.65 |
| TSH-M14 | 1.5 | M14-2.0 | 30-100 | 0.66 |
| TSH-M16 | 2.0 | M16-2.0 | 45-130 | 0.67 |
| TSH-M18 | 2.5 | M18-2.5 | 100-170 | 1.8 |
| TSH-M20 | 3.0 | M20-2.5 | 100-170 | 1.8 |
| TSH-M22 | 3.0 | M22-2.5 | 100-170 | 1.9 |
| TSH-M24 | 4.5 | M24-3.0 | 190-280 | 1.9 |
| TSH-M27 | 5.0 | M27-3.0 | 250-500 | 5.3 |
| TSH-M30 | 7.3 | M30-3.5 | 270-600 | 5.3 |
| TSH-M33 | 8.0 | M33-3.5 | 270-600 | 5.3 |
| TSH-M36 | 10.0 | M36-4.0 | 270-600 | 5.4 |
| TSH-M39 | 10.0 | M39-4.0 | 350-800 | 5.6 |
| TSH-M42 | 12.5 | M42-4.5 | 350-800 | 5.8 |
| TSH-M45 | 15 | M45-4.5 | 350-800 | 5.9 |
| TSH-M48S | 16 | M48-5.0 | 350-800 | 6.1 |
| TSH-M48B | 20 | M48-5.0 | 350-800 | 11 |
| TSH-M52 | 20 | M52×5.0 | 350-900 | 11.4 |
| TSH-M56 | 25 | M56×5.5 | 350-900 | 11.5 |
| TSH-M60 | 25 | M60×5.5 | 350-600 | 12 |
| TSH-M64S | 32 | M64×6.0 | 500-1000 | 12.5 |
| TSH-M64B | 33 | M64×6.0 | 500-1000 | 42 |
| TSH-M72X4 | 35 | M72×4.0 | 500-1200 | 43 |
| TSH-M72X6 | 35 | M72×6.0 | 500-1200 | 43 |
| TSH-M80 | 40 | M80×6.0 | 500-1200 | 44.5 |
| TSH-M90 | 45 | M90×6.0 | 500-1500 | 46.5 |
| TSH-M100 | 50 | M100×6.0 | 500-1700 | 49 |
Parameters — UNC thread (as printed; removed schematic columns: E, D, F, K, H, S; A/B/C were already absent)
| Item | WLL/T | Thread | TPI | Locking torque/Nm | N.G./kg |
|---|---|---|---|---|---|
| TSH-5/16 | 0.5 | 5/16 | 18 | 10-40 | 0.65 |
| TSH-3/8 | 0.7 | 3/8 | 16 | 10-40 | 0.65 |
| TSH-1/2 | 1.5 | 1/2 | 13 | 15-40 | 0.65 |
| TSH-5/8 | 2 | 5/8 | 11 | 45-130 | 0.66 |
| TSH-3/4 | 3 | 3/4 | 10 | 45-130 | 1.8 |
| TSH-7/8 | 3 | 7/8 | 9 | 100-170 | 1.9 |
| TSH-1 | 4.5 | 1 | 8 | 190-280 | 1.8 |
| TSH-1-1/4 | 8 | 1-1/4 | 7 | 270-600 | 5.4 |
| TSH-1-1/2 | 10 | 1-1/2 | 6 | 270-600 | 5.5 |
| TSH-1-3/4 | 15 | 1-3/4 | 5 | 350-800 | 5.9 |
| TSH-2 | 20 | 2 | 4.5 | 350-800 | 11.2 |
| TSH-2-1/4 | 25 | 2-1/4 | 4.5 | 350-900 | 11.7 |
| TSH-2-1/2 | 32 | 2-1/2 | 4 | 500-1400 | 12.5 |
| TSH-2-3/4 | 33 | 2-3/4 | 4 | 500-1400 | 42.5 |
| TSH-3 | 35 | 3 | 4 | 500-1400 | 43.5 |
| TSH-3-1/4 | 40 | 3-1/4 | 4 | 500-1400 | 44 |
| TSH-3-1/2 | 42 | 3-1/2 | 4 | 500-1700 | 44.5 |
| TSH-3-3/4 | 45 | 3-3/4 | 4 | 500-1700 | 46.5 |
| TSH-4 | 50 | 4 | 4 | 500-1700 | 49 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
